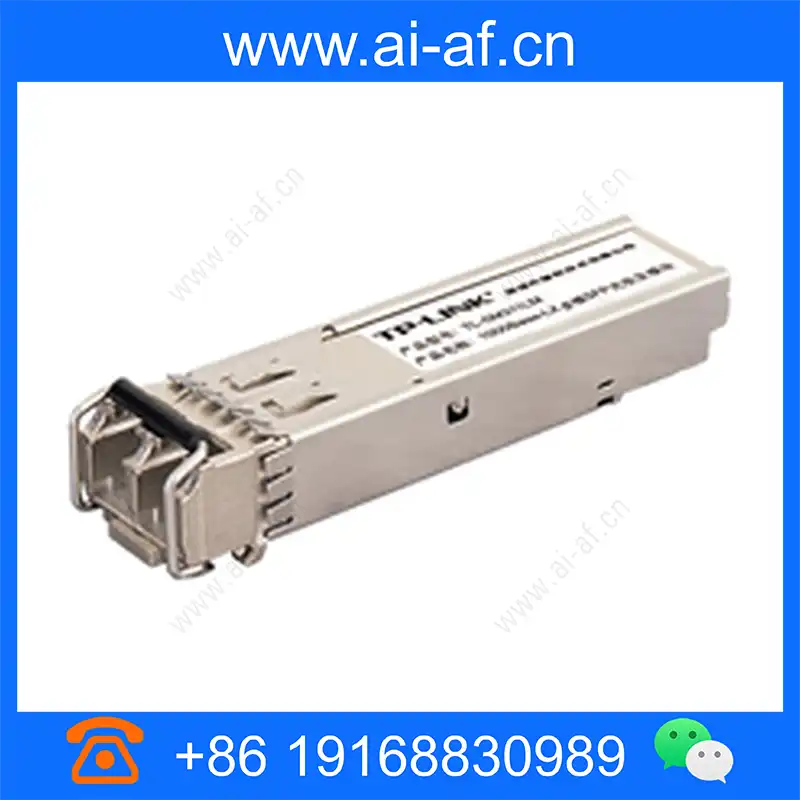

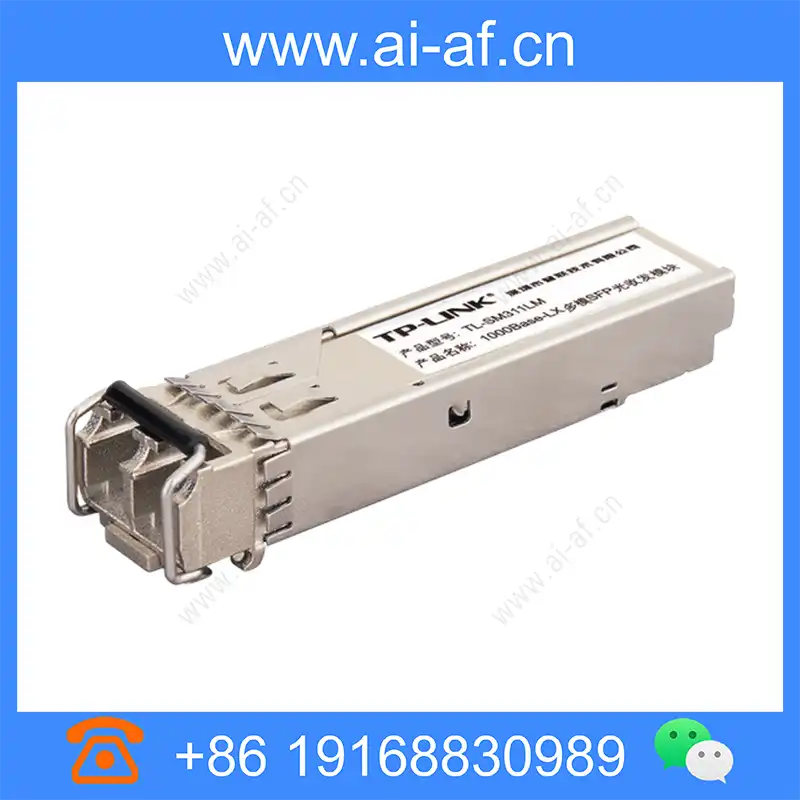

TP-LINK TL-SM311LM optical module LC multimode SFP dual fiber 2 port 1000Base-SX 550m
Complies with IEEE 802.3z standard Gigabit multi-mode dual-fiber SFP optical transceiver module, LC interface Support full duplex mode Support hot swap, automatic identification of SFP optical module Can widely adapt to SFP interfaces of switches, routers, APs and other network equipment TL-SM311LM is a Gigabit SFP optical transceiver module. Selected high-quality optical devices with superior performance provide high-performance, low-cost solutions for the growing optical fiber transmission applications at home and abroad. TL-SM311LM uses standard Gigabit SFP interface, which is fully compatible with all brand network equipment on the market. TL-SM311LM complies with IEEE802.3z protocol, working wavelength is 850nm, plug and play without configuration. It can be widely adapted to SFP
Product Features
TL-SM311LM is a Gigabit SFP optical transceiver module. Selected high-quality optical devices with superior performance provide high-performance, low-cost solutions for the growing optical fiber transmission applications at home and abroad. TL-SM311LM uses standard Gigabit SFP interface, which is fully compatible with all brand network equipment on the market. TL-SM311LM complies with IEEE802.3z protocol, working wavelength is 850nm, plug and play without configuration. It can be widely adapted to SFP interfaces of switches, routers, APs and other network devices, supports hot swapping, simple installation, convenient management, and wide application scenarios. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported protocols and standards | IEEE 802.3z 、CSMA/CD 、TCP/IP |
| Transmission medium | 50 / 125um or 62.5 / 125um multimode fiber |
| Maximum fiber length | 550m |
| transfer speed | 1.25Gbps |
| Port type | LC |
| Use wavelength | 850nm |
| powered by | 3.3V (power supply inside the switch) |
| Module use | Housing operating temperature: 0°C ~ 70°C Storage temperature: -40°C ~ 85°C Operating humidity: 10% ~ 90%RH non-condensing Storage humidity: 5% ~ 90%RH non-condensing |
| Light parameter | Average transmit optical power: -9.5~-4dBm Receive sensitivity: -18dBm |
