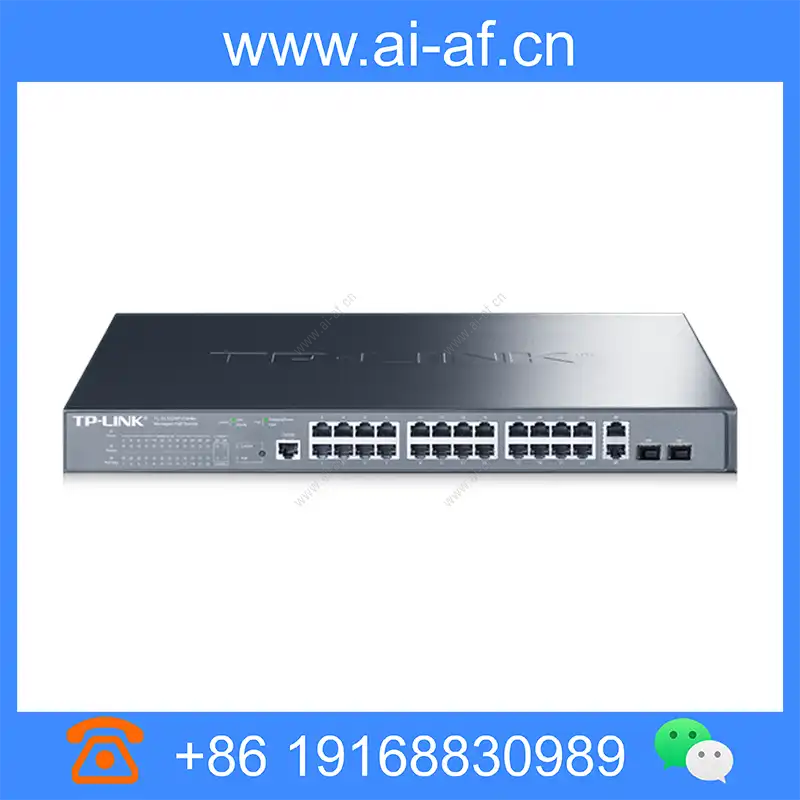

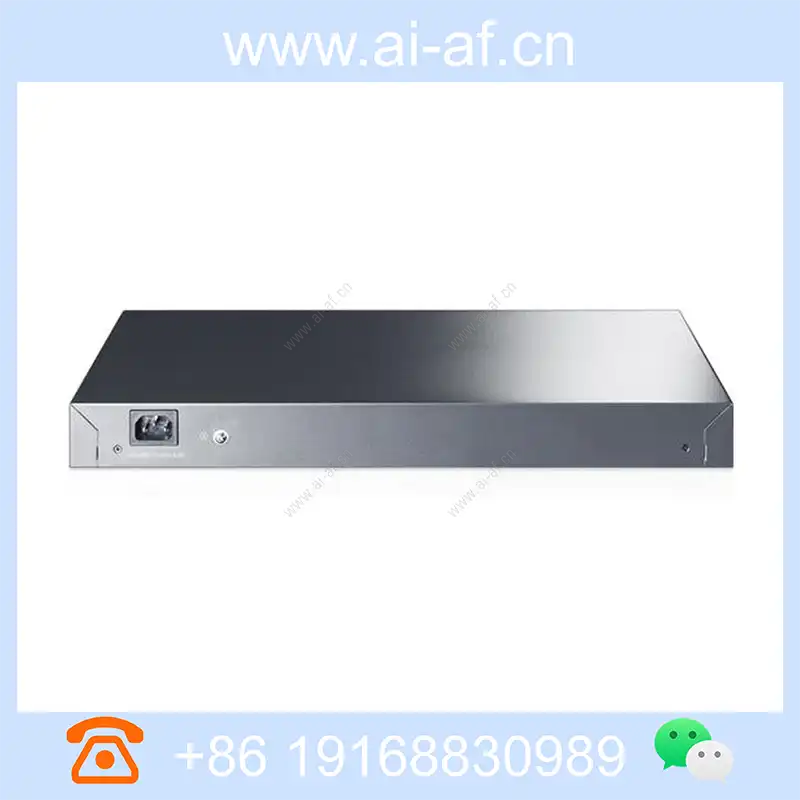

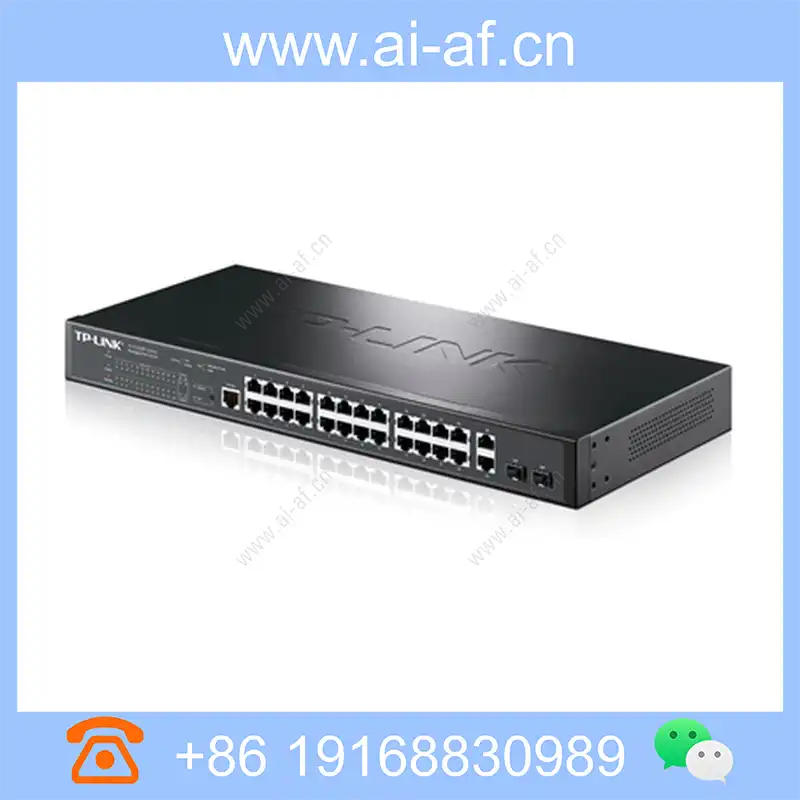

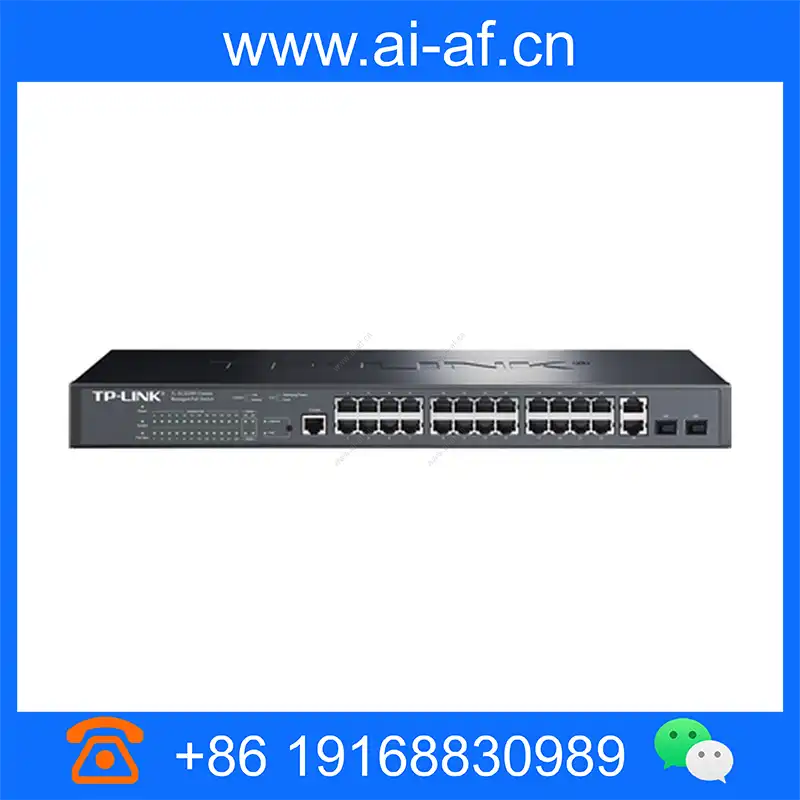

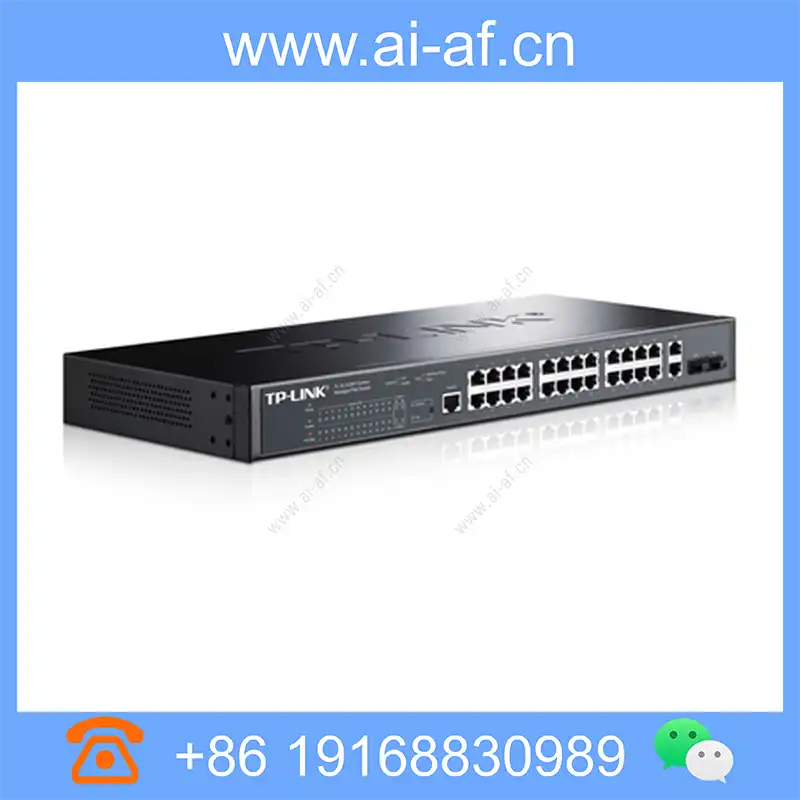

TP-LINK TL-SL3226P-Combo managed PoE switch 2GE 2SFP multiplexing 24PoE 235W

Brand: TP-LINK

Model: TL-SL3226P-COMBO

Dimensions: 440mm x 330mm x 44mm

24 10 / 100Base-T RJ45 ports (supports PoE + power supply) Two 10/100/1000Base-T RJ45 ports 2 multiplexed Gigabit SFP ports The PoE output power of the whole machine reaches 235W, and the maximum PoE output power of a single port reaches 30W Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support IEEE 802.1Q VLAN, QoS, ACL, spanning tree, multicast, IPv6 Support port security, port monitoring, port isolation Support Web network management, CLI command line, SNMP Product model TL-SL3226PE-Combo TL-SL3226P-Combo TL-SL3218PE-Combo TL-SL3210PE 100M RJ45 port 24 24 16 8 Gigabit RJ45 port 2 2 2 1 Gigabit SFP port 2 (multiplexed) 2 (multiplexed) 2 (multiplexed) 1 (independent) RJ45 Console port 1 PoE port 24FE 24FE 16FE 8FE PoE output power 384W 235W 235W 118W Machine

Product Features

24 10 / 100Base-T RJ45 ports (supports PoE + power supply)
Two 10/100/1000Base-T RJ45 ports
2 multiplexed Gigabit SFP ports
The PoE output power of the whole machine reaches 235W, and the maximum PoE output power of a single port reaches 30W
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support IEEE 802.1Q VLAN, QoS, ACL, spanning tree, multicast, IPv6
Support port security, port monitoring, port isolation
Support Web network management, CLI command line, SNMP

Product model	TL-SL3226PE-Combo	TL-SL3226P-Combo	TL-SL3218PE-Combo	TL-SL3210PE
100M RJ45 port	24	24	16	8
Gigabit RJ45 port	2	2	2	1
Gigabit SFP port	2 (multiplexed)	2 (multiplexed)	2 (multiplexed)	1 (independent)
RJ45 Console port	1
PoE port	24FE	24FE	16FE	8FE
PoE output power	384W	235W	235W	118W
Machine power consumption	433W	268W	267W	136W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
MAC address capacity	8K	8K	8K	8K
VLAN	Support 4K VLANs Support 802.1Q VLAN, Guest VLAN, Voice VLAN
PoE	Support setting PoE port priority Support setting PoE power supply time period Support setting port Power Limit
MAC address table	Follows IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table
Safety features	Based on user hierarchical management and password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN quaternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection function
Access Control (ACL)	Support L2(Layer 2)~L4(Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS remarking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support ARP protection, IP source protection, DoS protection Support CPU monitoring, memory monitoring Support system logs, graded warnings Support Ping, Tracert detection, cable detection
Shell size (mm)	440×330×44	440×180×44	440×180×44	294×180×44
Input power	220VAC , 50Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
	TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
100M RJ45 port	24
Gigabit RJ45 port	2
Gigabit SFP port	2 (multiplexed)
RJ45 Console port	1
PoE port	24FE
PoE output power	235W
Machine power consumption	268W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
MAC address capacity	8K
VLAN	Support 4K VLANs Support 802.1Q VLAN, Guest VLAN, Voice VLAN
PoE	Support to set the priority of PoE port Support to set the PoE power supply time period Support to set the port Power Limit
MAC address table	Comply with IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic and filtered address table
Safety features	Based on user hierarchical management and password protection Support based on port number, IP address, MAC address to restrict user access Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN four yuan binding Support ARP protection, IP Source protection, DoS protection support DHCP Snooping, DHCP attack protection support 802.1X authentication, AAA support port security, port isolation support CPU protection function
Access Control (ACL)	Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, port reDirection, flow rate limiting, QoS re-marking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support ARP Protection, IP source protection, DoS protection support CPU monitoring, memory monitoring support system logs, graded warning support Ping, Tracert detection, cable detection
Shell size (mm)	440x180x44
Input power	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
