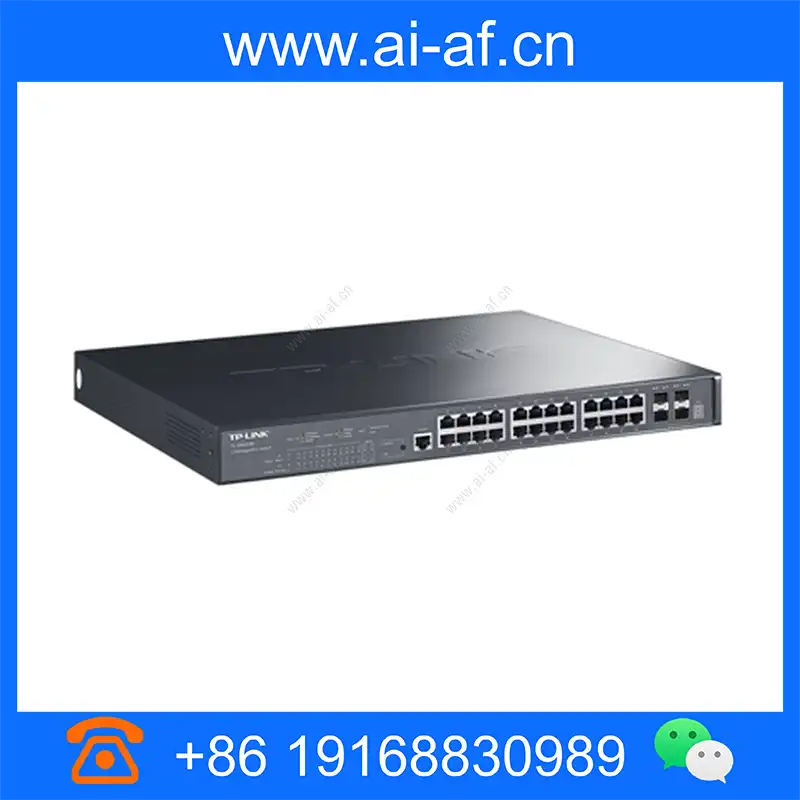

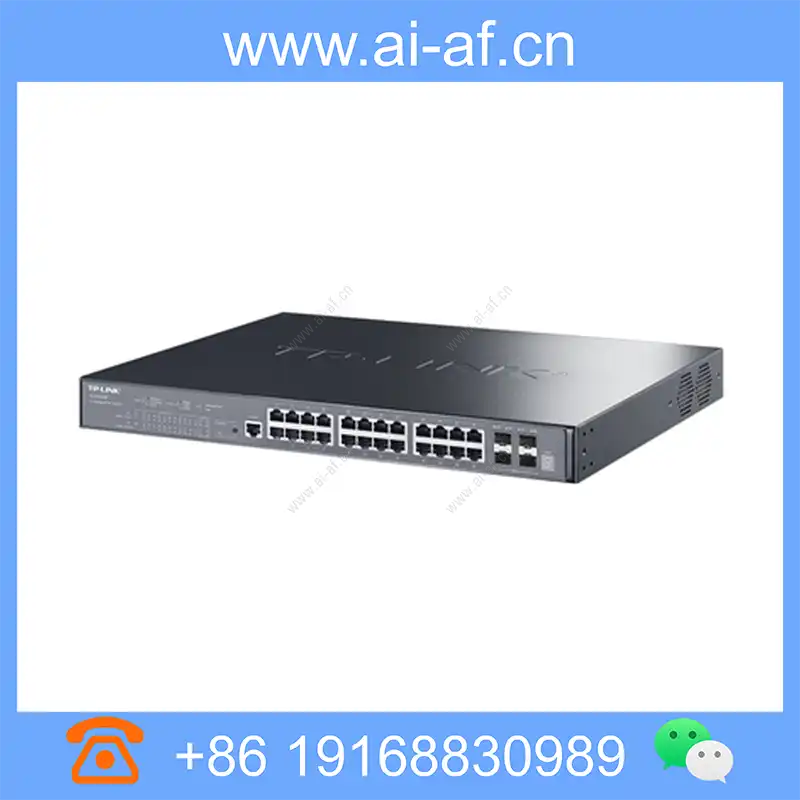

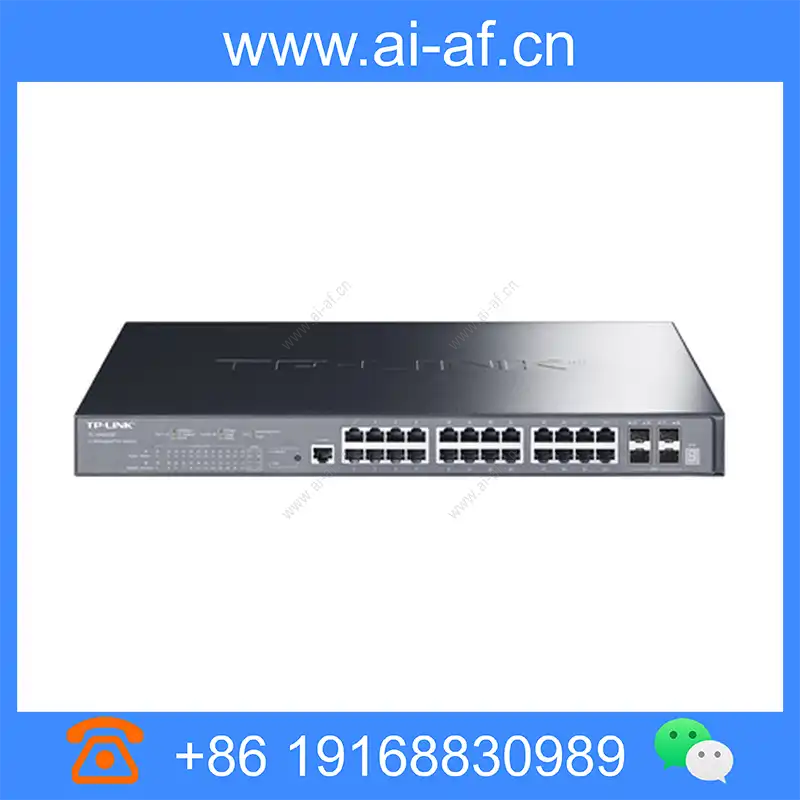

Product Features
- 24 Gigabit RJ45 ports, 4 10 Gigabit SFP+ ports
- Gigabit electrical ports support IEEE802.3at/af standard PoE+ power supply
- The maximum PoE power supply of the whole machine is 396W, and the maximum PoE power supply of the port is 30W
- Support TP-LINK commercial cloud platform management
- Support OSPF, RIP dynamic routing, static routing
- Support stacking, up to 6 stacking units
- Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
- Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
| Product model | TL-SH6428P | TL-SG5452P | TL-SG5428PE | TL-SG5226PE | | Exchange capacity | 336Gbps | 432Gbps | 336Gbps | 336Gbps | | Packet forwarding rate | 108Mpps | 87Mpps | 51Mpps | 51Mpps | | Gigabit RJ45 port | 24 | 48 | 24 | 24 | | Gigabit SFP port | 0 | 4 | 4 | 2 | | 10G SFP+ port | 4 | 0 | 0 | 0 | | RJ45 Console port | 1 | | PoE port | 24GE | 48GE | 24GE | 24GE | | PoE output power | 396W | 396W | 370W | 370W | | Machine power consumption | 470W | 465W | 425W | 433W | | PoE standard | IEEE 802.3at(PoE+)、IEEE 802.3af | | MAC address capacity | 16K | 16K | 8K | 8K | | routing | Support RIP V1/V2 dynamic routing, OSPF dynamic routingSupport static routingSupport ARP proxy | | Stack | Support, 6 stacking units | not support | not support | not support | | DHCP | Support DHCP serverSupport DHCP relaySupport DHCP SnoopingSupport Option138, Option82, Option60 | | VLAN | Support 4K VLANsSupport 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLANSupport Guest VLAN, Voice VLANSupport VLAN VPN (QinQ)Support GVRP protocolSupport 1:1 and N:1 VLAN Mapping function | | PoE | Support setting PoE port prioritySupport setting PoE power supply time periodSupport setting port Power Limit | | MAC address table | Follows IEEE 802.1d standardSupport MAC address automatic learning and agingSupport static, dynamic, filtering address table | | Safety features | Based on user hierarchical management and password protectionSupport to restrict user access based on port number, IP address, MAC addressSupport HTTPS, SSL V3, TLS V1, SSH V1/V2Support IP-MAC-PORT-VLAN quaternary bindingSupport ARP protection, IP source protection, DoS protectionSupport DHCP Snooping, DHCP attack protectionSupport 802.1X authentication, AAASupport port security, port isolationSupport CPU protection function | | Access Control (ACL) | Support L2(Layer 2)~L4(Layer 4) packet filtering functionSupport port mirroring, port redirection, flow rate limit, QoS remarking | | Quality of Service (QoS) | Support 8 port queuesSupport port priority, 802.1P priority, DSCP prioritySupport SP, WRR, SP+WRR, Equ priority scheduling algorithm | | Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocolsSupport loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering | | Multicast | Support IGMP v1/v2/v3 SnoopingSupport quick leave mechanismMulticast VLAN supportedSupport multicast filtering, packet statistics, unknown multicast discard | | IPv6 | Support MLD SnoopingSupport IPv6 Ping, IPv6 Tracert, IPv6 TelnetSupport IPv6 SNMP, IPv6 SSH, IPv6 SSL | | Management and maintenance | Support TP-LINK commercial cloud platform managementSupport WEB network management (HTTP, HTTPS, SSL V3, TLS V1)Support CLI (Telnet, SSH V1/V2, local serial port)Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBsSupport LLDP, RMONSupport ARP protection, IP source protection, DoS protectionSupport CPU monitoring, memory monitoringSupport system logs, graded warningsSupport Ping, Tracert detection, cable detection | | Shell size (mm) | 440×330×44 | 440×330×44 | 440×330×44 | 440×330×44 | Input power
| 220VAC , 50Hz | | Use environment | Work temperature: 0°C ~ 40°CStorage temperature: -40℃~70℃Working humidity: 10% ~ 90% RH without condensationStorage humidity: 5% to 90% RH without condensation |
|
