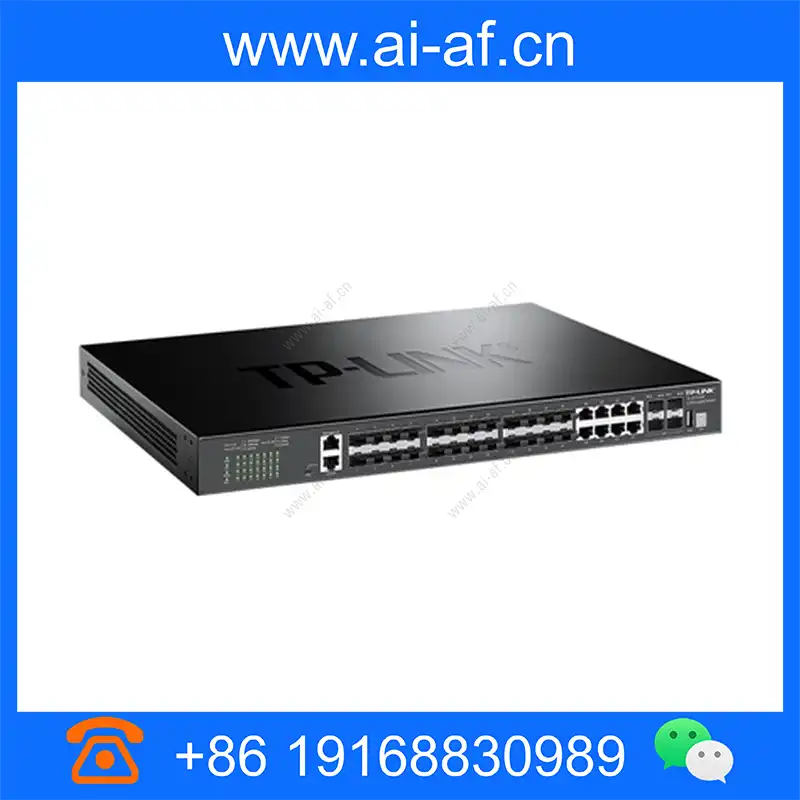

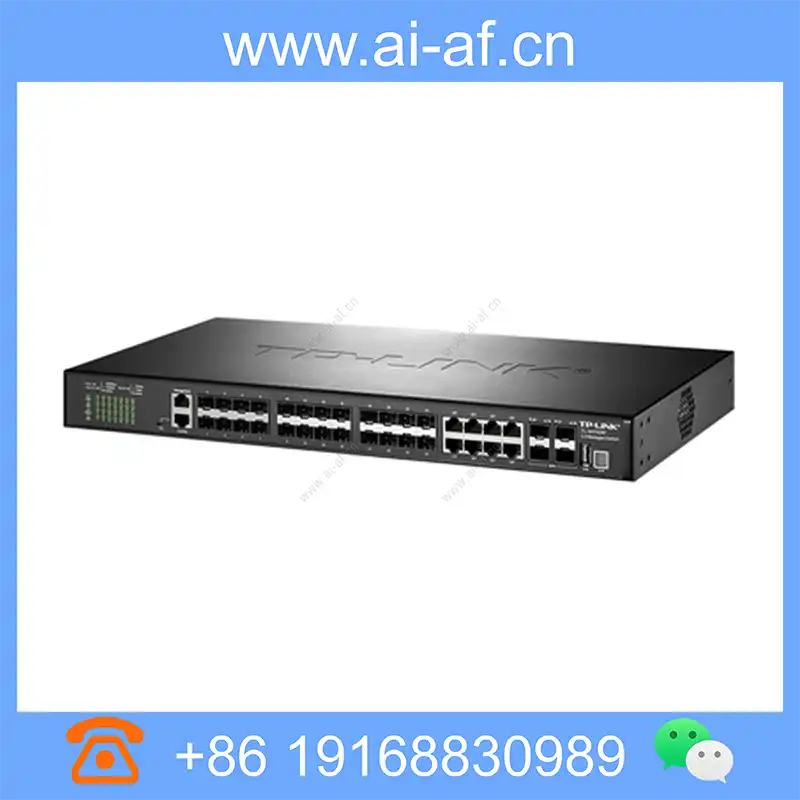

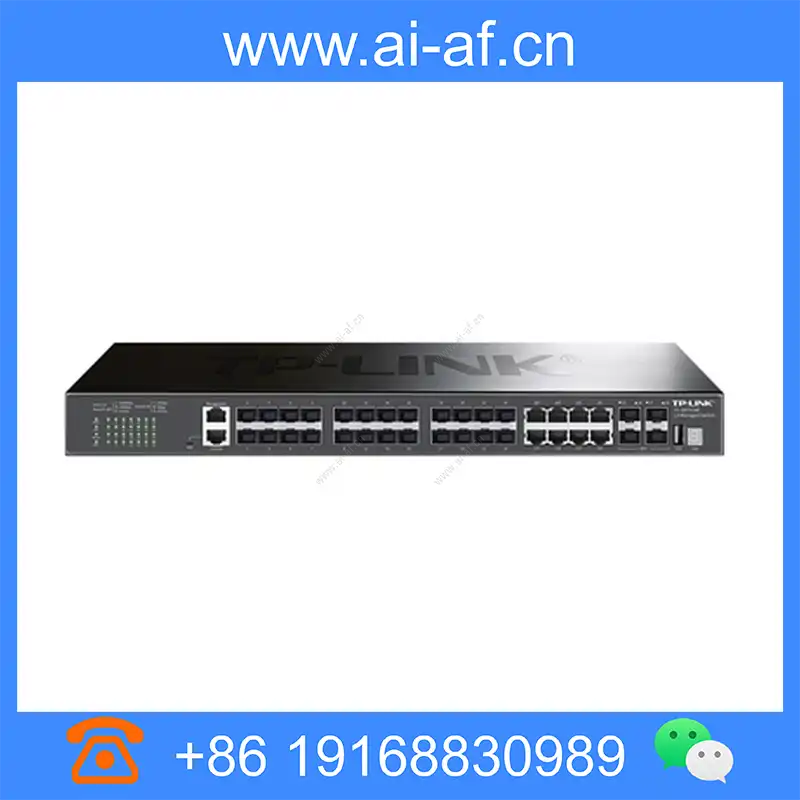

Product Features

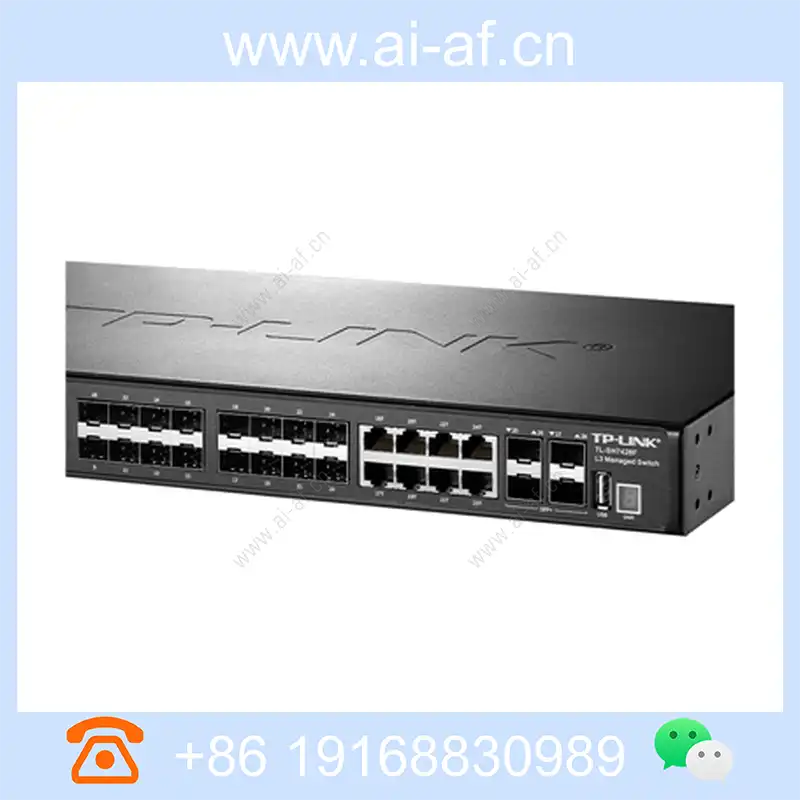

- 24 1000Mbps SFP ports, 8 multiplexed Gigabit RJ45 ports
- 4 x 10 Gig SFP+ ports
- Support Micro USB Console port, USB storage port, Management management port
- Support OSPF, RIP dynamic routing, static routing
- Support DHCP server, DHCP relay, DHCP Snooping
- Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
- Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
- Support TP-LINK commercial cloud platform management

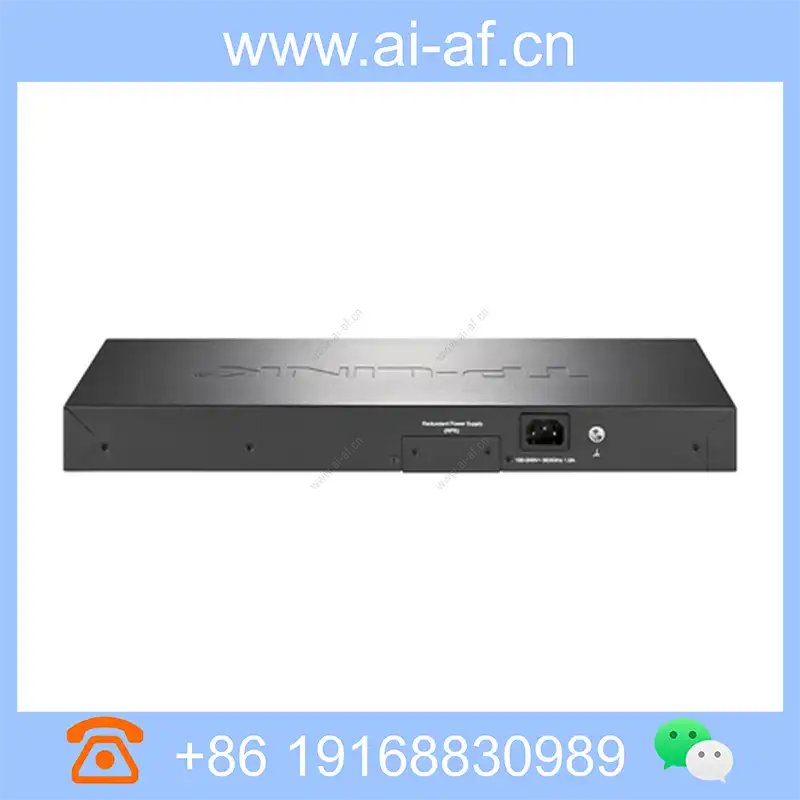

| Product model | TL-SH8434F | TL-SH8434 | TL-SH7428F | TL-SH7428 | TL-SH6428 | | Exchange capacity | 432Gbps | 432Gbps | 432Gbps | 432Gbps | 336Gbps | | Packet forwarding rate | 167Mpps | 167Mpps | 120Mpps | 120Mpps | 108Mpps | | Gigabit RJ45 port | 4 (independent) | 28 | 8 (multiplexed) | 24 | 24 | | Gigabit SFP port | 24 | 4 (multiplexed) | 24 | 4 (multiplexed) | 0 | | 10G SFP+ port | 4 | 4 | 4 | 4 | 4 | | QSFP+ stacking port | 2 | 2 | 0 | 0 | 0 | | RJ45 Console port | 1 | 1 | 1 | 1 | 1 | | Micro USB Console port | 1 | 1 | 1 | 1 | 0 | | USB storage port | 1 | 1 | 1 | 1 | 0 | | Management management port | 1 | 1 | 1 | 1 | 0 | | RPS redundant power connector | stand by | stand by | stand by | stand by | not support | | Stack | Support (8 stacking units) | Support (8 stacking units) | Currently not supported (subsequent software support) | Support (8 stacking units) | Support (6 stacking units) | | MAC address capacity | 32K | 32K | 16K | 16K | 16K | | TP-LINK commercial cloud platform | stand by | stand by | stand by | stand by | stand by | | routing | Support BGP dynamic routing Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy | Support BGP dynamic routing Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy | Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy | Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy | Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy | | DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60 | | VLAN | Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function | | MAC address table | Follows IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table | | Safety features | Based on user hierarchical management and password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN quaternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection function | | Access Control (ACL) | Support L2(Layer 2)~L4(Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS remarking | | Quality of Service (QoS) | Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm | | Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering | | Multicast | Support PIM-DM, PIM-SM, static multicast routing Support IGMP v1/v2/v3 Snooping Support quick leave mechanism Multicast VLAN supported Support multicast filtering, packet statistics, unknown multicast discard | | Management and maintenance | Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support CPU monitoring, memory monitoring Support system logs, graded warnings Support Ping, Tracert detection, cable detection | | Shell size (mm) | 440×220×44 | 440×220×44 | 440×220×44 | 440×220×44 | 440×220×44 | | Input power | 100~240VAC, 50/60Hz | | Use environment | Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation |
|
