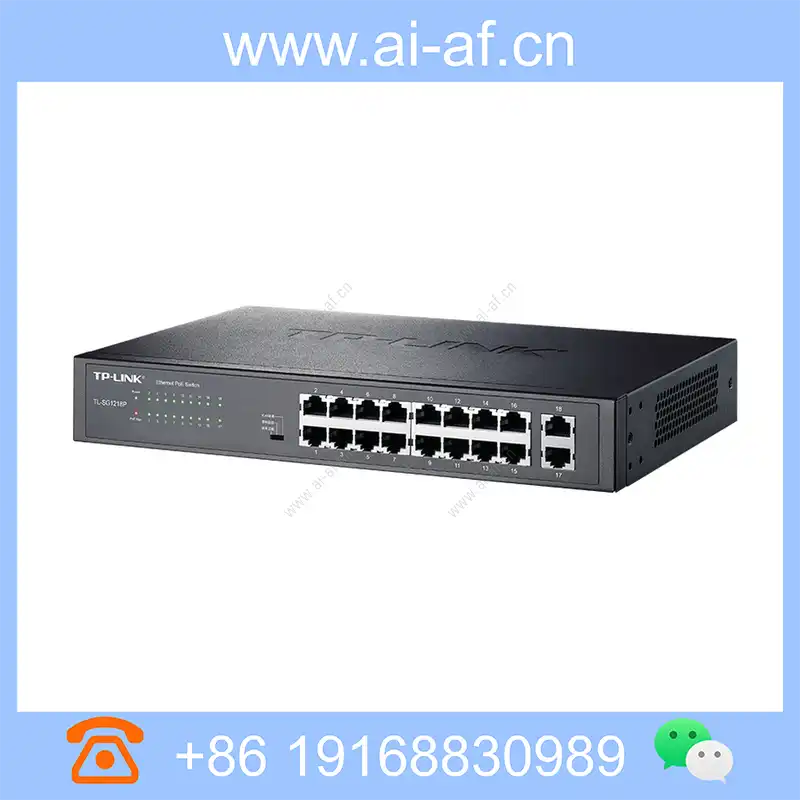

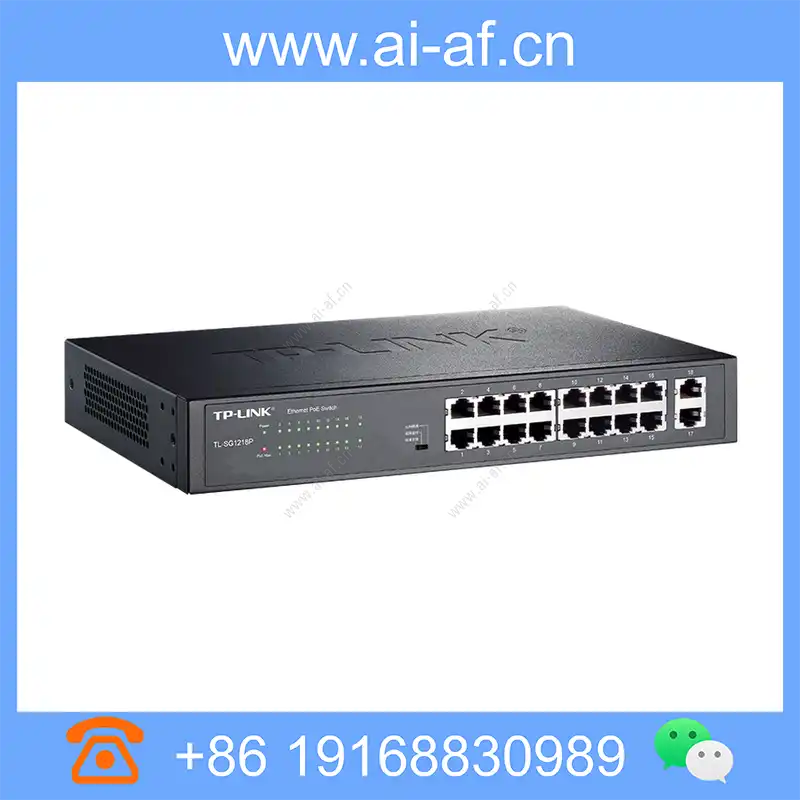

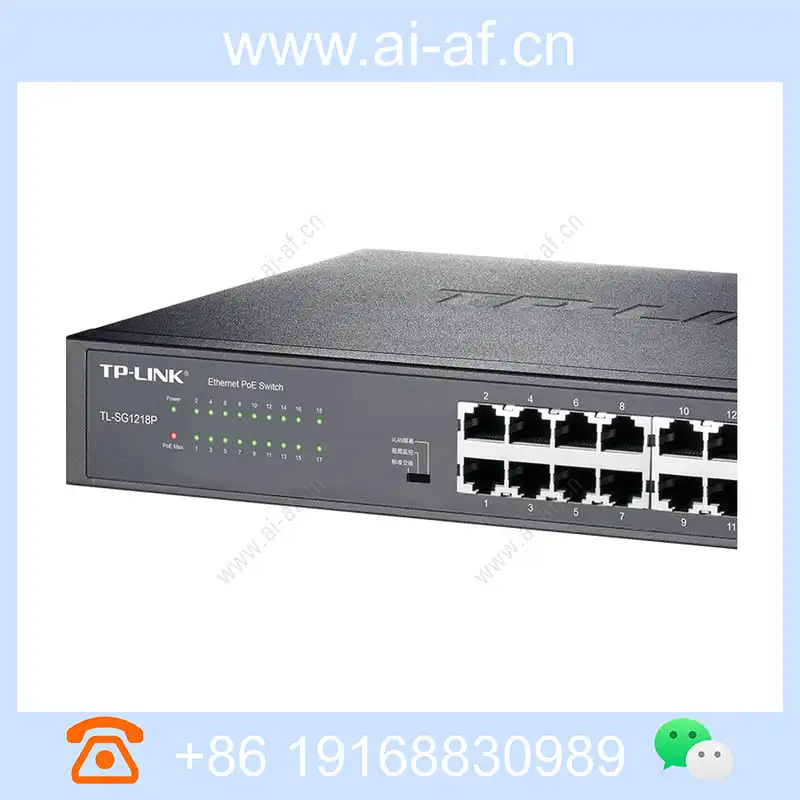

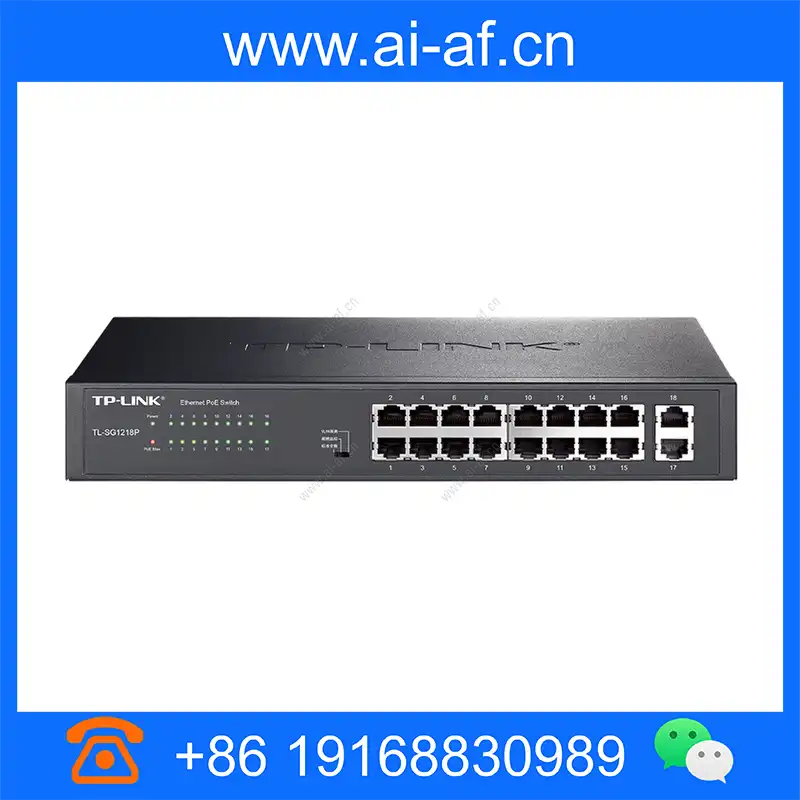

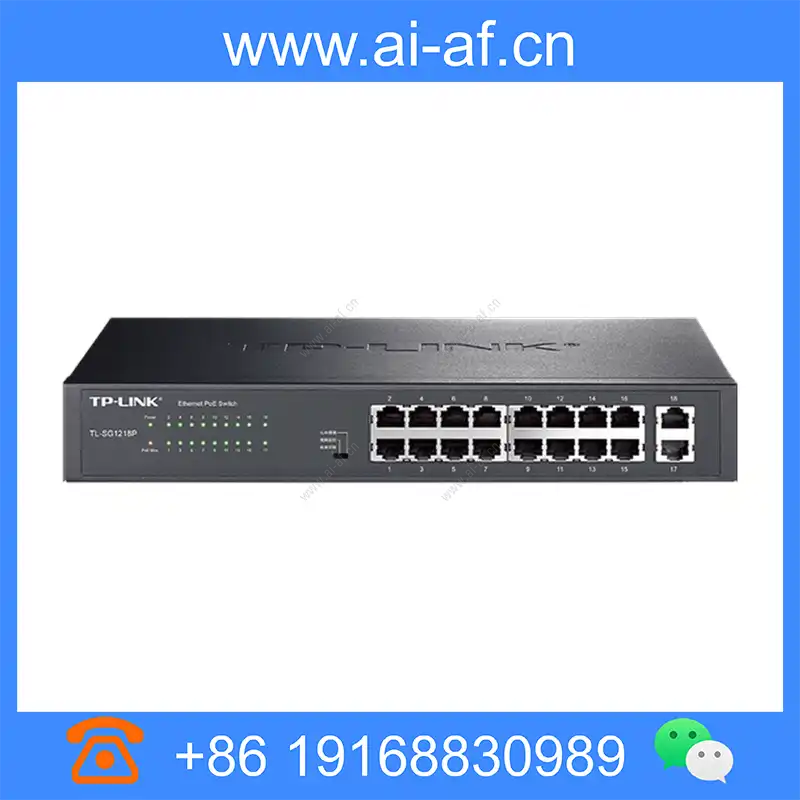

TP-LINK TL-SG1218P 18-port full gigabit unmanaged PoE switch 2GE 16PoE 180W
The whole machine provides 18 10/100/1000Base-T RJ45 ports 16 Gigabit RJ45 ports support PoE + power supply The maximum PoE power supply of the whole machine is 180W, and the maximum PoE power supply of a single port is 30W PoE power port supports priority mechanism Support video surveillance, VLAN isolation, standard switching three working modes Product model TL-SG1452P TL-SG1226PE TL-SG1226P TL-SG1218PE TL-SG1218P TL-SG1210PE Gigabit RJ45 port 48 24 24 16 18 9 Gigabit SFP port 4 2 2 2 0 1 PoE port 48GE 24GE 24GE 16GE 16GE 8GE PoE output power 396W 375W 225W 225W 180W 121W Machine power consumption 465W 434W 267W 260W 209W 136W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Mode switch no Standard switching, video surveillance, VLAN isolation no MAC address capacity 16K 8K 8K 8K 8K 8K
Product Features
? |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Gigabit RJ45 port | 18 |
| Gigabit SFP port | 0 |
| PoE port | 16GE |
| PoE output power | 180W |
| Machine power consumption | 109W |
| PoE standard | IEEE 802.3at(PoE+)、IEEE 802.3af |
| Mode switch | Standard switching, video surveillance, VLAN isolation |
| MAC address capacity | 8K |
| Shell size (mm) | 294x180x44 |
| Input power | 220VAC , 50Hz |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
