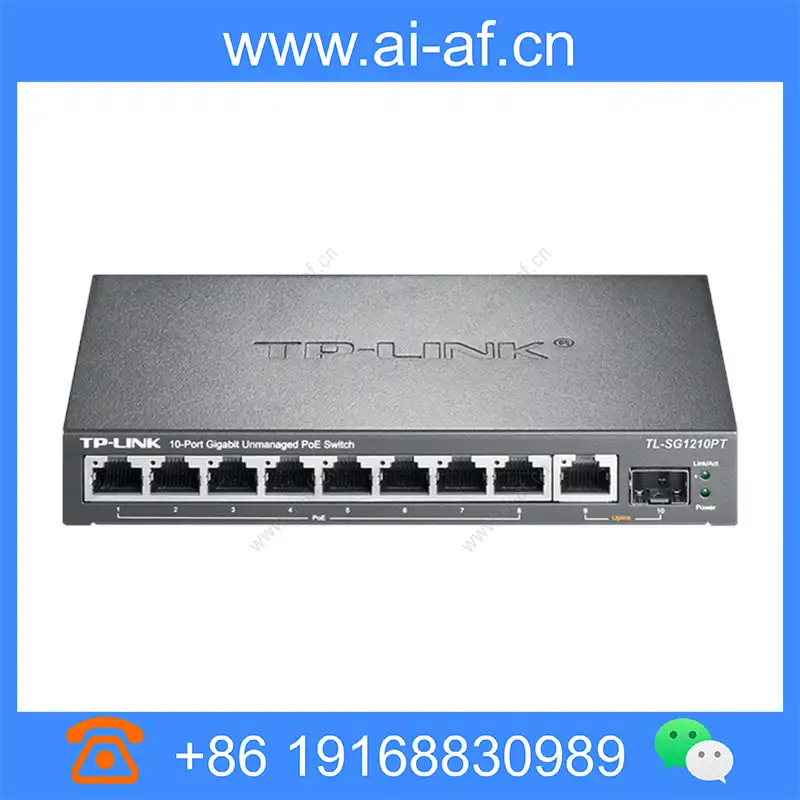

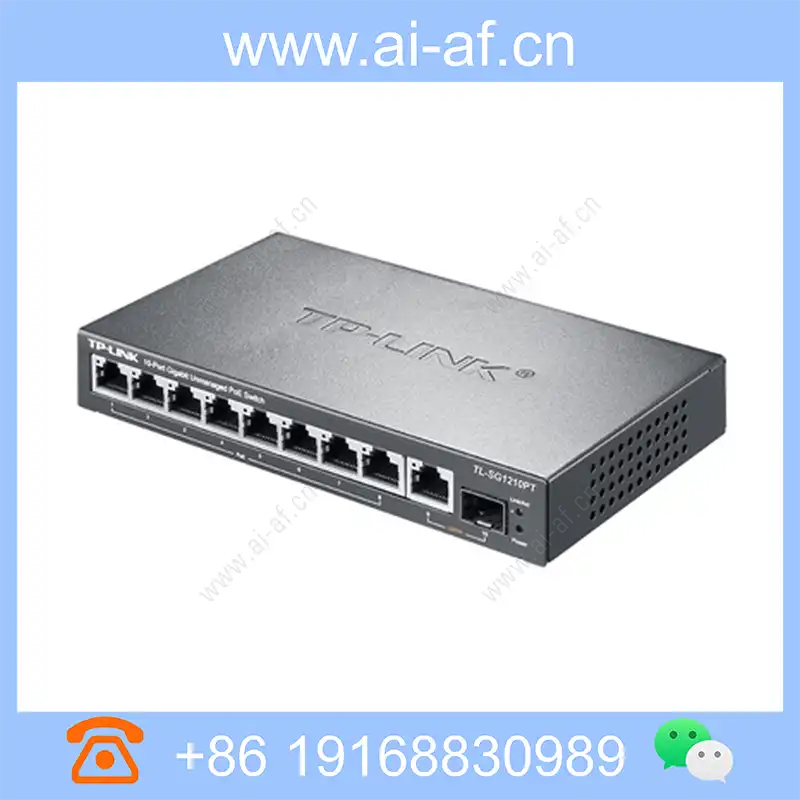

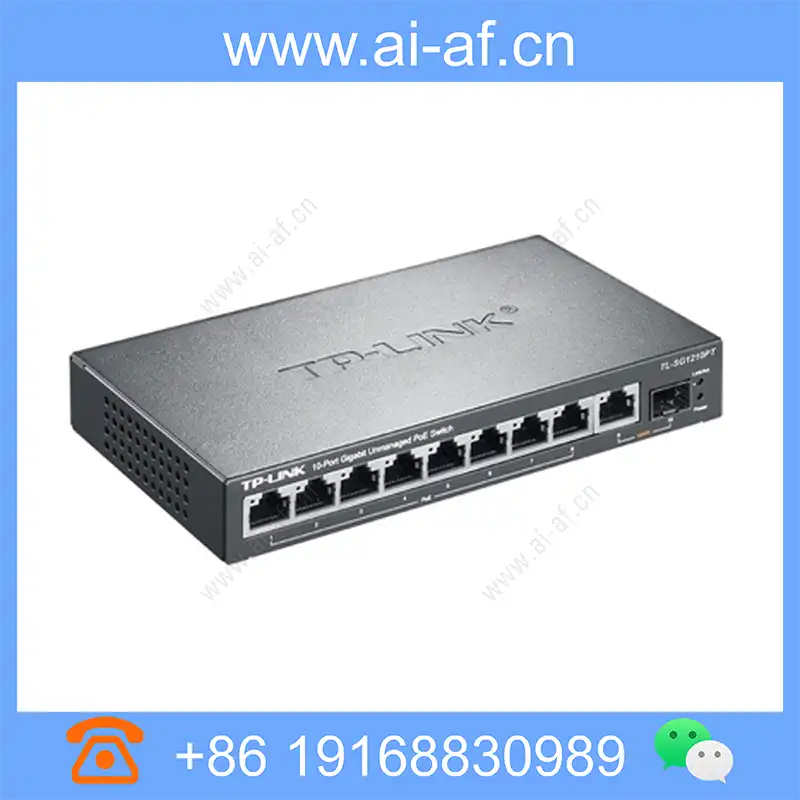

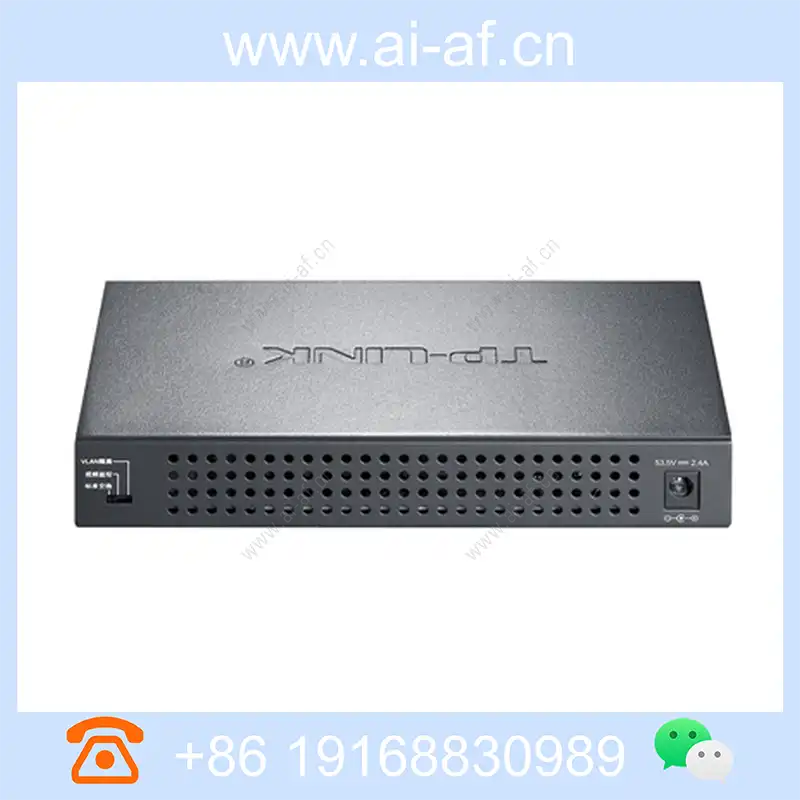

TP-LINK TL-SG1210PT gigabit unmanaged PoE switch 10-port 1GE 1SFP 8PoE 121W

Brand: TP-LINK

Model: TL-SG1210PT

Dimensions: 171mm x 98mm x 27mm

Eight 10/100/1000Base-T RJ45 ports (supports PoE + power supply) 1 10/100/1000Base-T RJ45 port and 1 independent Gigabit SFP port The maximum PoE power supply of the whole machine is 120W, and the maximum PoE power supply of a single port is 30W PoE power port supports priority mechanism Support video surveillance, VLAN isolation, and standard switching Product model TL-SG1210PT TL-SG1210P TL-SG1009PH TL-SG1005PE TL-SG1005P Gigabit RJ45 port 9 9 9 5 5 Gigabit SFP port 1 1 0 0 0 PoE port 8GE 8GE 8GE 4GE 4GE PoE output power 120W 57W 76W 62W 60W Machine power consumption 134W 68W 88W 70W 66W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Mode switch Standard switching, video surveillance, VLAN isolation no MAC address capacity 4K 4K 2K 2K 2K Shell size (mm) 171×98×27 171×98×27 226×131×35

Product Features

Eight 10/100/1000Base-T RJ45 ports (supports PoE + power supply)
1 10/100/1000Base-T RJ45 port and 1 independent Gigabit SFP port
The maximum PoE power supply of the whole machine is 120W, and the maximum PoE power supply of a single port is 30W
PoE power port supports priority mechanism
Support video surveillance, VLAN isolation, and standard switching

Product model	TL-SG1210PT	TL-SG1210P	TL-SG1009PH	TL-SG1005PE	TL-SG1005P
Gigabit RJ45 port	9	9	9	5	5
Gigabit SFP port	1	1	0	0	0
PoE port	8GE	8GE	8GE	4GE	4GE
PoE output power	120W	57W	76W	62W	60W
Machine power consumption	134W	68W	88W	70W	66W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Mode switch	Standard switching, video surveillance, VLAN isolation		no
MAC address capacity	4K	4K	2K	2K	2K
Shell size (mm)	171×98×27	171×98×27	226×131×35	226×131×35	100×98×25
Input power	53.5VDC/2.4A	53.5VDC/1.22A	220VAC , 50Hz		53.5VDC/1.22A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
	TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
Gigabit RJ45 port	9
Gigabit SFP port	1
PoE port	8GE
PoE output power	120W
Machine power consumption	134W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Mode switch	Standard switching, video surveillance, VLAN isolation
MAC address capacity	4K
Shell size (mm)	171x98x27
Input power	53.5VDC/2.4A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
