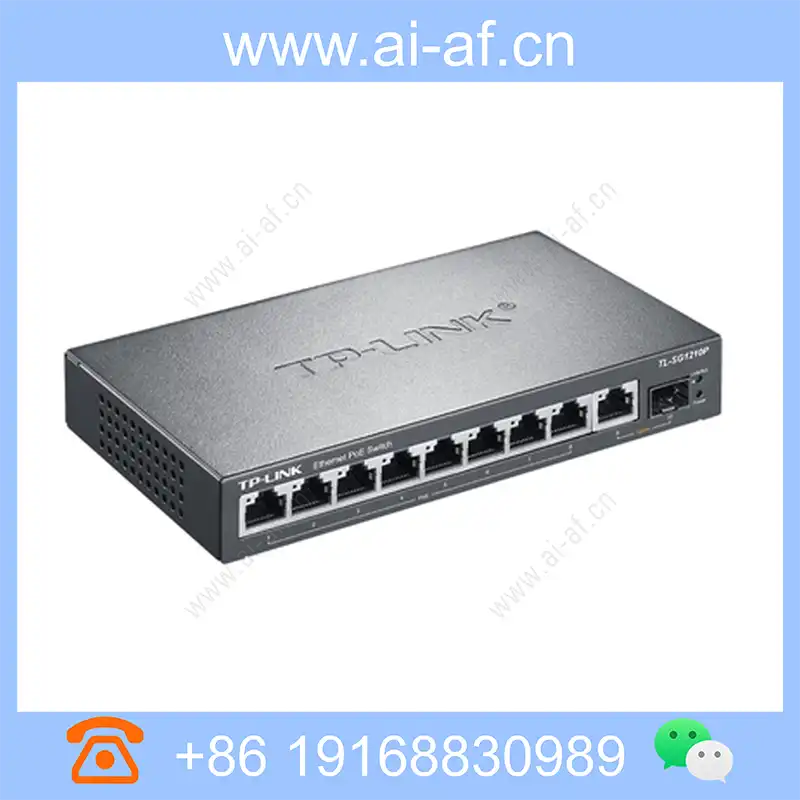

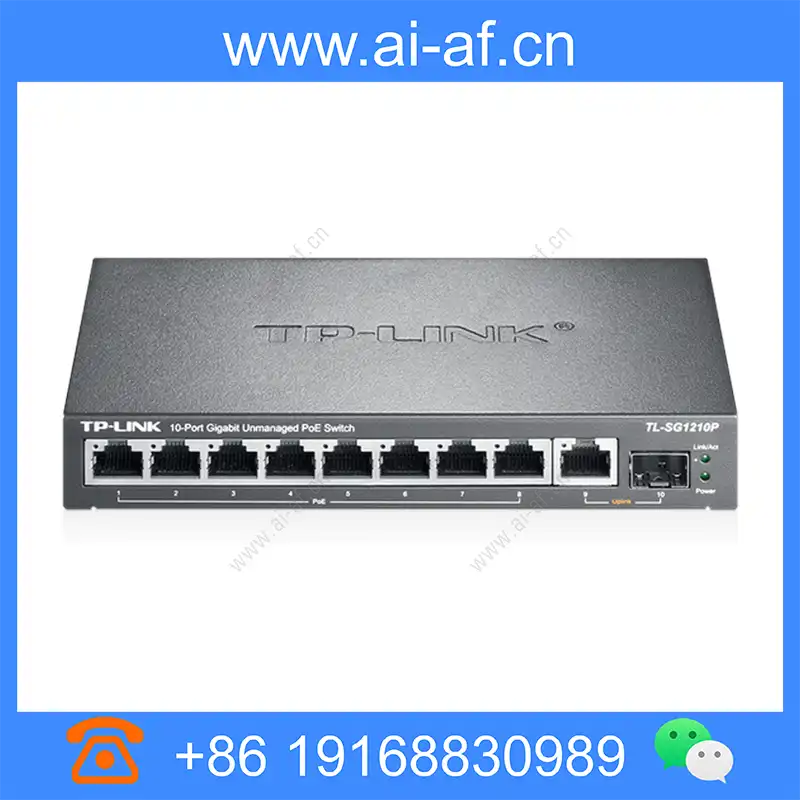

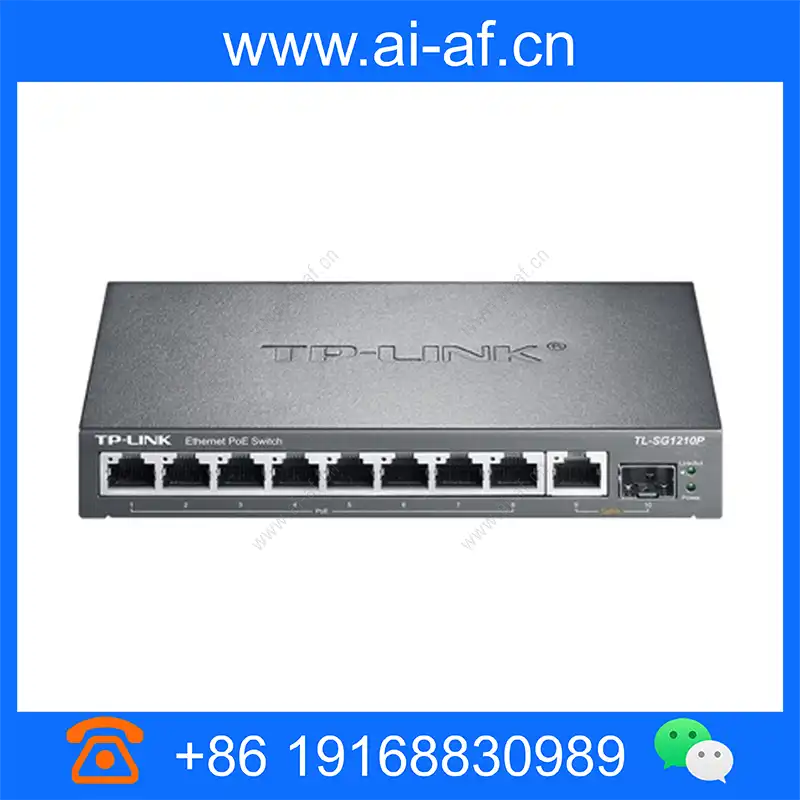

TP-LINK TL-SG1210P 10-port gigabit unmanaged PoE switch 1GE 1SFP 8PoE 54W

Brand: TP-LINK
Model: TL-SG1210P
Dimensions: 171mm x 98mm x 27mm

Eight 10/100/1000Base-T RJ45 ports support PoE + power supply 1 10/100/1000Base-T RJ45 port and 1 independent Gigabit SFP port The maximum PoE power supply of the whole machine is 57W, and the maximum PoE power supply of a single port is 30W PoE power port supports priority mechanism Support video surveillance, VLAN isolation, and standard switching Product model TL-SG1210PT TL-SG1210P TL-SG1009PH TL-SG1005PE TL-SG1005P Gigabit RJ45 port 9 9 9 5 5 Gigabit SFP port 1 1 0 0 0 PoE port 8GE 8GE 8GE 4GE 4GE PoE output power 120W 57W 76W 62W 60W Machine power consumption 134W 68W 88W 70W 66W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Mode switch Standard switching, video surveillance, VLAN isolation no MAC address capacity 4K 4K 2K 2K 2K Shell size (mm) 171×98×27 171×98×27 226×131×35

Product Features

    • Eight 10/100/1000Base-T RJ45 ports support PoE + power supply
    • 1 10/100/1000Base-T RJ45 port and 1 independent Gigabit SFP port
    • The maximum PoE power supply of the whole machine is 57W, and the maximum PoE power supply of a single port is 30W
    • PoE power port supports priority mechanism
    • Support video surveillance, VLAN isolation, and standard switching
Product model TL-SG1210PT TL-SG1210P TL-SG1009PH TL-SG1005PE TL-SG1005P
Gigabit RJ45 port 9 9 9 5 5
Gigabit SFP port 1 1 0 0 0
PoE port 8GE 8GE 8GE 4GE 4GE
PoE output power 120W 57W 76W 62W 60W
Machine power consumption 134W 68W 88W 70W 66W
PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af
Mode switch Standard switching, video surveillance, VLAN isolation no
MAC address capacity 4K 4K 2K 2K 2K
Shell size (mm) 171×98×27 171×98×27 226×131×35 226×131×35 100×98×25

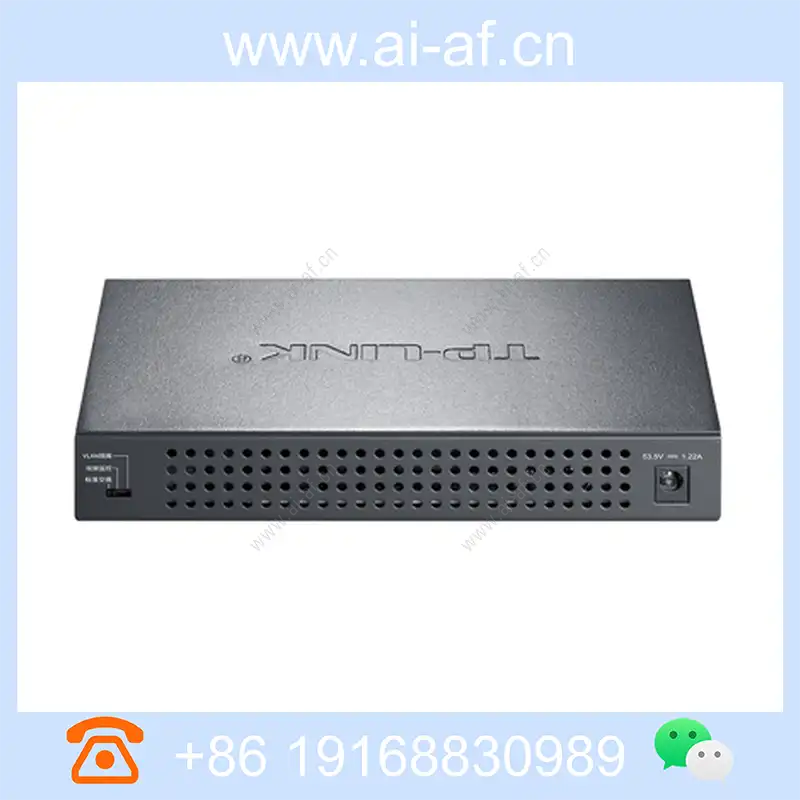

Input power
 53.5VDC/2.4A 53.5VDC/1.22A 220VAC , 50Hz 53.5VDC/1.22A
Use environment
  • Work temperature: 0°C ~ 40°C
  • Storage temperature: -40℃~70℃
  • Working humidity: 10% ~ 90% RH without condensation
  • Storage humidity: 5% to 90% RH without condensation

    • Recommended for supporting optical module/electrical port module

    Module typeProduct modelratedistanceTransmission mediumCenter wavelengthWorking temperature of housing
    Optical moduleTL-SM311LSA/B-20KM1.25Gbps20kmSMF, single fiber LCA:1550/1310nm
    B:1310/1550nm    		0~70℃
    TL-SM311LSA/B-2KM1.25Gbps2kmSMF, single fiber LCA:1550/1310nm
    B:1310/1550nm    		0~70℃
    TL-SM311SSA/B-2KM1.25Gbps2kmSMF, Single Fiber SCA:1550/1310nm
    B:1310/1550nm    		0~70℃
    TL-SM312LS-40KM1.25Gbps40kmSMF, double fiber LC1310nm0~70℃
    TL-SM312LS-20KM1.25Gbps20kmSMF, double fiber LC1310nm0~70℃
    TL-SM312LS-20KM Industrial Grade1.25Gbps20kmSMF, double fiber LC1310nm-40~85℃
    TL-SM311LM1.25Gbps550mOM2 MMF, Double Fiber LC850nm0~70℃
    Electrical port moduleTL-SM310U1Gbps100mSuper five network cable—0~70℃

    Technical Specifications

    Property DescriptionProperty Value
    Gigabit RJ45 port9
    Gigabit SFP port1
    PoE port8GE
    PoE output power57W
    Machine power consumption68W
    PoE standardIEEE 802.3at(PoE+)、IEEE 802.3af
    Mode switchStandard switching, video surveillance, VLAN isolation
    MAC address capacity4K
    Shell size (mm)171x98x27
    Input power53.5VDC/1.22A
    Use environmentOperating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
