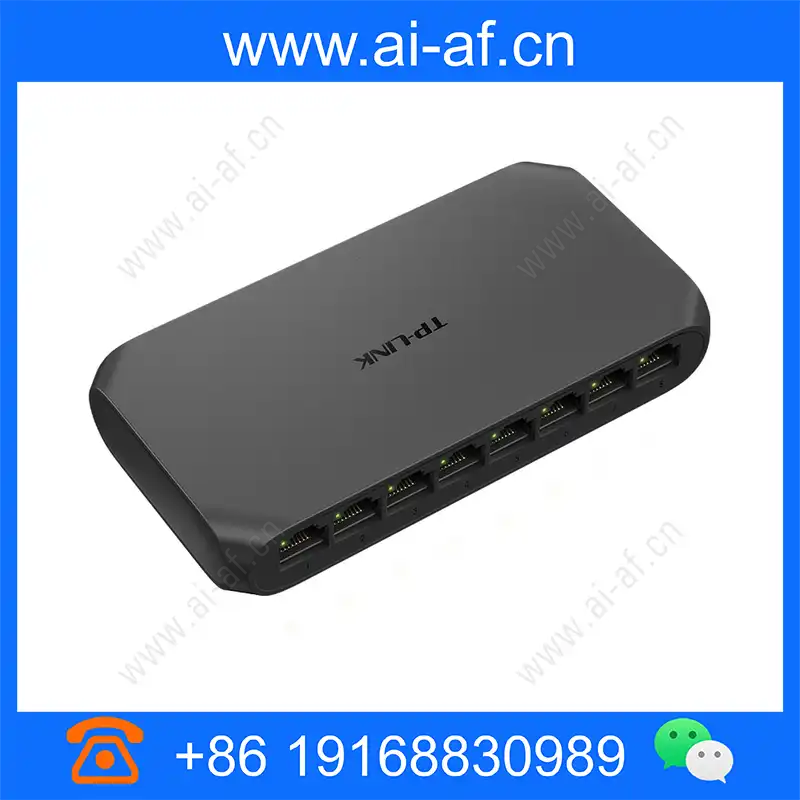

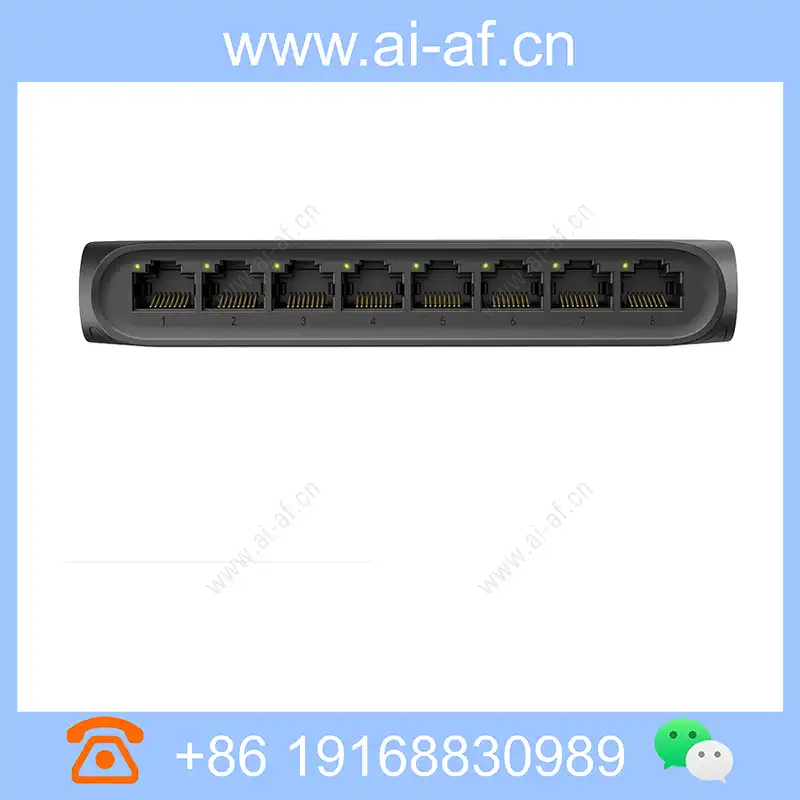

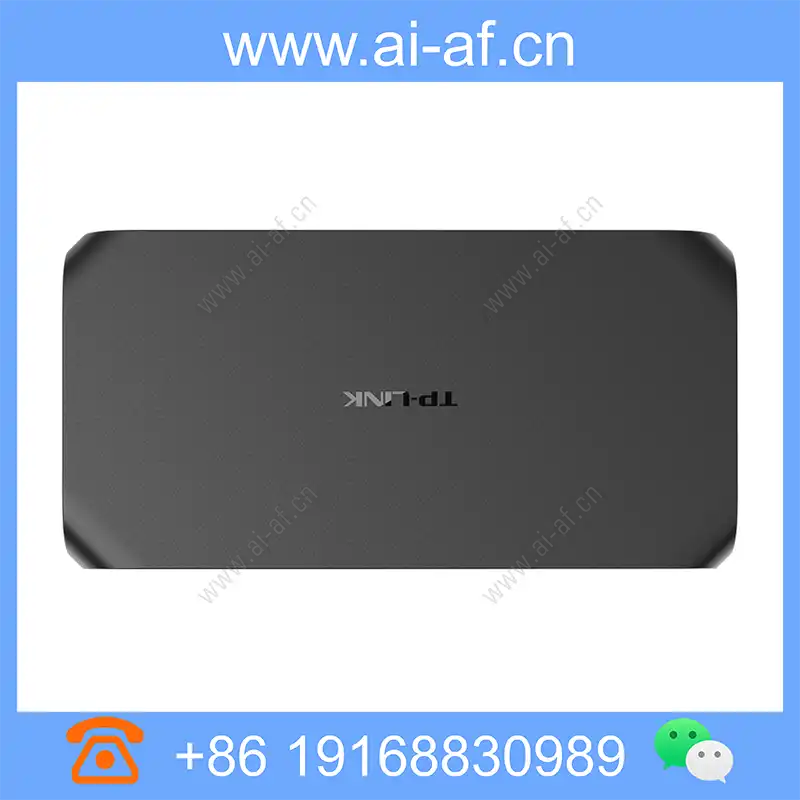

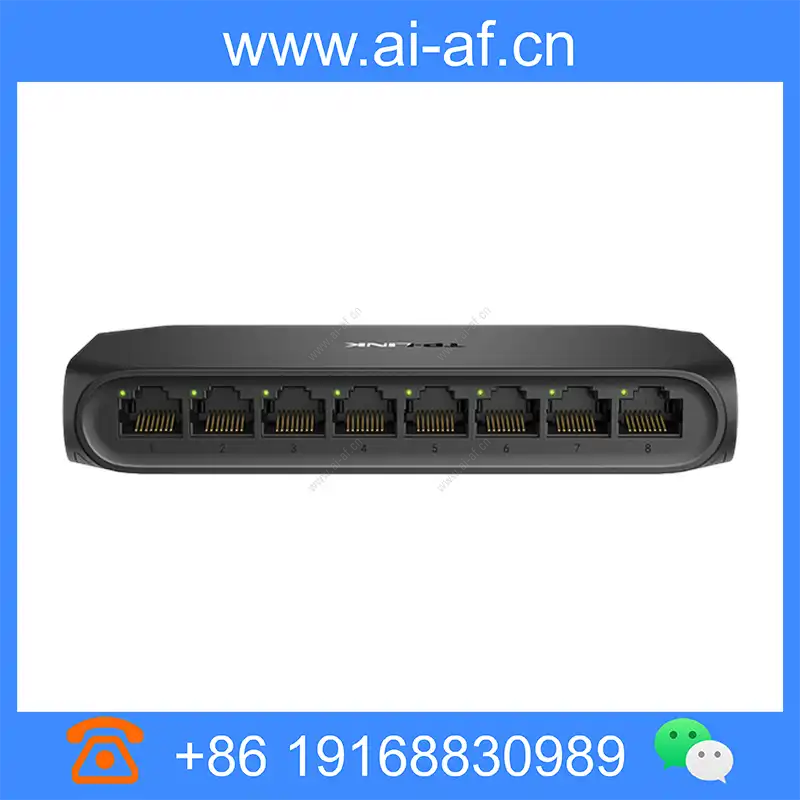

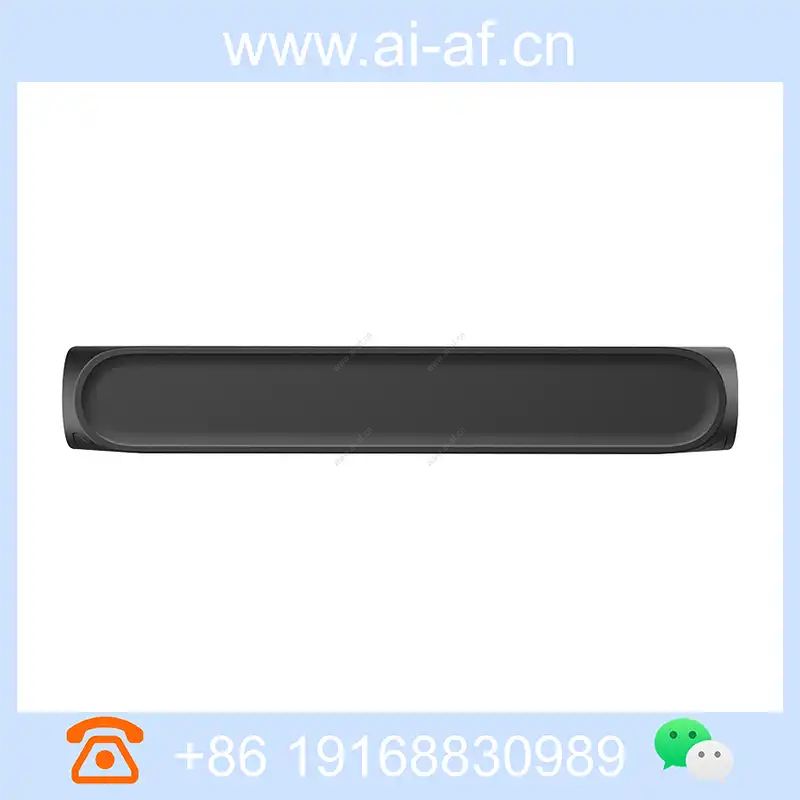

TP-LINK TL-SG1008U 8-port gigabit unmanaged switch plastic shell layer 2
Brand: TP-LINK
Model: TL-SG1008U
Dimensions: 138mm x 70mm x 22mm
Eight 10/100/1000M adaptive RJ45 ports All ports have wire-speed forwarding capabilities Support port auto flip (Auto MDI / MDIX) function Support MAC address self-learning; support full-duplex working mode Desktop plastic shell, plug and play, no management Network Standard IEEE 802.3 、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x port Eight 10/100/1000Mbps RJ45 ports Indicator light 1 Link/Ack indicator per port 1 Power indicator per device performance Store and forward support 2K MAC address table depth Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing Input power 9VDC/0.6A Dimensions (L x W x H) 138mm x 70mm x 22mm
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Network Standard | IEEE 802.3 、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x |
| port | Eight 10/100/1000Mbps RJ45 ports |
| Indicator light | 1 Link/Ack indicator per port 1 Power indicator per device |
| performance | Store and forward support 2K MAC address table depth |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing |
| Input power | 9VDC/0.6A |
| Dimensions (L x W x H) | 138mm x 70mm x 22mm |
