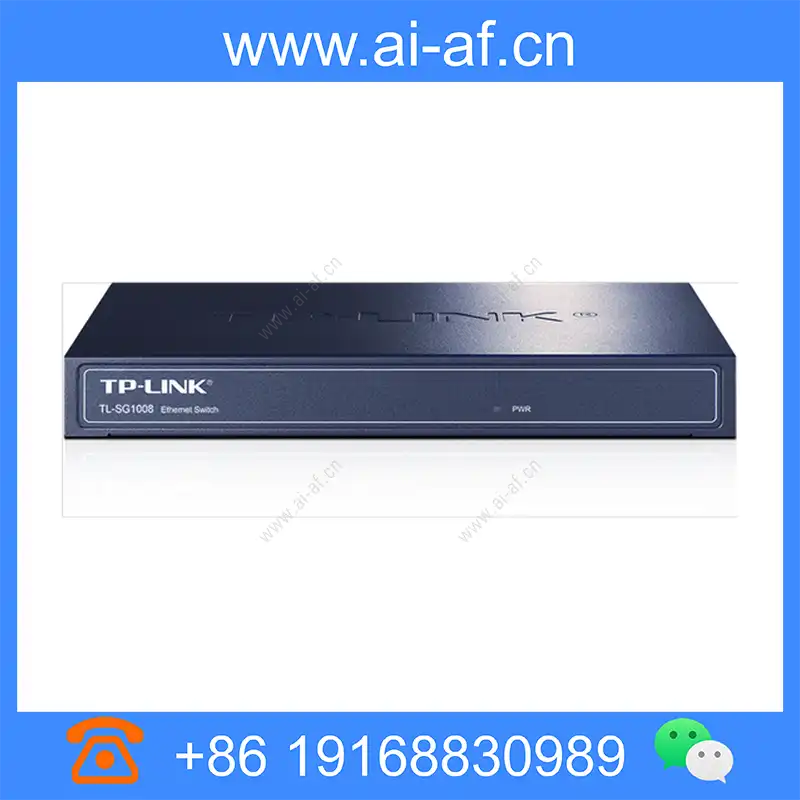

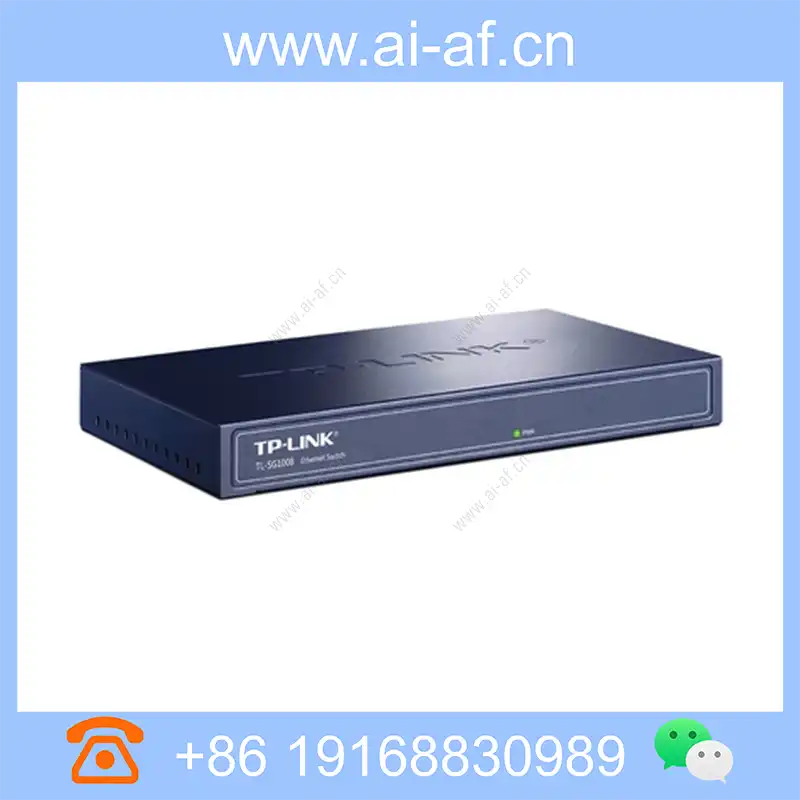

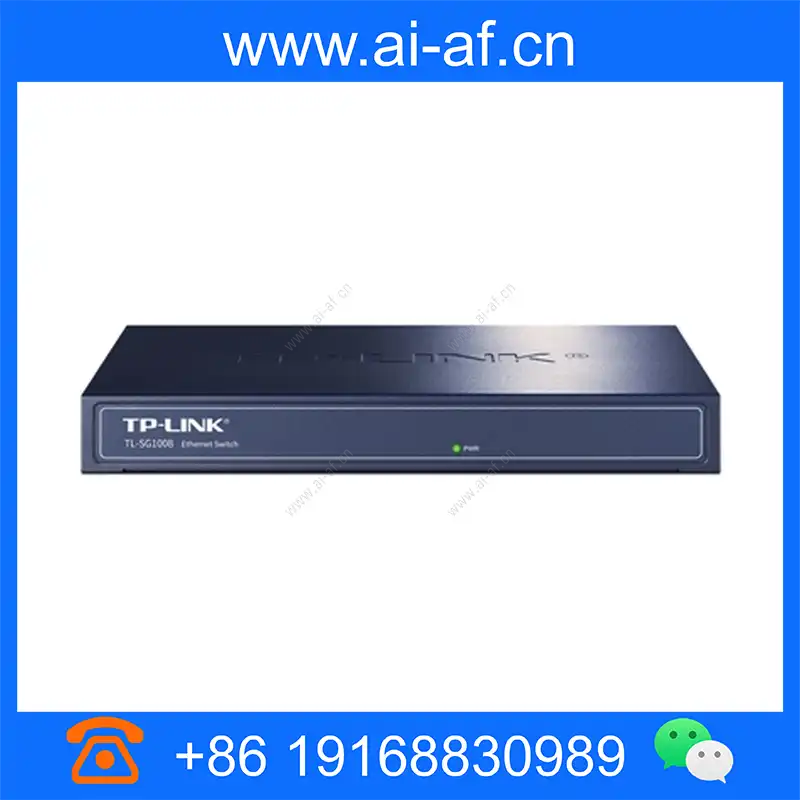

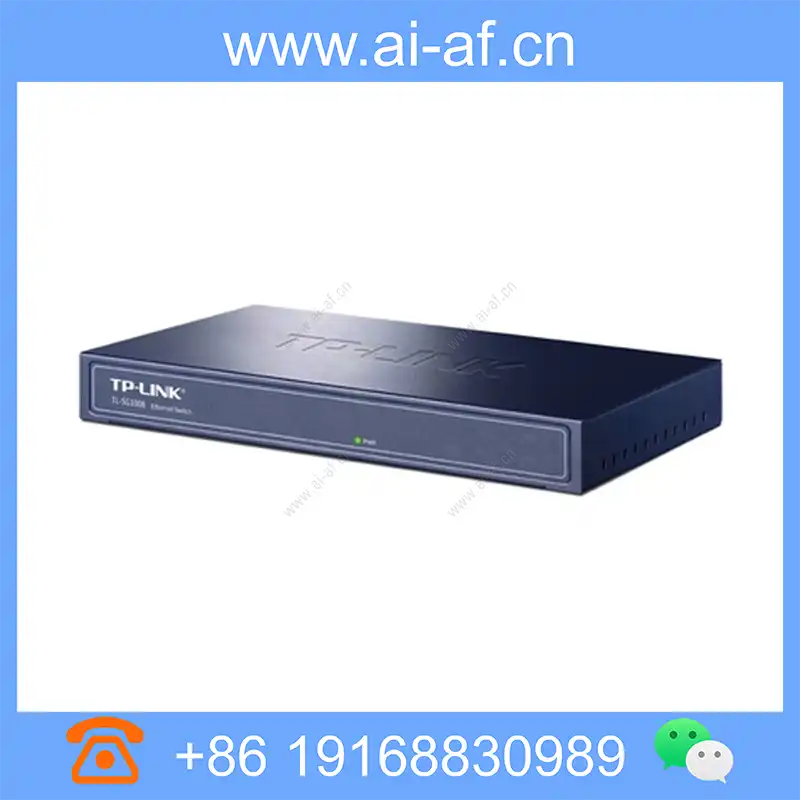

TP-LINK TL-SG1008 8-port full gigabit unmanaged switch iron shell layer 2 supports port isolation
Eight 10/100/1000M adaptive RJ45 ports All ports have wire-speed forwarding capabilities Support port auto flip (Auto MDI / MDIX) function Provides three working modes of standard switching, VLAN isolation and network cloning, adapting to different network environments Support switch working mode by toggle switch Support MAC address self-learning; support full-duplex working mode Desktop housing, plug and play, no management required TL-SG1008 is a full-gigabit non-managed switch product designed by TP-LINK specifically for Internet cafes, enterprises, campuses and smart communities. It provides 8 10/100/1000M adaptive RJ45 ports, and is aimed at security monitoring, diskless startup and wireless Applications such as networking provide different working modes and have good network
Product Features
TL-SG1008 is a full-gigabit non-managed switch product designed by TP-LINK specifically for Internet cafes, enterprises, campuses and smart communities. It provides 8 10/100/1000M adaptive RJ45 ports, and is aimed at security monitoring, diskless startup and wireless Applications such as networking provide different working modes and have good network adaptability. Port performanceProvide 8 10/100/1000M adaptive RJ45 ports, all ports can realize wire-speed forwarding; Each port supports MDI / MDIX automatic rollover and duplex / rate auto-negotiation; Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control. Three working modesProvide mode switch, support "standard switching", "VLAN isolation" and "network clone" three working modes, which can optimize support for multiple application scenarios such as security monitoring, diskless startup and wireless networking. Simple to usePlug and play, no management required; dynamic LED indicators provide simple working status prompts and troubleshooting. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Network Standard | IEEE 802.3 、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x |
| port | Eight 10/100/1000Mbps RJ45 ports |
| Indicator light | 1 Link/Ack indicator per port 1 Power indicator per device |
| performance | Store and Forward Support 4K MAC address table depth |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing |
| Input power | 100-240V~ 50/60Hz |
| Dimensions (L x W x H) | 209mm x 126mm x 26mm |
| Three mode switching | Standard switching, VLAN isolation, network cloning |
