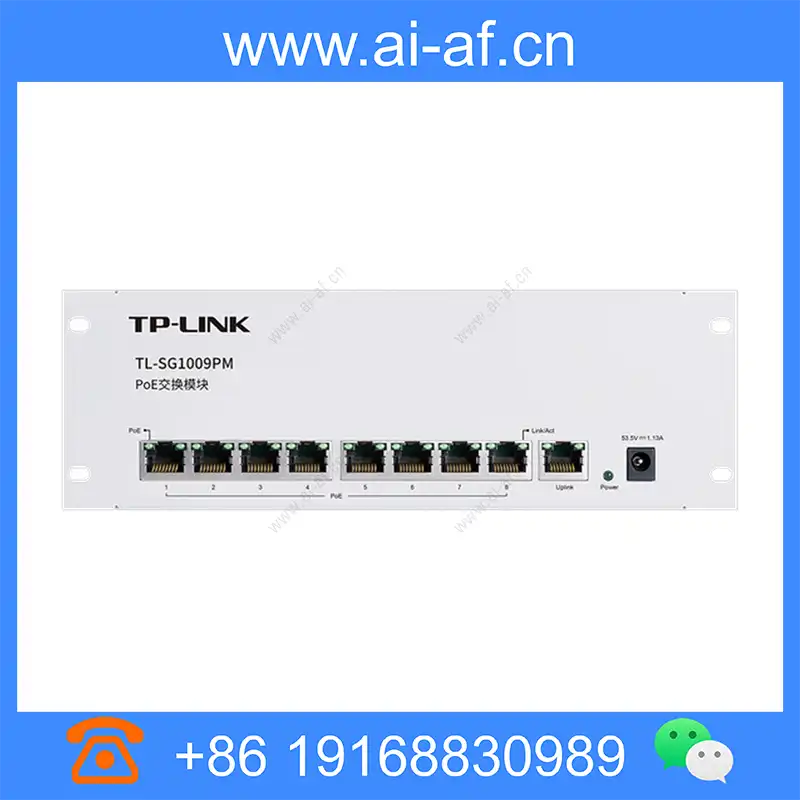

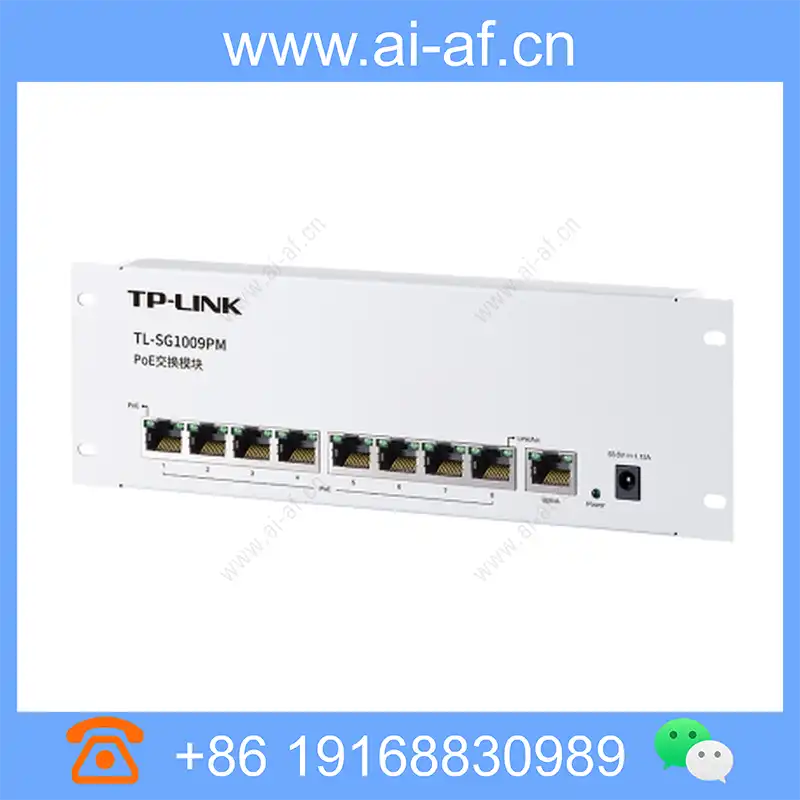

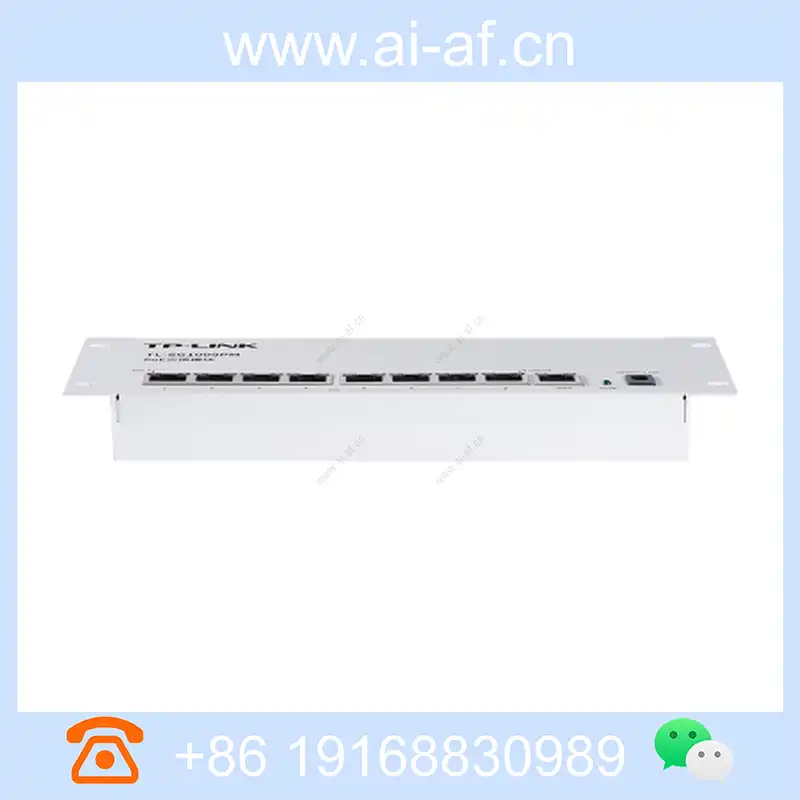

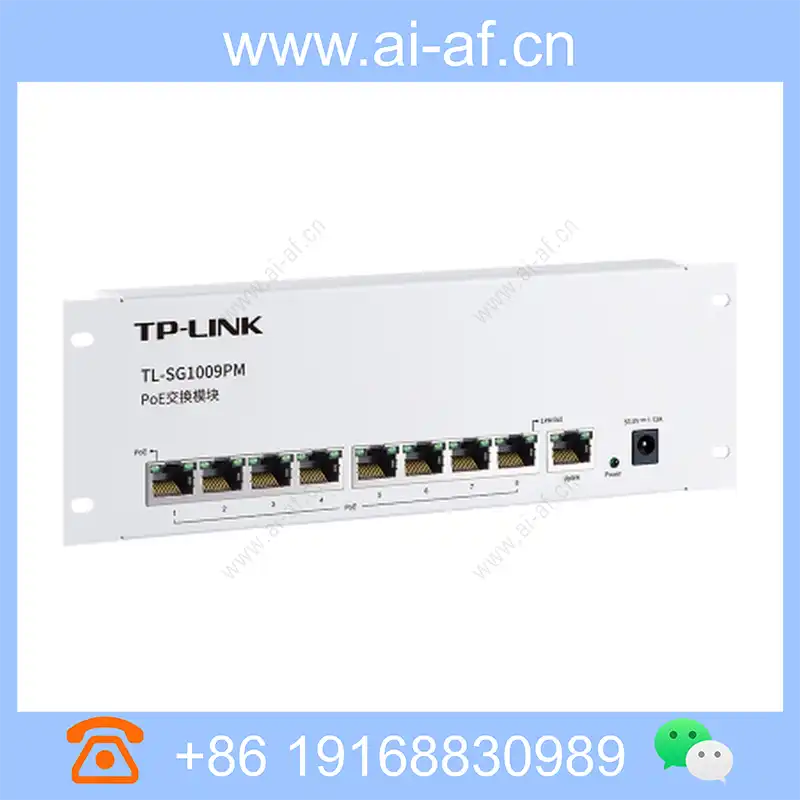

TP-LINK TL-SG1009PM 9-port full gigabit unmanaged PoE switch module 1GE 8PoE 54W

Brand: TP-LINK

Model: TL-SG1009PM

Dimensions: 225mm x 74mm x 24mm

Provides 9 10/100/1000Mbps RJ45 ports RJ45 ports 1~8 support IEEE 802.3af/at PoE power supply standard The PoE power supply of the whole machine reaches 54W, and the single-port PoE power supply reaches 30W PoE power port supports priority mechanism Designed for household weak current box, the size is 225mm*74mm*24mm Horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm Product model TL-SF1005PM TL-SF1009PM TL-SG1005PM TL-SG1009PM 100M RJ45 port 5 9 0 0 Gigabit RJ45 port 0 0 5 9 PoE port 4FE 8FE 4GE 8GE Maximum PoE output power of the whole machine 41W 56W 57W 54W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Maximum PoE output power of the port 30W MAC address capacity 2K 4K Dimensions (mm) Case size 225mm*74mm*24mm, horizontal mounting screw hole spacing

Product Features

Provides 9 10/100/1000Mbps RJ45 ports
RJ45 ports 1~8 support IEEE 802.3af/at PoE power supply standard
The PoE power supply of the whole machine reaches 54W, and the single-port PoE power supply reaches 30W
PoE power port supports priority mechanism
Designed for household weak current box, the size is 225mm*74mm*24mm
Horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm

Product model	TL-SF1005PM	TL-SF1009PM	TL-SG1005PM	TL-SG1009PM
100M RJ45 port	5	9	0	0
Gigabit RJ45 port	0	0	5	9
PoE port	4FE	8FE	4GE	8GE
Maximum PoE output power of the whole machine	41W	56W	57W	54W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Maximum PoE output power of the port	30W
MAC address capacity	2K			4K
Dimensions (mm)	Case size 225mm74mm24mm, horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm
Input power	53.5VDC/0.81A	53.5VDC/1.13A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
100M RJ45 port	0
Gigabit RJ45 port	9
PoE port	8GE
Maximum PoE output power of the whole machine	54W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Maximum PoE output power of the port	30W
MAC address capacity	4K
Dimensions (mm)	Case size 225mm74mm24mm, horizontal mounting screw hole spacing 213mm, vertical mounting screw hole spacing 50mm
Input power	53.5VDC/1.13A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
