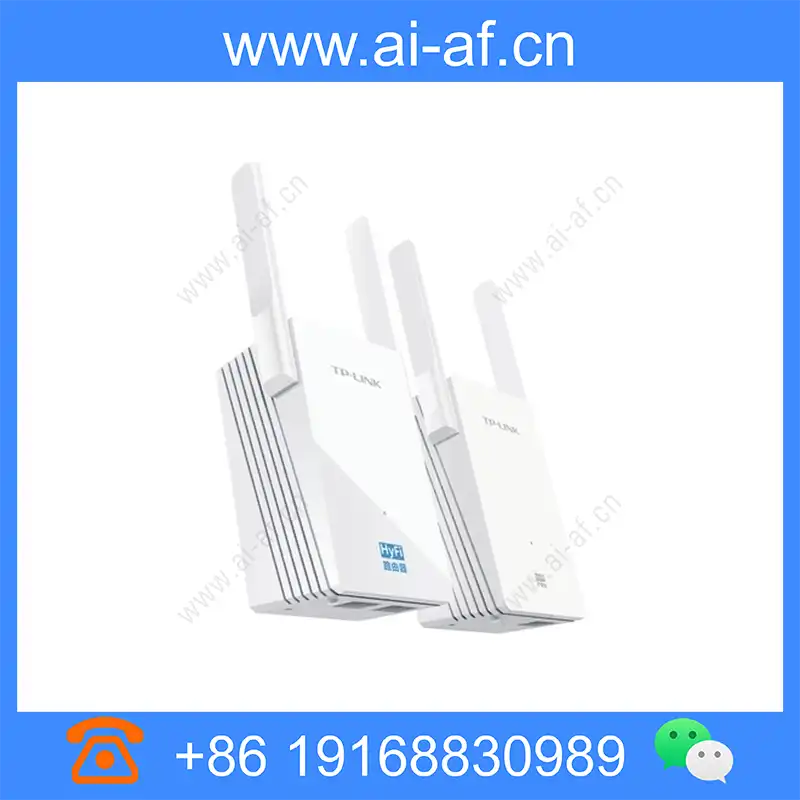

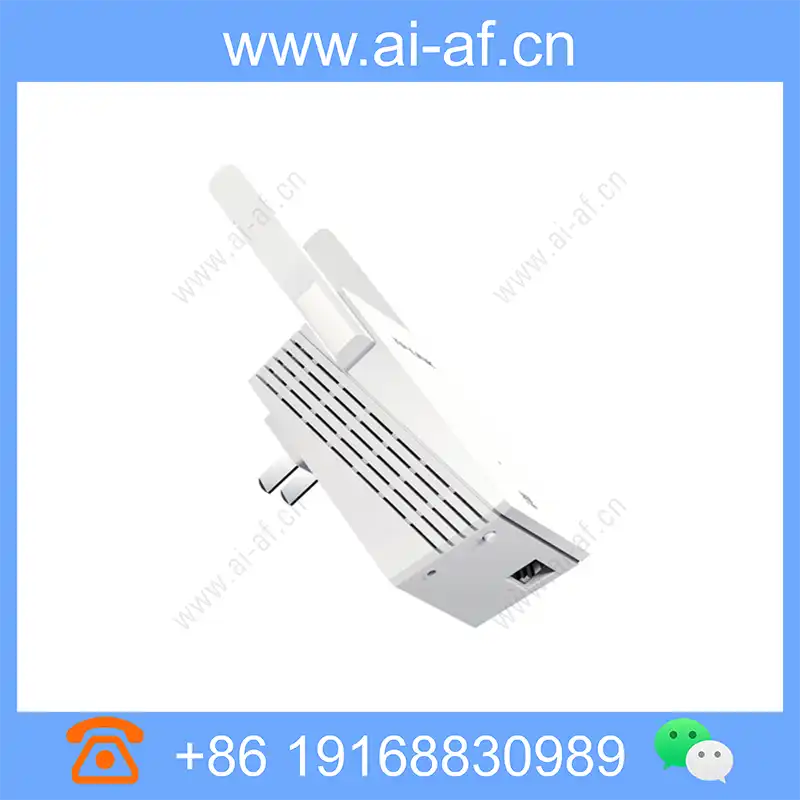

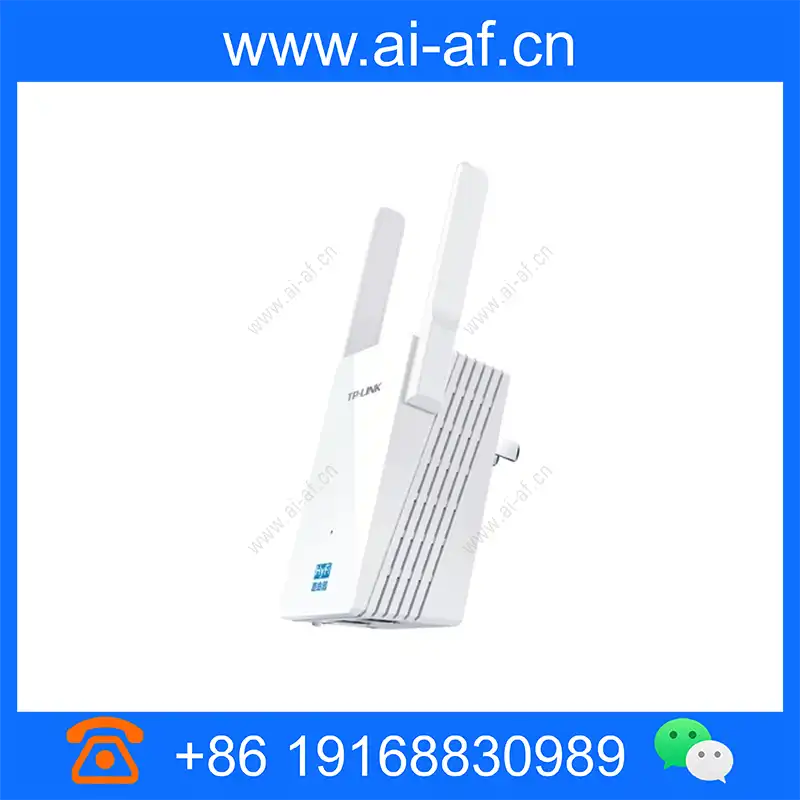

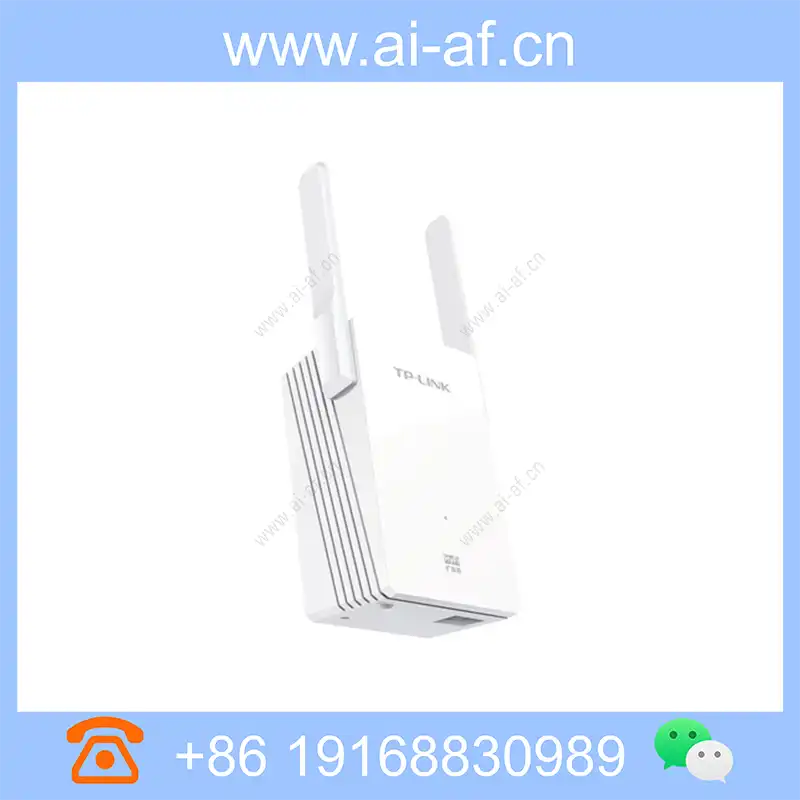

TP-LINK TL-H29RA/TL-H29EA HyFi Smart Wireless Set
Protocol standard HomePlug AV IEEE 802.3、IEEE 802.3u IEEE 802.11 b/g/n rate Powerline:600Mbps Wireless:300Mbps Safety Powerline: 128-AES encryption Wireless: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP interface 1 10/100M adaptive LAN port, support auto flip (Auto MDI / MDIX) LED SYS size 94mm x 54mm x 40mm(L x W x H) Working voltage range AC 100V~240V Packaging accessories HyFi Smart Wireless Extender: TL-H29EA Quick Installation Guide Use environment Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing Protocol standard HomePlug AV IEEE 802.3、IEEE 802.3u IEEE 802.11 b/g/n rate Powerline:600Mbps Wireless:300Mbps Safety Powerline: 128-AES encryption Wireless: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | HomePlug AV IEEE 802.3、IEEE 802.3u IEEE 802.11 b/g/n |
| rate | Powerline:600Mbps Wireless:300Mbps |
| Safety | Powerline: 128-AES encryption Wireless: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP |
| interface | 1 10/100M adaptive LAN port, support auto flip (Auto MDI / MDIX) |
| LED | SYS |
| size | 94mm x 54mm x 40mm(L x W x H) |
| Working voltage range | AC 100V~240V |
| Packaging accessories | HyFi Smart Wireless Extender: TL-H29EA Quick Installation Guide |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
| Protocol standard | HomePlug AV IEEE 802.3、IEEE 802.3u IEEE 802.11 b/g/n |
| rate | Powerline:600Mbps Wireless:300Mbps |
| Safety | Powerline: 128-AES encryption Wireless: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP |
| interface | One 10/100M adaptive LAN port, support auto flip (Auto MDI/MDIX) One 10/100M adaptive WAN port, support auto flip (Auto MDI/MDIX) |
| Button | Reset |
| LED | SYS |
| size | 94mm x 54mm x 40mm(L x W x H) |
| Working voltage range | AC 100V~240V |
| Packaging accessories | HyFi Smart Wireless Router: TL-H29RA (set product also includes a HyFi Smart Wireless Extender TL-H29EA) Quick Installation Guide |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
