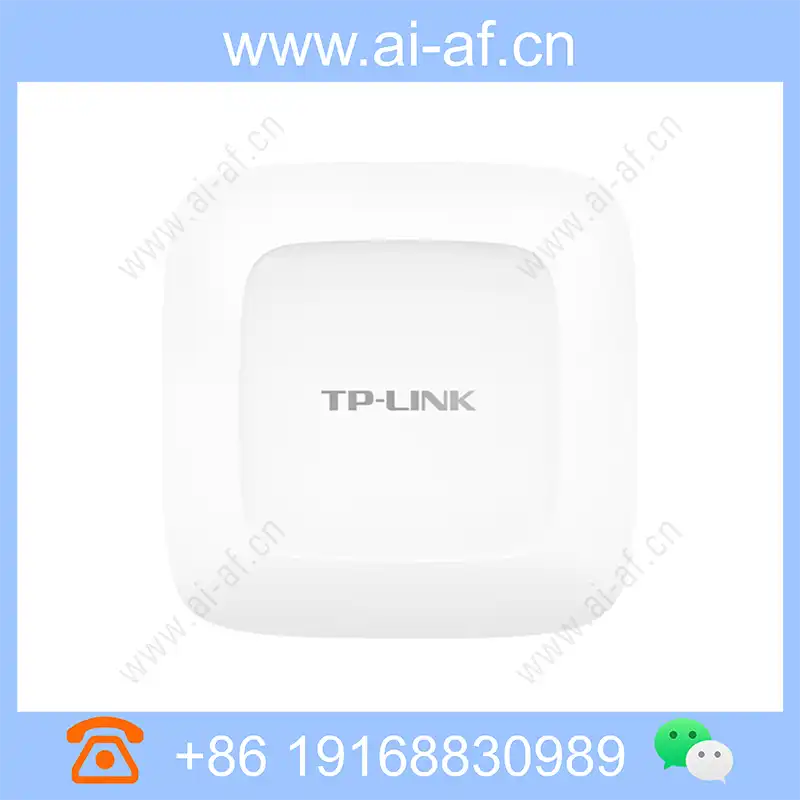

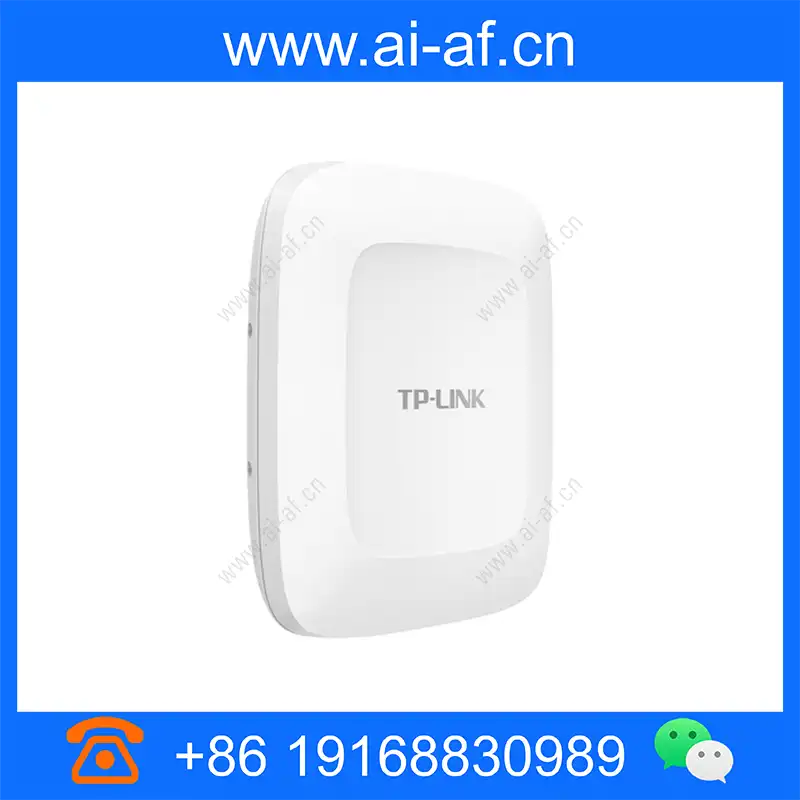

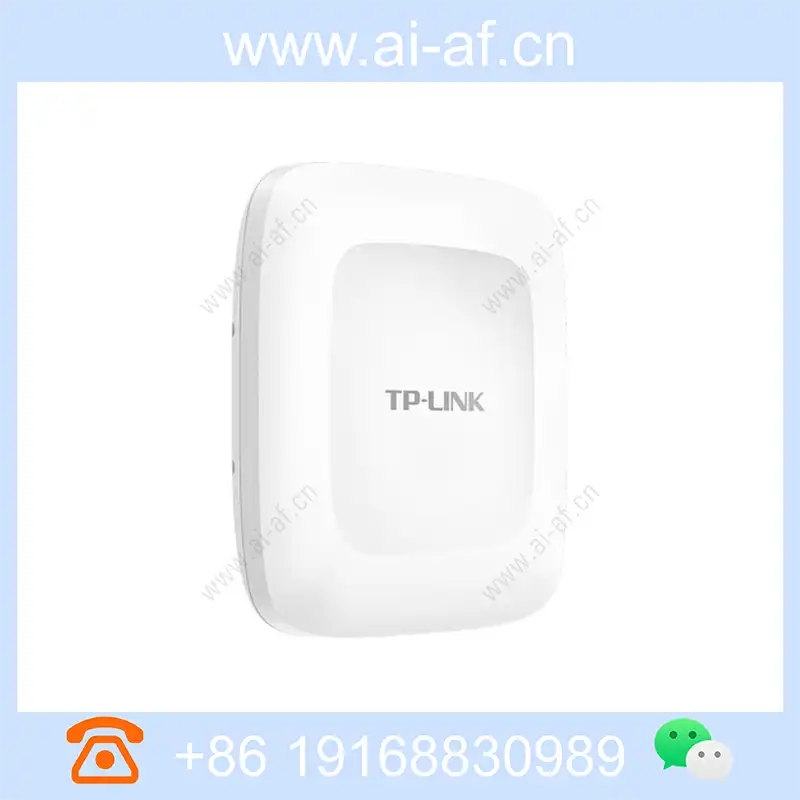

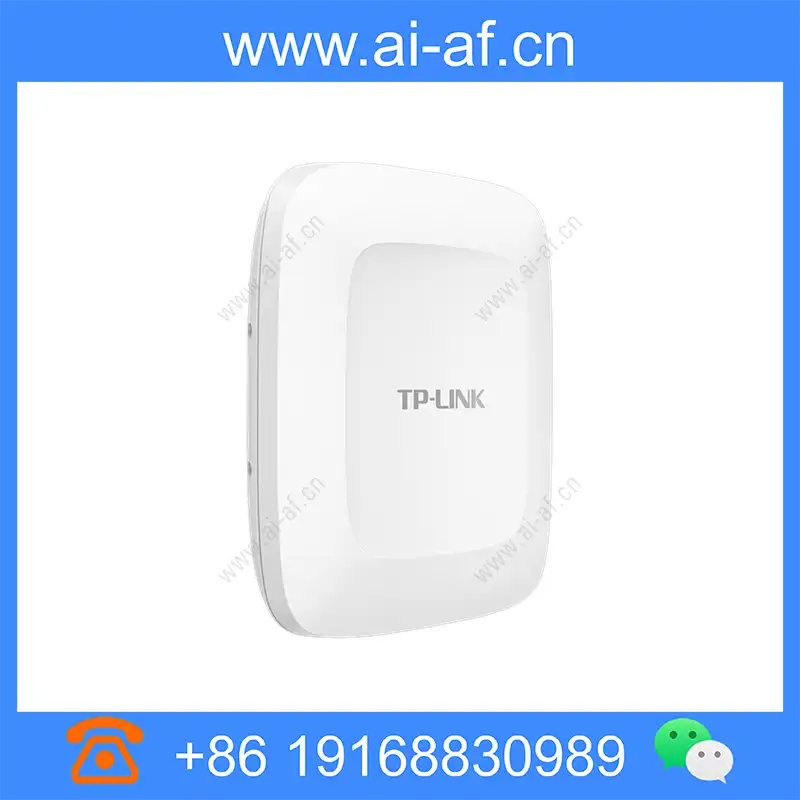

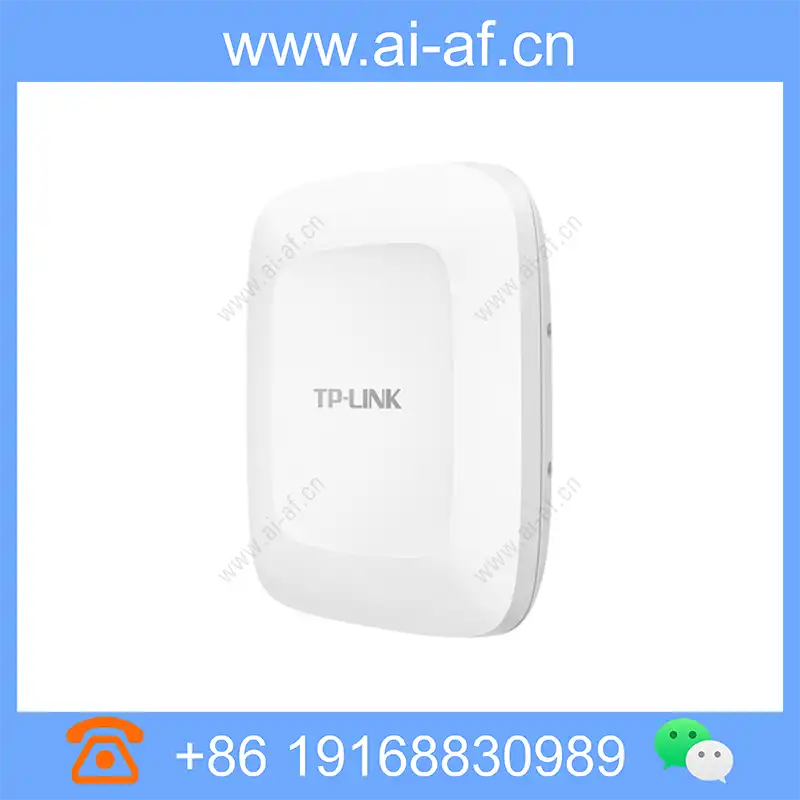

TP-LINK TL-AP1750GP directional AC1750 dual frequency outdoor high power wireless AP
11AC dual-band concurrent, the highest wireless rate can reach 1750Mbps Built-in 13dBi Directional antenna (horizontal 30°, vertical 30°), independent RF circuit design, coverage distance up to 500 meters Professional outdoor shell design, waterproof and dustproof grade up to IP68, working temperature up to -30℃~65℃, adapt to various harsh environments Spectrum navigation to make the load of the two frequency bands 2.4GHz and 5GHz more balanced Linear adjustable power, effectively reducing mutual interference between APs Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Independent hardware protection circuit can automatically recover abnormal AP Passive PoE network cable power supply, flexible deployment Pole/wall
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1750GP orientation |
| Installation method | Pole / wall mounting |
| size | 360*360*60mm |
| wireless | 2.4GHz band: 450Mbps 5GHz band: 1300Mbps |
| port | 1 10/100/1000Mbps RJ45 port |
| antenna | Built-in Directional antenna |
| Antenna coverage angle | 30° horizontal, 30° vertical |
| Indicator light | 1 system indicator |
| Button | 1 RESET button 1 FAT/FIT mode toggle switch |
| power supply | 53.5VDC / 0.7A Passive PoE power supply, power supply distance up to 100M |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Environmental protection | IP68 dustproof and waterproof |
| Use environment | Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Recommended coverage distance (open environment) | 2.4G: 300 meters 5G: 500 meters (when used with different wireless terminals, the actual coverage distance may vary) |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit Weak signal equipment access: support |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
| Recommended wireless band capacity | 30(2.4G)+50(5G) |
| Maximum wireless belt capacity | 100(2.4G)+100(5G) |
