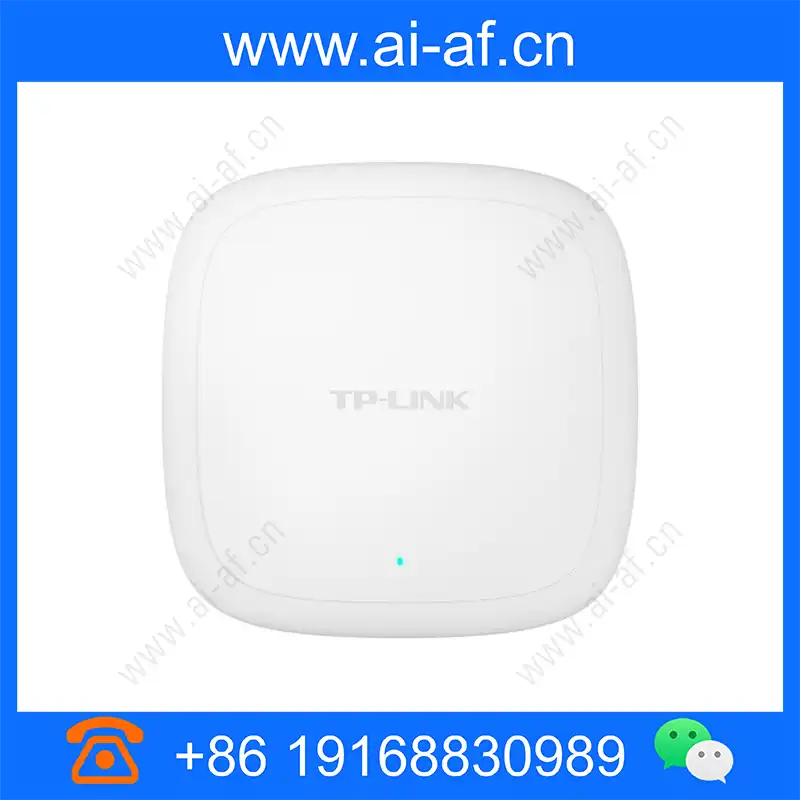

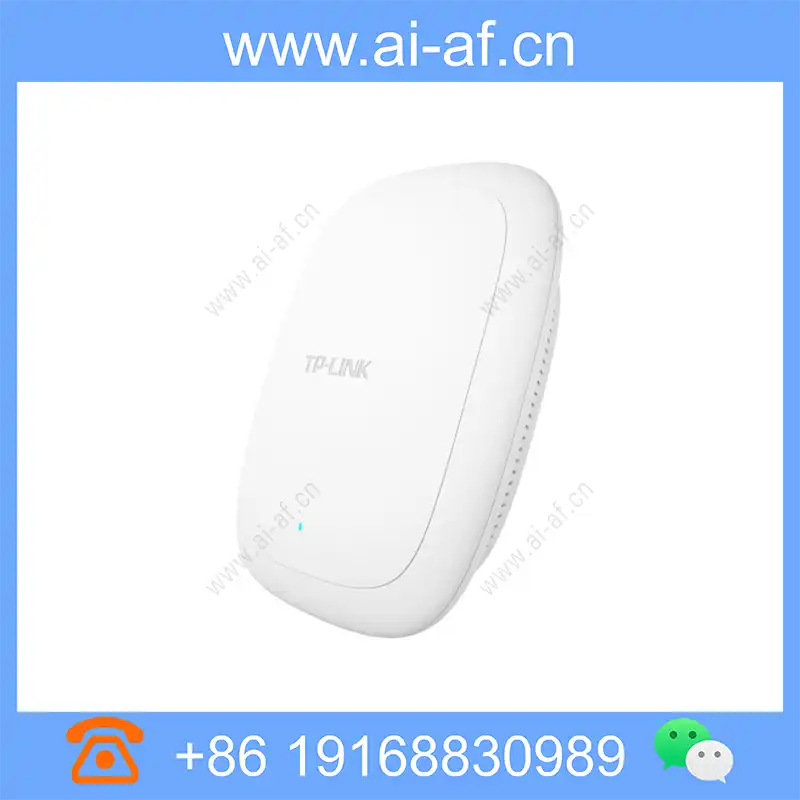

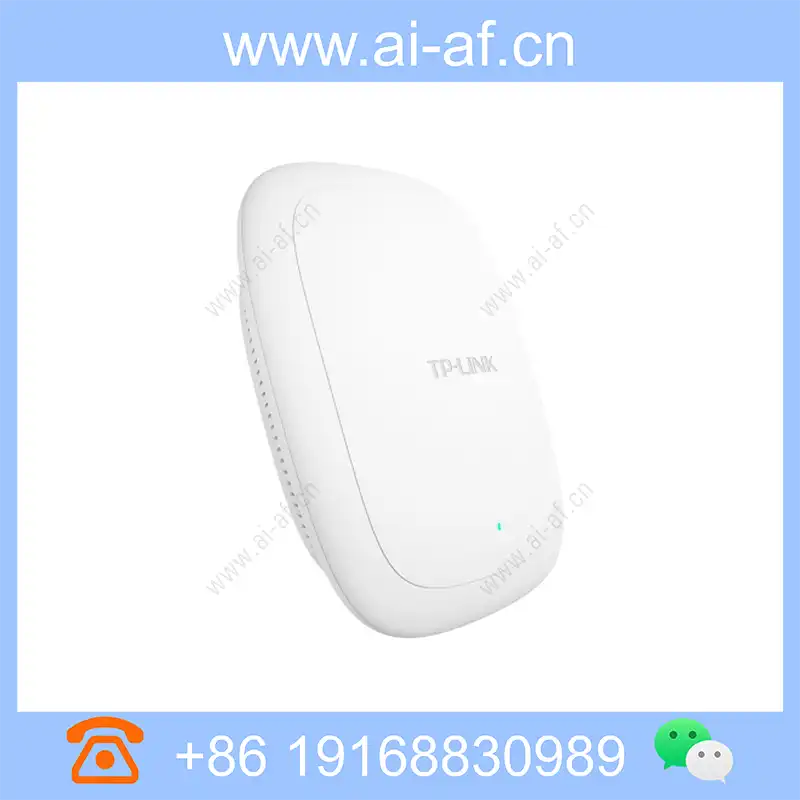

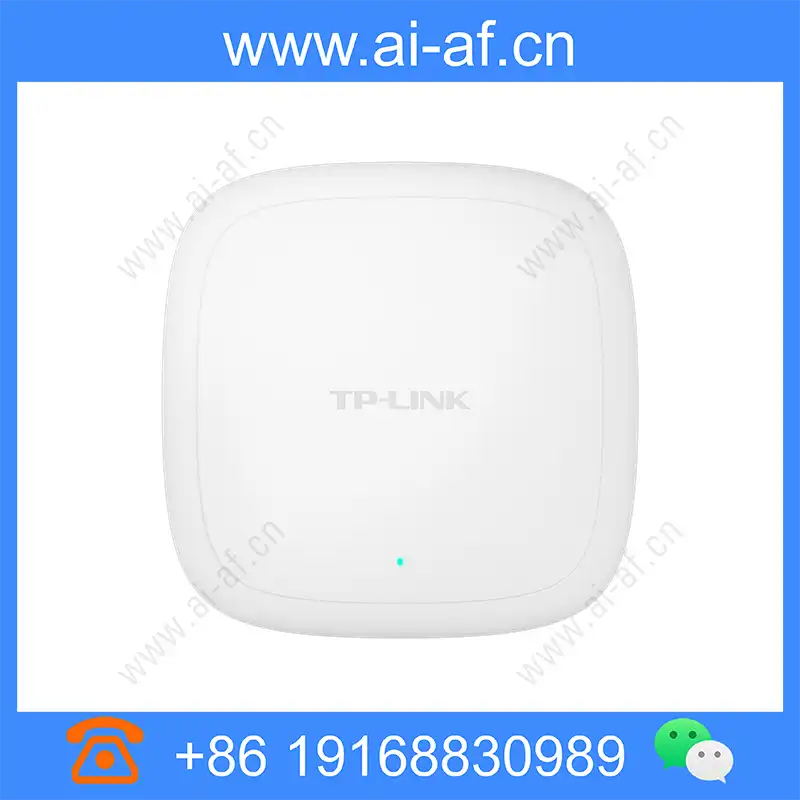

TP-LINK TL-AP1758GC-PoE/DC AC1750 dual frequency wireless ceiling AP
11AC dual-band concurrent, the highest wireless rate can reach 1750Mbps The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve coverage area signal Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, support 802.3af/at standard PoE, 12V/1.7A DC two power supply modes Fat and thin, choose different working modes in different environments Independent hardware protection circuit can automatically recover abnormal AP Support TP-LINK business cloud APP remote view / management Product model TL-AP1758GC-PoE/DC Installation method
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1758GC-PoE/DC |

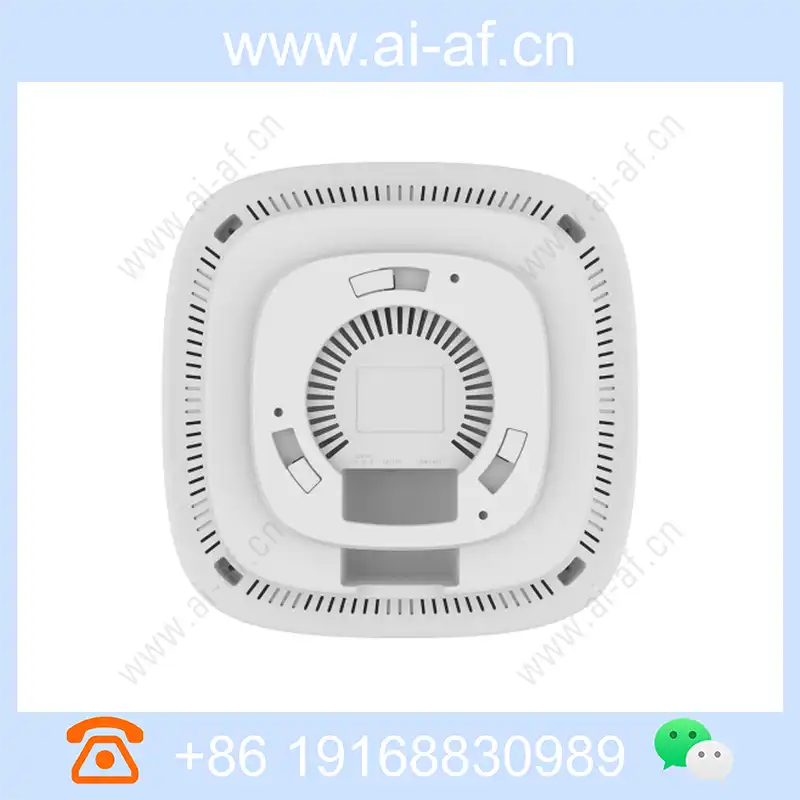

| Installation method | Ceiling installation |
| size | 230*230*60mm |
| wireless | 2.4GHz band: 450Mbps 5GHz band: 1300Mbps |
| port | 1 10/100/1000M RJ45 port 1 DC port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | 802.3at standard PoE power supply 12V/1.7A DC power supply (no power adapter is shipped from the factory) |
| Maximum machine power consumption | 15.31W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50+50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment Wireless client number limit: support QoS: WMM WDS: support spectrum navigation (5G priority) : Supports kicking out weak signal equipment, prohibiting weak signal equipment access: support |
| Maximum number of connectable clients | 100(2.4GHz)+100(5GHz) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
