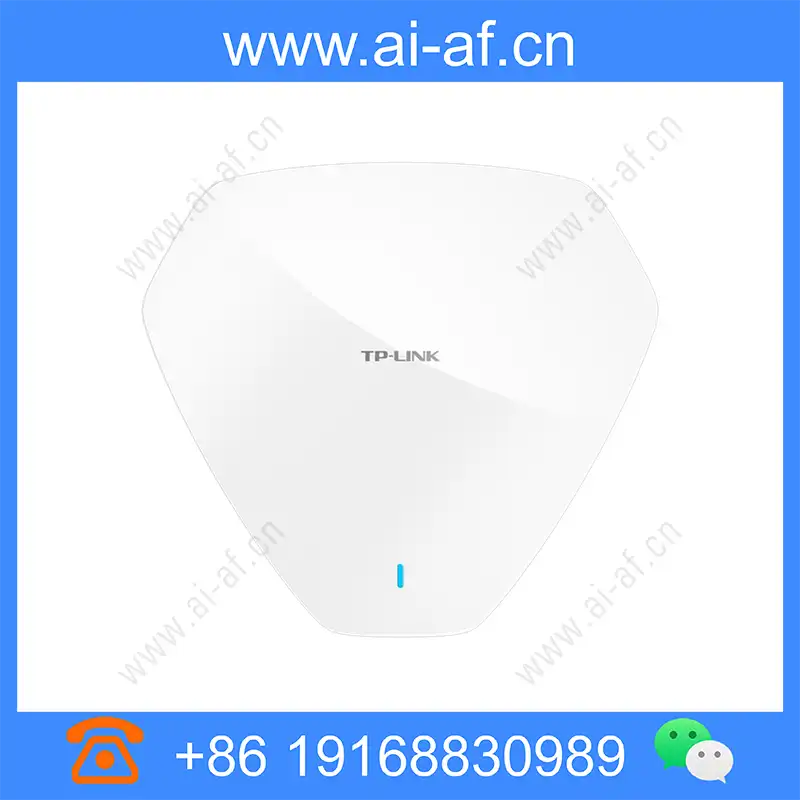

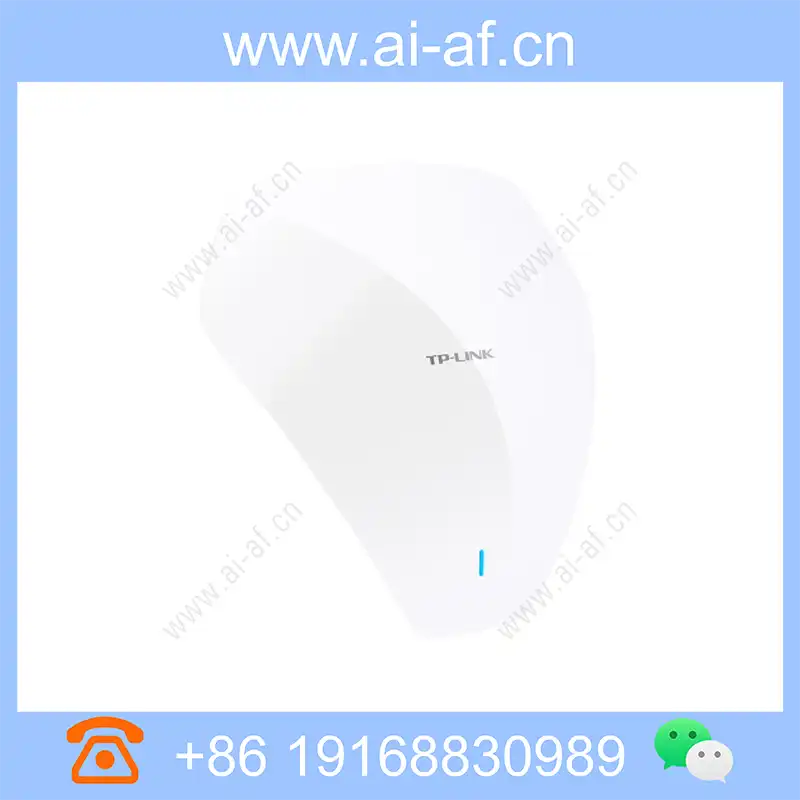

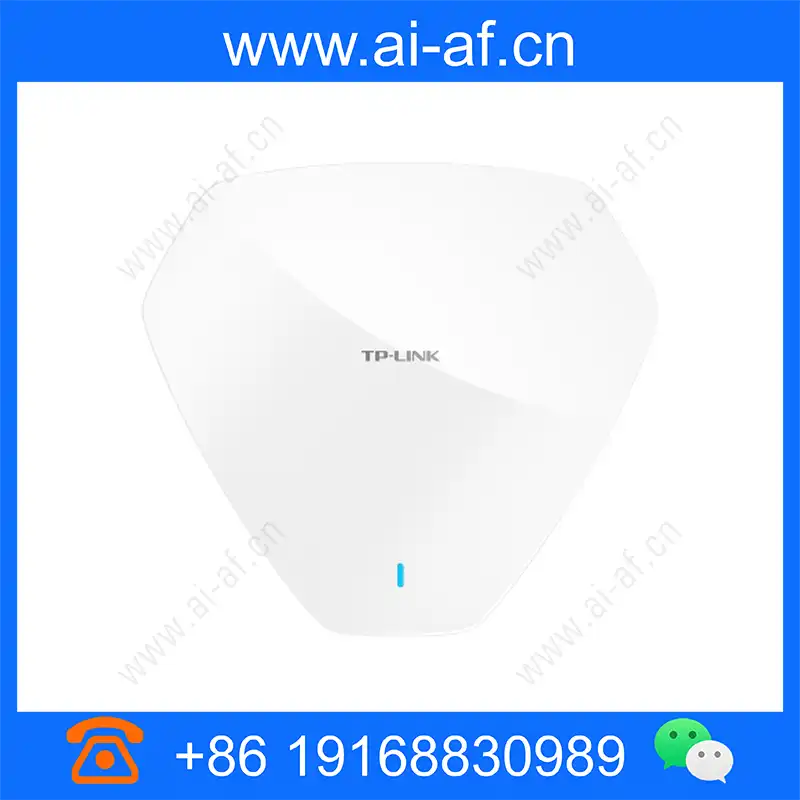

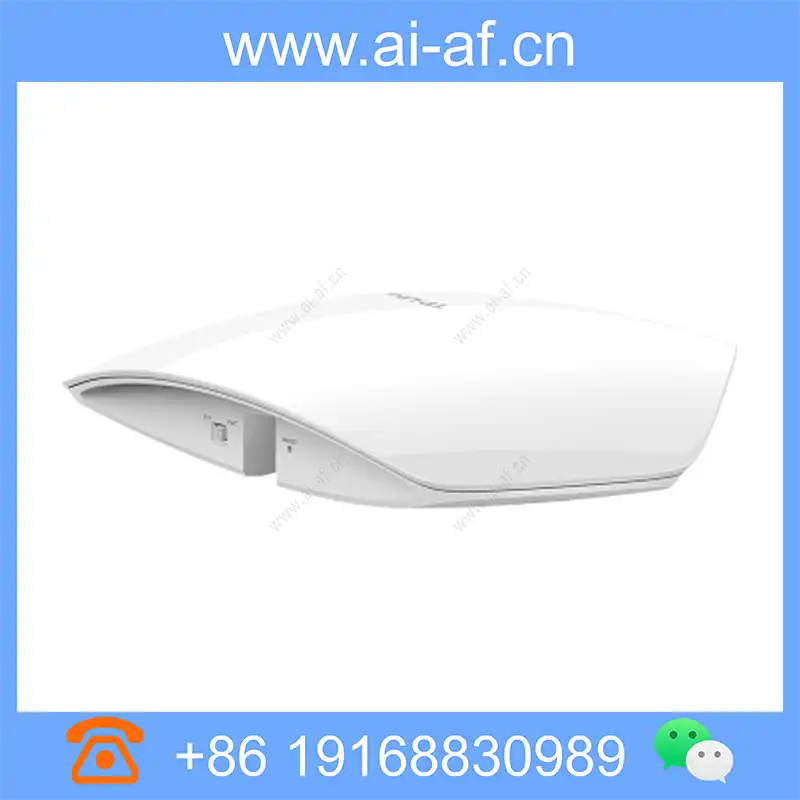

TP-LINK TL-AP1750GC-PoE/DC AC1750 dual frequency wireless ceiling AP
11AC dual-band concurrent, the highest wireless rate can reach 1750Mbps The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve coverage area signal Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, support 802.3at standard PoE, 12V/2A DC two power supply modes Fat and thin, choose different working modes in different environments Independent hardware protection circuit can automatically recover abnormal AP Support TP-LINK business cloud APP remote view / management Product model TL-AP1750GC-PoE/DC Installation method Ceiling
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1750GC-PoE/DC |
| Installation method | Ceiling installation |
| size | 264*241*55mm |
| wireless | 2.4GHz band: 450Mbps 5GHz band: 1300Mbps |

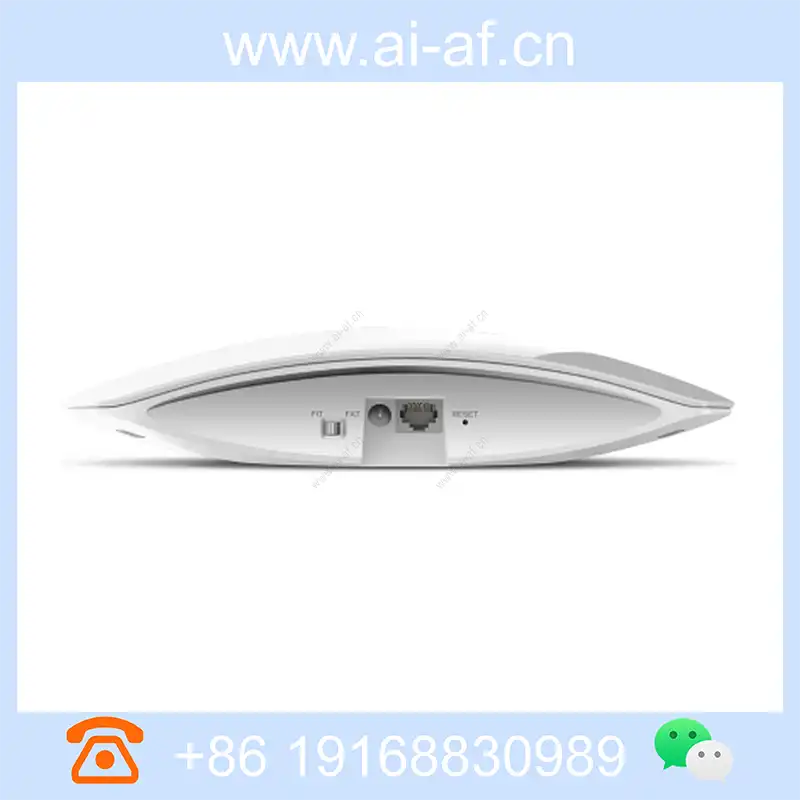

| port | 1 10/100/1000M RJ45 port 1 DC port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | 802.3at standard PoE power supply 12V/2A DC power supply (no power adapter is shipped from the factory) |
| Maximum machine power consumption | 21.28W (PoE input) 21.18W (DC input) |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50+50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment Wireless client number limit: support QoS: WMM WDS: support spectrum navigation (5G priority) : Supports kicking out weak signal equipment, prohibiting weak signal equipment access: support |
| Maximum number of connectable clients | 100(2.4GHz)+100(5GHz) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
