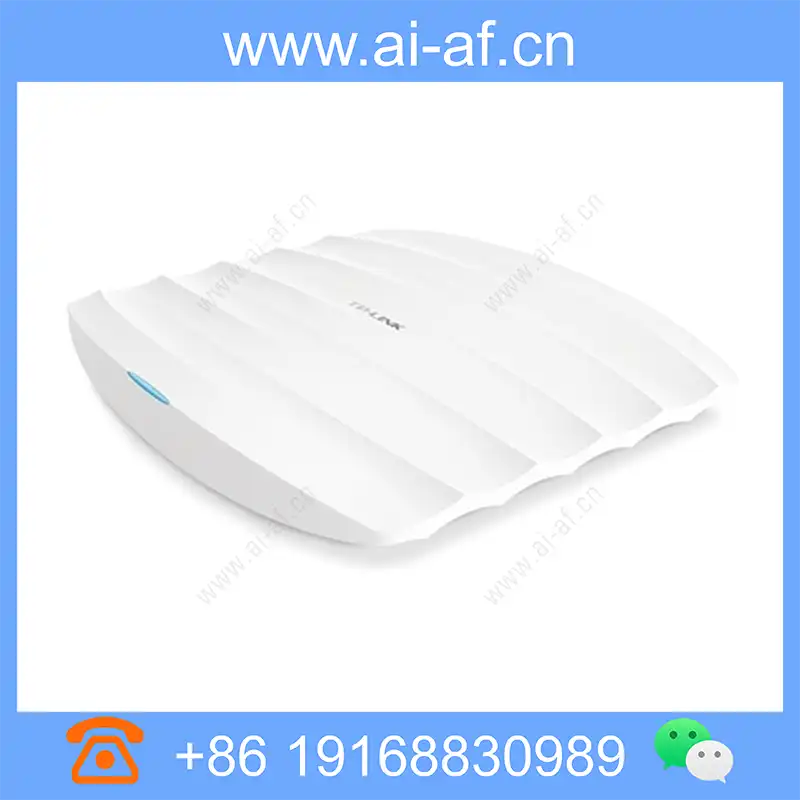

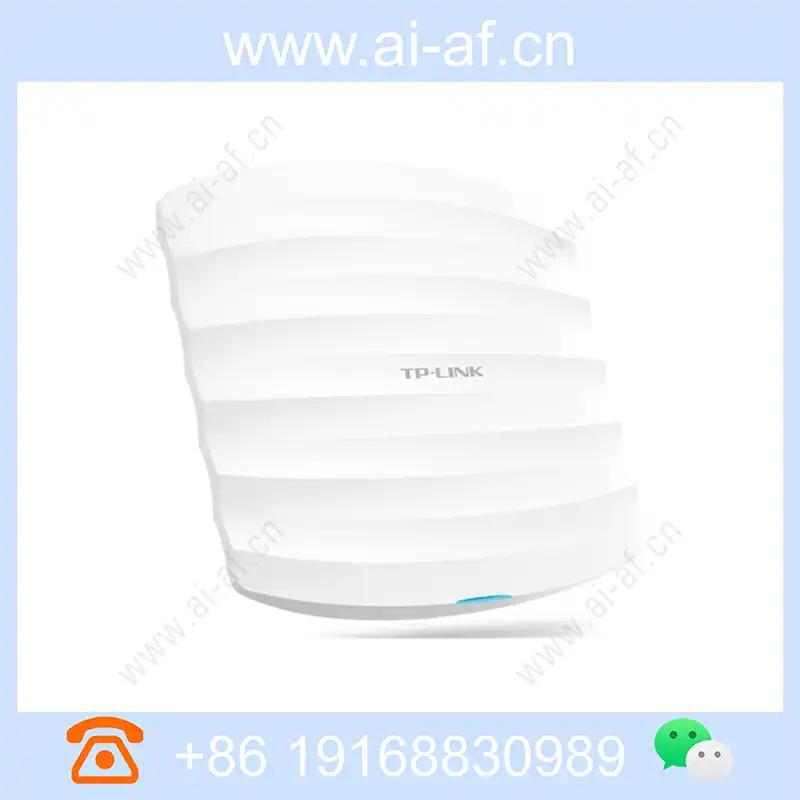

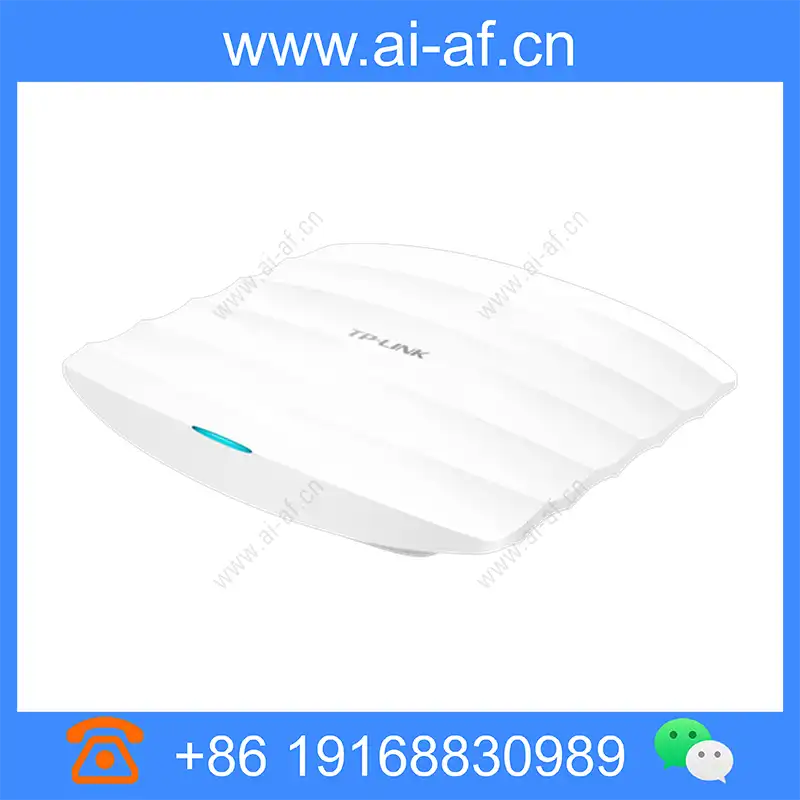

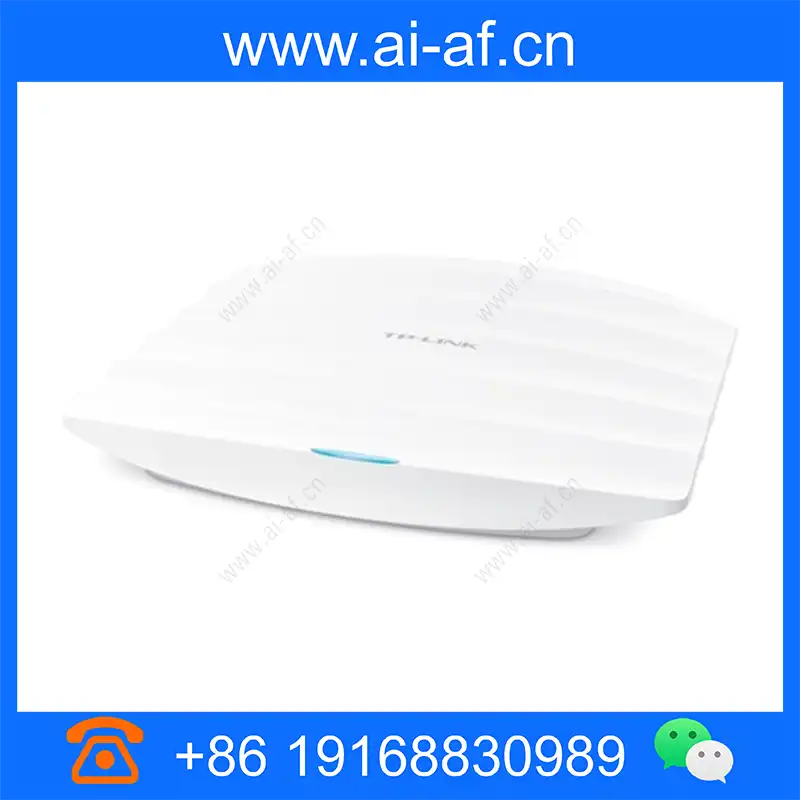

TP-LINK TL-AP1202C-PoE AC1200 dual-band wireless ceiling AP
11AC dual-band concurrent, the highest wireless rate can reach 1167Mbps The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve the signal quality of the coverage area Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, 802.3af/at standard PoE network cable power supply Fat and thin, choose different working modes in different environments Independent hardware protection circuit can automatically recover abnormal AP Support TP-LINK business cloud APP remote view / management Product model TL-AP1202C-PoE Installation method Ceiling
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1202C-PoE |
| Installation method | Ceiling / wall mounting |
| size | 190*170*30mm |
| wireless | 2.4GHz band: 300Mbps 5GHz band (11AC): 867Mbps |

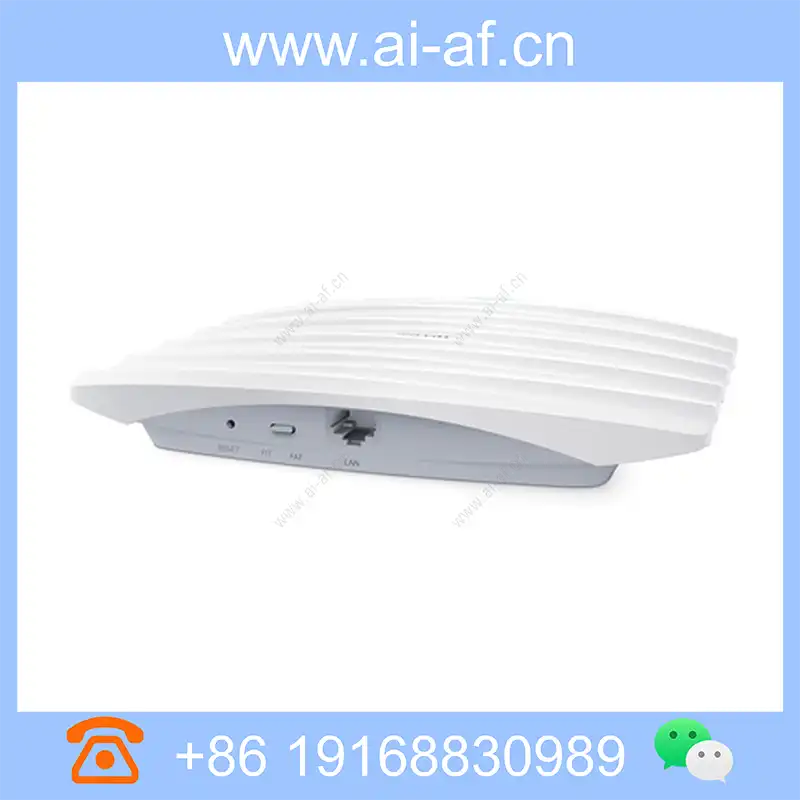

| port | 1 10/100M RJ45 port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | 802.3af/at standard PoE power supply |
| Maximum machine power consumption | 7.39W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz), support Chinese SSID Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks 、AP internal isolation wireless MAC address filtering: support whitelist (100) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment Wireless client number limit: support QoS: WMM WDS: support kick out weak signal Equipment, prohibit weak signal equipment access: support |
| Maximum number of connectable clients | 32(2.4GHz)+50(5GHz) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
