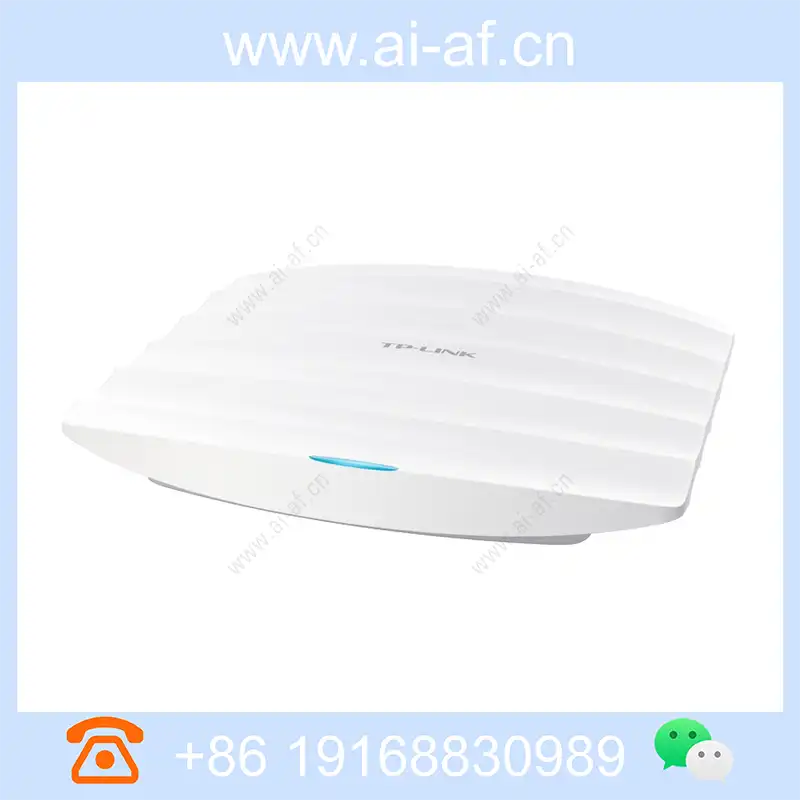

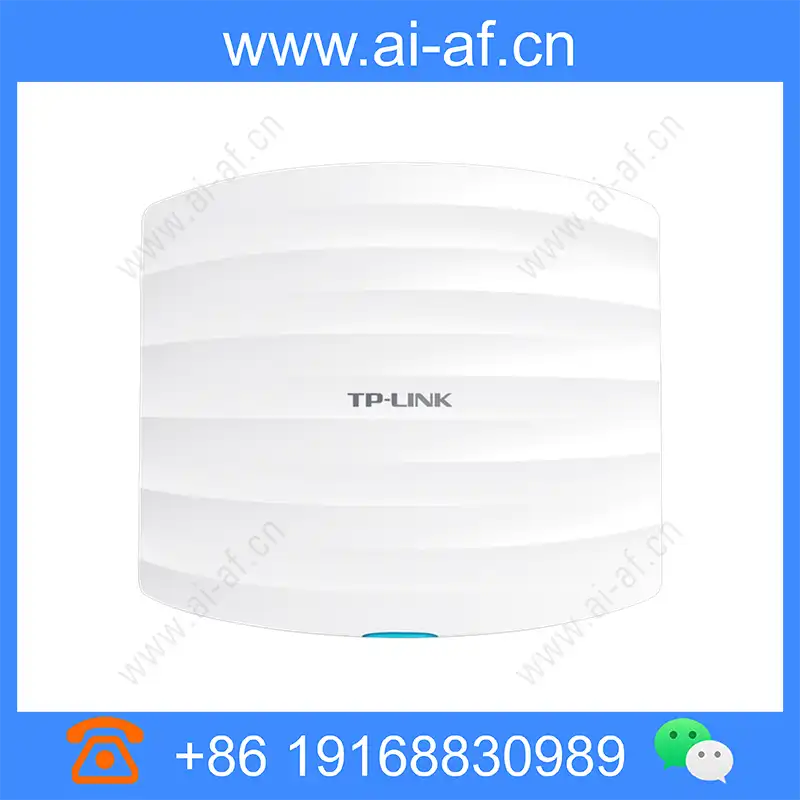

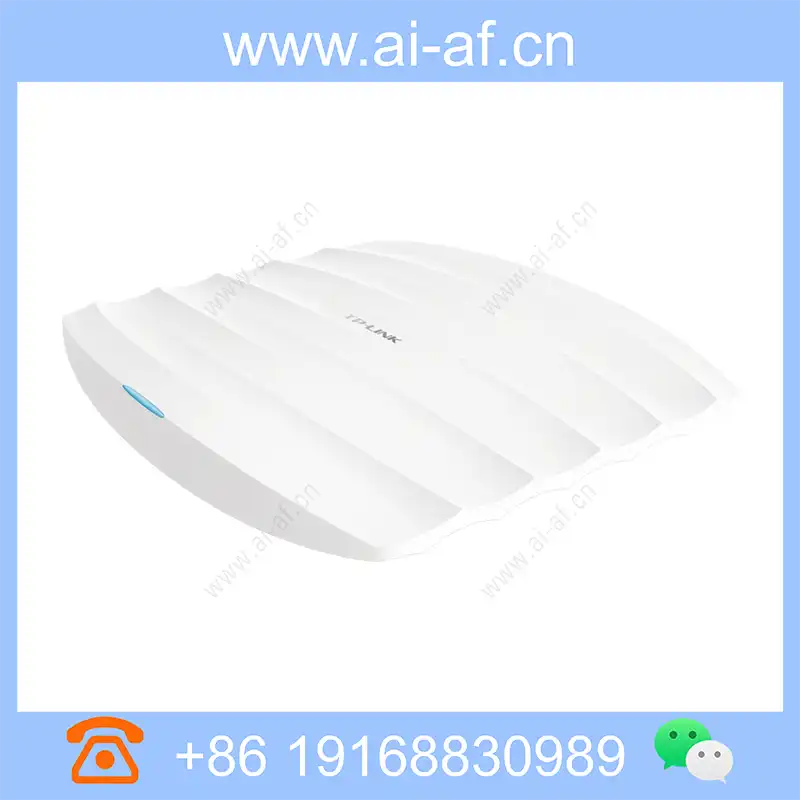

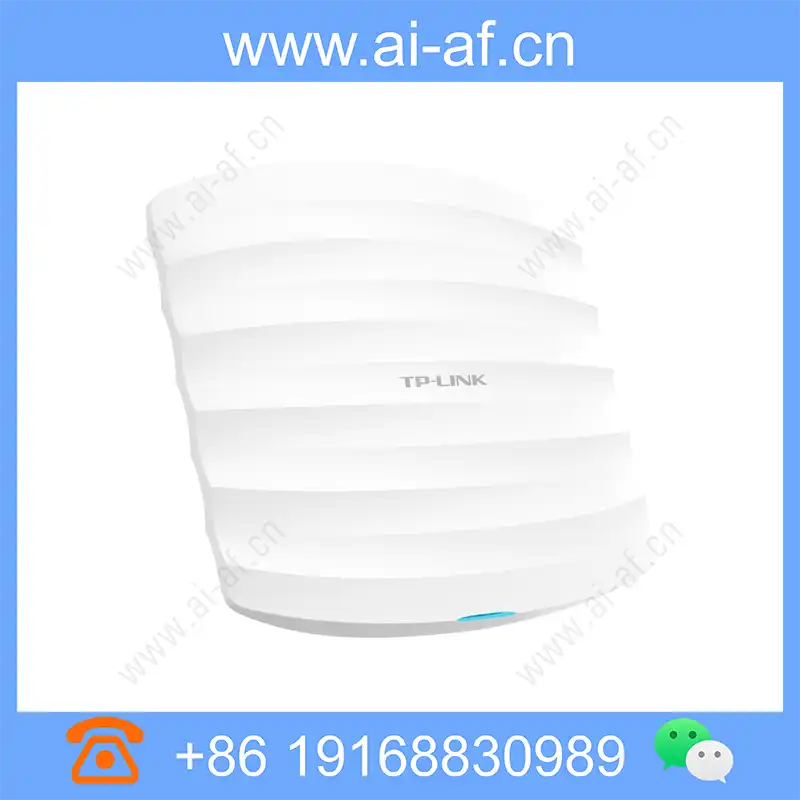

TP-LINK TL-AP1201C AC1200 dual-band wireless ceiling AP
11AC dual-band concurrent, the highest wireless rate can reach 1167Mbps The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve the signal quality of the coverage area Simple ceiling installation, 12V/1A DC and Passive PoE two power supply modes, low networking cost Fat and thin, choose different working modes in different environments Independent hardware protection circuit can automatically recover abnormal AP Support TP-LINK business cloud APP remote view / management Product model TL-AP1201C Installation method Ceiling / wall mounting size 190*170*30mm wireless 2.4GHz band: 300Mbps 5GHz band (11AC): 867Mbps port 1 10/100M RJ45 port 1 DC port Indicator light 1 system indicator Button 1
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP1201C |
| Installation method | Ceiling / wall mounting |
| size | 190*170*30mm |
| wireless | 2.4GHz band: 300Mbps 5GHz band (11AC): 867Mbps |

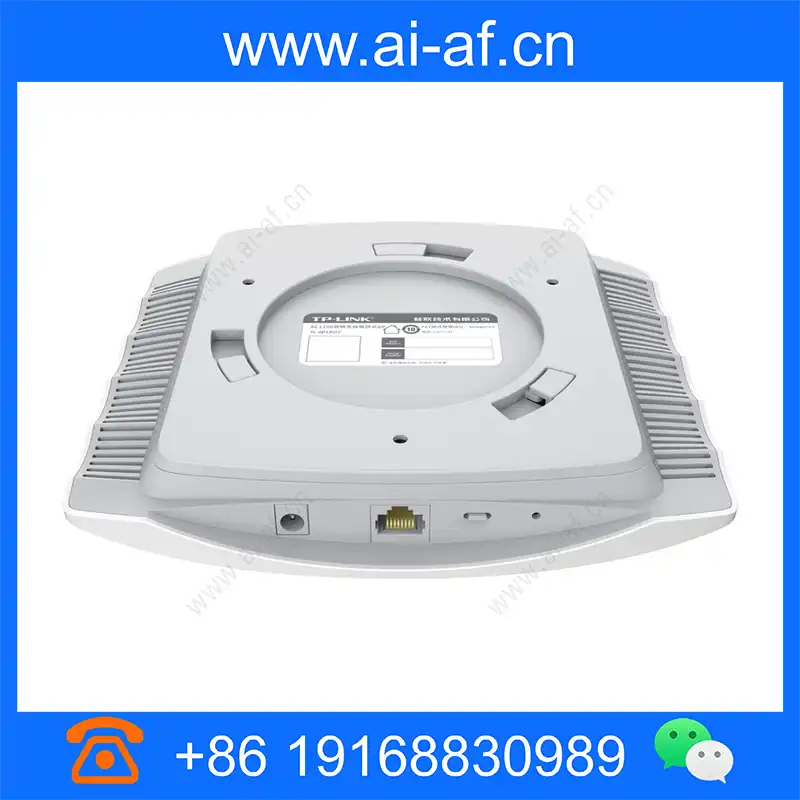

| port | 1 10/100M RJ45 port 1 DC port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | Passive PoE power supply 12V/1A DC power supply |
| Maximum machine power consumption | 10.77W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz), support Chinese SSID Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks 、AP internal isolation wireless MAC address filtering: support whitelist (100) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment Wireless client number limit: support QoS: WMM WDS: support kick out weak signal Equipment, prohibit weak signal equipment access: support |
| Maximum number of connectable clients | 32(2.4GHz)+50(5GHz) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
