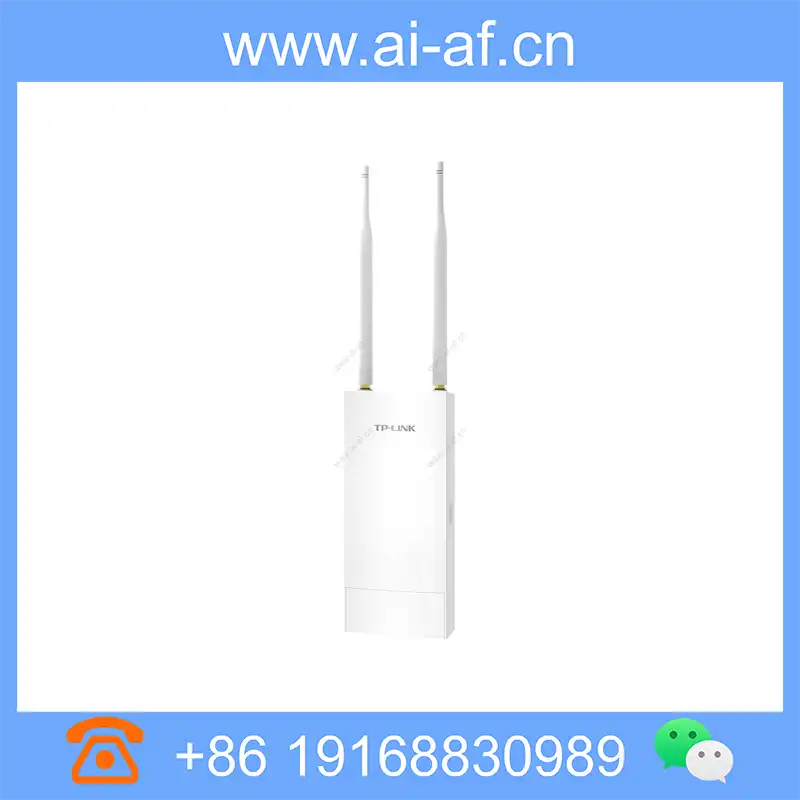

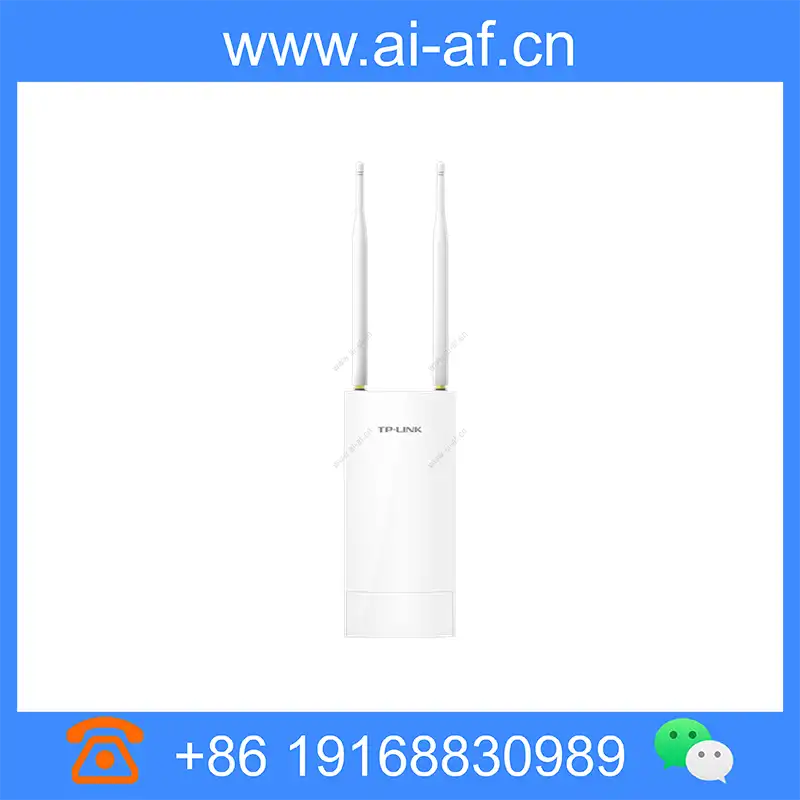

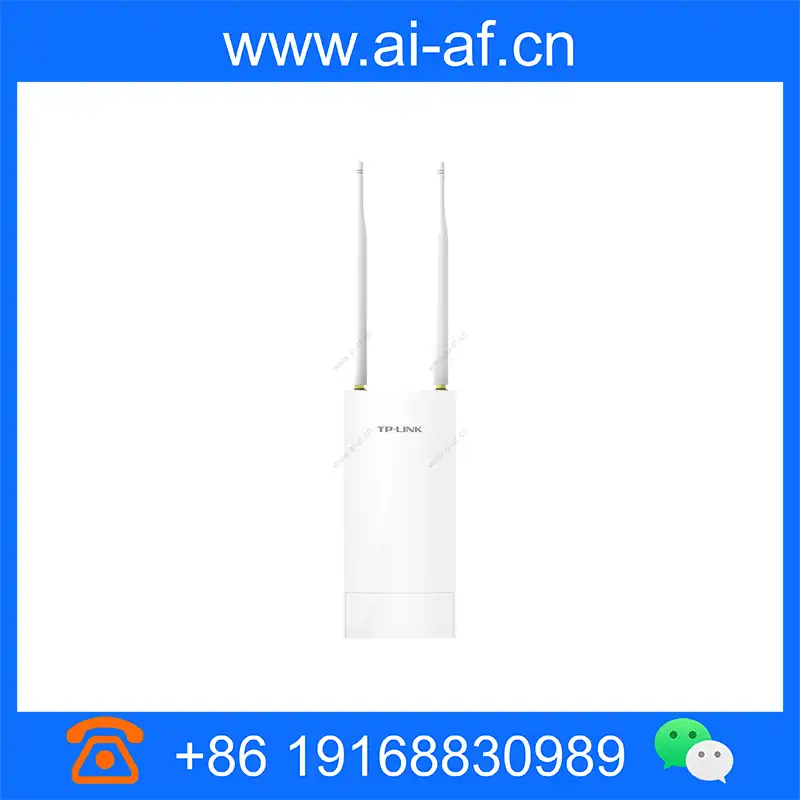

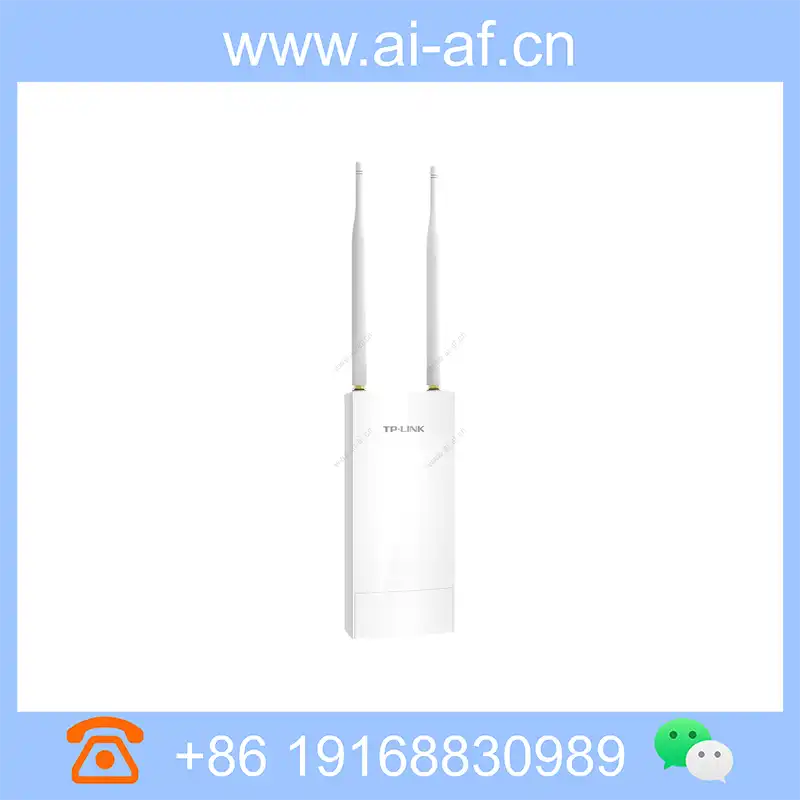

TP-LINK TL-AP1201P AC1200 dual-band outdoor wireless AP

Brand: TP-LINK

Model: TL-AP1201P

Dimensions: 209mm x 95mm x 43mm

11AC dual-band concurrent, the highest wireless rate can reach 1167Mbps External 5dBi omniDirectional antenna, covering radius up to 200 meters Professional outdoor shell design, waterproof and dustproof grade up to IP65, working temperature up to -30℃~65℃, adapt to various harsh environments Spectrum navigation to make the load of the two frequency bands 2.4GHz and 5GHz more balanced Linear adjustable power, effectively reducing mutual interference between APs Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Independent hardware protection circuit can automatically recover abnormal AP Passive PoE network cable power supply, flexible deployment Pole/wall installation, flexible and simple Product model TL-AP1201P

Product Features

11AC dual-band concurrent, the highest wireless rate can reach 1167Mbps

External 5dBi omniDirectional antenna, covering radius up to 200 meters

Professional outdoor shell design, waterproof and dustproof grade up to IP65, working temperature up to -30℃~65℃, adapt to various harsh environments

Spectrum navigation to make the load of the two frequency bands 2.4GHz and 5GHz more balanced

Linear adjustable power, effectively reducing mutual interference between APs

Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance

Independent hardware protection circuit can automatically recover abnormal AP

Passive PoE network cable power supply, flexible deployment

Pole/wall installation, flexible and simple

Technical Specifications

Property Description	Property Value
Product model	TL-AP1201P
Installation method	Pole / wall mounting
size	2099543mm
wireless	2.4GHz frequency band: 300Mbps 5GHz frequency band: 867Mbps

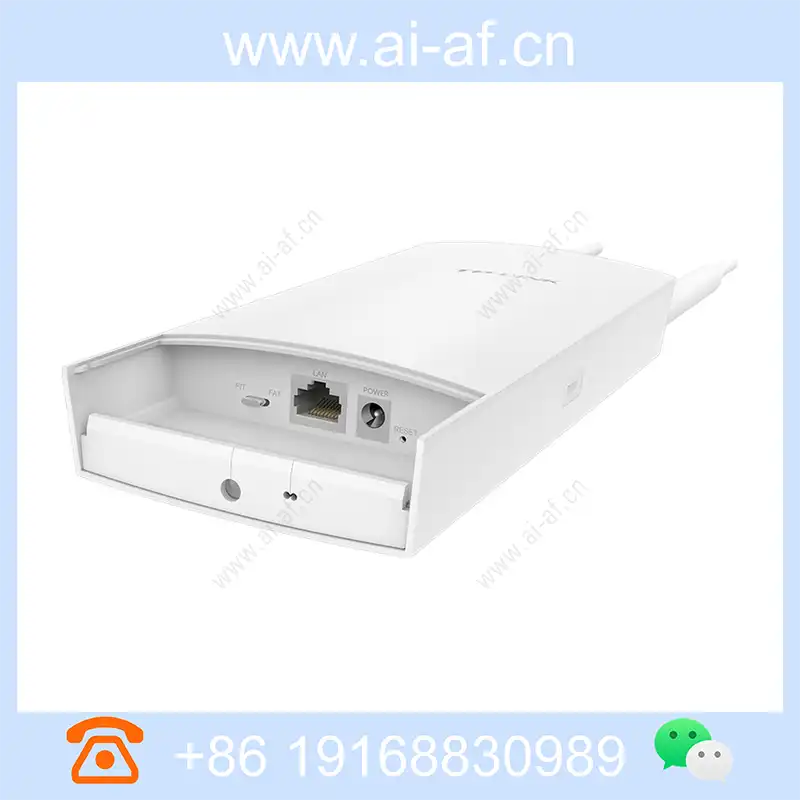

port	1 10/100Mbps RJ45 port 1 DC interface
antenna	External 5dBi dual-band waterproof detachable omniDirectional antenna
Antenna coverage angle	360°
Indicator light	1 system indicator
Button	1 RESET button 1 FAT/FIT mode toggle switch
power supply	12VDC / 1A. Support Passive PoE power supply, power supply distance up to 40 meters
management	FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management
Environmental protection	IP65 rated dustproof and waterproof
Use environment	Operating temperature: -30°C~65°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing
Recommended coverage distance (open environment)	2.4G: 100 meters 5G: 200 meters (when used with different wireless terminals, the actual coverage distance may vary)
wireless function	SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks, AP internal isolation Wireless MAC address filtering: support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit Weak signal equipment access: support
System Management	Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support
Recommended wireless band capacity	25(2.4G)+45(5G)
Maximum wireless belt capacity	100(2.4G)+100(5G)
