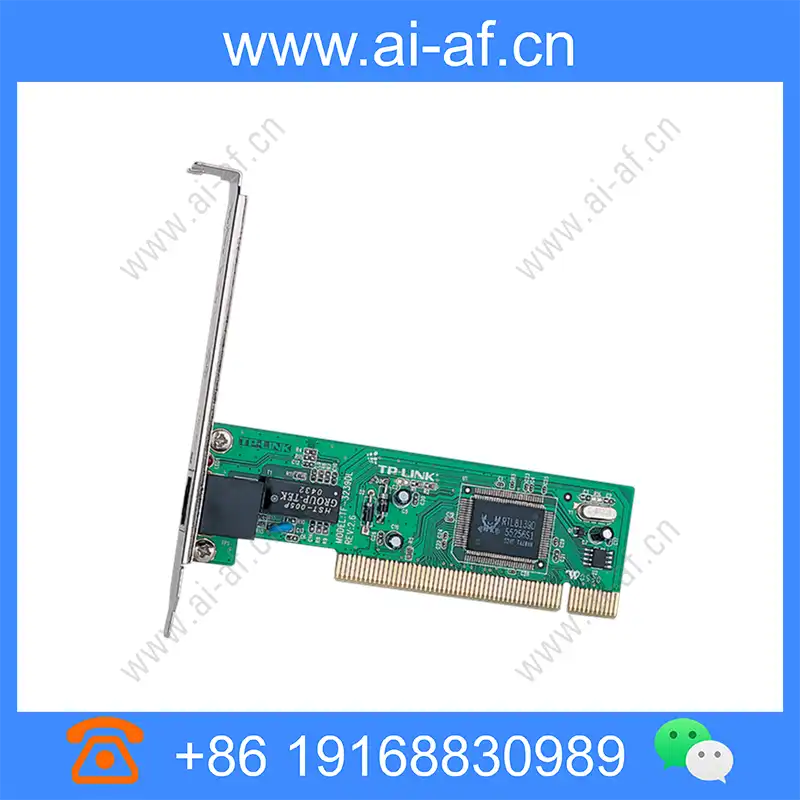

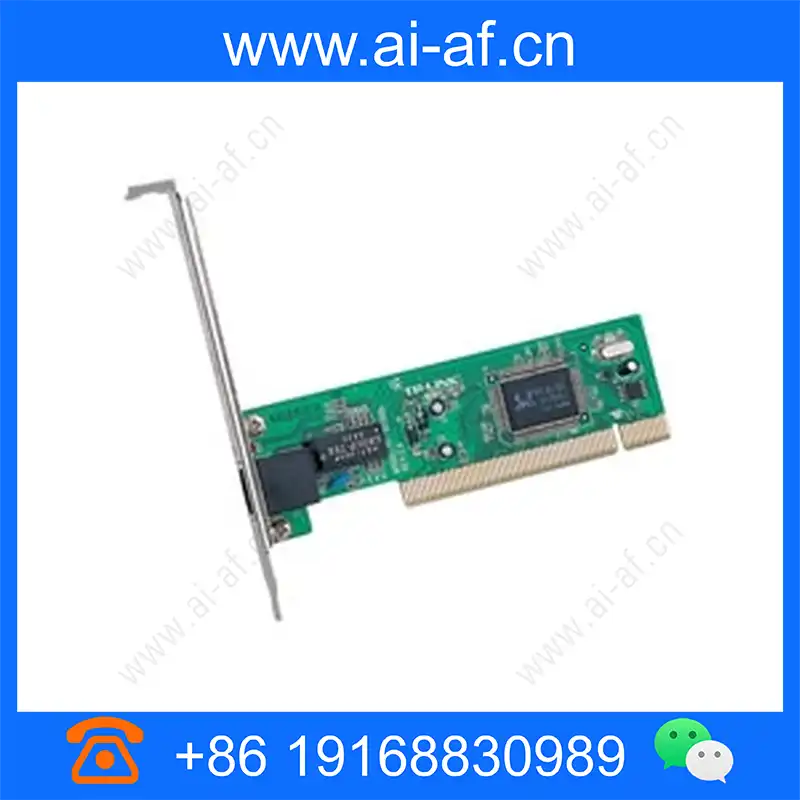

TP-LINK TF-3239DL_S 10/100M Adaptive PCI NIC
PCI interface, 10/100M adaptive, full and half duplex automatic detection Single RJ45 port, support port auto flip Provide abundant drivers Indicator light indicates network connection and working status Good compatibility TF-3239DL_S network card provides drivers for Windows series, Netware series, SCO Unix, Linux and other operating systems, suitable for multiple operating systems. In addition, Windows 2000, Windows XP, and Windows Vista come with TF-3239DL driver, plug and play. Easy to use TF-3239DL_S is easy to use, just plug it into the corresponding PCI slot, install the appropriate driver, and then use it. In Windows 2000/XP/Vista, there is no need to install the driver, plug and play. 10/100M rate adaptive TF-3239DL_S supports 10/100 rate self-adaption, full-duplex half-duplex
Product Features
Good compatibilityTF-3239DL_S network card provides drivers for Windows series, Netware series, SCO Unix, Linux and other operating systems, suitable for multiple operating systems. In addition, Windows 2000, Windows XP, and Windows Vista come with TF-3239DL driver, plug and play. Easy to useTF-3239DL_S is easy to use, just plug it into the corresponding PCI slot, install the appropriate driver, and then use it. In Windows 2000/XP/Vista, there is no need to install the driver, plug and play. 10/100M rate adaptiveTF-3239DL_S supports 10/100 rate self-adaption, full-duplex half-duplex self-adaption, ports support auto-flip, and can provide a two-way data transmission rate of 200M, which is an ideal choice for building a 100M network. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX; Compatible with PCI 2.1/2.2 bus standard |
| interface | 1 10/100M adaptive RJ45 port (supports auto flip) |
| LED | 10M Link/Active/Speed indicator; 100M Link/Active/Speed indicator; full-duplex indicator FDX |
| Physical medium | 10Base-T: Category 3 or above Shielded/unShielded twisted pair; 100Base-TX: Category 5 Shielded/unShielded twisted pair |
| size | 119.6mm x37mm x1.6mm(L x W x H) |
| Packaging accessories | 10/100M Ethernet network card: TF-3239DL_S; user manual; |
| Use environment | Operating temperature: 0°C to 40°C; Storage temperature: -40°C to 70°C; Operating humidity: 10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing |
