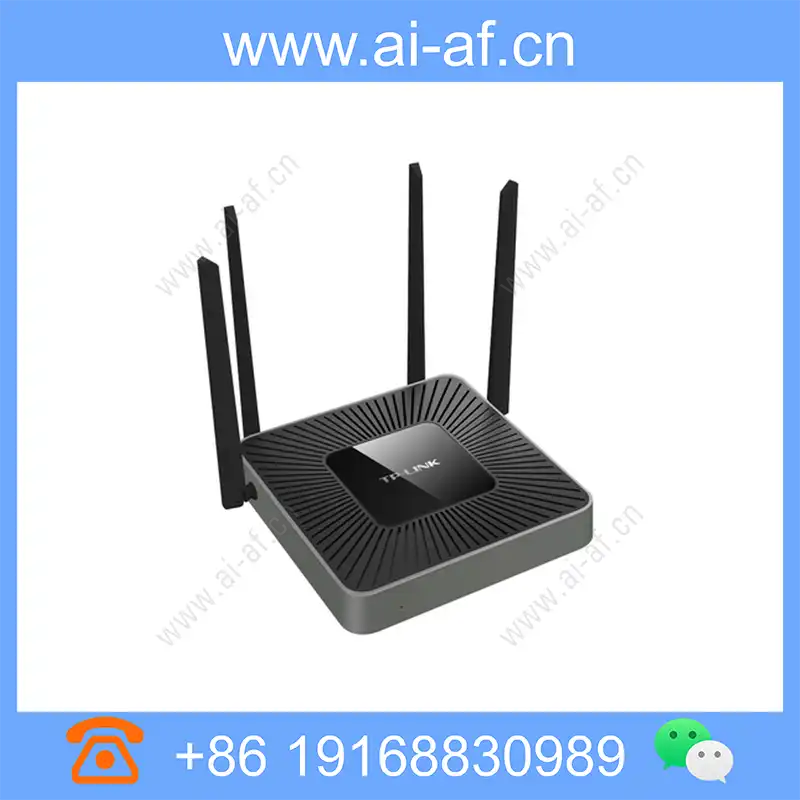

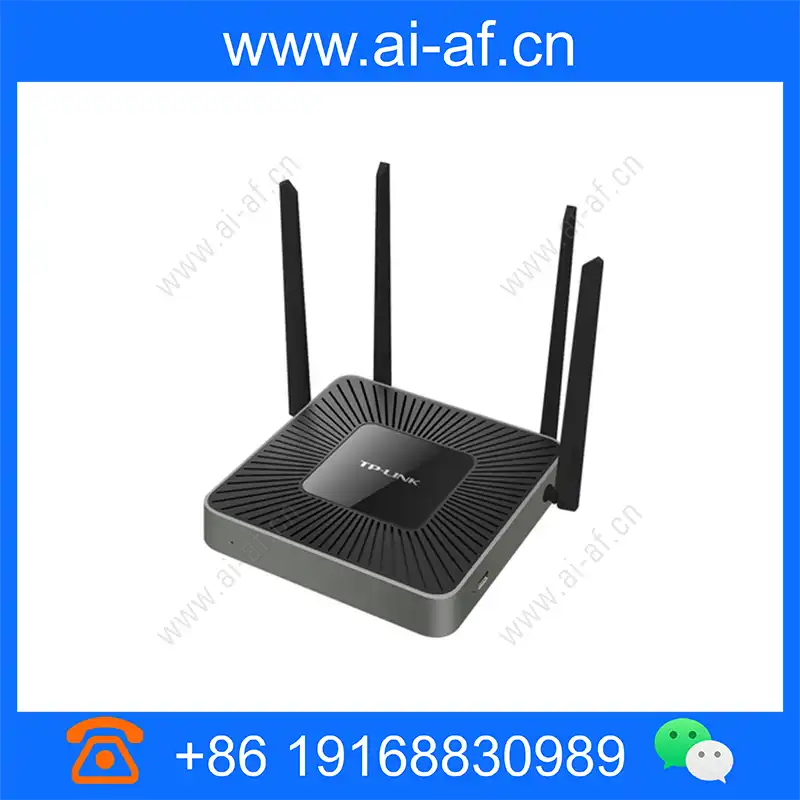

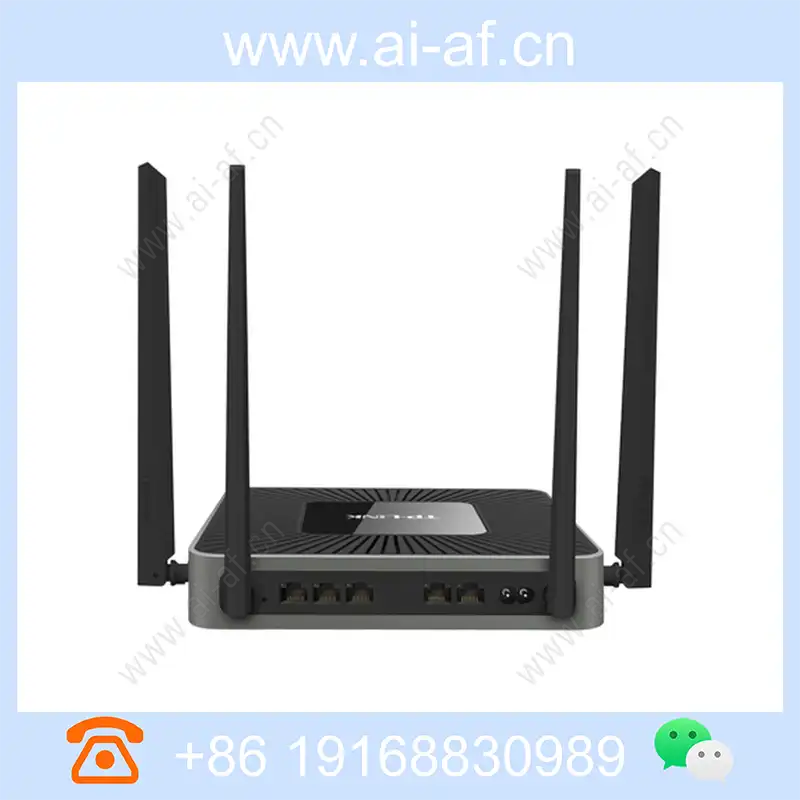

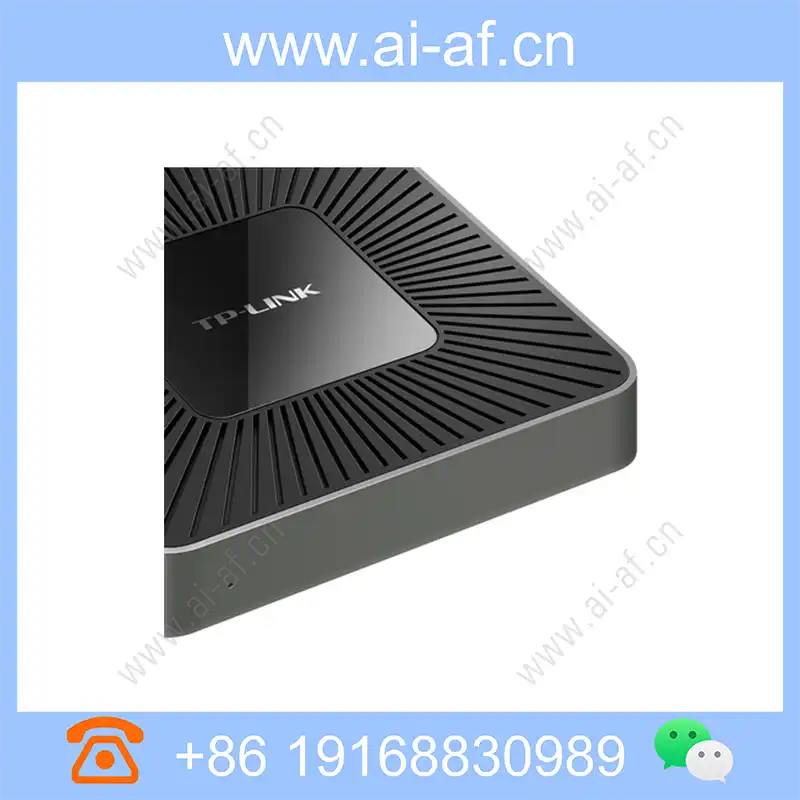

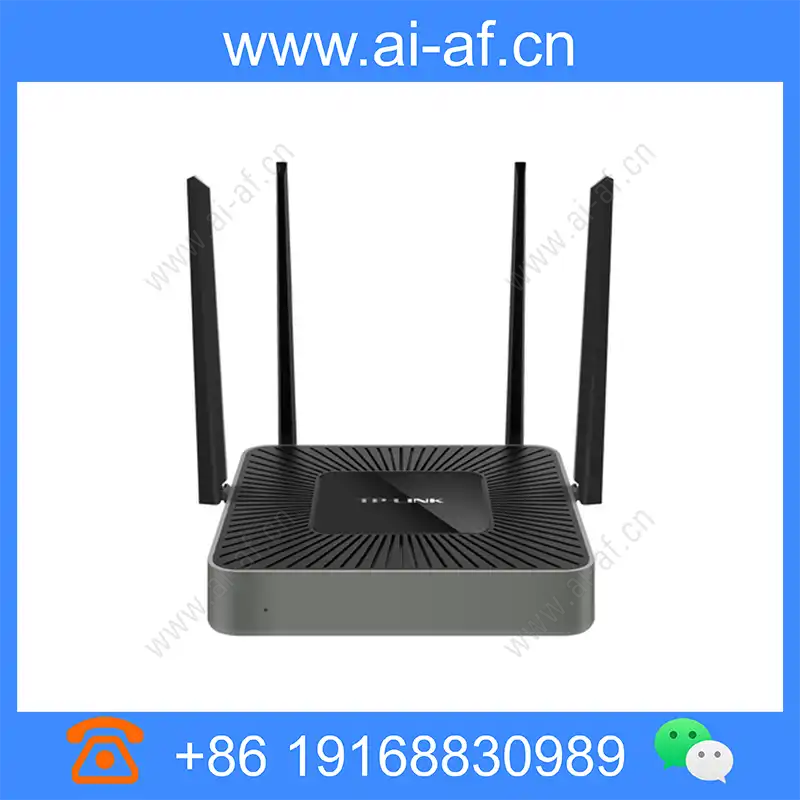

TP-LINK SAR1200W Security Audit Router
Brand: TP-LINK
Model: SAR1200W
Dimensions: 208mm x 208mm x 43.50mm
port 1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN/LAN optional ports 1 10/100/1000M RJ45 LAN port 1 USB interface Wireless rate 2.4G:300Mbps 5G:867Mbps antenna 2 2.4GHz 5Bi omniDirectional high-gain antennas 2 5GHz 5Bi omniDirectional high-gain antennas Indicator light Per port: Link/Act Per device: SYS Dimensions 208*208*43.5mm Input power 100~240V AC,50/60Hz Cooling method Thermally conductive silicone + natural heat dissipation Use environment Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing Network protocol TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS WAN port settings Connection method: dynamic IP, static IP, PPPoE MAC address: MAC address cloning, MAC address
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN/LAN optional ports 1 10/100/1000M RJ45 LAN port 1 USB interface |
| Wireless rate | 2.4G:300Mbps 5G:867Mbps |
| antenna | 2 2.4GHz 5Bi omniDirectional high-gain antennas 2 5GHz 5Bi omniDirectional high-gain antennas |
| Indicator light | Per port: Link/Act Per device: SYS |
| Dimensions | 208*208*43.5mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Thermally conductive silicone + natural heat dissipation |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| WAN port settings | Connection method: dynamic IP, static IP, PPPoE MAC address: MAC address cloning, MAC address modification Balance mode: bandwidth balance, connection balance ISP routing |
| LAN port settings | DHCP server LAN port IP settings Client list Static address assignment |
| wireless setting | SSID broadcast Up to 13 Multi-SSIDs Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption Inter-SSID isolation, AP internal isolation, guest network Wireless bridging Wireless MAC address filtering Wireless host status |
| AP management | AP settings Wireless network settings AP database upgrade |
| security audit | security audit |
| Application control | Social software: WeChat/QQ/Web QQ/Fetion/Alibaba Want/TencentTM/Multiplay YY/Enterprise QQ/Momo/Sina Weibo/Zhuhu Video Software: Tencent Video/PPStream/PPTV/Quickcast/Fengxing/Pi Pi/UUSee/CNTV/iQiyi/Betta Live/Sohu Video/Youku Video Music Software: Kugou Music/Cool Music/QQ Music/Baidu Music/NetEase Cloud Music Shopping Break Software: Mobile Jingdong/Taobao News Information Software : ZAKER/Toutiao/NetEase News P2P Software: Thunder and Thunder Look/Bit Comet/E-Donkey/QQ Tornado/FlashGet Financial Software: Straight Flush/Great Wisdom and Analyst/Qianlong/Compass/Securities Star/China Merchants Securities/ Galaxy Securities/Guotai Junan Securities/Yimeng Trader/Oriental Fortune/Huatai Securities Online Game: QQ Game/Thunder Game Box/Lianzhong World/Huofang Platform/Fantasy Westward Journey/World of Warcraft/Run Karting/QQ Farm App Store: PP Assistant/Pea The basic application of Pod/Application Po: HTTP/HTTPS/MMS/RTSP |
| Access control | Website grouping: website filtering, URL filtering File download: filtering specified file extension types Bandwidth limit: bandwidth allocation/connection number limit |
| Safety management | IP and MAC address binding, ARP protection, MAC address filtering, anti-DoS, scanning, and suspicious packets. |
| VPN | VPN Client |
| Certification Management | SMS authentication Web authentication Authentication status Authentication user management |
| Advanced Features | Routing settings: policy routing/static routing/system routing NAT settings: NAPT/one-to-one NAT/ALG virtual server dynamic DNS UPnP IP traffic statistics port monitoring print server |
| Management and maintenance | Chinese Web network management, remote management configuration backup and import configuration system software upgrade online detection, ping, tracert diagnostic tool system log |
