TAMRON M13VG246 1/3" 2.4-6mm F/1.2-360 DC Auto-Iris CCTV Lens CS Mount

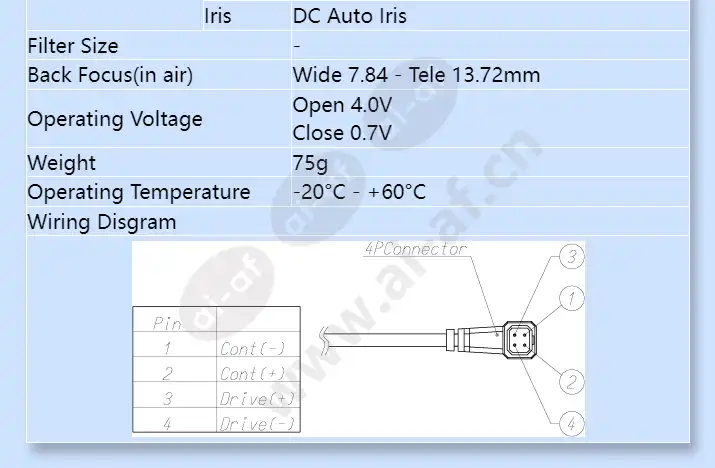

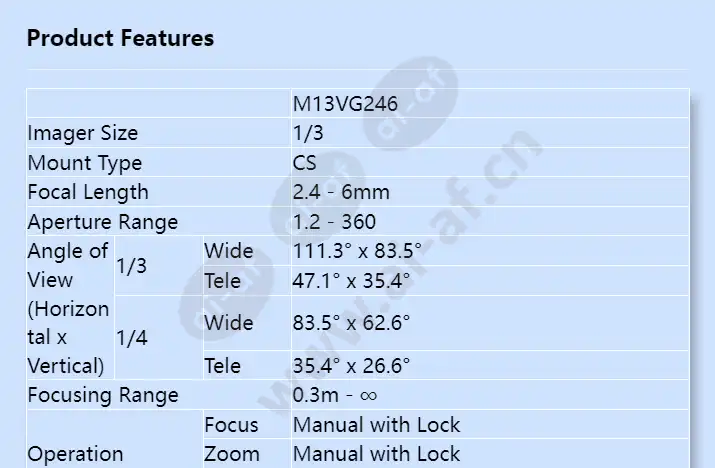

M13VG246 Imager Size 1/3 Mount Type CS Focal Length 2.4 - 6mm Aperture Range 1.2 - 360 Angle of View (Horizontal x Vertical) 1/3 Wide 111.3° x 83.5° Tele 47.1° x 35.4° 1/4 Wide 83.5° x 62.6° Tele 35.4° x 26.6° Focusing Range 0.3m - ∞ Operation Focus Manual with Lock Zoom Manual with Lock Iris DC Auto Iris Filter Size - Back Focus(in air) Wide 7.84 - Tele 13.72mm Operating Voltage Open 4.0V Close 0.7V Weight 75g Operating Temperature -20°C - +60°C Wiring Disgram
