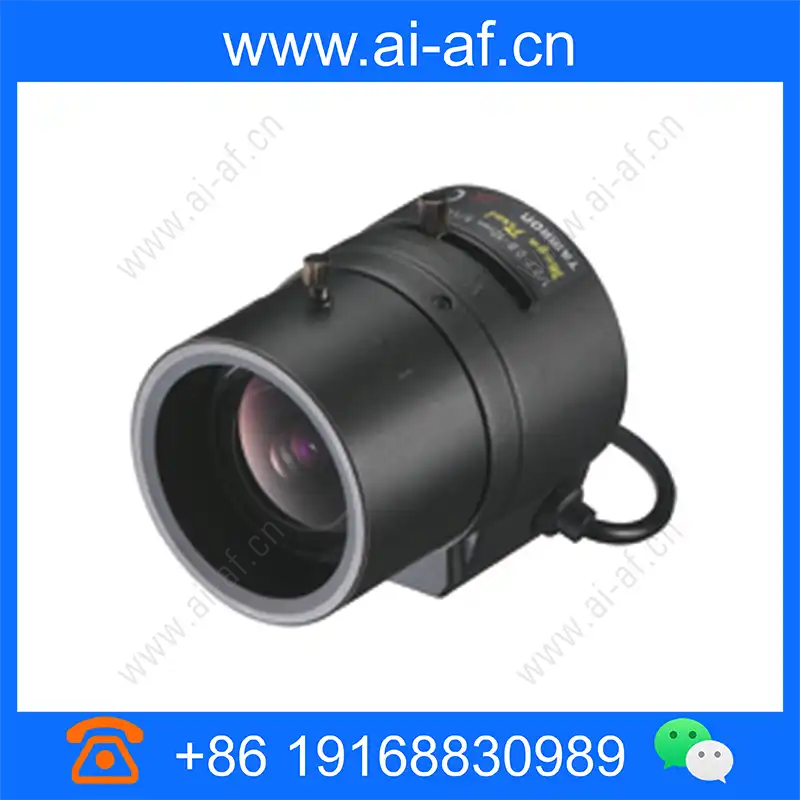

TAMRON M13VG2812IR 1/2.7" 2.8-12mm F/1.4-360 DC Auto-Iris CCTV Lens CS Mount
Brand: TAMRON
Model: M13VG2812IR

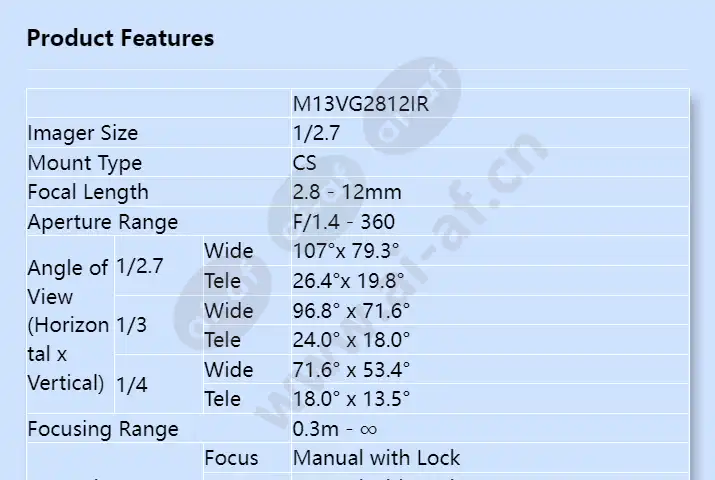

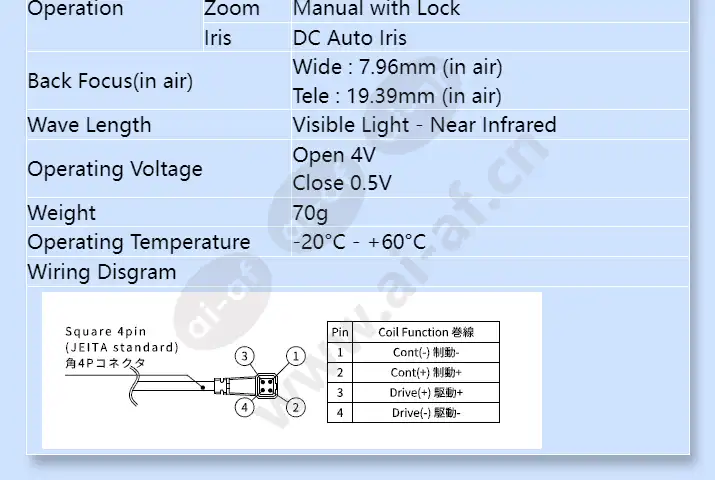

M13VG2812IR Imager Size 1/2.7 Mount Type CS Focal Length 2.8 - 12mm Aperture Range F/1.4 - 360 Angle of View (Horizontal x Vertical) 1/2.7 Wide 107°x 79.3° Tele 26.4°x 19.8° 1/3 Wide 96.8° x 71.6° Tele 24.0° x 18.0° 1/4 Wide 71.6° x 53.4° Tele 18.0° x 13.5° Focusing Range 0.3m - ∞ Operation Focus Manual with Lock Zoom Manual with Lock Iris DC Auto Iris Back Focus(in air) Wide : 7.96mm (in air) Tele : 19.39mm (in air) Wave Length Visible Light - Near Infrared Operating Voltage Open 4V Close 0.5V Weight 70g Operating Temperature -20°C - +60°C Wiring Disgram
