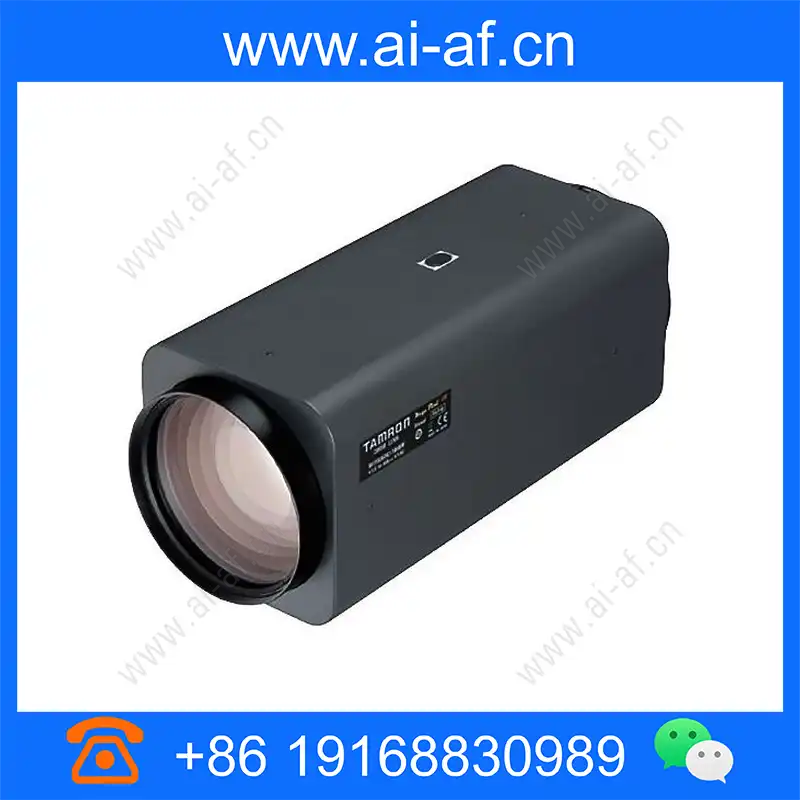

TAMRON M118ZG36X10IRPF 1/1.8" 10-360mm F/1.6-16 DC Auto-Iris CCTV Lens C Mount
Brand: TAMRON
Model: M118ZG36X10IRPF

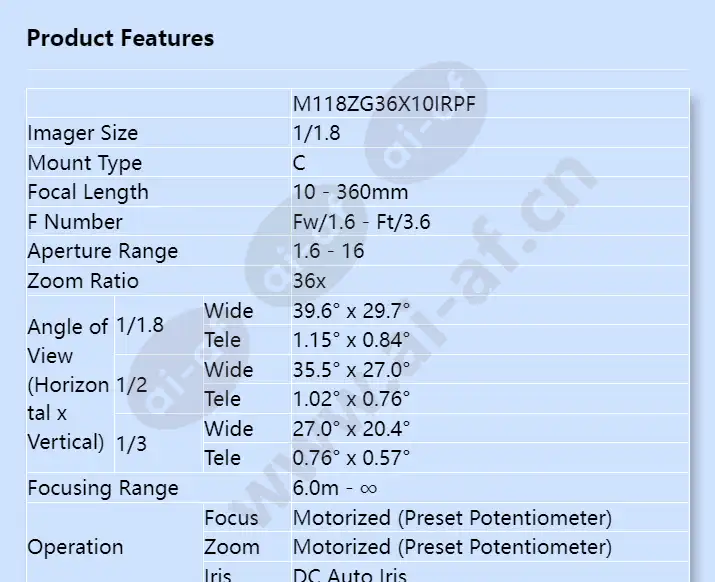

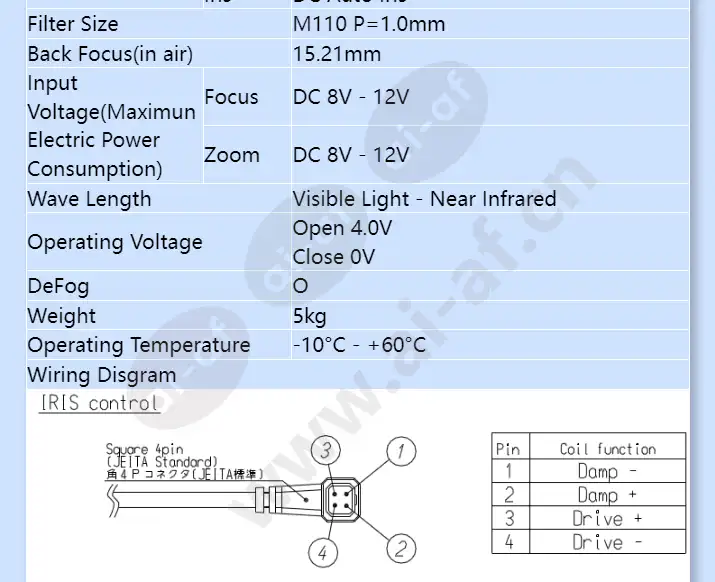

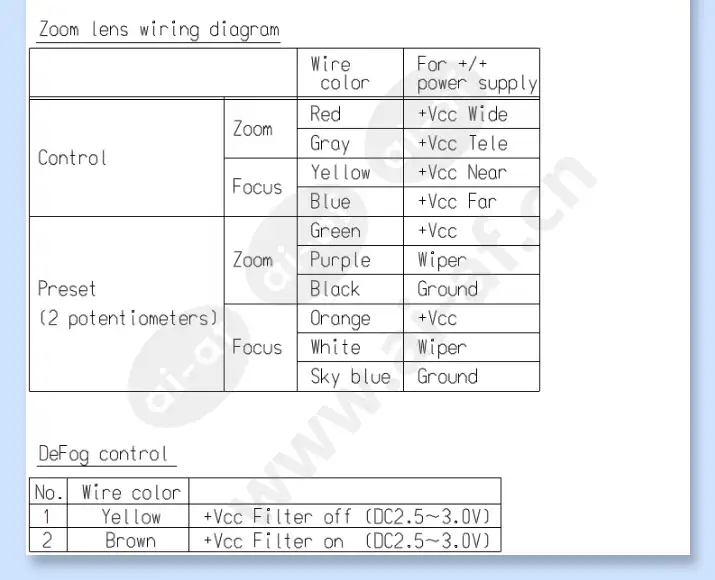

M118ZG36X10IRPF Imager Size 1/1.8 Mount Type C Focal Length 10 - 360mm F Number Fw/1.6 - Ft/3.6 Aperture Range 1.6 - 16 Zoom Ratio 36x Angle of View (Horizontal x Vertical) 1/1.8 Wide 39.6° x 29.7° Tele 1.15° x 0.84° 1/2 Wide 35.5° x 27.0° Tele 1.02° x 0.76° 1/3 Wide 27.0° x 20.4° Tele 0.76° x 0.57° Focusing Range 6.0m - ∞ Operation Focus Motorized (Preset Potentiometer) Zoom Motorized (Preset Potentiometer) Iris DC Auto Iris Filter Size M110 P=1.0mm Back Focus(in air) 15.21mm Input Voltage(Maximun Electric Power Consumption) Focus DC 8V - 12V Zoom DC 8V - 12V Wave Length Visible Light - Near Infrared Operating Voltage Open 4.0V Close 0V DeFog O Weight 5kg Operating Temperature -10°C - +60°C Wiring Disgram
