TAMRON LW10F42-UT 3.7mm F/1.1 42° Thermal Camera Module

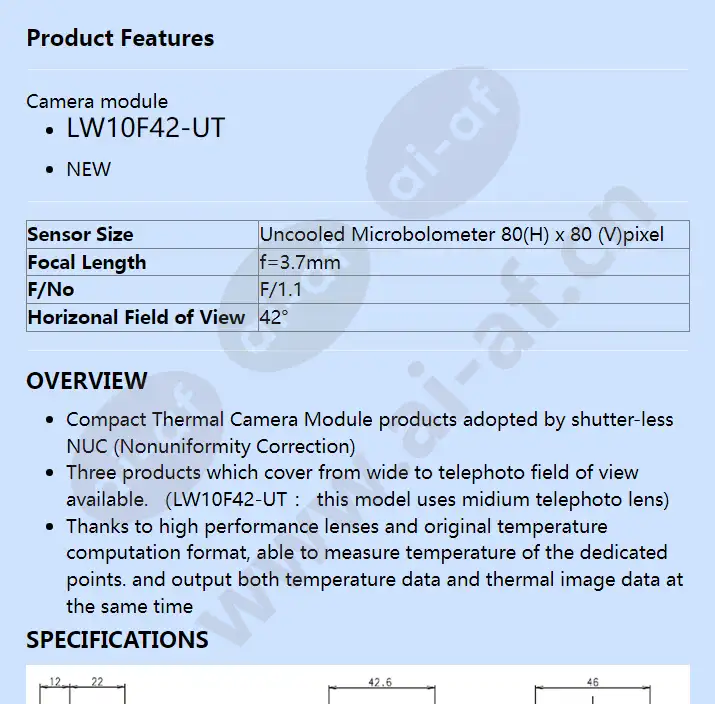

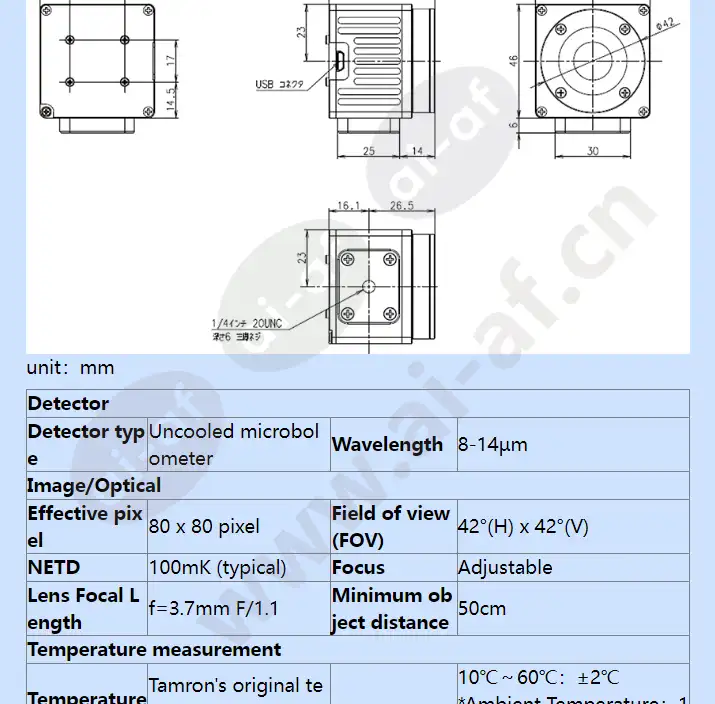

Camera module LW10F42-UT NEW Sensor Size Uncooled Microbolometer 80(H) x 80 (V)pixel Focal Length f=3.7mm F/No F/1.1 Horizonal Field of View 42° OVERVIEW Compact Thermal Camera Module products adopted by shutter-less NUC (Nonuniformity Correction) Three products which cover from wide to telephoto field of view available. （LW10F42-UT ： this model uses midium telephoto lens) Thanks to high performance lenses and original temperature computation format, able to measure temperature of the dedicated points. and output both temperature data and thermal image data at the same time SPECIFICATIONS unit：mm Detector Detector type Uncooled microbolometer Wavelength 8-14µm Image/Optical Effective pixel 80 x 80 pixel Field of view(FOV) 42°(H) x 42°(V) NETD 100mK (typical) Focus Adjustable Lens Focal
