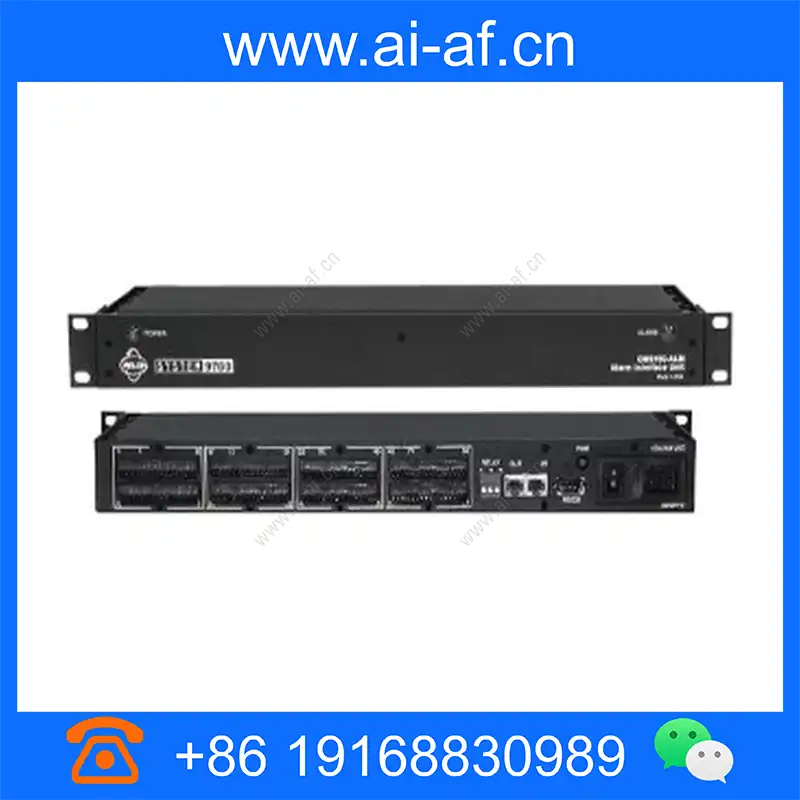

Pelco CM9760-ALM Matrix Alarm Interface Unit None

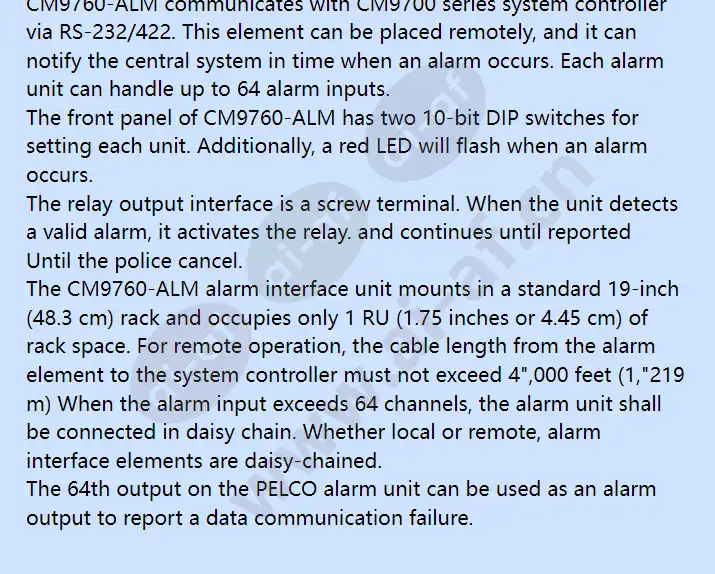

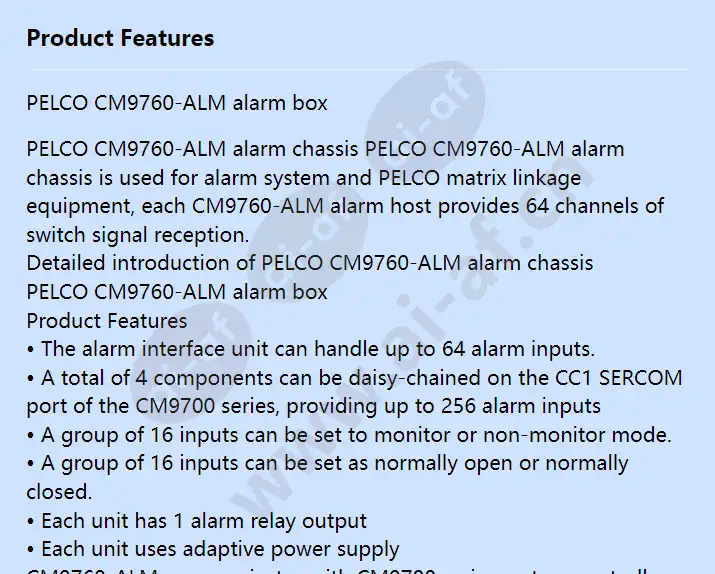

PELCO CM9760-ALM alarm box PELCO CM9760-ALM alarm chassis PELCO CM9760-ALM alarm chassis is used for alarm system and PELCO matrix linkage equipment, each CM9760-ALM alarm host provides 64 channels of switch signal reception. Detailed introduction of PELCO CM9760-ALM alarm chassis PELCO CM9760-ALM alarm box • The alarm interface unit can handle up to 64 alarm inputs. • A total of 4 components can be daisy-chained on the CC1 SERCOM port of the CM9700 series, providing up to 256 alarm inputs • A group of 16 inputs can be set to monitor or non-monitor mode. • A group of 16 inputs can be set as normally open or normally closed. • Each unit has 1 alarm relay output • Each unit uses adaptive power supply CM9760-ALM communicates with CM9700 series system controller via RS-232/422. This element
