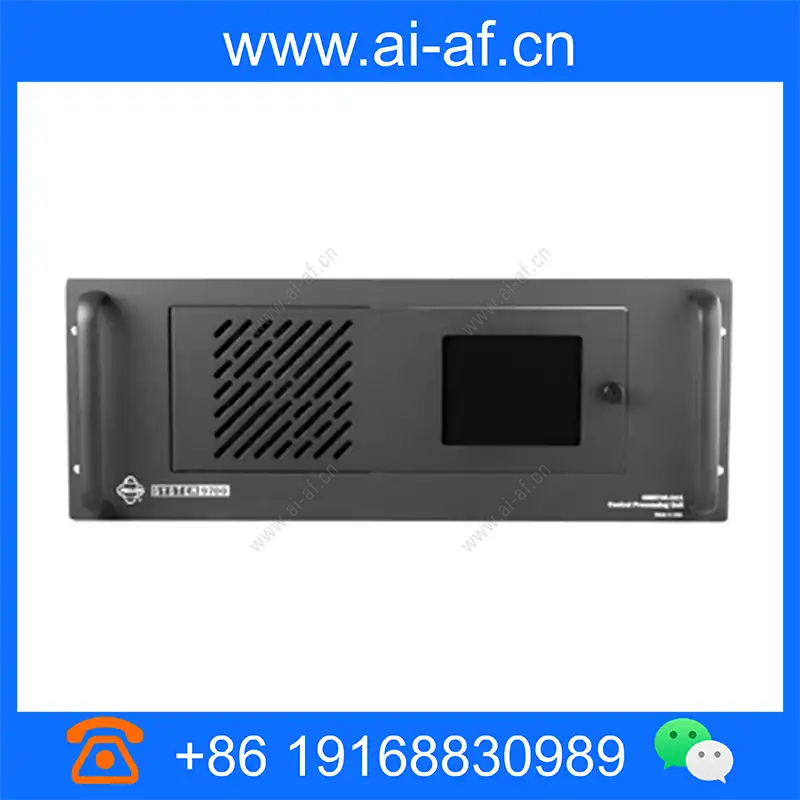

Pelco CM9700-CC1 CPU Controller For Large Matrix None

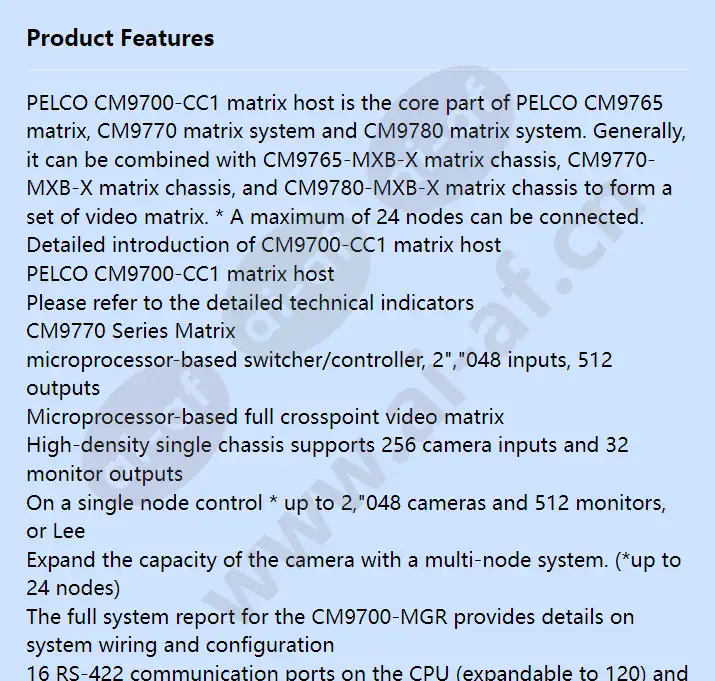

PELCO CM9700-CC1 matrix host is the core part of PELCO CM9765 matrix, CM9770 matrix system and CM9780 matrix system. Generally, it can be combined with CM9765-MXB-X matrix chassis, CM9770-MXB-X matrix chassis, and CM9780-MXB-X matrix chassis to form a set of video matrix. * A maximum of 24 nodes can be connected. Detailed introduction of CM9700-CC1 matrix host PELCO CM9700-CC1 matrix host Please refer to the detailed technical indicators CM9770 Series Matrix microprocessor-based switcher/controller, 2","048 inputs, 512 outputs Microprocessor-based full crosspoint video matrix High-density single chassis supports 256 camera inputs and 32 monitor outputs On a single node control * up to 2,"048 cameras and 512 monitors, or Lee Expand the capacity of the camera with a multi-node system. (*up
