Pelco CM6700-MXB2 CM6700-MXB4-X Matrix Switcher/Controller

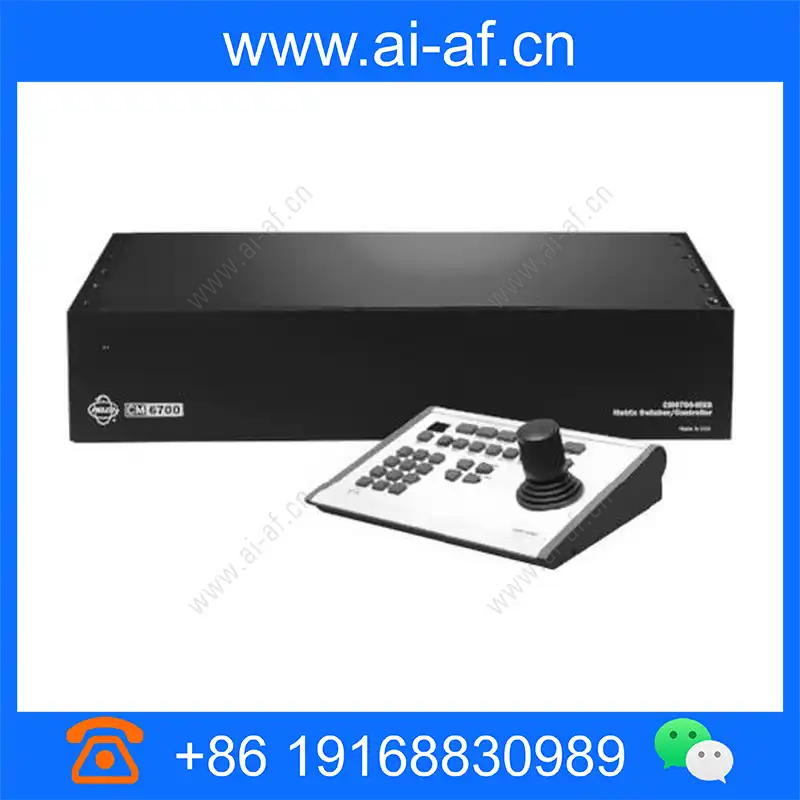

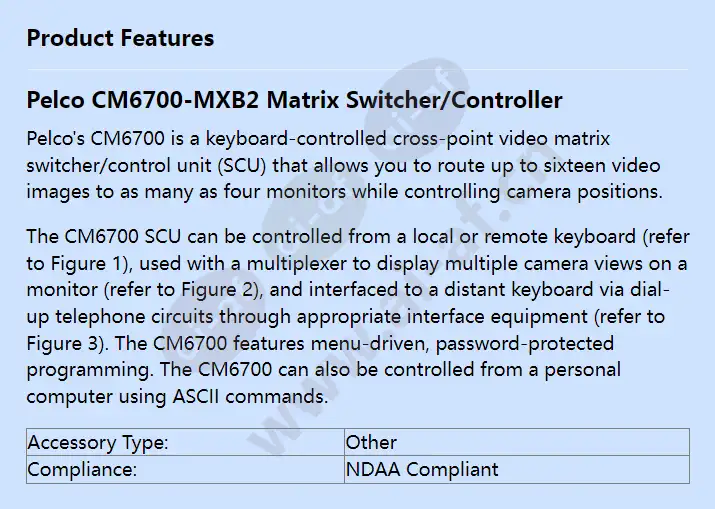

Pelco CM6700-MXB2 Matrix Switcher/Controller Pelco's CM6700 is a keyboard-controlled cross-point video matrix switcher/control unit (SCU) that allows you to route up to sixteen video images to as many as four monitors while controlling camera positions. The CM6700 SCU can be controlled from a local or remote keyboard (refer to Figure 1), used with a multiplexer to display multiple camera views on a monitor (refer to Figure 2), and interfaced to a distant keyboard via dial-up telephone circuits through appropriate interface equipment (refer to Figure 3). The CM6700 features menu-driven, password-protected programming. The CM6700 can also be controlled from a personal computer using ASCII commands. Accessory Type: Other Compliance: NDAA Compliant
