Honeywell 238Plus-II II control panel

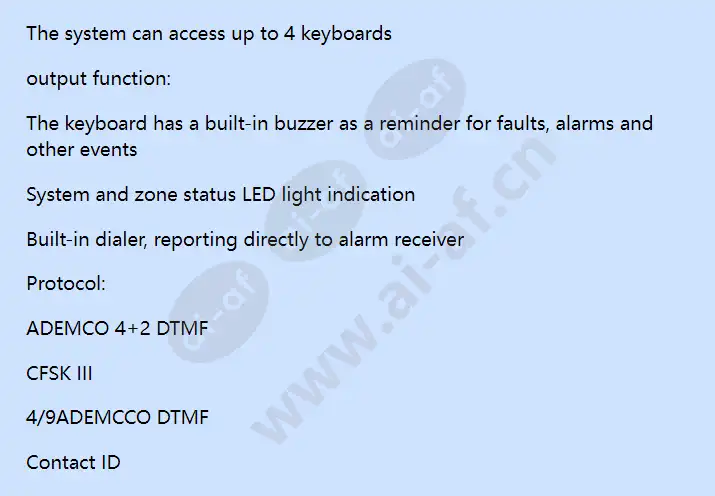

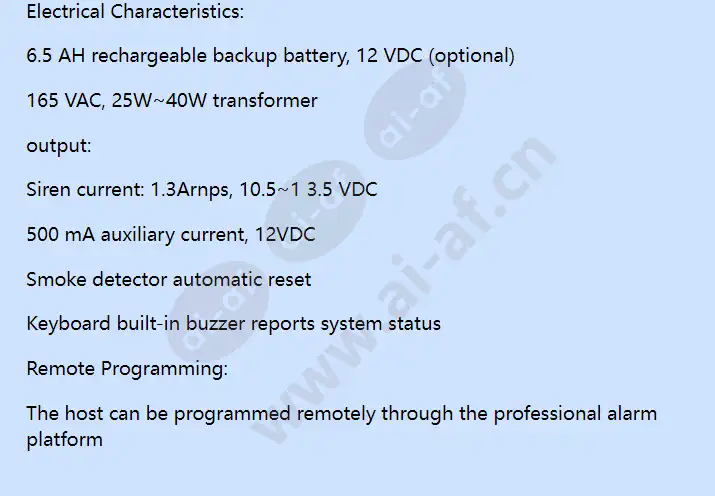

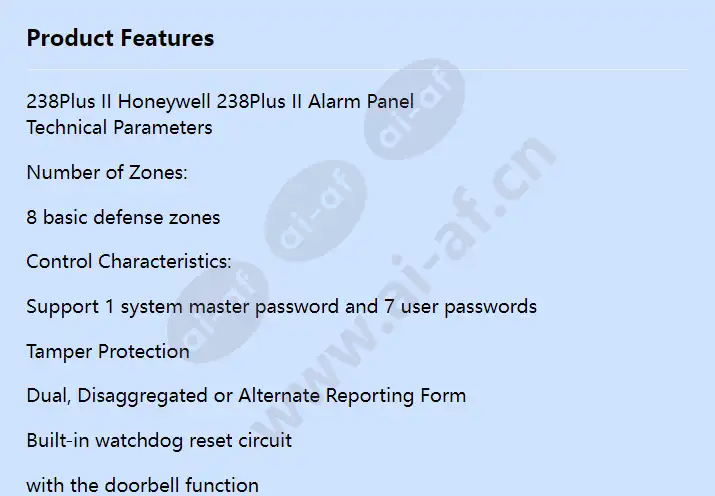

238Plus II Honeywell 238Plus II Alarm Panel Technical Parameters Number of Zones: 8 basic defense zones Control Characteristics: Support 1 system master password and 7 user passwords Tamper Protection Dual, Disaggregated or Alternate Reporting Form Built-in watchdog reset circuit with the doorbell function The system can access up to 4 keyboards output function: The keyboard has a built-in buzzer as a reminder for faults, alarms and other events System and zone status LED light indication Built-in dialer, reporting directly to alarm receiver Protocol: ADEMCO 4+2 DTMF CFSK III 4/9ADEMCCO DTMF Contact ID Electrical Characteristics: 6.5 AH rechargeable backup battery, 12 VDC (optional) 165 VAC, 25W~40W transformer output: Siren current: 1.3Arnps, 10.5~1 3.5 VDC 500 mA auxiliary current
