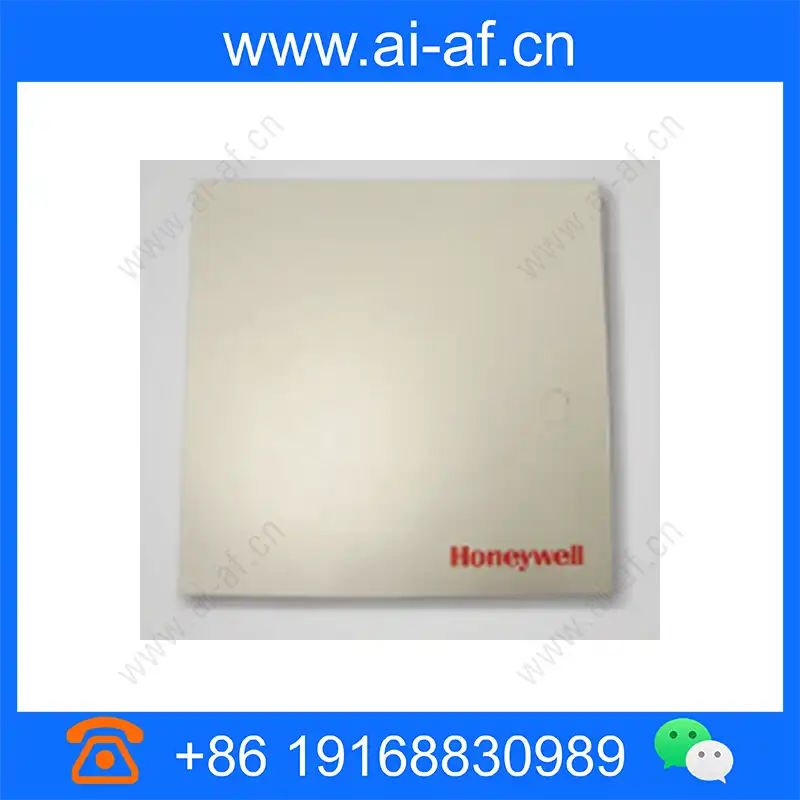

Honeywell 2316Plus-II II 16 zone host

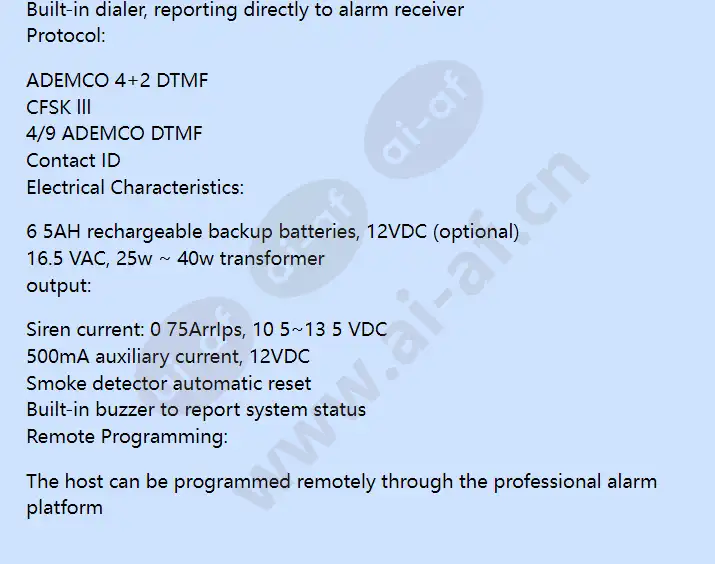

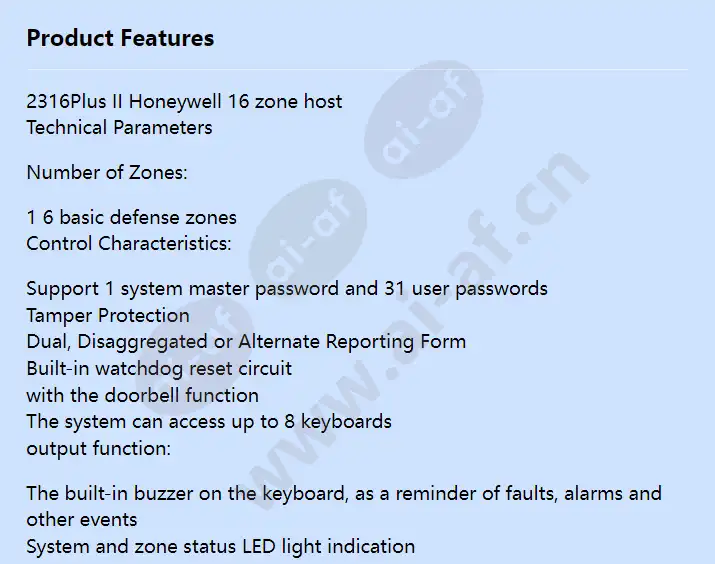

2316Plus II Honeywell 16 zone host Technical Parameters Number of Zones: 1 6 basic defense zones Control Characteristics: Support 1 system master password and 31 user passwords Tamper Protection Dual, Disaggregated or Alternate Reporting Form Built-in watchdog reset circuit with the doorbell function The system can access up to 8 keyboards output function: The built-in buzzer on the keyboard, as a reminder of faults, alarms and other events System and zone status LED light indication Built-in dialer, reporting directly to alarm receiver Protocol: ADEMCO 4+2 DTMF CFSK lll 4/9 ADEMCO DTMF Contact ID Electrical Characteristics: 6 5AH rechargeable backup batteries, 12VDC (optional) 16.5 VAC, 25w ~ 40w transformer output: Siren current: 0 75ArrIps, 10 5~13 5 VDC 500mA auxiliary current, 12VDC
