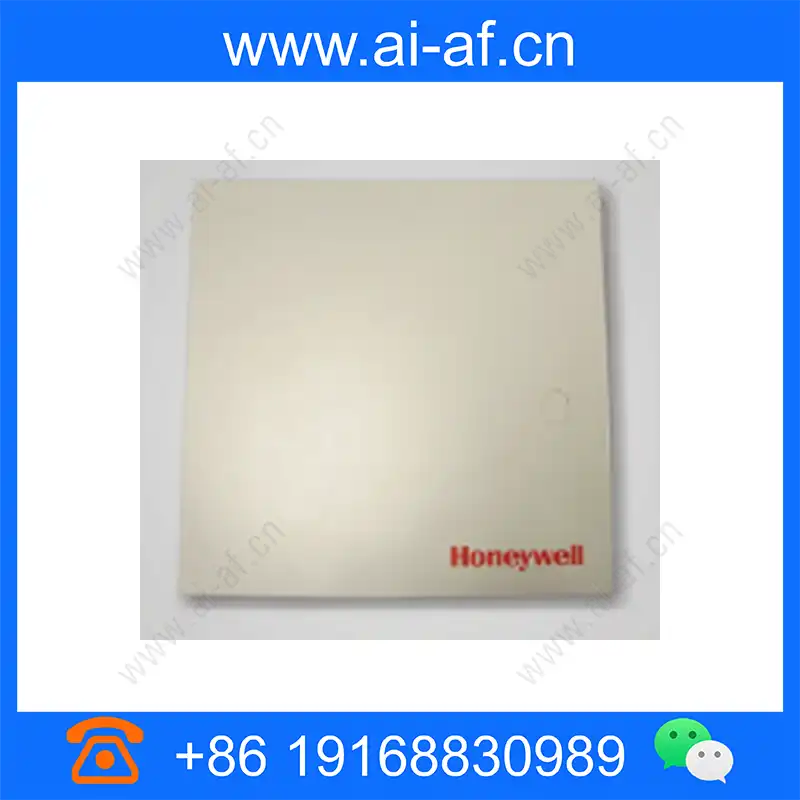

Honeywell 236Plus-II II control panel

236Plus II Honeywell Honeywell Alarm Host Technical Parameters Number of Zones: 6 basic defense zones Control Characteristics: Support 1 system master password and 5 user passwords Tamper Protection Dual, Disaggregated or Alternate Reporting Form Built-in watchdog reset circuit with the doorbell function The system can access up to 4 keyboards output function: The keyboard has a built-in buzzer as a reminder for faults, alarms and other events System and zone status LED light indication Built-in dialer, reporting directly to alarm receiver Protocol: ADEMCO 4+2 DTMF CFSK III Contact ID Electrical Characteristics: 4 AH/6.5 AH rechargeable backup battery, 1 2 VDC (optional) 16.5 VAC, 25W ~ 45W transformer output: Siren current: 0.8Amps, 9.5~14 VDC 500mA auxiliary current, 1 2VDC Smoke
