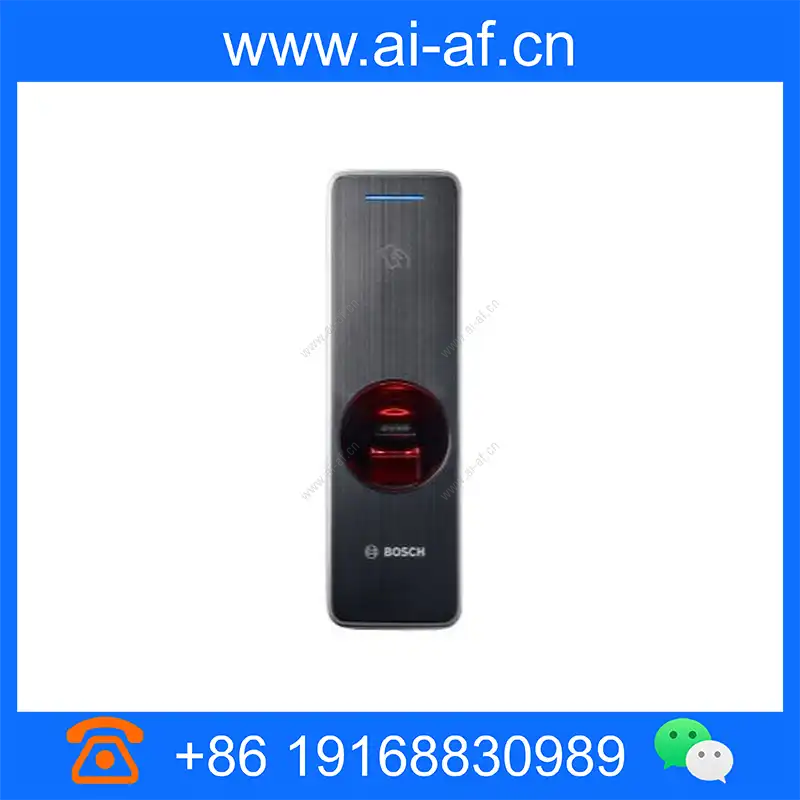

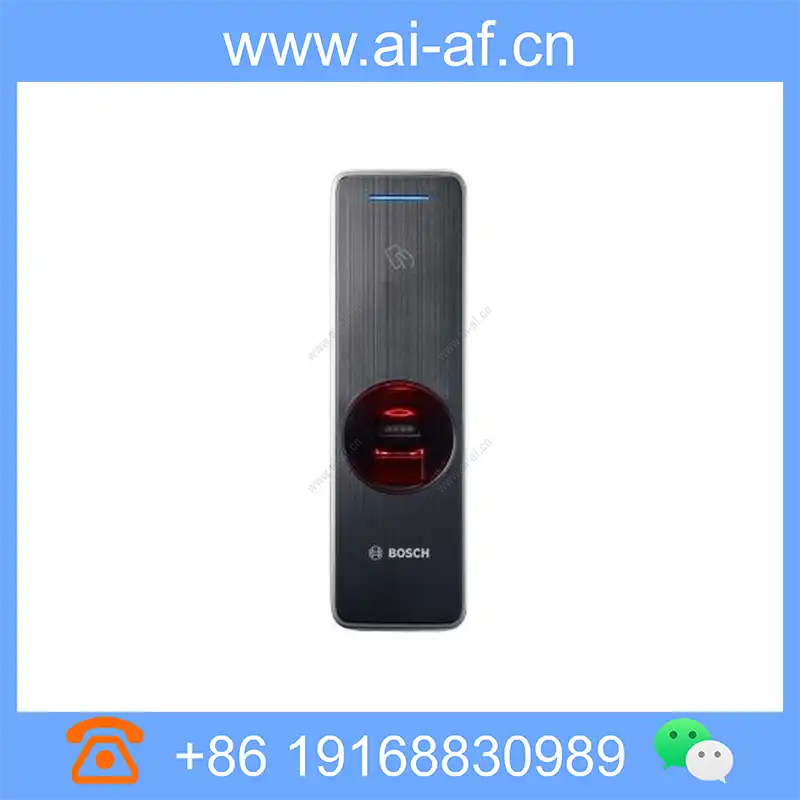

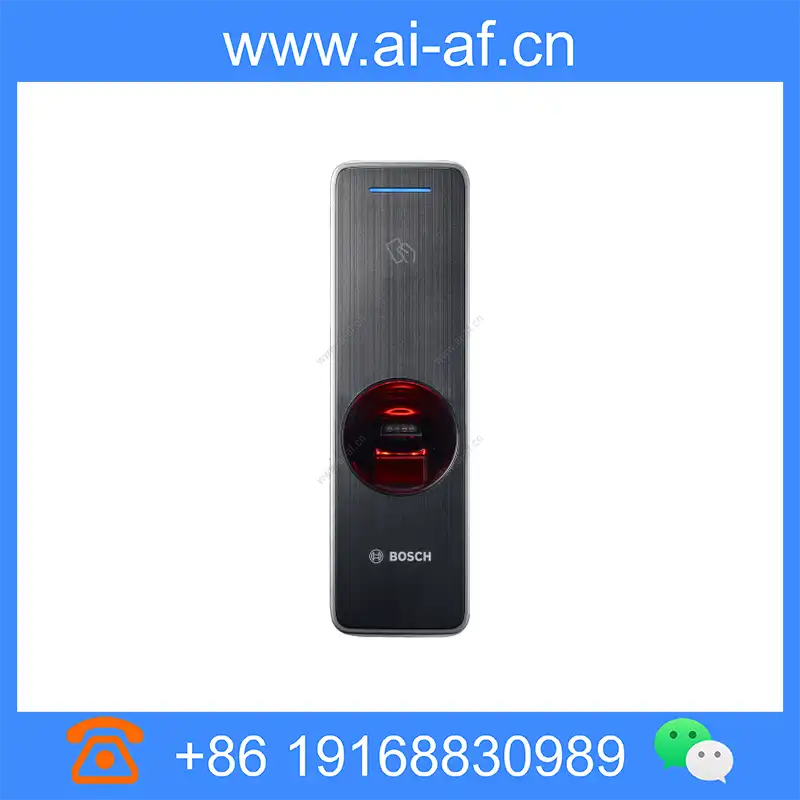

Bosch ARD-FPBEW2-H3 Fingerprint reader Multiclass F.01U.404.049

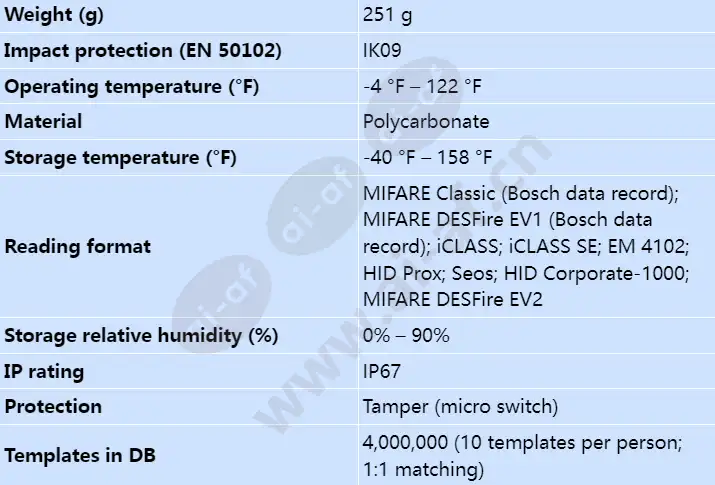

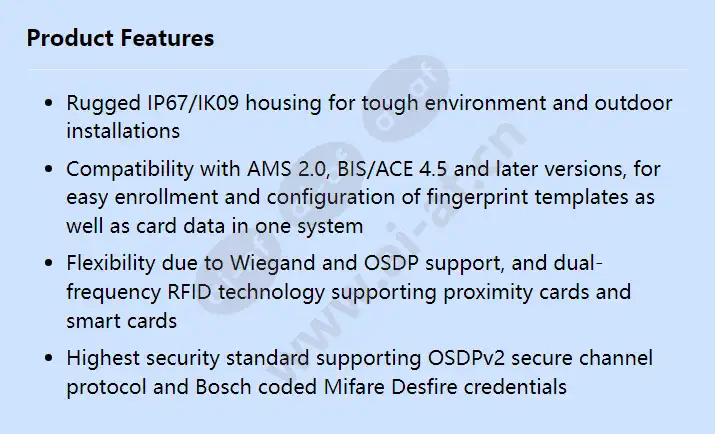

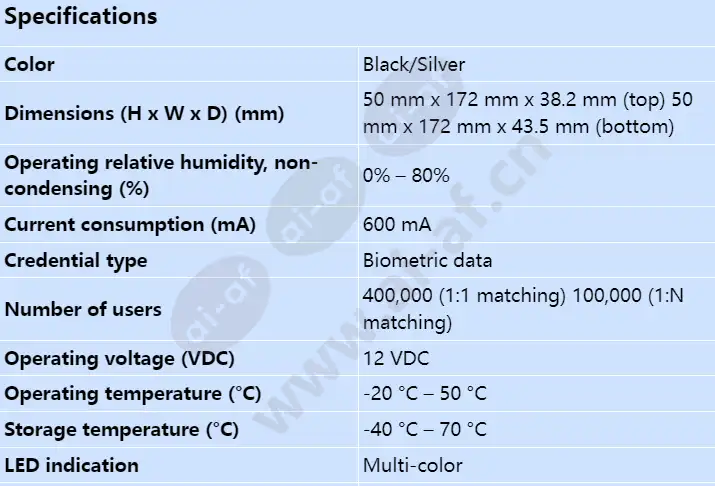

Rugged IP67/IK09 housing for tough environment and outdoor installations Compatibility with AMS 2.0, BIS/ACE 4.5 and later versions, for easy enrollment and configuration of fingerprint templates as well as card data in one system Flexibility due to Wiegand and OSDP support, and dual-frequency RFID technology supporting proximity cards and smart cards Highest security standard supporting OSDPv2 secure channel protocol and Bosch coded Mifare Desfire credentials Operating voltage (VDC) 12 VDC Current consumption (mA) 600 mA Material Polycarbonate Dimensions (H x W x D) (mm) 50 mm x 172 mm x 38.2 mm (top) 50 mm x 172 mm x 43.5 mm (bottom) Weight (g) 251 g IP rating IP67 Impact protection (EN 50102) IK09 Operating temperature (°C) -20 °C – 50 °C Operating temperature (°F) -4 °F – 122 °F
