Bosch ARD-FR054-4BI Face Recognizer Multi-card 5 inch F.01U.382.152

Brand: Bosch
Model: ARD-FR054-4BI
Dimensions: 39mm x 106mm x 180mm

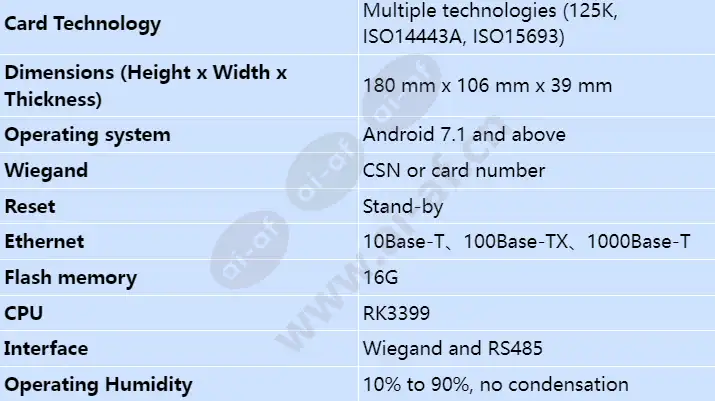

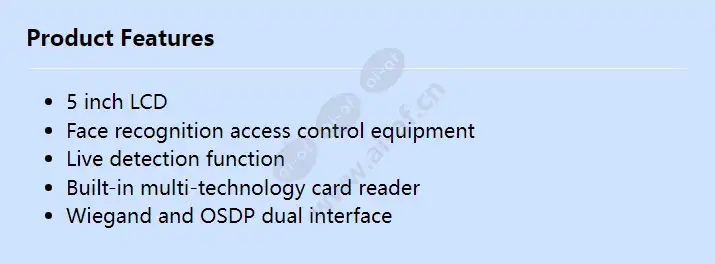

5 inch LCD Face recognition access control equipment Live detection function Built-in multi-technology card reader Wiegand and OSDP dual interface Operating voltage 12 VDC Maximum current 2 A Operating system Android 7.1 and above CPU RK3399 RAM 2G DDR3 Flash memory 16G Camera Binocular camera: optical, infrared Fill light Infrared camera Ethernet 10Base-T、100Base-TX、1000Base-T Screen 5 inch LCD Resolution 720 x 1280 Interfaces Wiegand and RS485 Card Type EM、Proximity、Mifare Classic、Mifare DESFire EV1、Legic、CPU、iCLASS Card Technology Multiple technologies (125K, ISO14443A, ISO15693) Wiegand CSN or card number Reset Stand-by Dimensions (Height x Width x Thickness) 180 mm x 106 mm x 39 mm Working temperature -20ºC to +55ºC Operating humidity 10% to 90%, no condensation
