Bosch ARD-FC023-4BI Fingerprint Reader CPU Mifare F.01U.382.134

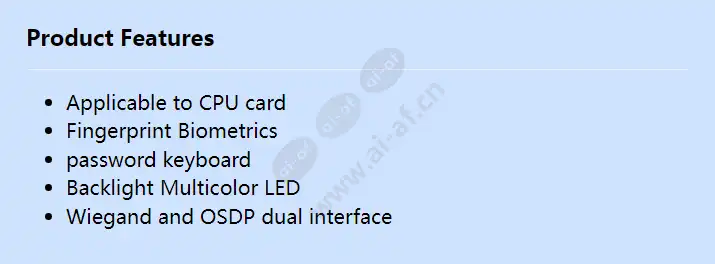

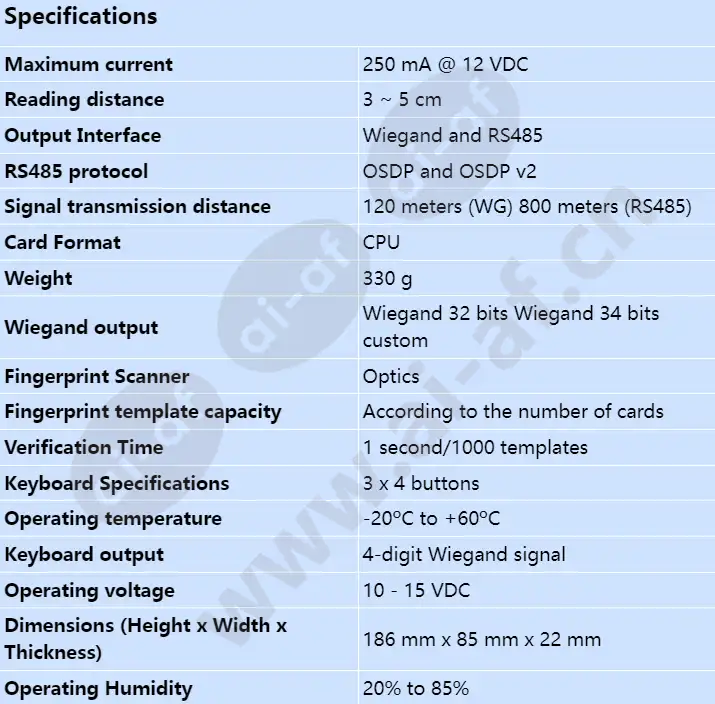

Applicable to CPU card Fingerprint Biometrics password keyboard Backlight Multicolor LED Wiegand and OSDP dual interface Operating voltage 10 - 15 VDC Maximum current 250 mA @ 12 VDC Reading distance 3 ~ 5 cm Output Interface Wiegand and RS485 RS485 protocol OSDP and OSDP v2 Signal transmission distance 120 meters (WG) 800 meters (RS485) Card Format CPU Wiegand output Wiegand 32 bits Wiegand 34 bits custom Fingerprint Scanner Optics Fingerprint template capacity According to the number of cards Verification Time 1 second/1000 templates Keyboard Specifications 3 x 4 buttons Keyboard output 4-digit Wiegand signal Dimensions (Height x Width x Thickness) 186 mm x 85 mm x 22 mm Weight 330 g Working temperature -20ºC to +60ºC Operating humidity 20% to 85%
