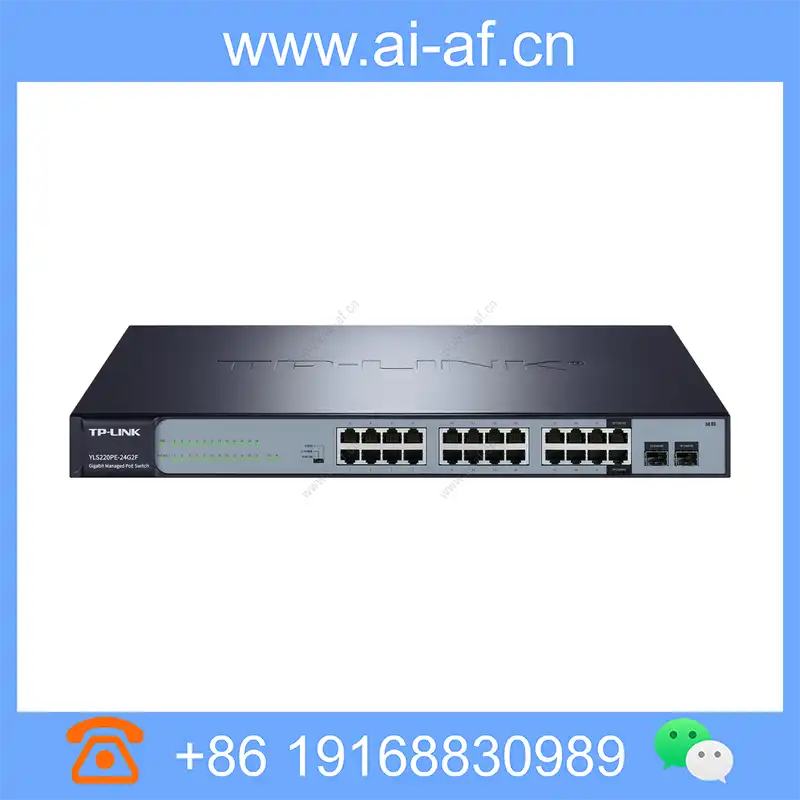

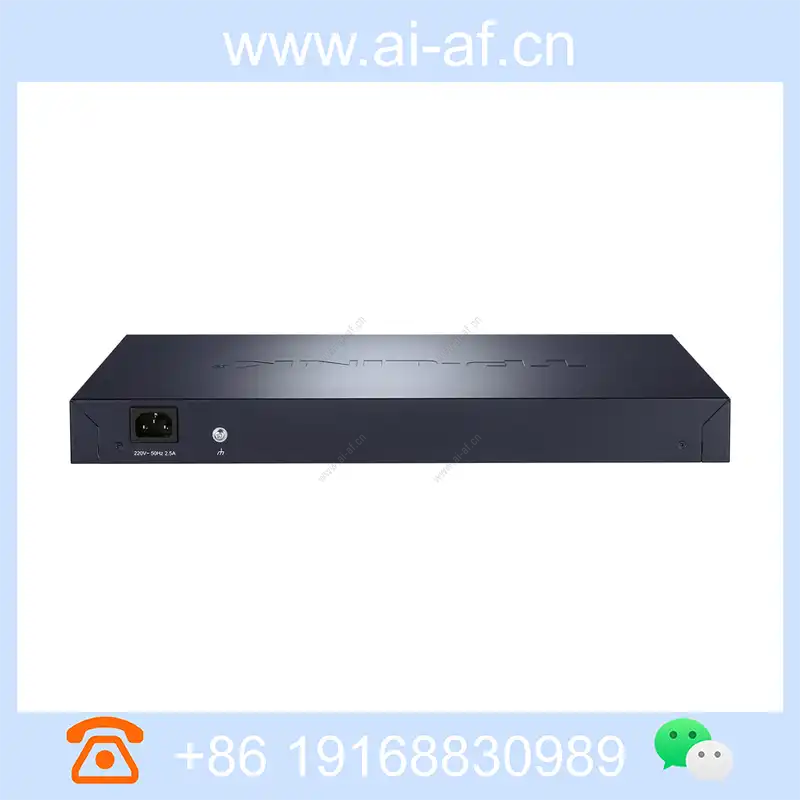

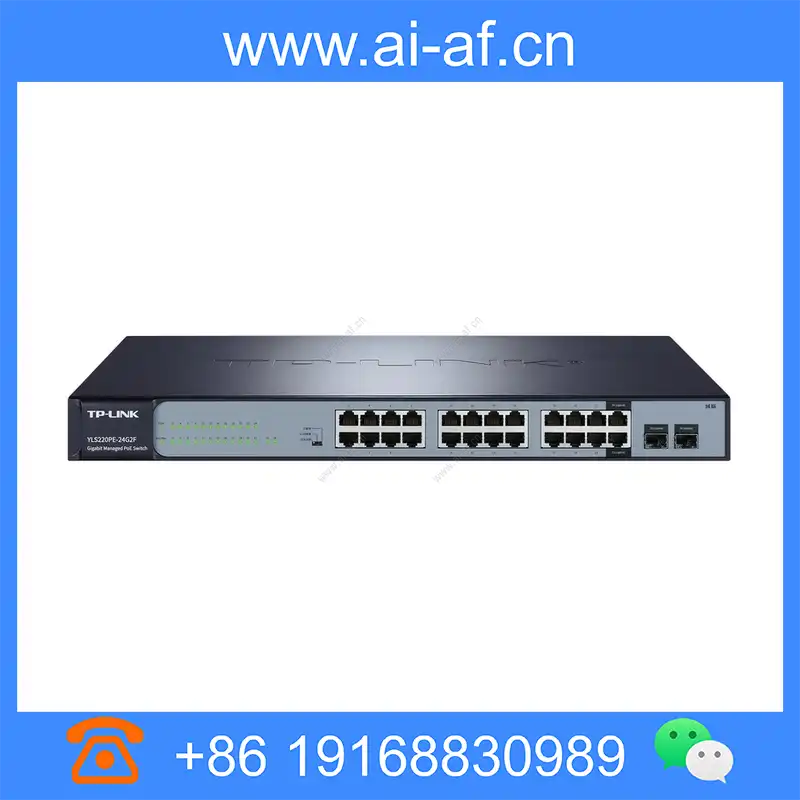

TP-LINK YLS220PE-24G2F Domain Link | Full Gigabit Cloud Managed PoE Switch

Brand: TP-LINK

Model: YLS220PE-24G2F

24 10/100/1000BASE-T RJ45 port, 2 Gigabit SFP light ports 1 to 24 thousand megabytes RJ45 port support IEEE 802.3af/at standard PoE power supply The maximum PoE power supply of the whole machine is 375W, and the maximum PoE power supply of a single port is 30W Support Business Cloud APP and web-side remote management Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring, cable detection, loopback protection Support cloud management, VLAN isolation, standard exchange three working modes Product model YLS220PE-24G2F YLS220PE-16G2F YLS220PE-9G1F YLS220P-5G Gigabit RJ45 port 24 16 9 5 Gigabit SFP port 2 2 1 0 PoE port 24 16 8 4 Maximum PoE output power of the

Product Features

24 10/100/1000BASE-T RJ45 port, 2 Gigabit SFP light ports
1 to 24 thousand megabytes RJ45 port support IEEE 802.3af/at standard PoE power supply
The maximum PoE power supply of the whole machine is 375W, and the maximum PoE power supply of a single port is 30W
Support Business Cloud APP and web-side remote management
Support intelligent start, abnormal alarm, fast discharge
Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression
Support port aggregation, port mirroring, port monitoring, cable detection, loopback protection
Support cloud management, VLAN isolation, standard exchange three working modes

Product model	YLS220PE-24G2F	YLS220PE-16G2F	YLS220PE-9G1F	YLS220P-5G
Gigabit RJ45 port	24	16	9	5
Gigabit SFP port	2	2	1	0
PoE port	24	16	8	4
Maximum PoE output power of the whole machine	375W	225W	120W	60W
Maximum power consumption of the whole machine	424W	262W	125W	65W
Maximum PoE output power of the port	30W
PoE power supply standard	IEEE 802.3af/at
MAC address capacity	8K	8K	4K	2K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	44033044	44018044	29418044	1009825
Input power	220VAC, 50Hz	220VAC, 50Hz	220VAC, 50Hz	53.5VDC/1.22A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation
