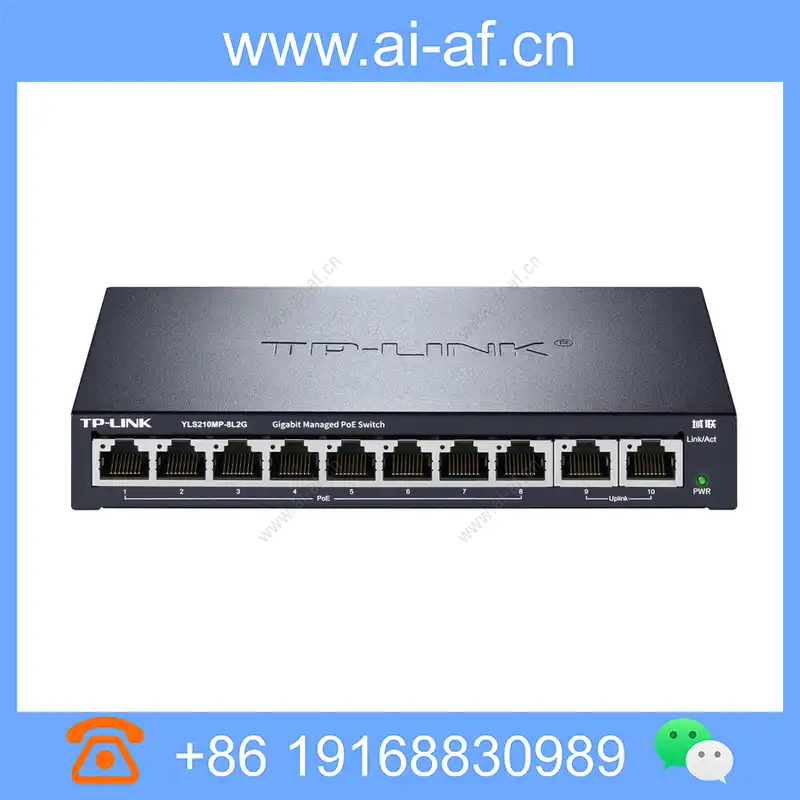

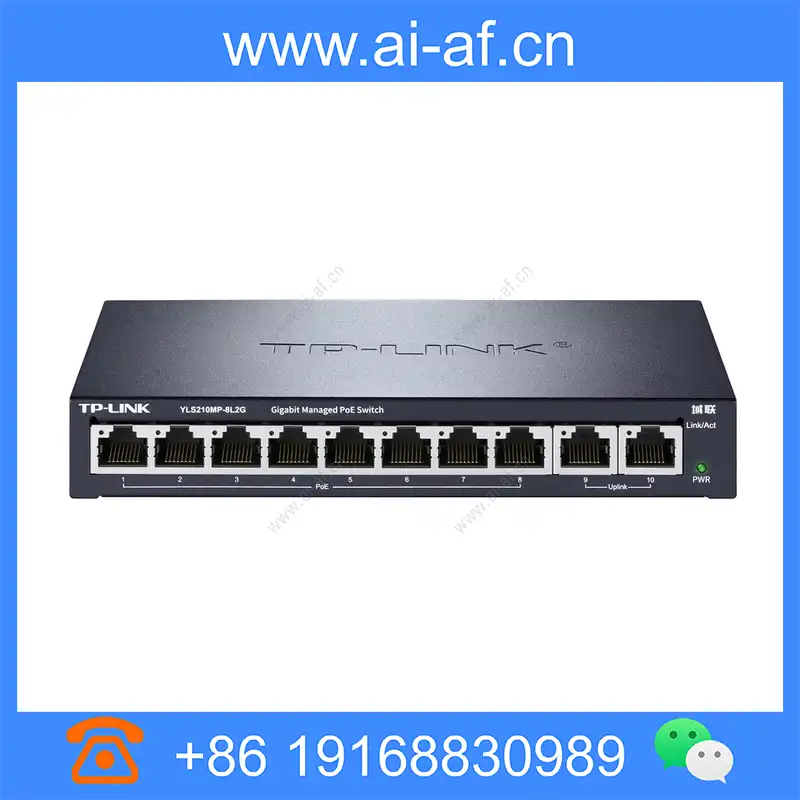

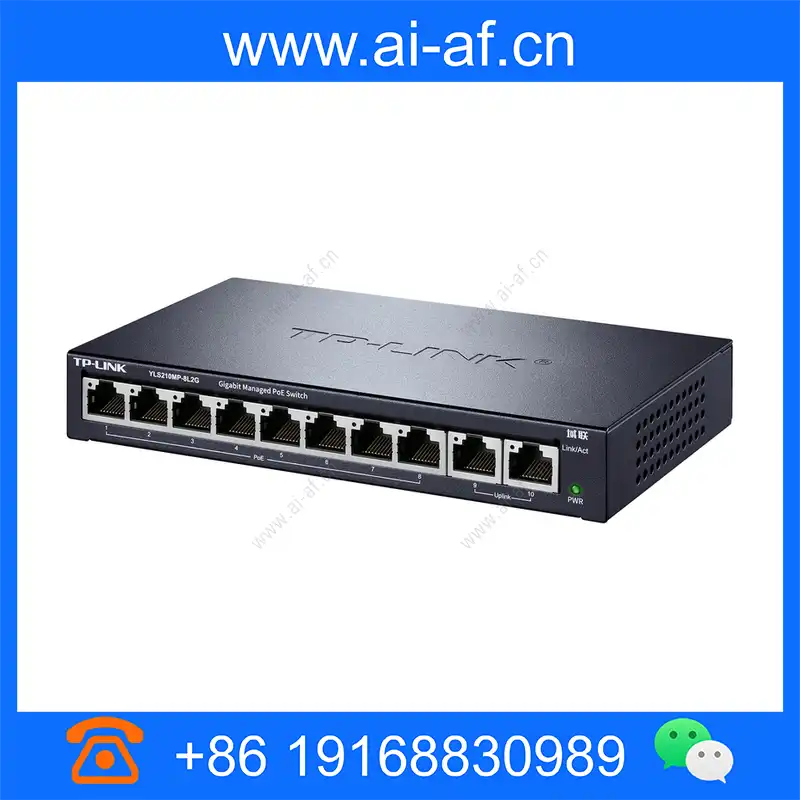

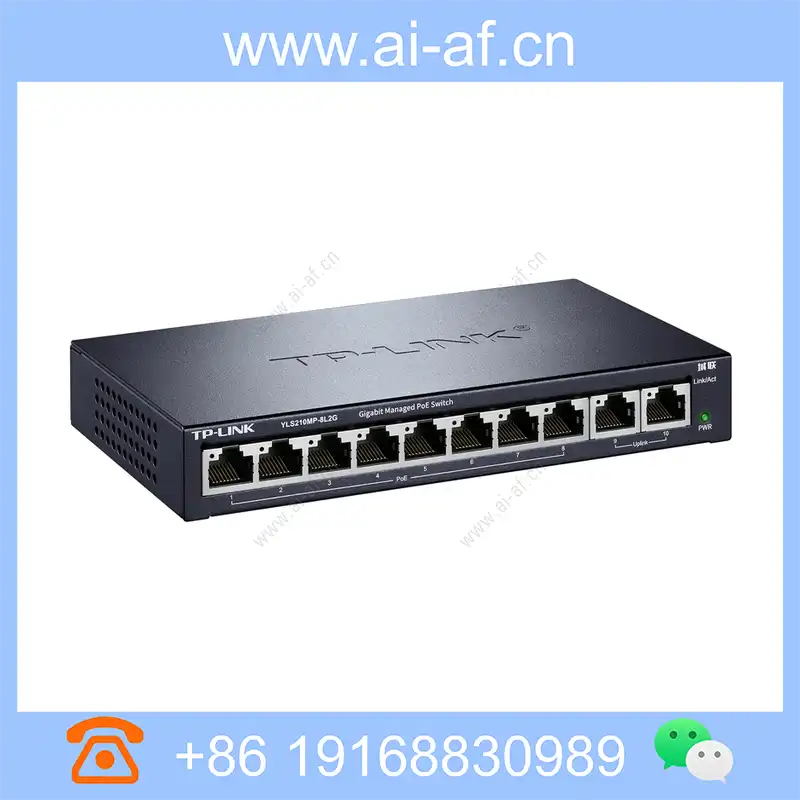

TP-LINK YLS210MP-8L2G Domain Link | Gigabit Uplink Cloud Managed PoE Switch

Brand: TP-LINK

Model: YLS210MP-8L2G

8 10/100 Base-T RJ45 ports (supports standard PoE+ power supply) Two 10/100/1000 Base-T RJ45 ports The maximum POE power supply power of the whole machine is 57W, the maximum PoE power supply power of single port is 30W Comply with IEEE 802.3af/at PoE power supply standard, the port supports power supply priority Support Business Cloud APP and web-side remote management Support monitoring terminal intelligent identification Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection Support cloud management, VLAN isolation, standard exchange three working modes Support fast PoE, long-term PoE function Product model

Product Features

8 10/100 Base-T RJ45 ports (supports standard PoE+ power supply)
Two 10/100/1000 Base-T RJ45 ports
The maximum POE power supply power of the whole machine is 57W, the maximum PoE power supply power of single port is 30W
Comply with IEEE 802.3af/at PoE power supply standard, the port supports power supply priority
Support Business Cloud APP and web-side remote management
Support monitoring terminal intelligent identification
Support intelligent start, abnormal alarm, fast discharge
Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression
Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection
Support cloud management, VLAN isolation, standard exchange three working modes
Support fast PoE, long-term PoE function

Product model	YLS210MP-24L2G	YLS210MP-16L2G	YLS210MP-8L2G	YLS210MP-4L2G
100M RJ45 port	24	16	8	4
Gigabit RJ45 port	2	2	2	2
PoE port	24	16	8	4
Maximum PoE output power of the whole machine	180W	118W	57W	36W
Maximum power consumption of the whole machine	210.94W	128W	66.8W	43.3W
Maximum PoE output power of the port	30W
PoE power supply standard	IEEE 802.3af/at
MAC address capacity	8K	8K	4K	2K
Mode switch	Support cloud management, VLAN isolation, standard exchange three working modes
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	44018044	29418044	1719827	1009825

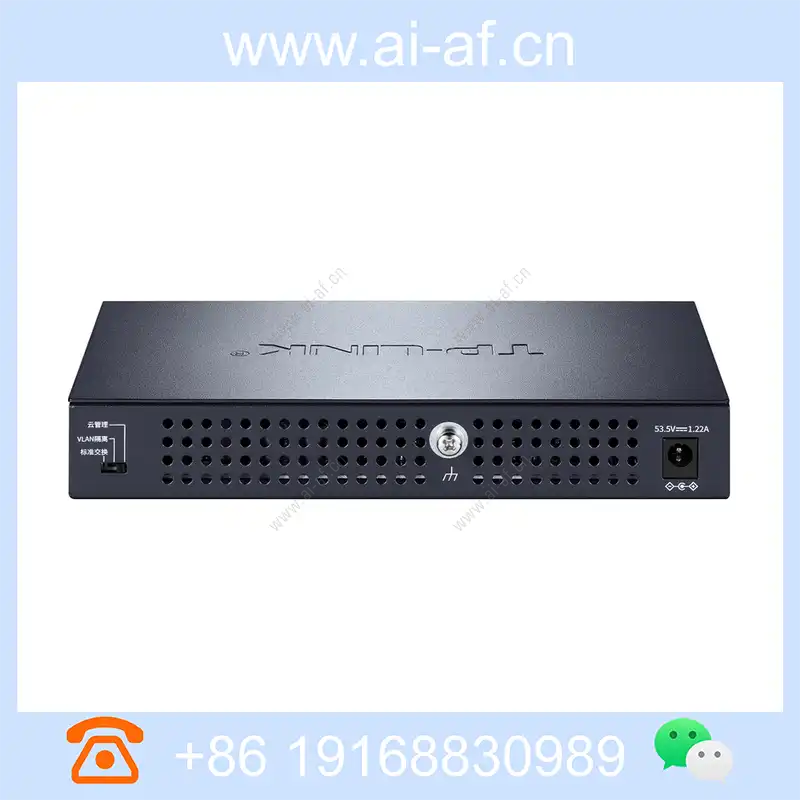

Input power	220VAC, 50Hz	220VAC, 50Hz	53.5VDC/1.22A	53.5VDC/0.81A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation
