TP-LINK TR-932D fiber transceiver 100M multimode dual fiber 2SC 1FE 2KM

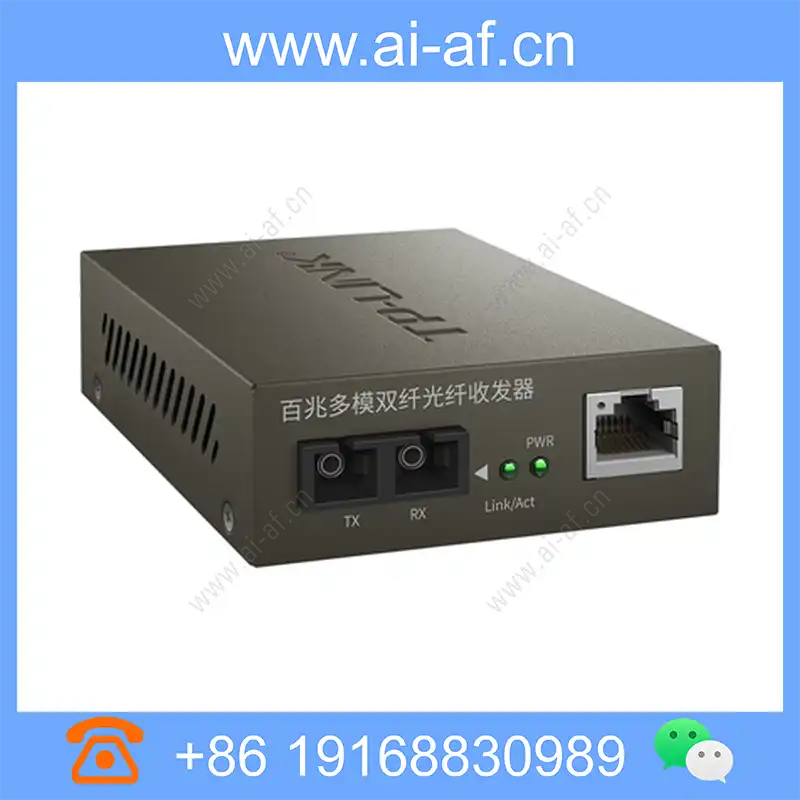

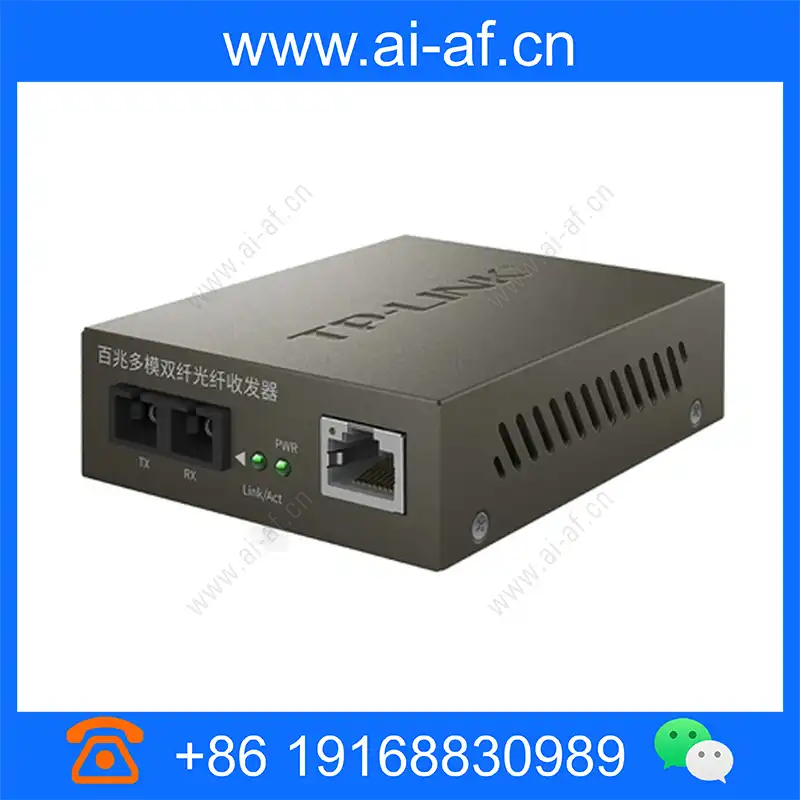

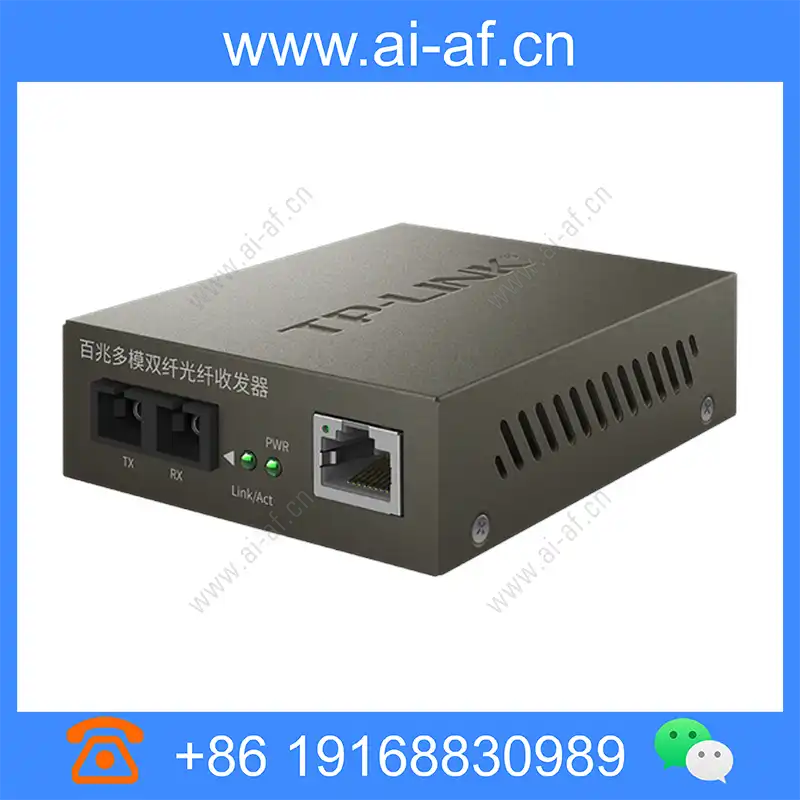

1 pair of 100M SC optical ports, 1 100M RJ45 network port Multimode dual fiber transmission, the longest transmission distance is 2 kilometers Working wavelength: 1310nm TR-932D is a 100M multimode dual-fiber optical fiber transceiver. It provides a 100M electrical port and a pair of 100M SC optical ports, which can convert electrical signal and optical signal, and carry out long-distance data through optical fiber transmission. TR-932D adopts standard SC interface, working wavelength is 1310nm, multi-mode dual fiber transmission, the longest distance can reach 2 kilometers. Supported standards IEEE802.3, IEEE802.3i, IEEE802.3u interface 1 pair of 100Mbps SC fiber interface 1 10Mbps/100Mbps adaptive RJ45 port Transmission wavelength and distance Wavelength: 1310nm The longest transmission
Product Features
TR-932D is a 100M multimode dual-fiber optical fiber transceiver. It provides a 100M electrical port and a pair of 100M SC optical ports, which can convert electrical signal and optical signal, and carry out long-distance data through optical fiber transmission. TR-932D adopts standard SC interface, working wavelength is 1310nm, multi-mode dual fiber transmission, the longest distance can reach 2 kilometers. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE802.3, IEEE802.3i, IEEE802.3u |
| interface | 1 pair of 100Mbps SC fiber interface 1 10Mbps/100Mbps adaptive RJ45 port |
| Transmission wavelength and distance | Wavelength: 1310nm The longest transmission distance: 2km |
| Transmission medium | Network cable: Category 5 or above UTP and STP fiber: 50/125um or 62.5/125um multimode fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |

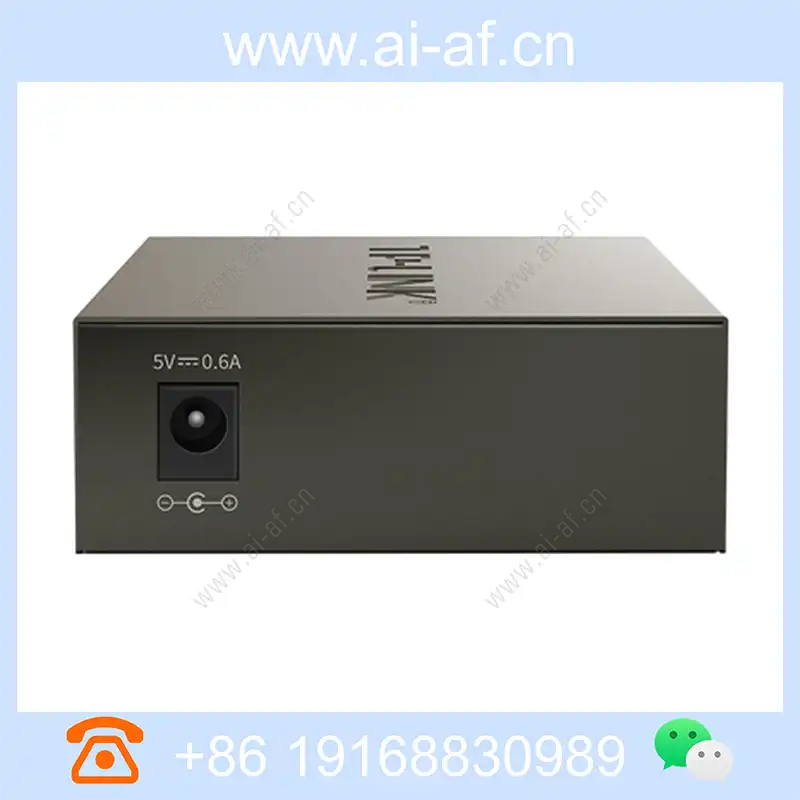

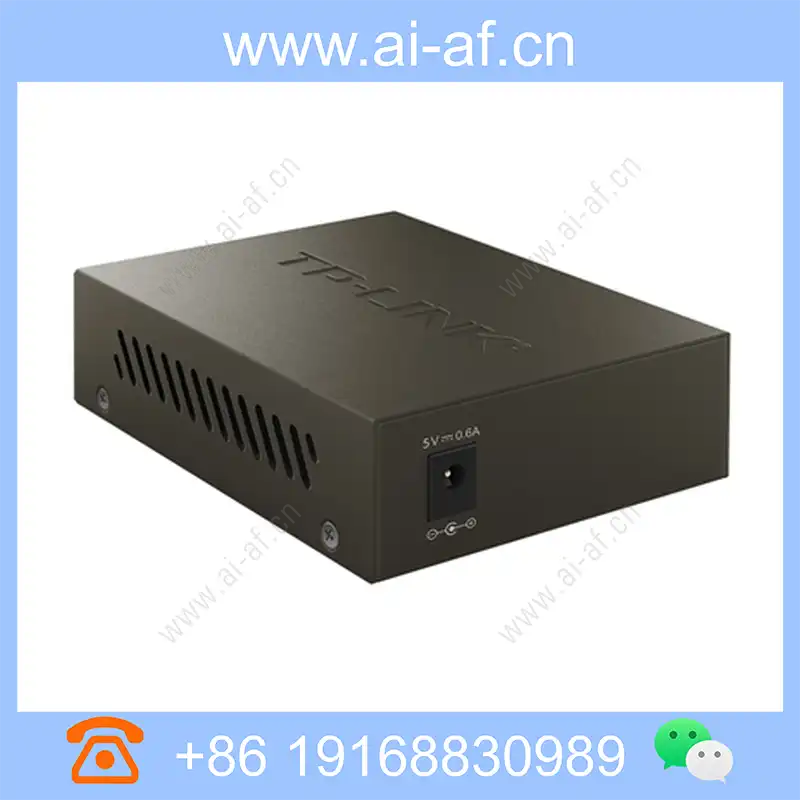

| power supply | 5VDC/0.6A |
| size | 94.5mm*73.0mm*27.0 mm |
| Use environment | Operating temperature: -20°C~60°C Storage temperature: -40°C~85°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
| Light parameter | Average transmit optical power: -15~-8dBm Receive sensitivity: -30dBm |
| Data transmission rate per port | 200Mbps full duplex |
| Packet forwarding rate | 0.3Mpps |
| MAC address depth | 2K |
| Internal cache | 768Kbit |
