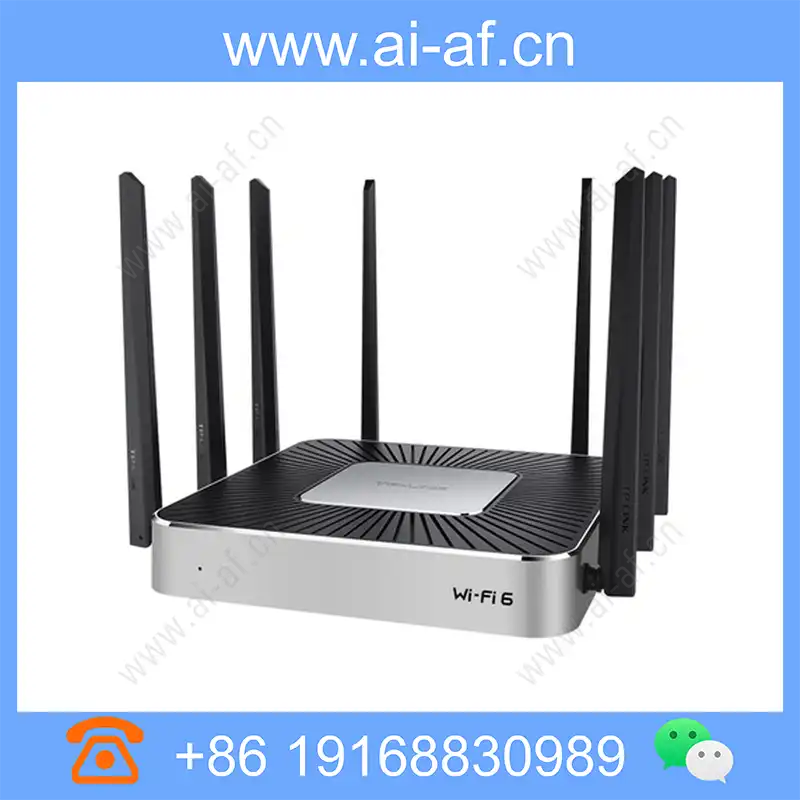

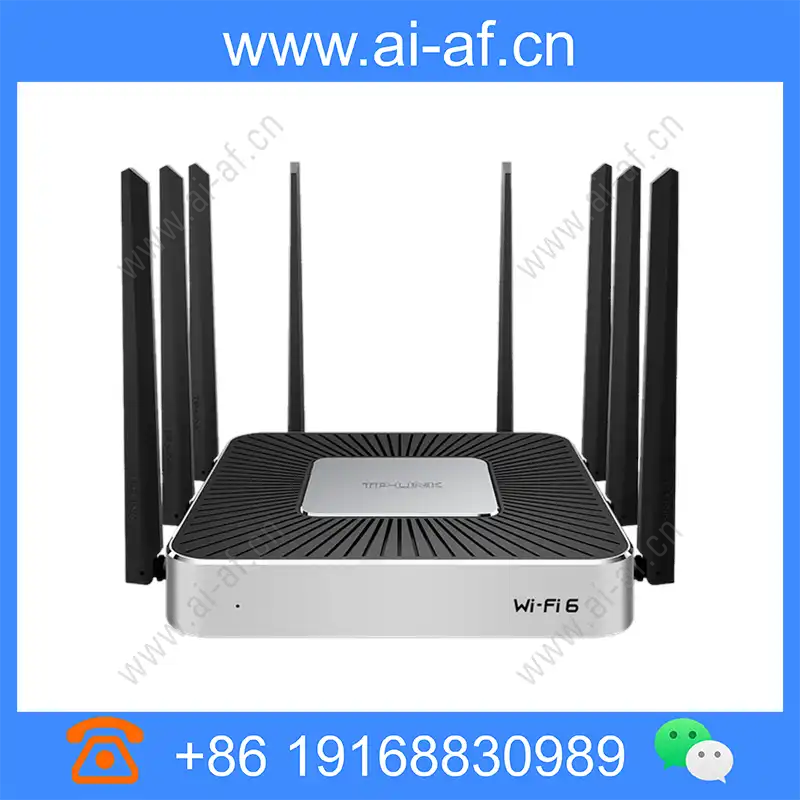

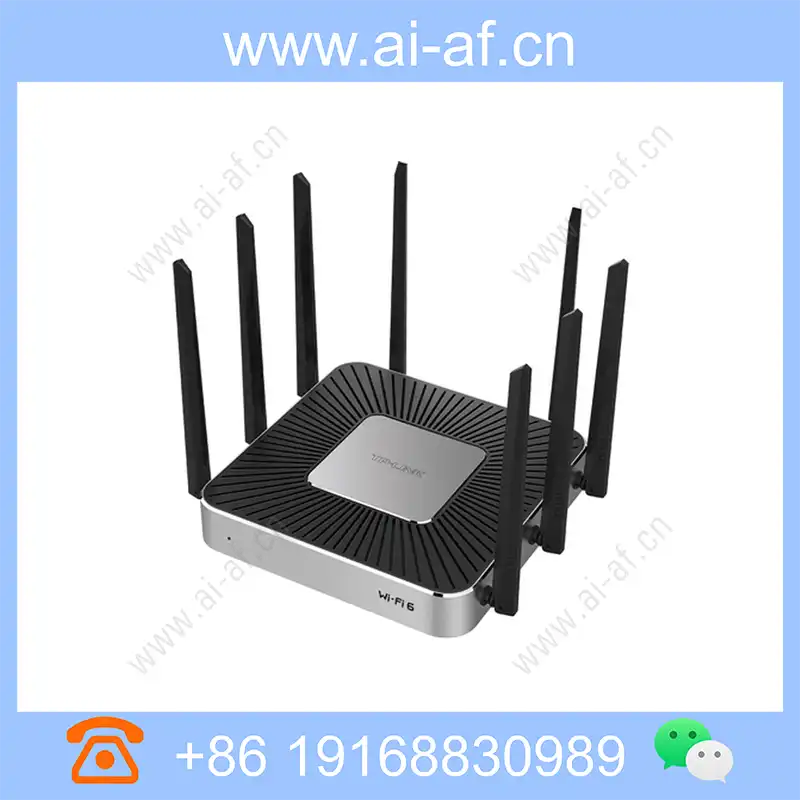

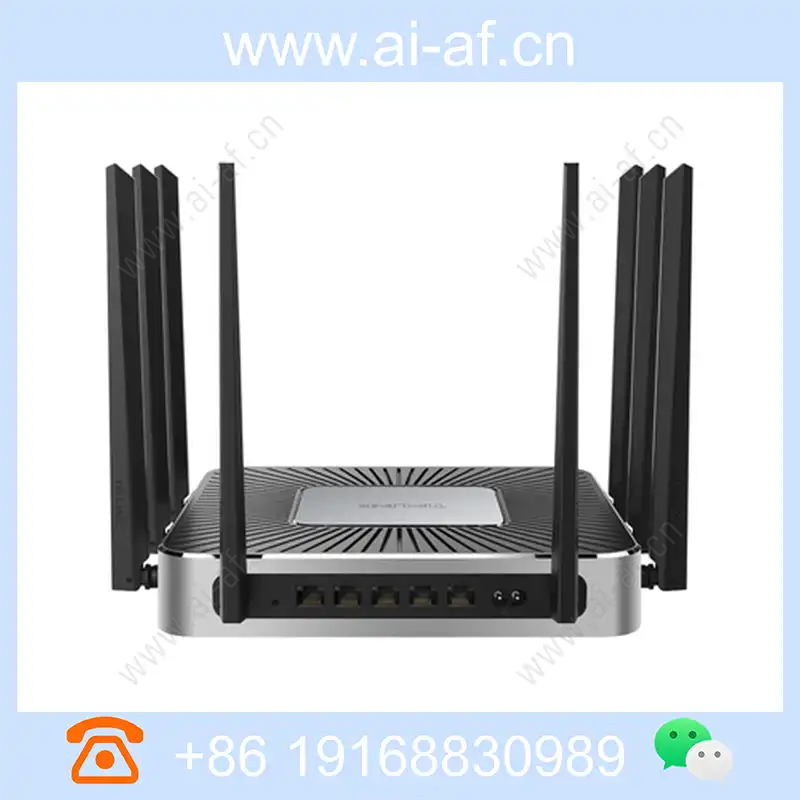

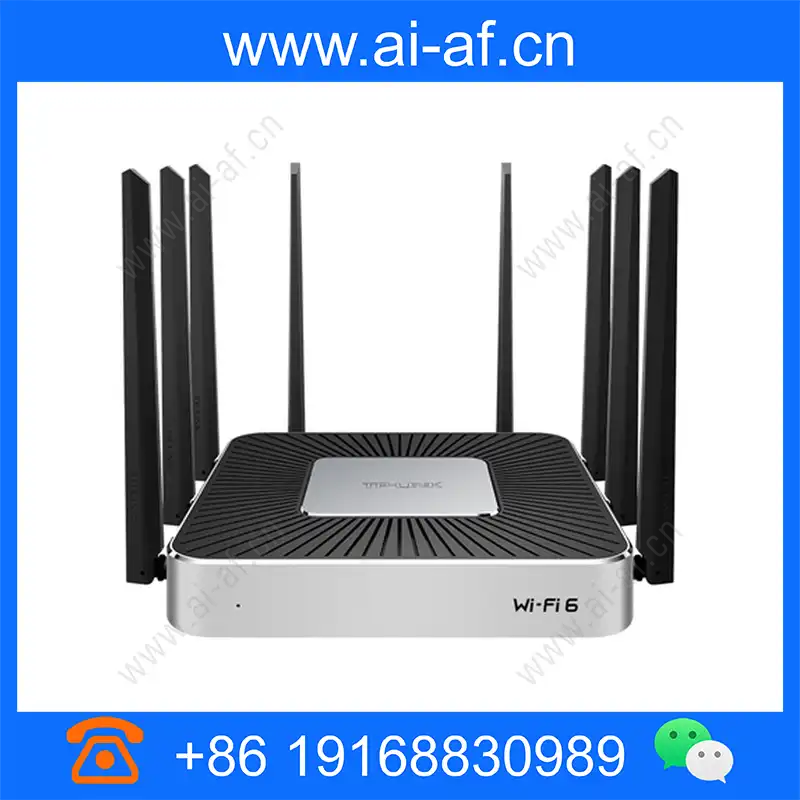

TP-LINK TL-XVR6000L Enterprise AX6000 Dual Band Wi-Fi 6 Wireless VPN Router(2.5G Port)

Brand: TP-LINK

Model: TL-XVR6000L

Dimensions: 236mm x 236mm x 47mm

11AX dual-frequency concurrent, the highest wireless rate can reach 5952Mbps, higher tape Supports Wi-Fi 6 new features such as OFDMA, MU-MIMO, 160MHz bandwidth Enterprise-level performance, stable operation in multi-user/large-space/high-load environments 1 2.5G WAN / LAN variable port, external high broadband / intranet transmission flexible dual-purpose. 3 gigabit WAN / LAN variable port, a Gigabit LAN port, support multi-broadband mixing access Supports enterprise-level software functions such as AP management, authentication, and DDNS Support IPSec, L2TP, PPTP multiple VPN functions to ensure user data security Support online behavior management such as application restrictions, website filtering, intelligent bandwidth, web page security, access control lists, etc. Support multiple

Product Features

11AX dual-frequency concurrent, the highest wireless rate can reach 5952Mbps, higher tape
Supports Wi-Fi 6 new features such as OFDMA, MU-MIMO, 160MHz bandwidth
Enterprise-level performance, stable operation in multi-user/large-space/high-load environments
1 2.5G WAN / LAN variable port, external high broadband / intranet transmission flexible dual-purpose. 3 gigabit WAN / LAN variable port, a Gigabit LAN port, support multi-broadband mixing access
Supports enterprise-level software functions such as AP management, authentication, and DDNS
Support IPSec, L2TP, PPTP multiple VPN functions to ensure user data security
Support online behavior management such as application restrictions, website filtering, intelligent bandwidth, web page security, access control lists, etc.
Support multiple network security functions such as ARP protection, Dos protection, scanning attack protection, etc.
Support TP-LINK commercial network cloud platform/APP centralized management

Technical Specifications

Property Description	Property Value
port	1 10/100/1000 / 2500m RJ45 WAN / LAN Optional Port 3 10/100/1000M RJ45 WAN / LAN Optional Port 1 10/100/1000M RJ45 LAN Port 1 USB interface
Wireless rate	2.4G:1148Mbps 5G:4804Mbps
antenna	4 Roots 2.4G 5BI Total High Gain Antenna 4 5G 5BI Total High Gain Antenna
Indicator light	Each port: LINK / ACT Each device: SYS
Dimensions	23623647mm
Input power	100~240V AC,50/60Hz
Cooling method	thermal silicone + natural heat dissipation
Use environment	operating temperature: 0°C ~ 40°C, Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C, storage humidity: 5% ~ 90 % RH does not condense
Network protocol	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
WAN port settings	connection: Dynamic IP, Static IP, PPPoE MAC Address: MAC Address Clone, MAC Address Modify Balanced Model: Bandwidth Balance, Equilibrium ISP selection
LAN port settings	DHCP server LAN port IP setting client list static address assignment
wireless setting	SSID broadcast Support up to 13 Multi-SSIDs Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption AP Internal Isolation, Guest Network Wireless Bridging Wireless MAC Address Filtering Wireless Host Status
AP management	AP setting wireless network setting AP database upgrade
Application control	social software: WeChat / QQ / page QQ / FRIB / Ali Wangwang / Tencent TM / more play YY / enterprise QQ / Mo Mo / Sina Weibo / Zhi video software: Tencent Video / PPSTREAM / PPTV / Fast Broadcasting / Pipi / UUSEE / CNTV / iQiyi / Fighting Live / Sohu Video / Youku Video Music Software: Cool Music / Cool Music / QQ Music / Baidu Music / Netease Cloud Music Shopping Leisure Software: Mobile Jingdong / Taobao News Software: Zaker / Today's Headline / Netease News P2P Software: Thunder and Thunder to see / Bit Comet / EDonkey / QQ Cyclone / Flashget Financial Software: Flush / Big Wisdom and Analytics / Qianlong / Compass / Securities Star / Merchants Securities / Galaxy Securities / Guotai Junan Securities / Yimeng Trand Hand / Oriental Fortune / Huatai Securities Network Game: QQ Game / Thunder Game Box / Lianzhong / Haofang Platform / Fantasy Westward Warcraft / World of Warcraft / Running Karting / QQ Farm App Store: PP Assistant / Pea Pod / Application Bao Basics Applications: HTTP / HTTPS / MMS / RTSP
Access control	Site grouping: Website filtering, URL filter file download: Filter specified file extension type bandwidth limit: bandwidth allocation / connection limit < / ul>
Safety management	IP and MAC address Bind ARP protection MAC address filter anti-DOS class, scan class, suspicious package three categories Common attack behavior
VPN	ipsec l2tp PPTP User Management
Certification Management	Web Certification authentication status authentication user manages
Advanced Features	Routing Settings: Policy Routing / Static Route / System Routing NAT Settings: NAPT / One-on-one NAT / ALG Virtual Server Dynamic DNS UPnP IP traffic statistics port monitoring file sharing
Management and maintenance	Chinese Web Network Management, Remote Management Configuration Backup and Import Configuration System Software Upgrade Online Detection, PING, Tracert Diagnostic Tool < / li> system log
