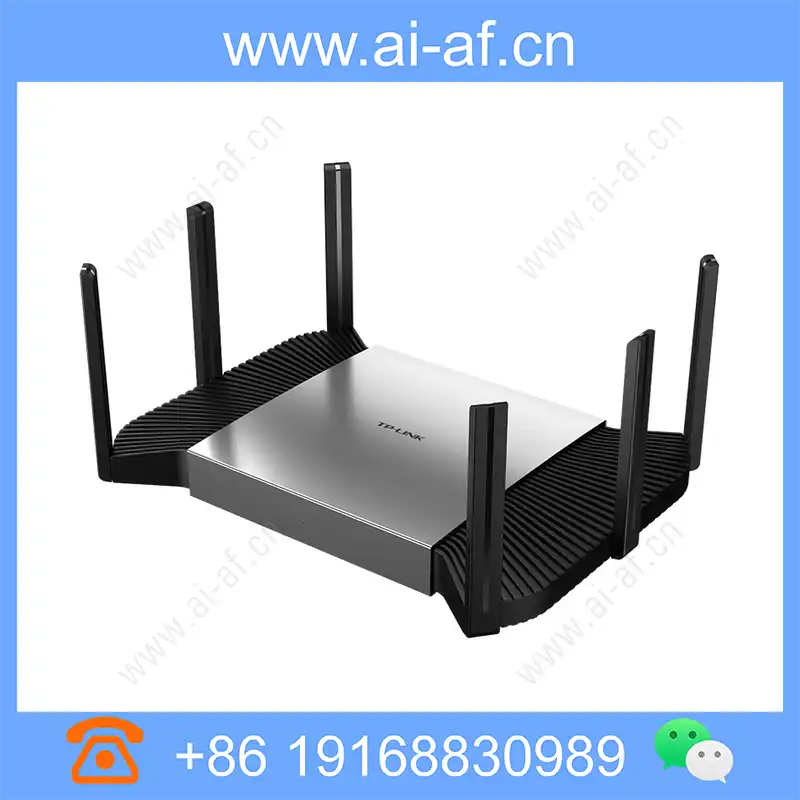

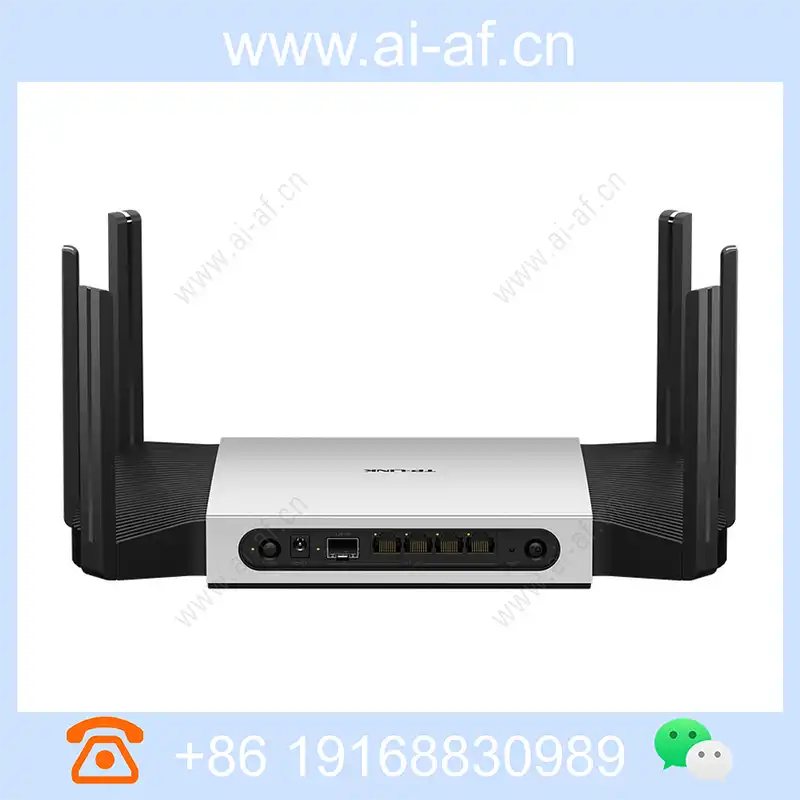

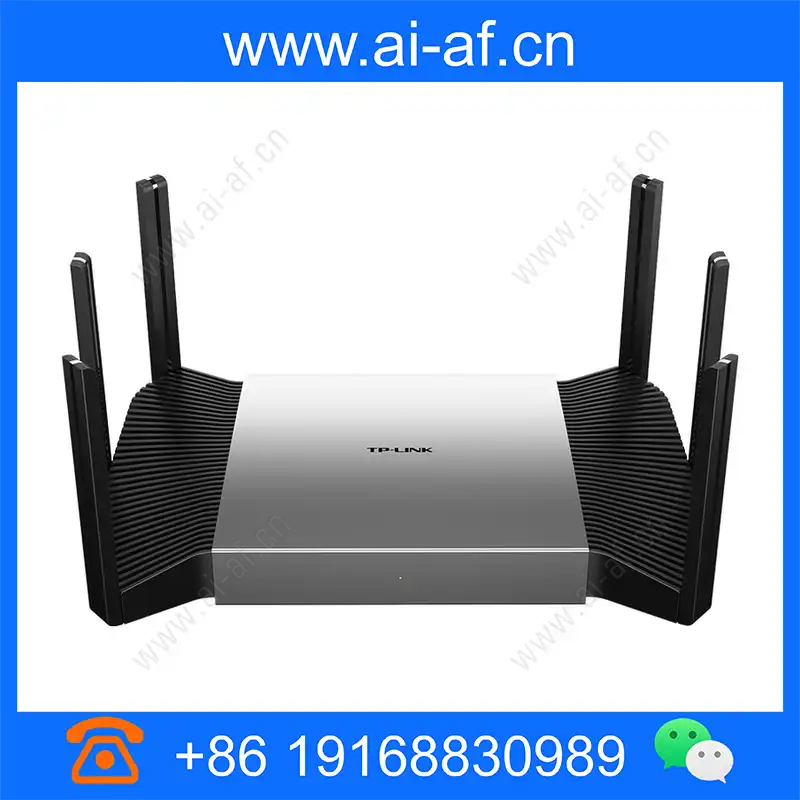

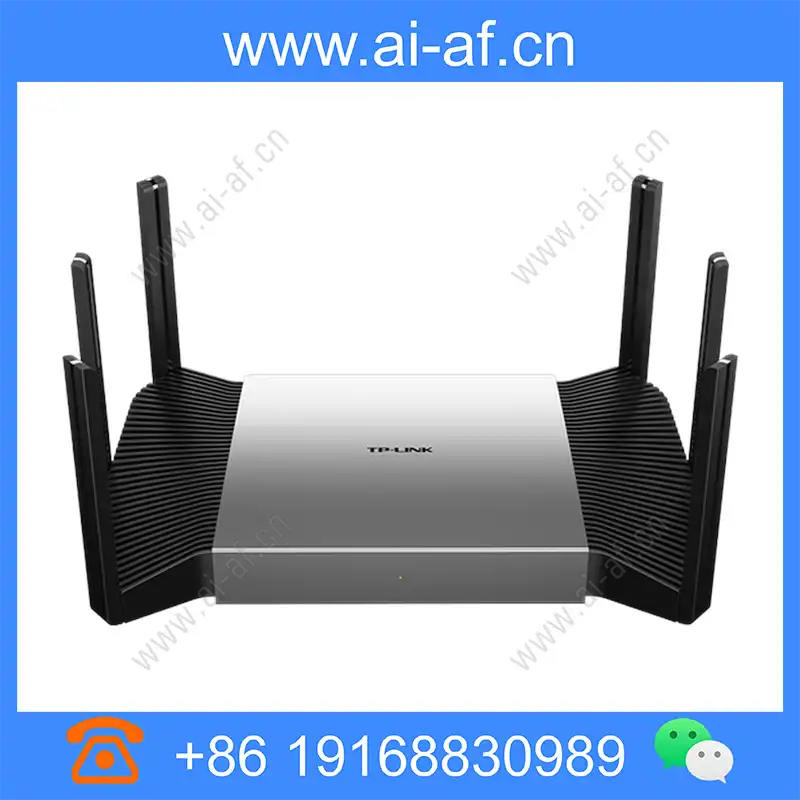

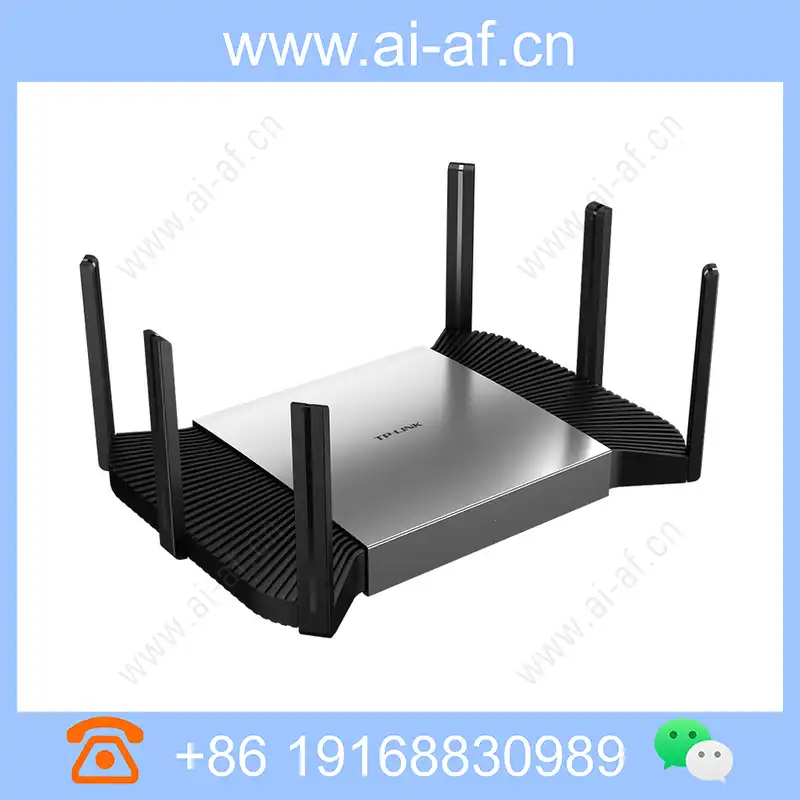

TP-LINK TL-XDR5480 Easy Exhibition Turbo Version AX5400 Dual Band Super Wi-Fi 6 Wireless Router(2.5G Port)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax wireless protocol
maximum radio rate 5378Mbps (2.4GHz 574Mbps, 5GHz 4804Mbps)
beamforming ( Beamforming)
4 x 4 MU-MIMO
WMM: Based on priority data processing and forwarding
Wi-Fi multi-frequency one
Easy Exhibition Function
4 10/100/1000Mbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network port blind plug)
1 2.5G SFP port
Bare machine size (lengthxwidthxheight): 326*246*147.5mm
Package size (lengthxwidthxheight): 502.5*323.5*78.5mm
Bare machine weight: 0.92kg (single unit, excluding accessories and packaging)
Complete machine weight: 1.56kg (single unit, including accessories
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax wireless protocol maximum radio rate 5378Mbps (2.4GHz 574Mbps, 5GHz 4804Mbps) beamforming ( Beamforming) 4 x 4 MU-MIMO WMM: Based on priority data processing and forwarding Wi-Fi multi-frequency one Easy Exhibition Function |
| Ethernet port | 4 10/100/1000Mbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network port blind plug) 1 2.5G SFP port |
| size and weight | Bare machine size (lengthxwidthxheight): 326*246*147.5mm Package size (lengthxwidthxheight): 502.5*323.5*78.5mm Bare machine weight: 0.92kg (single unit, excluding accessories and packaging) Complete machine weight: 1.56kg (single unit, including accessories and packaging) |
| Antenna type | External All Outline: 2 2.4G Antenna, 4 5G Antenna |
| Software function | Wireless Bridge P Signal Adjustment Terminal Manage IP and MAC Address Bind AP Isolated Virtual Server Dynamic domain name service (DDNS) DMZ host automatic cleaning wireless timing switch Local Online / Local Firmware / Remote Upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivery 12V / 2.5A power adapter |
| packing list | router 1 Power adapter 12V / 2.5A 1 network cable (1 m) 1 Quick Installation Guide 1 copy Parameter record label 1 photo |
