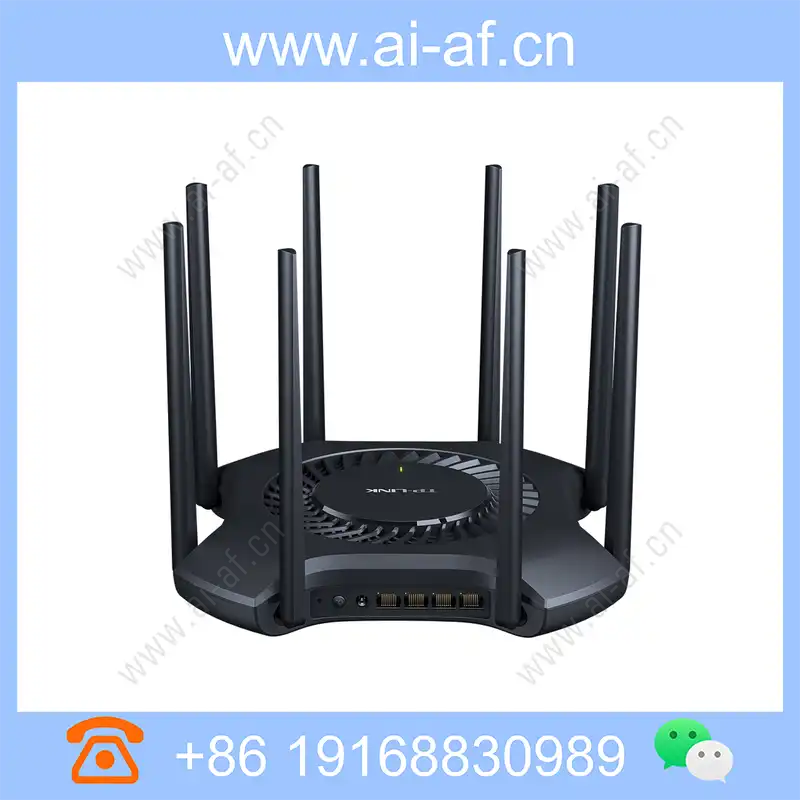

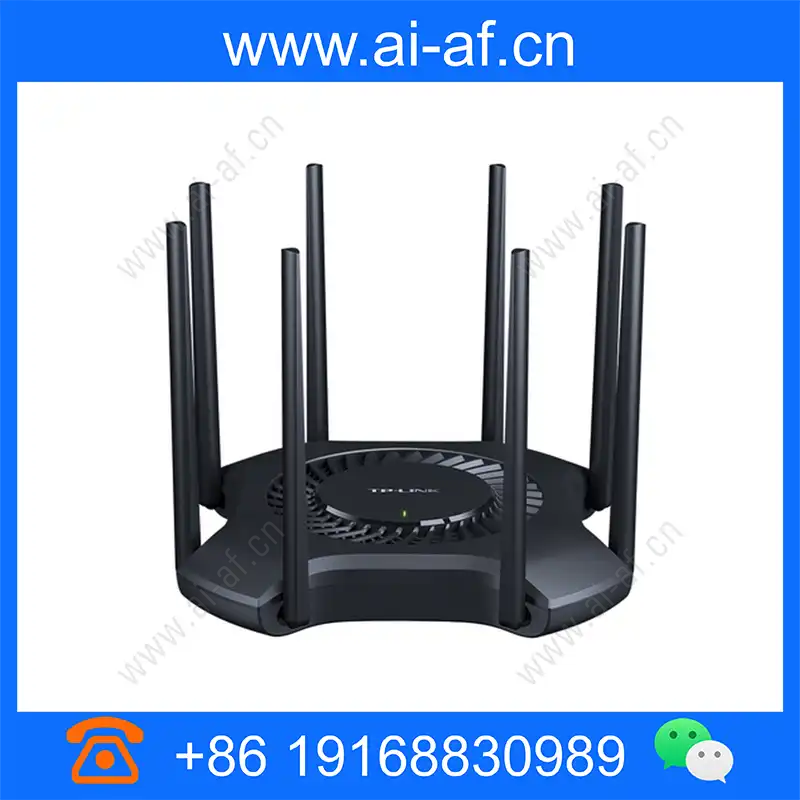

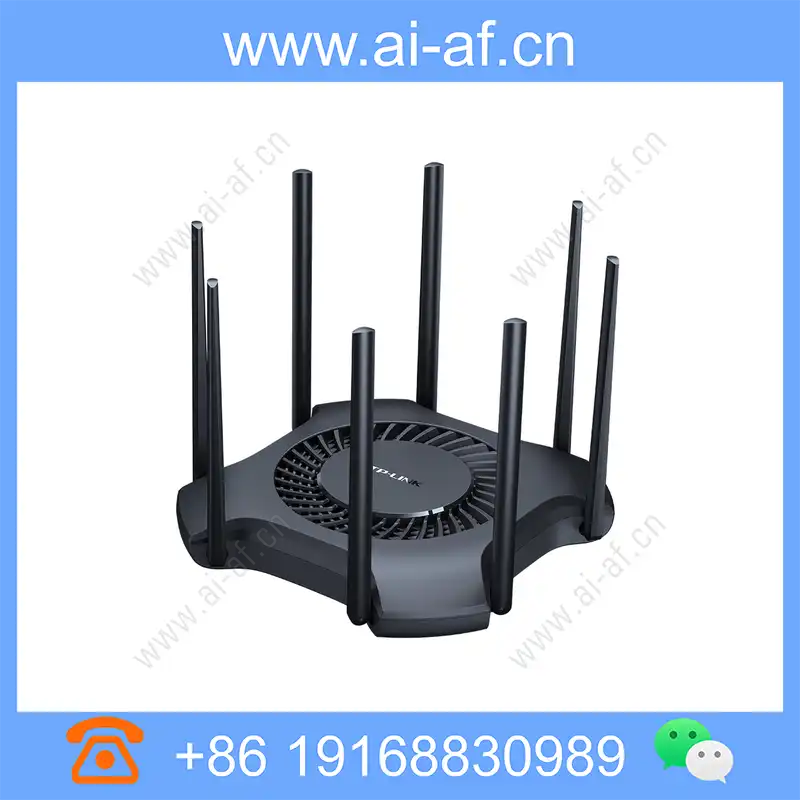

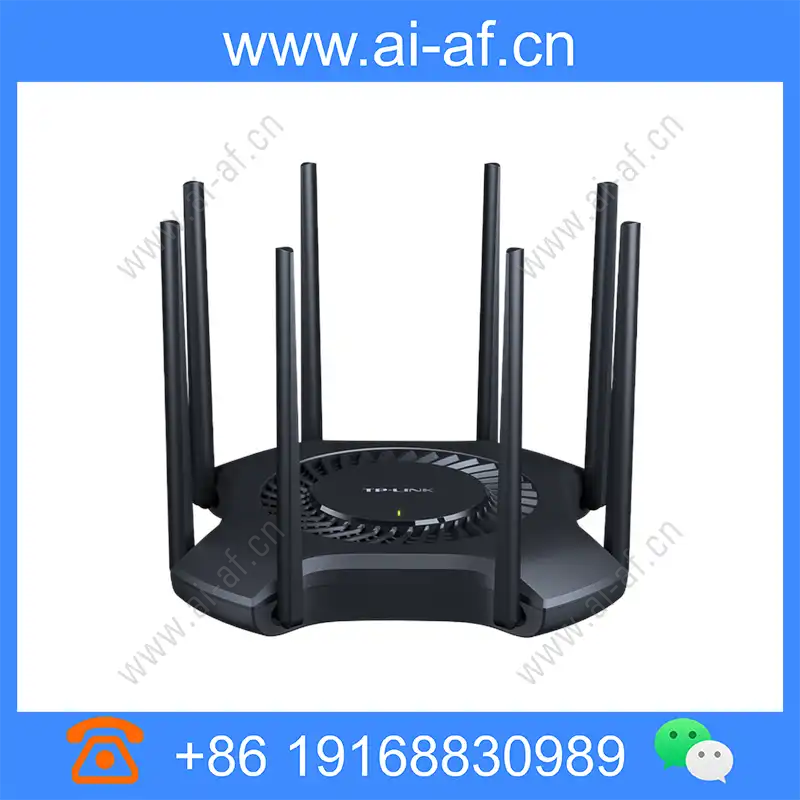

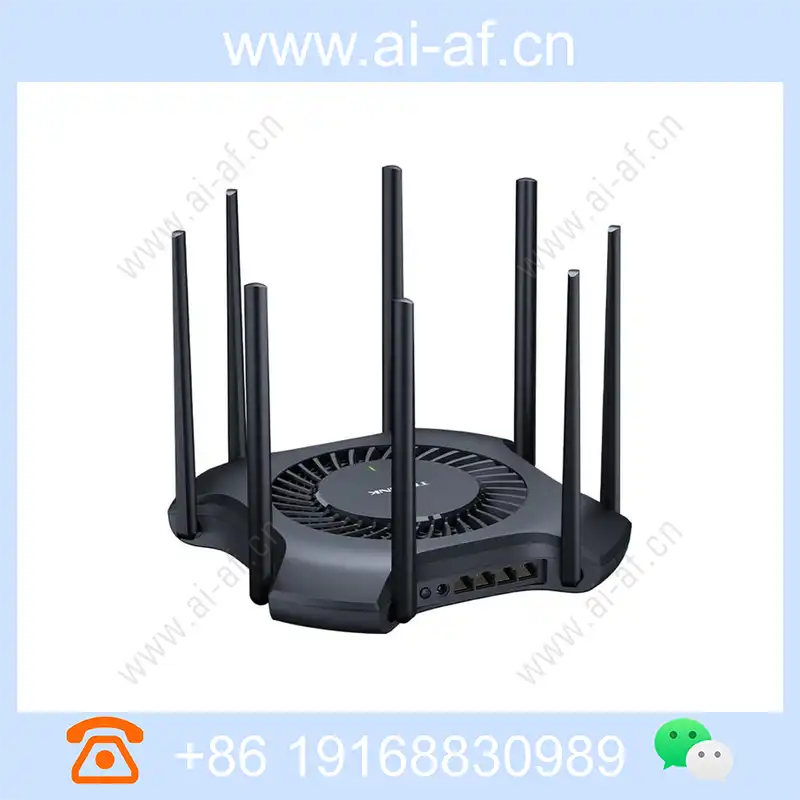

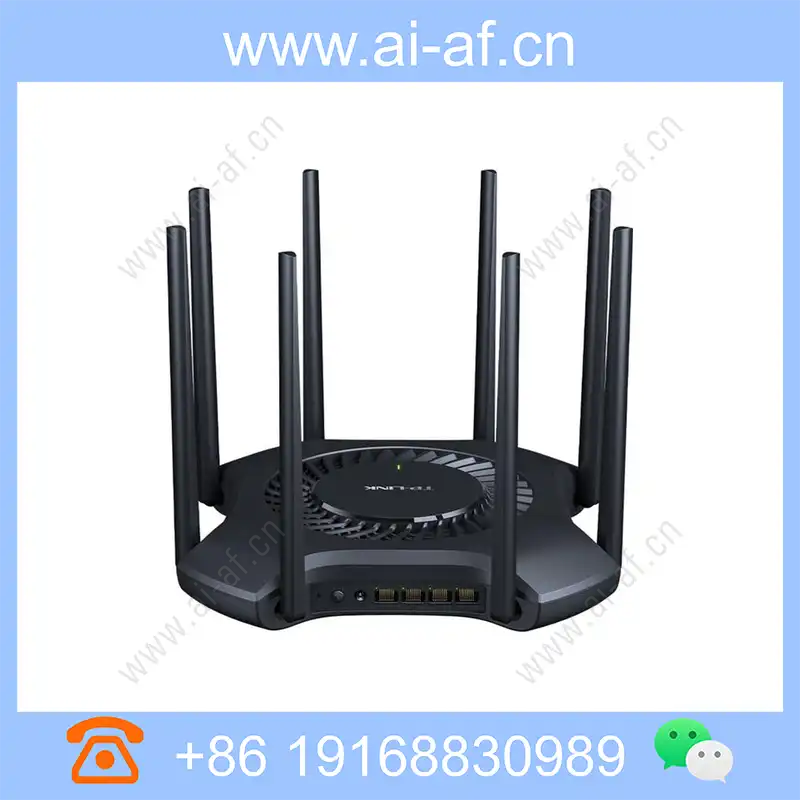

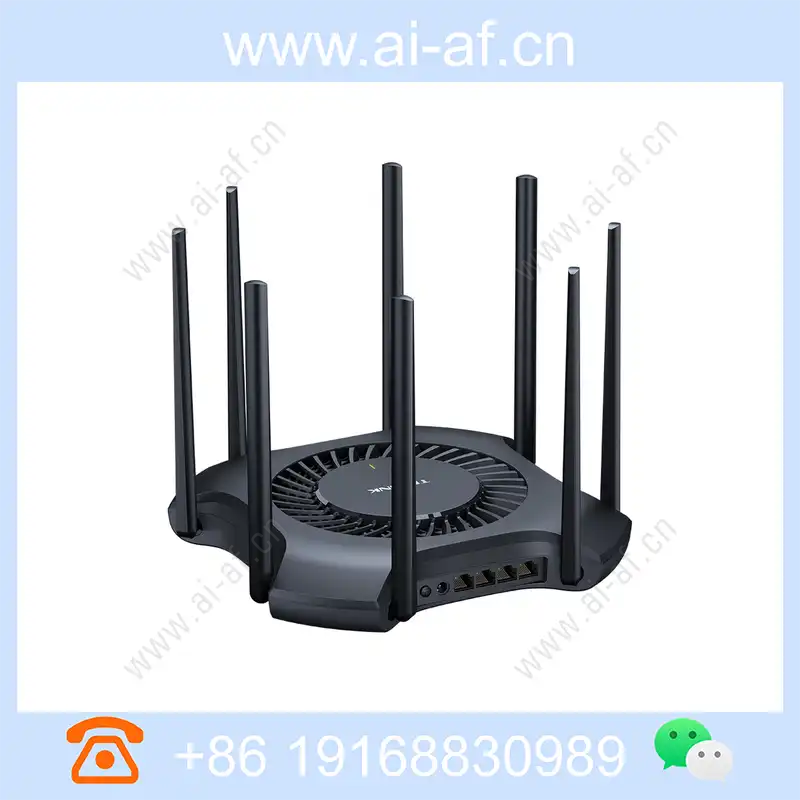

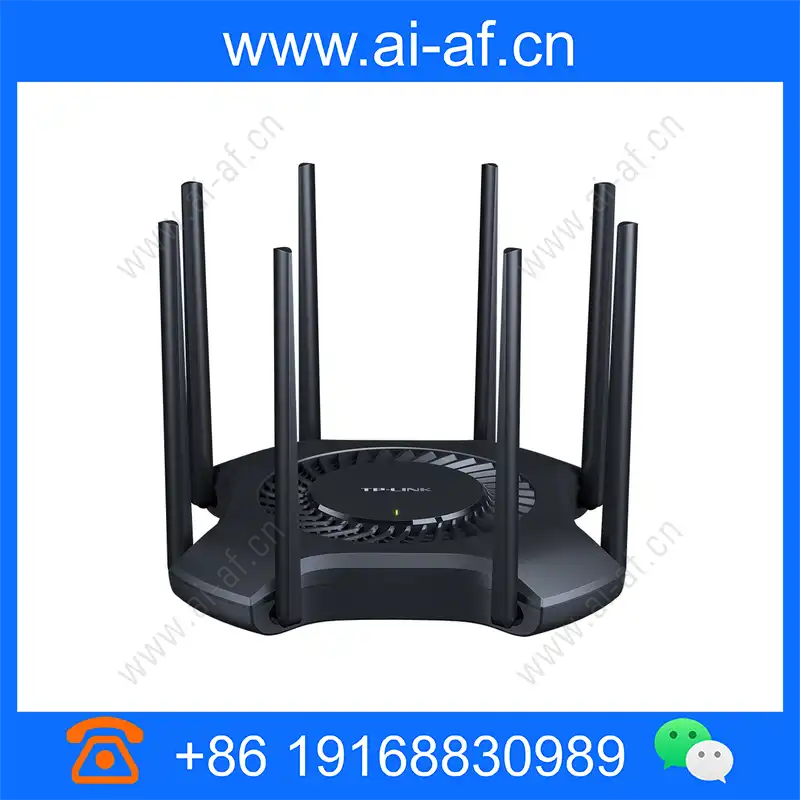

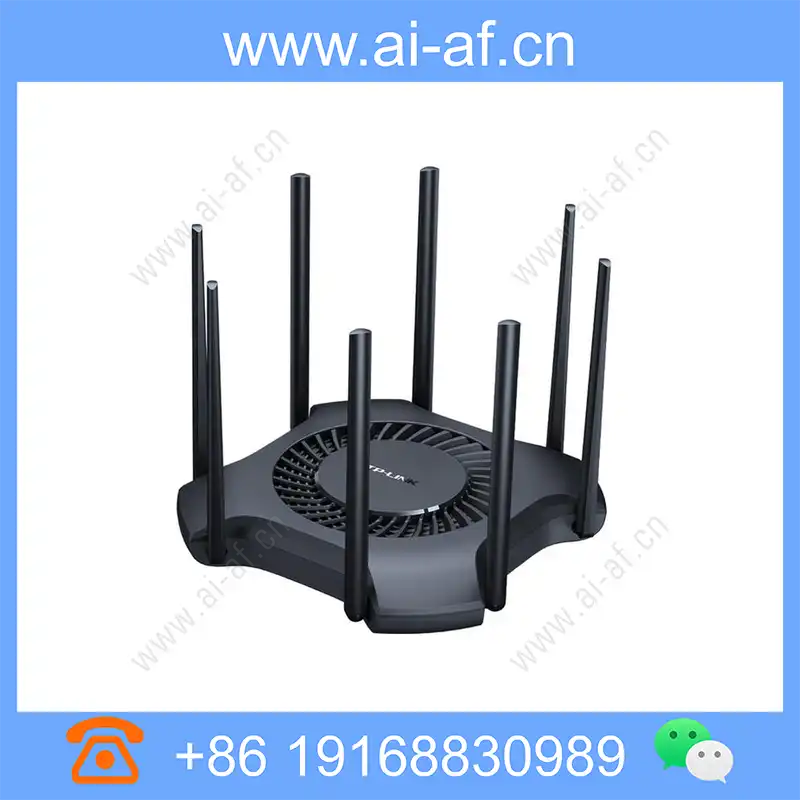

TP-LINK TL-XDR3230 Easy Exhibition Version AX3200 Dual Band Gigabit Wi-Fi 6 Wireless Router
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax wireless protocol
maximum radio rate 3202Mbps (2.4GHz 800Mbps, 5GHz 2402Mbps)
beamforming ( Beamforming)
4 x 4 MU-MIMO
WMM: Based on priority data processing and forwarding
Wi-Fi multi-frequency one
Easy Exhibition Function
4 10/100/1000Mbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network port blind plug)
Naked Machine (length x width x height): 251 x 251 x 214mm,
packaging size (length x width x height): 423.5 * 369.5 * 84.5mm
External Whole Outer Outer Outer: 4 2.4G Antenna, 4 5G Antenna
Wireless Bridge P
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax wireless protocol maximum radio rate 3202Mbps (2.4GHz 800Mbps, 5GHz 2402Mbps) beamforming ( Beamforming) 4 x 4 MU-MIMO WMM: Based on priority data processing and forwarding Wi-Fi multi-frequency one Easy Exhibition Function |
| Ethernet port | 4 10/100/1000Mbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network port blind plug) |
| size and weight | Naked Machine (length x width x height): 251 x 251 x 214mm, packaging size (length x width x height): 423.5 * 369.5 * 84.5mm |
| Antenna type | External Whole Outer Outer Outer: 4 2.4G Antenna, 4 5G Antenna |
| Software function | Wireless Bridge P Signal Adjustment Terminal Manage IP and MAC Address Bind AP Isolated Virtual Server Dynamic domain name service (DDNS) DMZ host automatic cleaning wireless timing switch Local Online / Local Firmware / Remote Upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivery 12V/2A power adapter |
| packing list | router 1 Power adapter 12V/2A 1 network cable (1 m) 1 Quick Installation Guide 1 / p> parameter record label 1 photo |
