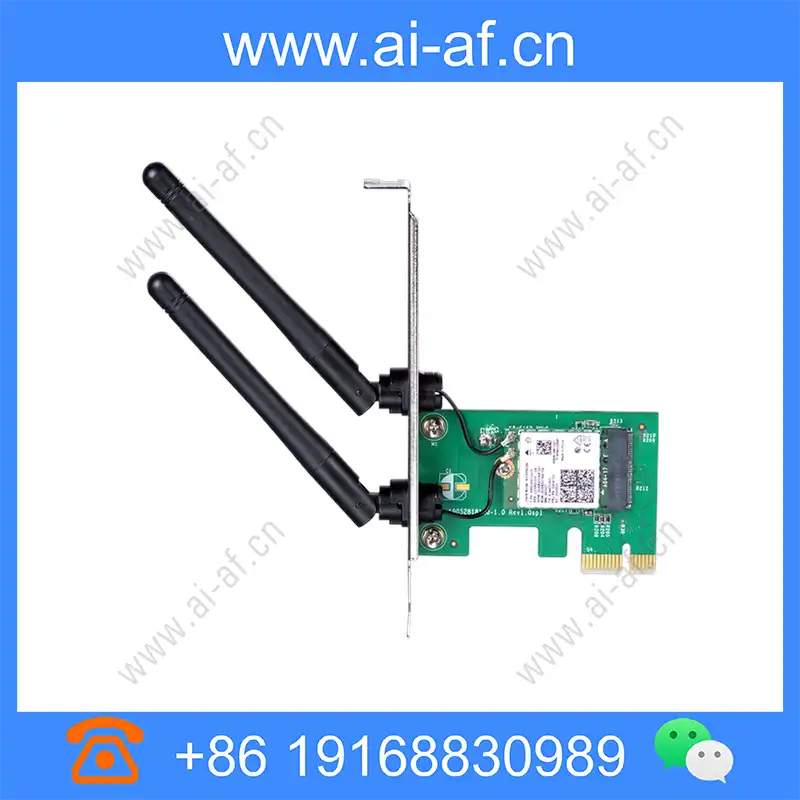

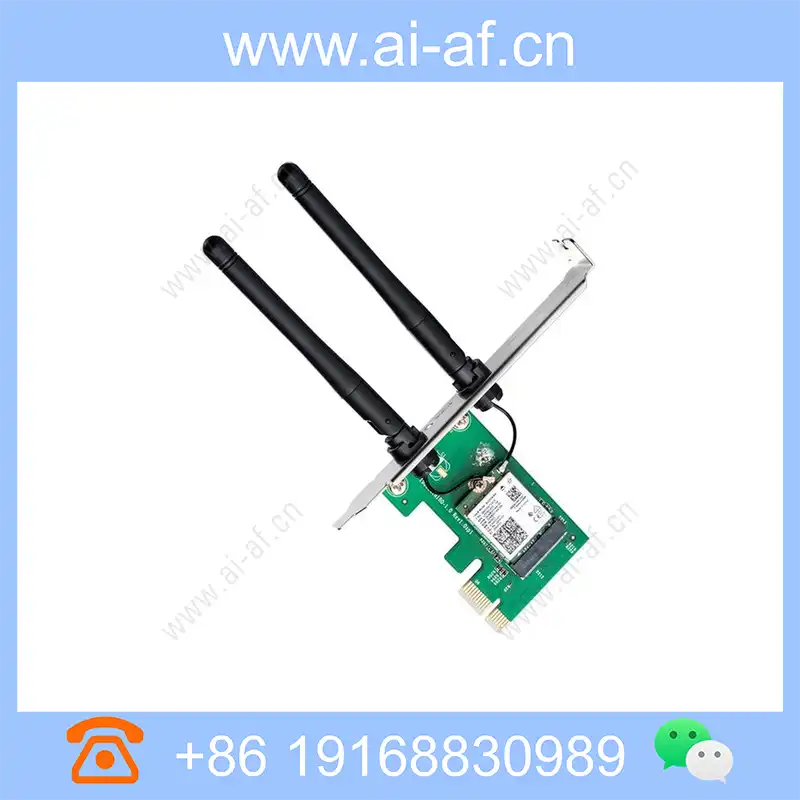

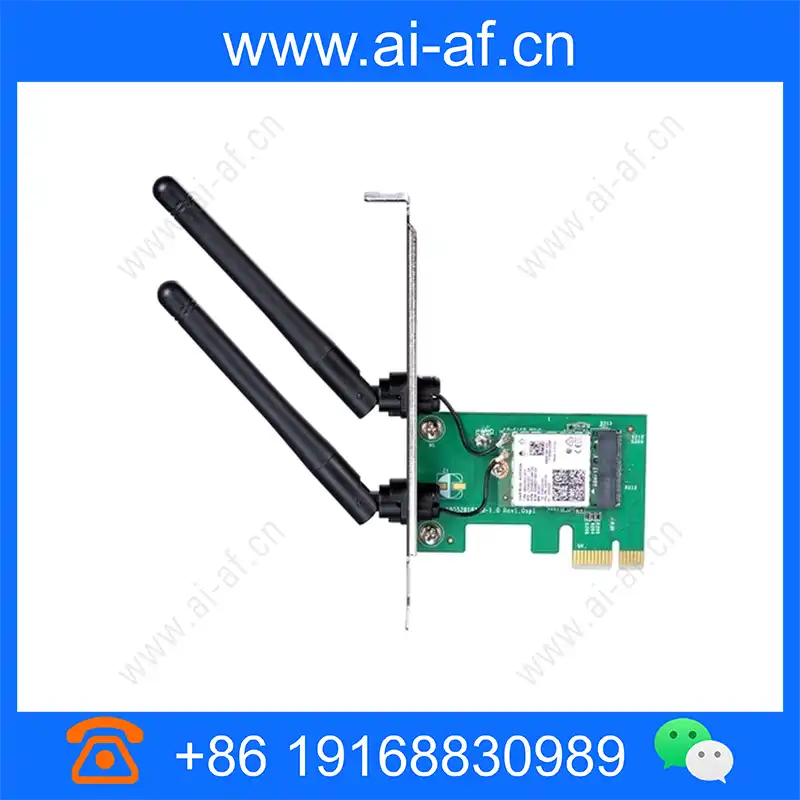

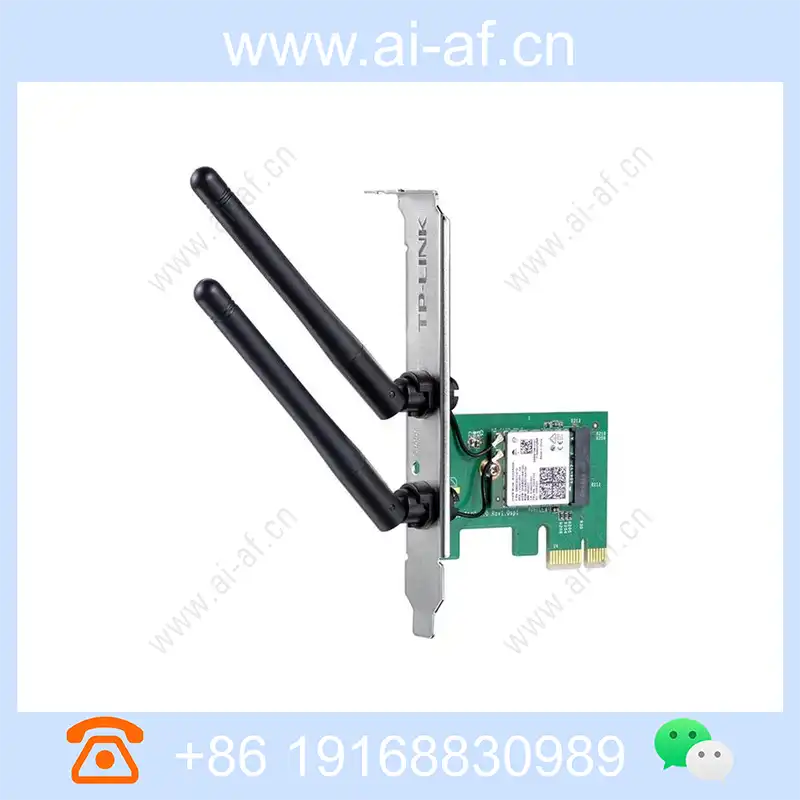

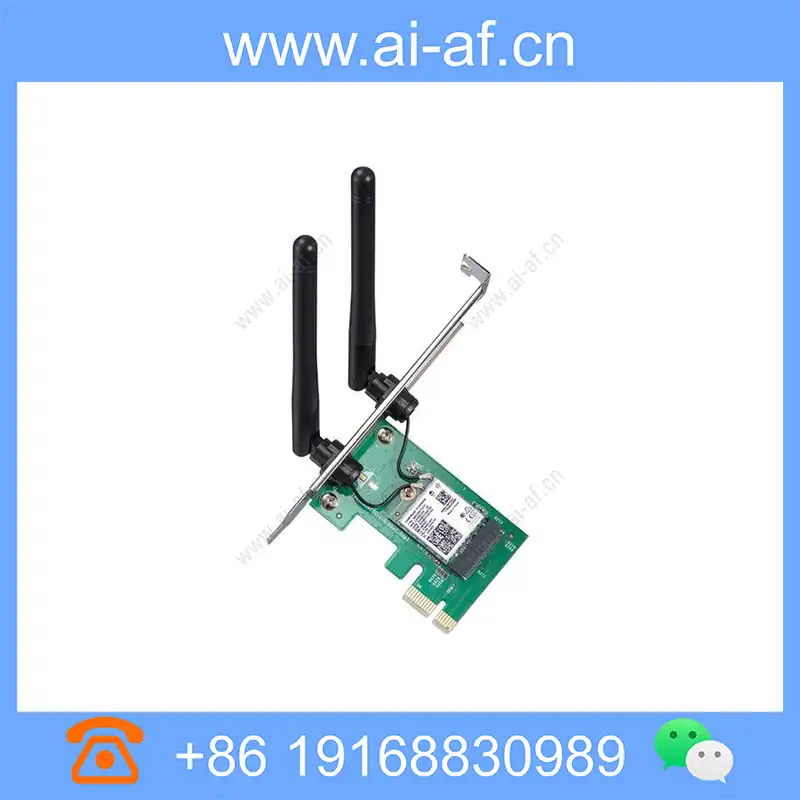

TP-LINK TL-XDN8180 AX3000 Dual Band Wi-Fi6 Wireless PCI-E NIC
Brand: TP-LINK
Model: TL-XDN8180
Dimensions: 121mm x 79mm x 22mm
interface PCIe antenna Two external omniDirectional antennas Dimensions 121 mm x 79 mm x 22 mm Use environment Working temperature: 0°C~40°C Storage temperature: -40°C~70°C Humidity: 10% ~ 90%RH No condensation Package Contents AX3000 Dual Frequency Wireless PCIe Network Card TL-XDN8180 Driver CD User Manual Follow the standard IEEE 802.11ac IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ax Transmission rate 2.4GHz:574Mbps 5GHz:2402Mbps Frequency Range 2.4 ~ 2.4835GHz 5.150~5.250GHz 5.250~5.350GHz 5.725~5.850GHz Working channel 1 ~ 13 36~48 52、56、60、64 149~165 Transmit power 20dBm (maximum) Safety features WPA-PSK/WPA2-PSK WPA/WPA2 Operating system support Windows10 64-bit
Technical Specifications
| Property Description | Property Value |
|---|---|
| interface | PCIe |
| antenna | Two external omniDirectional antennas |
| Dimensions | 121 mm x 79 mm x 22 mm |
| Use environment | Working temperature: 0°C~40°C Storage temperature: -40°C~70°C Humidity: 10% ~ 90%RH No condensation |
| Package Contents | AX3000 Dual Frequency Wireless PCIe Network Card TL-XDN8180 Driver CD User Manual |
| Follow the standard | IEEE 802.11ac IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ax |
| Transmission rate | 2.4GHz:574Mbps 5GHz:2402Mbps |
| Frequency Range | 2.4 ~ 2.4835GHz 5.150~5.250GHz 5.250~5.350GHz 5.725~5.850GHz |
| Working channel | 1 ~ 13 36~48 52、56、60、64 149~165 |
| Transmit power | 20dBm (maximum) |
| Safety features | WPA-PSK/WPA2-PSK WPA/WPA2 |
| Operating system support | Windows10 64-bit |
