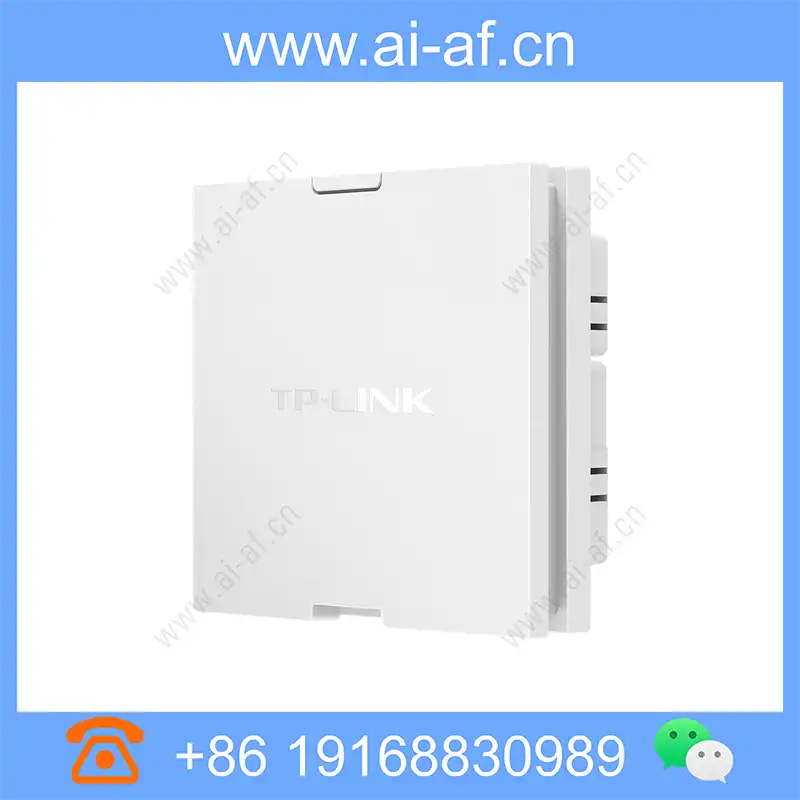

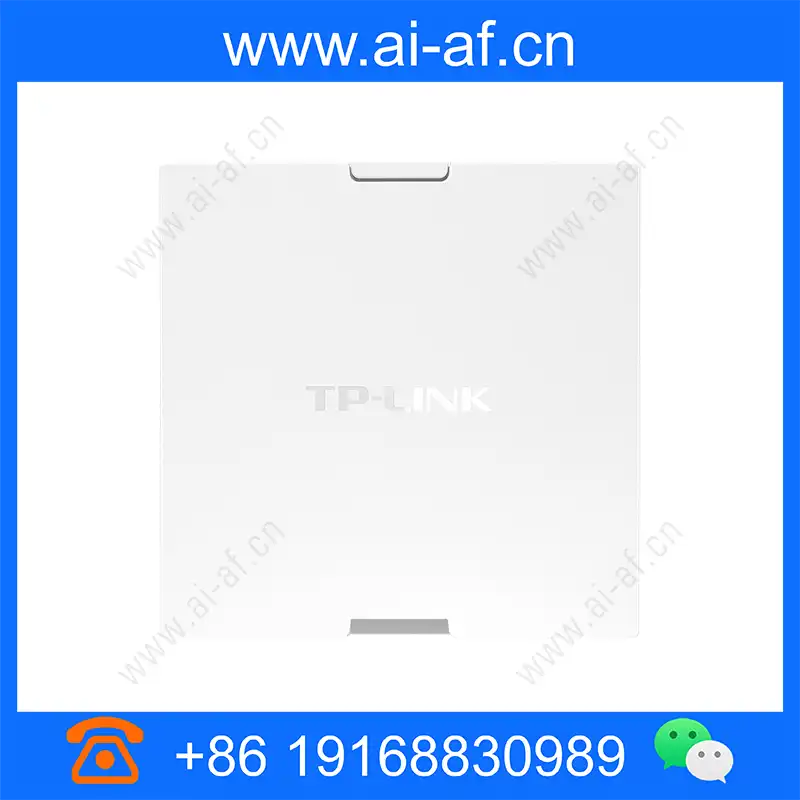

TP-LINK TL-XAP1800GI-PoE AX1800 Dual Band Gigabit Wi-Fi6 Wireless Panel AP
New generation Wi-Fi 6 (802.11ax) technology 11AX 2.4G/5G dual-band concurrent, wireless rate up to 1775Mbps GB 86 shell, elegant appearance 802.3af/at standard PoE network cable power supply, no external power supply required Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz band to make the 2.4GHz and 5GHz bands more balanced and ensure network performance FIT mode supports automatic RF tuning FIT mode supports intelligent roaming Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments Support centralized management of TP-LINK commercial network cloud platform Support TP-LINK business cloud APP remote view / management Product model
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-XAP1800GI-PoE |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*86*55mm |
| Wireless rate | 2.4GHz :574Mbps 5GHz :1201Mbps |

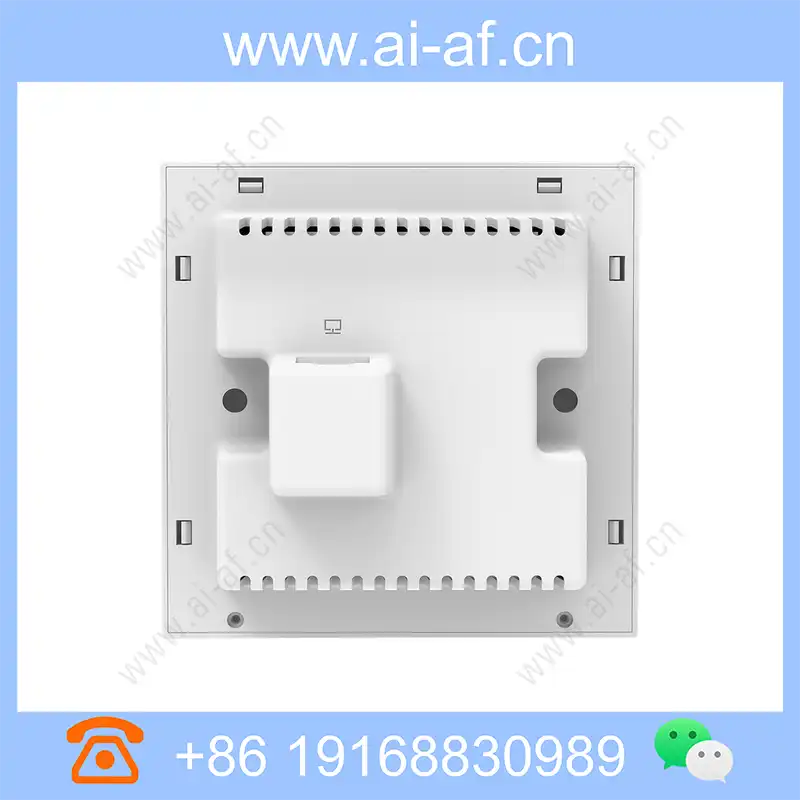

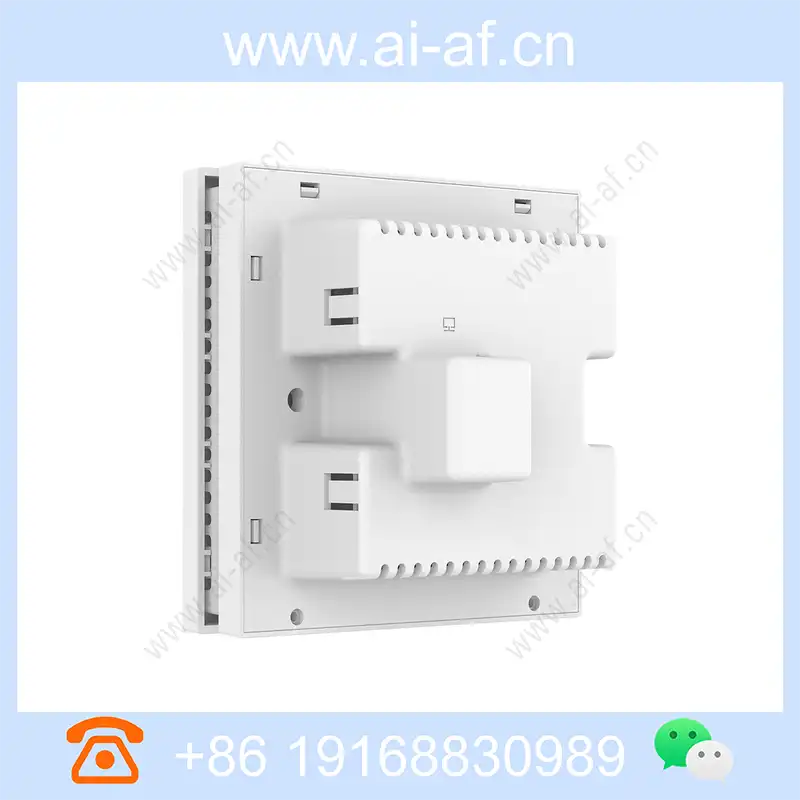

| port | Front bottom: 1 10/100M/1000M RJ45 port Back: 1 10/100M/1000M RJ45 port |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 FAT/FIT mode toggle switch 1 Reset button 1 Wi-Fi/LED multiplex switch (LED on/off requires long press of button 1~2s) |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 11.5W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4G) + 8 (5G) (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: between wireless networks Isolation, AP internal isolation Wireless MAC address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal device access In: Support for removing weak signal devices: Support for automatic RF tuning Support for intelligent roaming |
| Maximum number of connectable clients | 128(2.4G)+128(5G) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
