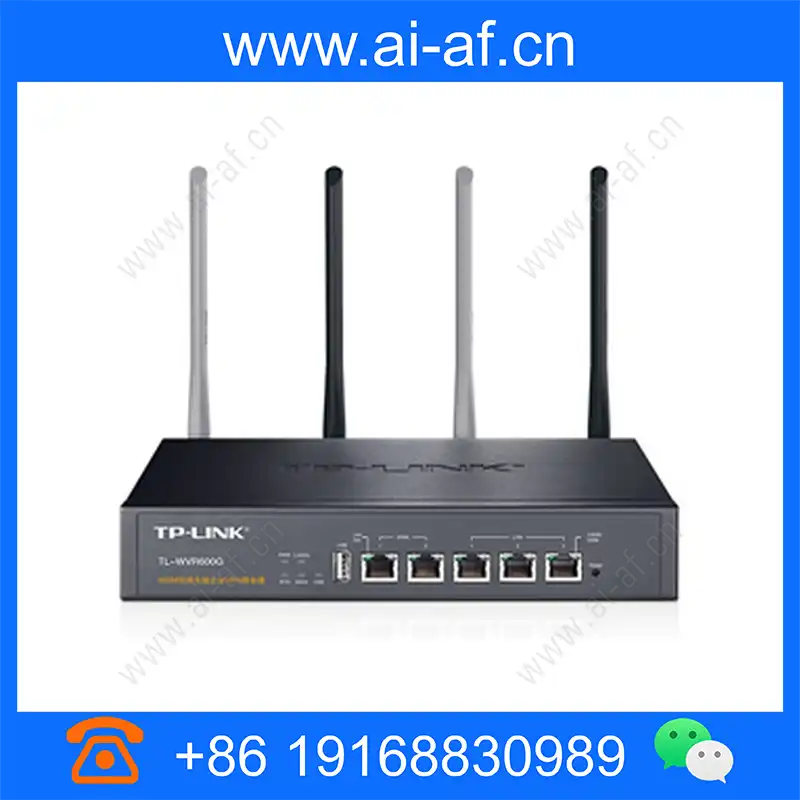

TP-LINK TL-WVR600G 600M Dual Band Wireless Enterprise VPN Router
Brand: TP-LINK
Model: TL-WVR600G
Dimensions: 158mm x 250mm x 44mm
MIPS 32-bit network dedicated processor, 1Gbit DDRⅡ memory 2 Gigabit WAN ports, 3 Gigabit LAN ports Simultaneous dual-band operation, wireless transmission rate up to 600Mbps IPSec VPN、PPTP VPN、L2TP VPN Internet behavior management (application restriction, website filtering, URL filtering, web security, access control list) TP-LINK online behavior audit software ARP protection, attack protection, intelligent bandwidth control, and connection limit port 2 10/100/1000M RJ45 WAN ports 3 10/100/1000M RJ45 LAN ports 1 USB port processor MIPS 32-bit network dedicated processor, clocked at 560MHz RAM DDRII 128MB FLASH 16MB Wireless rate 2.4GHz :300Mbps 5GHz :300Mbps antenna 2 external detachable 2.4GHz 5dBi high gain omniDirectional antennas 2 external detachable 5GHz 5dBi high gain
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 2 10/100/1000M RJ45 WAN ports 3 10/100/1000M RJ45 LAN ports 1 USB port |
| processor | MIPS 32-bit network dedicated processor, clocked at 560MHz |
| RAM | DDRII 128MB |
| FLASH | 16MB |
| Wireless rate | 2.4GHz :300Mbps 5GHz :300Mbps |
| antenna | 2 external detachable 2.4GHz 5dBi high gain omniDirectional antennas 2 external detachable 5GHz 5dBi high gain omniDirectional antennas |
| Indicator light | Per port: Link/Act, 1000M/100M Per device: PWR, SYS, 2.4GHz, 5GHz, USB |
| Dimensions | 250(w)x158(D)x44(H) mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Thermally conductive silicone + natural heat dissipation |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| Access method | Dynamic IP, static IP, PPPoE, L2TP, PPTP |
| LAN port settings | DHCP server LAN port IP settings |
| MAC address setting | LAN / WAN port MAC address modification, WAN port MAC address cloning |
| Switch settings | Port statistics, port monitoring, port traffic limit Port Vlan |
| wireless function | SSID broadcast Wireless band selection: 2.4GHz, 5GHz Support up to 16 Multi-SSID WDS wireless bridges Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption Inter-SSID isolation, AP internal isolation, guest network Wireless MAC address filtering |
| Transmission control | One-to-one NAT mapping, multi-segment NAT virtual server port trigger FTP ALG, H.323 ALG, SIP ALG, IPSEC ALG, PPTP ALG IP bandwidth control, connection number control, flow/connection number monitoring Maximum concurrent connections: 20000 Intelligent equalization, special application routing, strategy routing, ISP routing, line backup static routing |
| ARP protection | Support ARP scanning, ARP list, free GARP support up to 80 IP MAC binding |
| Attack protection | Anti-DoS, Scanning, and Suspicious Packets |
| Access control | Support setting MAC address filtering black and white list Website filtering, URL filtering and access control list Support for prohibiting page submission and filtering specified file extension types |
| Application control | IM restrictions: QQ/Web QQ/MSN/ Fetion/Alibaba/Skype P2P restrictions: Thunder/Thunderbolt/bit comet/eMule/QQLive/PPStream/PPTV financial software restrictions: Great Wisdom/Analyst/Tonghuashun/Qianlong/ Compass/Star of Securities/China Merchants Securities/Guangfa Securities Game Restrictions: QQ Games/Thunder Games/Lianzhong World/Huofang Platform/Fantasy Westward Journey/World of Warcraft/Run Kart/Happy Farm/QQ Farm Basic Application Restrictions: http Submit/http/ https/mms/rtsp proxy limitation: http proxy/socks4 proxy/socks5 proxy QQ/MSN black and white list application feature database upgrade |
| Behavior audit | Support uploading online behavior log to TP-LINK online behavior audit software |
| VPN | 10 IPsec VPN tunnels 10 L2TP VPN tunnels 10 PPTP VPN tunnels |
| system service | Peanut shell, Comay, 3322 Dynamic DNS UPnP service USB print server |
| Management and maintenance | Chinese Web network management, CLI management, remote management Configuration backup and import configuration System software upgrade Interface traffic statistics, IP traffic statistics Online detection, ping, tracert diagnostic tool System logs |
