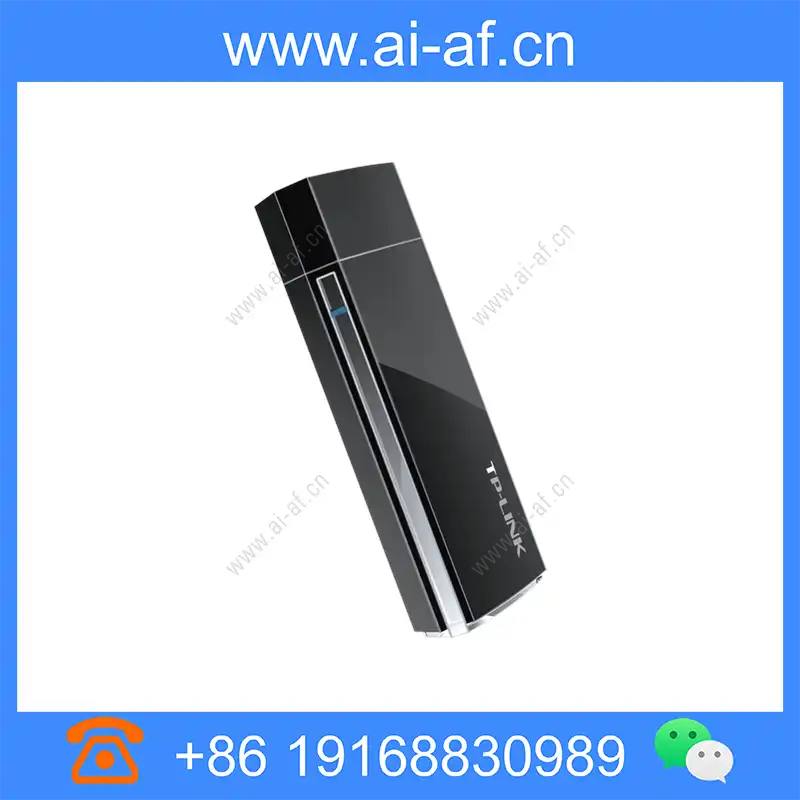

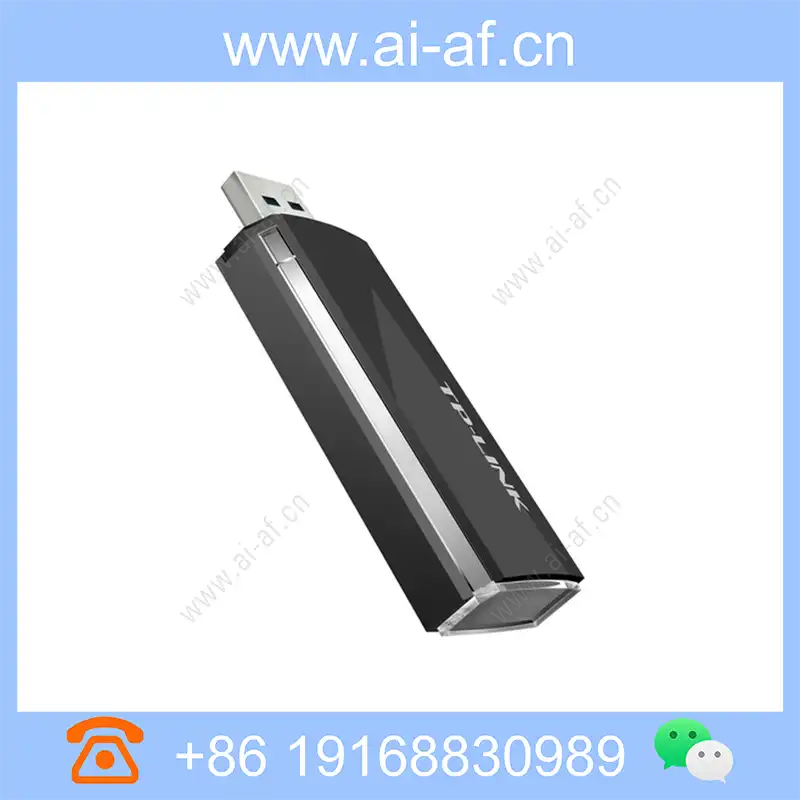

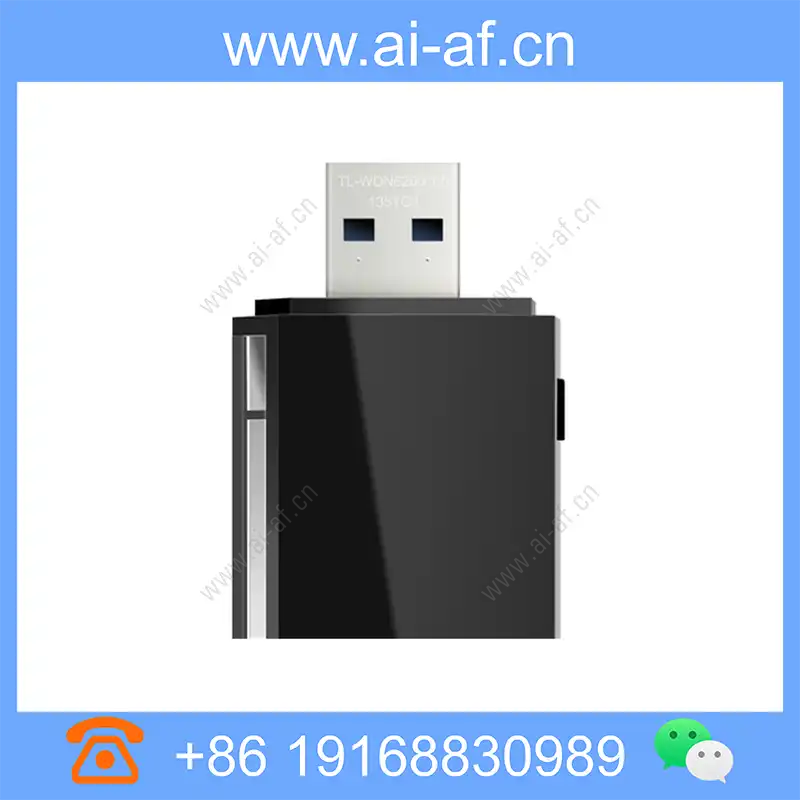

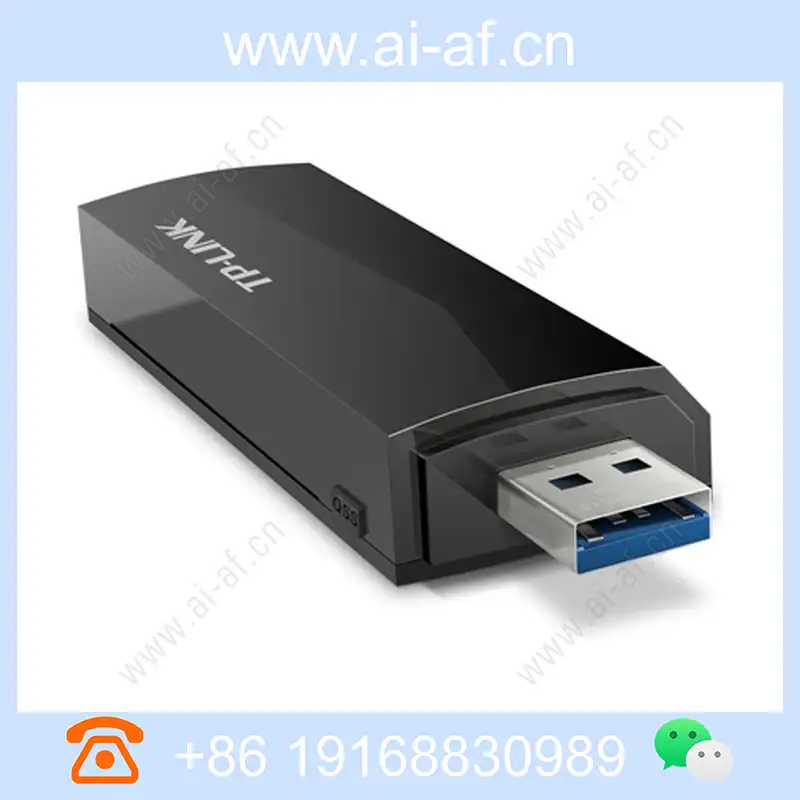

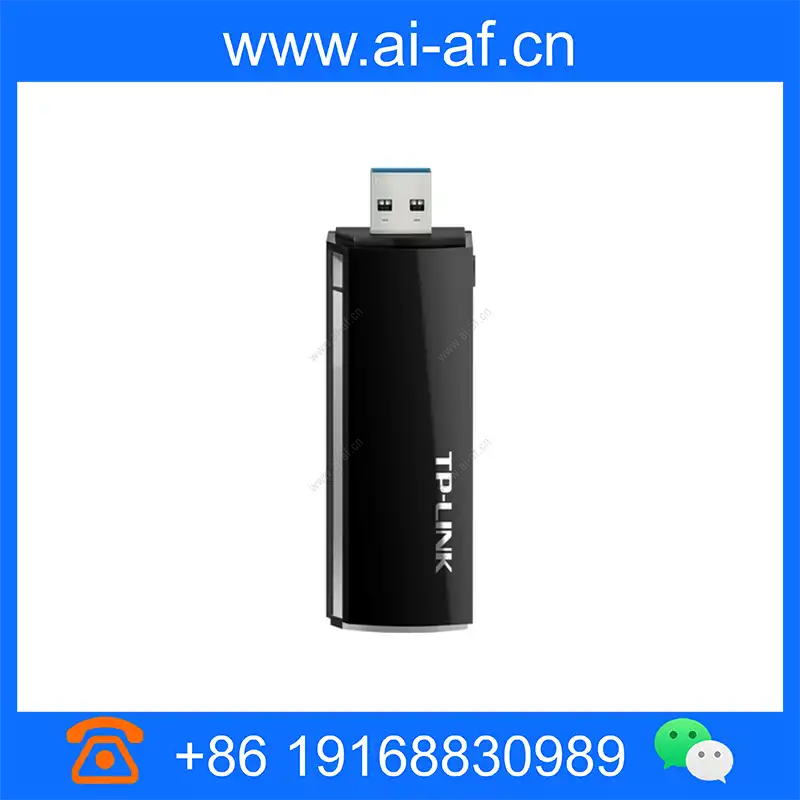

TP-LINK TL-WDN6200 11AC Dual Band Wireless USB Network Card
interface USB 3.0 interface antenna Built-in smart antenna Dimensions 90mmx29mmx14.5mm Use environment Working temperature: 0°C~40°C Storage temperature: -40°C~70°C Humidity: 10% ~ 90%RH No condensation Package Contents AC1300 dual-band wireless USB network card TL-WDN6200 driver CD Follow the standard IEEE802.11ac;IEEE802.11n;IEEE802.11g;IEEE802.11b;IEEE802.11a Transmission rate 11b:1/2/5.5/11Mbps 11g:6/9/12/18/24/36/48/54Mbps 11n:400Mbps 11ac:867Mbps Frequency Range 2.4~2.4835GHz 5.150-5.250GHz 5.725~5.850GHz Working channel 1~13,36~48,149~165 Transmit power 20dBm (maximum) Safety features WPA-PSK/WPA2-PSK WPA/WPA2 WEP QSS quick security settings Other functions Analog AP function Operating system support Windows XP/XP 64 Windows 7/Windows7 64 Windows 8/Windows8 64 Windows
Technical Specifications
| Property Description | Property Value |
|---|---|
| interface | USB 3.0 interface |
| antenna | Built-in smart antenna |
| Dimensions | 90mmx29mmx14.5mm |
| Use environment | Working temperature: 0°C~40°C Storage temperature: -40°C~70°C Humidity: 10% ~ 90%RH No condensation |
| Package Contents | AC1300 dual-band wireless USB network card TL-WDN6200 driver CD |
| Follow the standard | IEEE802.11ac;IEEE802.11n;IEEE802.11g;IEEE802.11b;IEEE802.11a |
| Transmission rate | 11b:1/2/5.5/11Mbps 11g:6/9/12/18/24/36/48/54Mbps 11n:400Mbps 11ac:867Mbps |
| Frequency Range | 2.4~2.4835GHz 5.150-5.250GHz 5.725~5.850GHz |
| Working channel | 1~13,36~48,149~165 |
| Transmit power | 20dBm (maximum) |
| Safety features | WPA-PSK/WPA2-PSK WPA/WPA2 WEP QSS quick security settings |
| Other functions | Analog AP function |
| Operating system support | Windows XP/XP 64 Windows 7/Windows7 64 Windows 8/Windows8 64 Windows 8.1/Windows8.1 64 Note: In order to obtain better system compatibility, we recommend that you install the latest system upgrade patch |
