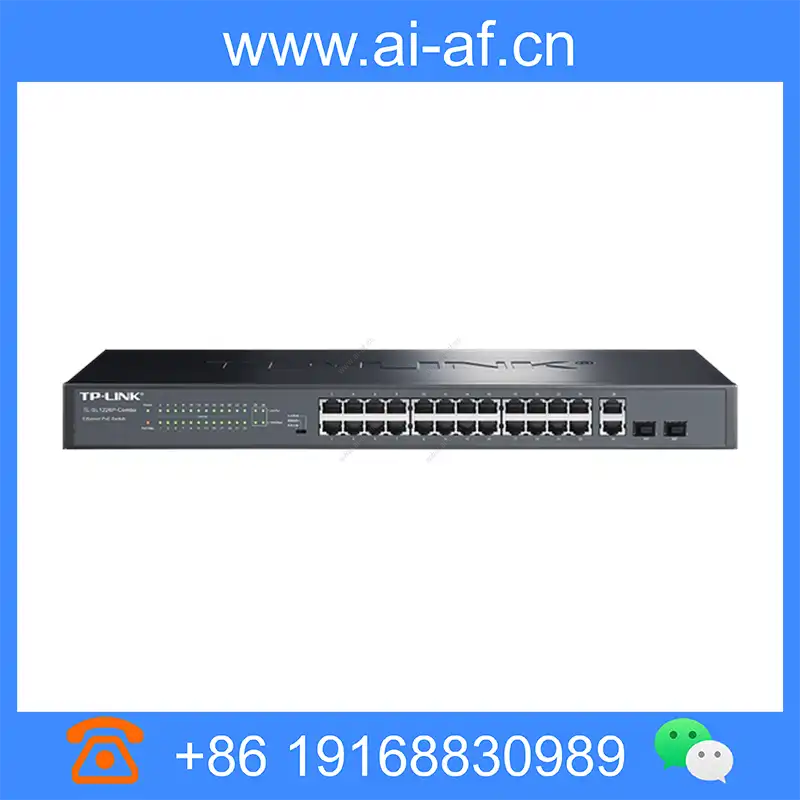

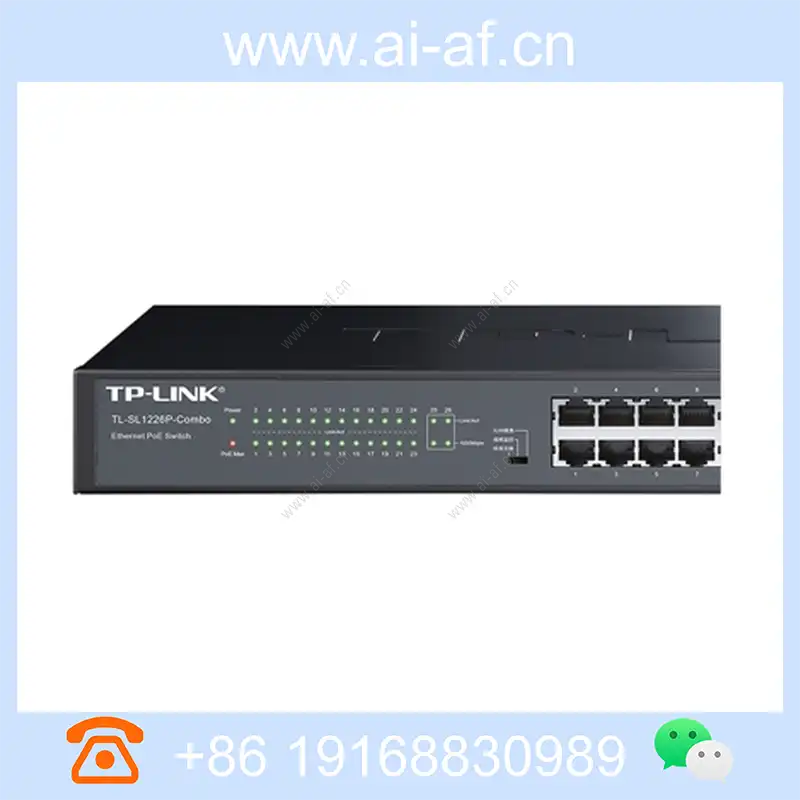

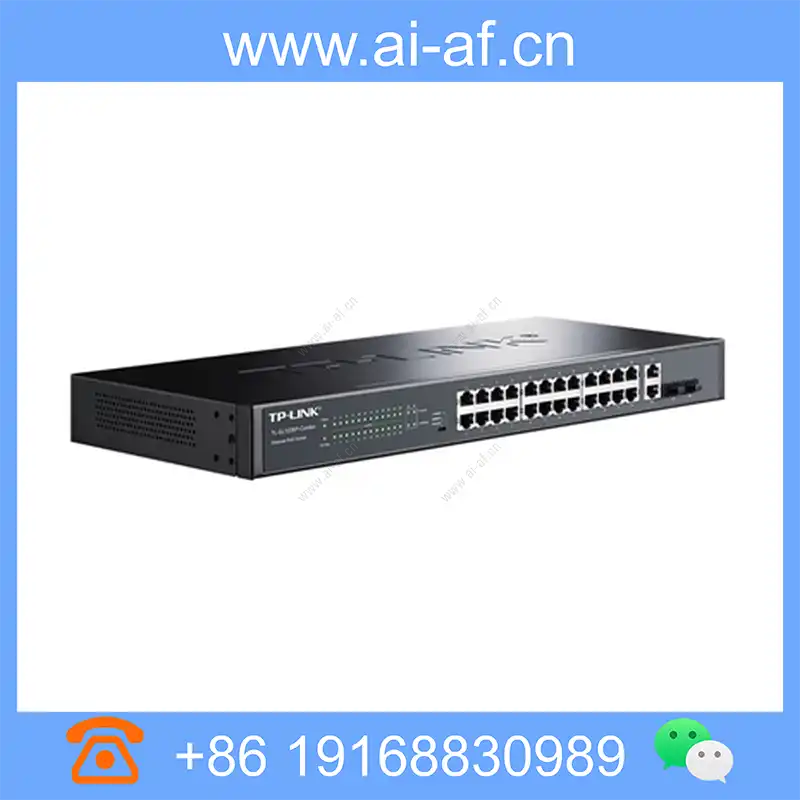

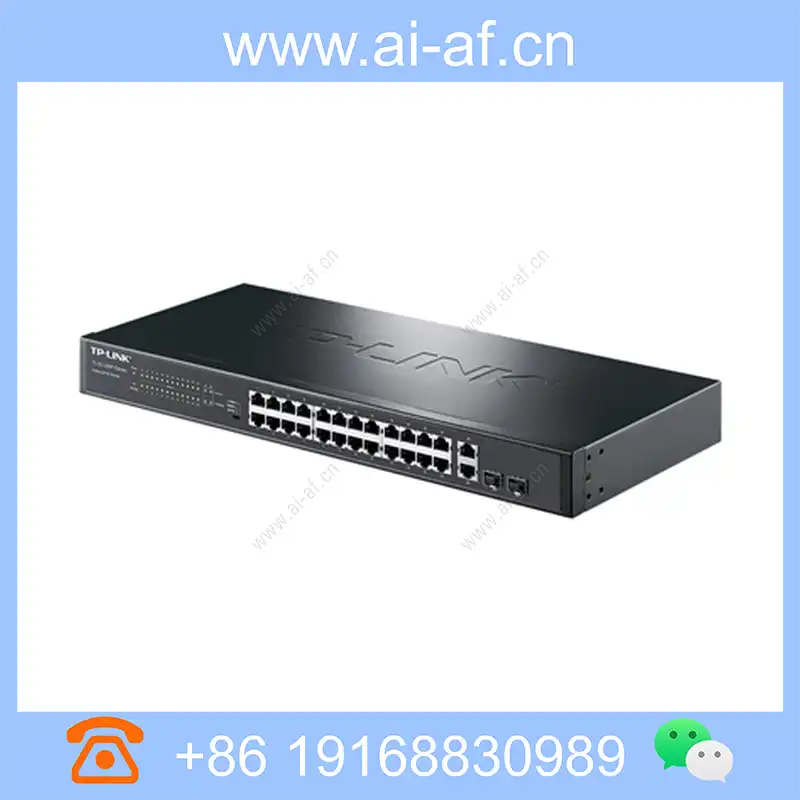

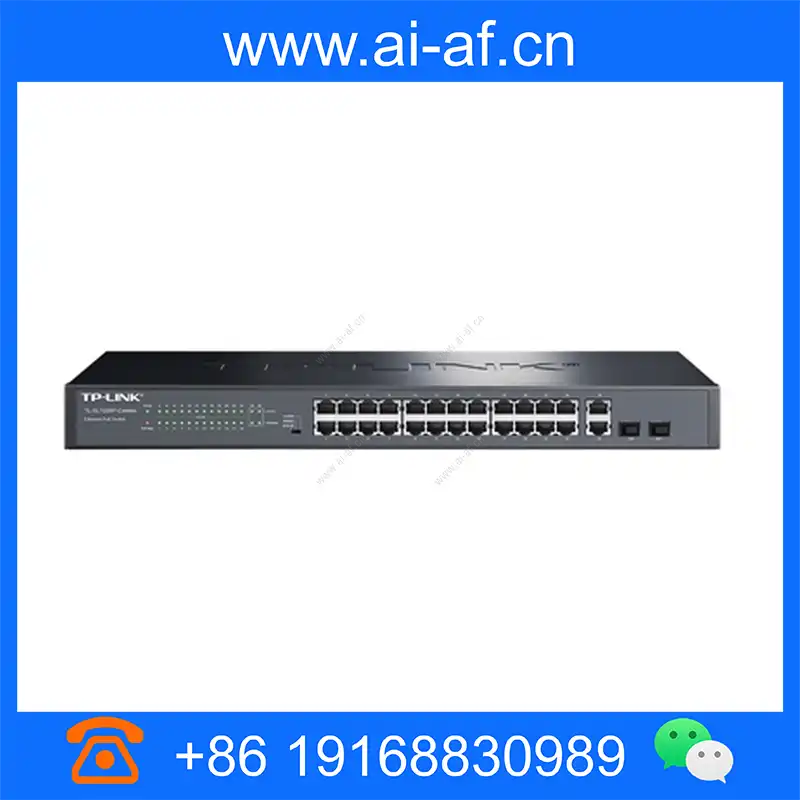

TP-LINK TL-SL1226P-Combo unmanaged PoE switch 2GE 2SFP 24PoE 235W

Brand: TP-LINK

Model: TL-SL1226P-COMBO

Dimensions: 440mm x 330mm x 44mm

24 10 / 100Base-T RJ45 ports support PoE + power supply Two 10/100/1000Base-T RJ45 ports 2 multiplexed Gigabit SFP ports The maximum PoE power of the whole machine is 235W, and the maximum PoE power of a single port is 30W PoE power port supports priority mechanism Support standard switching, video surveillance, VLAN isolation three working modes Product model TL-SL1226PE TL-SL1226P-Combo TL-SL1226MP TL-SL1218PE-Combo 100M RJ45 port 24 24 24 16 Gigabit RJ45 port 2 2 2 2 Gigabit SFP port 2 (multiplexed) 2 (multiplexed) 0 2 (multiplexed) PoE port 24FE 24FE 24FE 16FE PoE output power 384W 235W 180W 235W Machine power consumption 433W 265W 206W 263W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Port PoE maximum output power 30W MAC address capacity 8K Operating mode Standard switching, video

Product Features

24 10 / 100Base-T RJ45 ports support PoE + power supply
Two 10/100/1000Base-T RJ45 ports
2 multiplexed Gigabit SFP ports
The maximum PoE power of the whole machine is 235W, and the maximum PoE power of a single port is 30W
PoE power port supports priority mechanism
Support standard switching, video surveillance, VLAN isolation three working modes

Product model	TL-SL1226PE	TL-SL1226P-Combo	TL-SL1226MP	TL-SL1218PE-Combo
100M RJ45 port	24	24	24	16
Gigabit RJ45 port	2	2	2	2
Gigabit SFP port	2 (multiplexed)	2 (multiplexed)	0	2 (multiplexed)
PoE port	24FE	24FE	24FE	16FE
PoE output power	384W	235W	180W	235W
Machine power consumption	433W	265W	206W	263W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Port PoE maximum output power	30W
MAC address capacity	8K
Operating mode	Standard switching, video surveillance, VLAN isolation
Shell size (mm)	440×330×44	440×180×44
Input power	220VAC , 50Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
	TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Port PoE maximum output power	30W
MAC address capacity	8K
Operating mode	Standard switching, video surveillance, VLAN isolation
Shell size (mm)	440x180x44
Input power	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
