| Protocol standard | - IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3ab, 802.3z
- Compatible with Modbus TCP, Ethernet / IP, PROFINET, etc., can achieve transparent data transmission
|
|---|

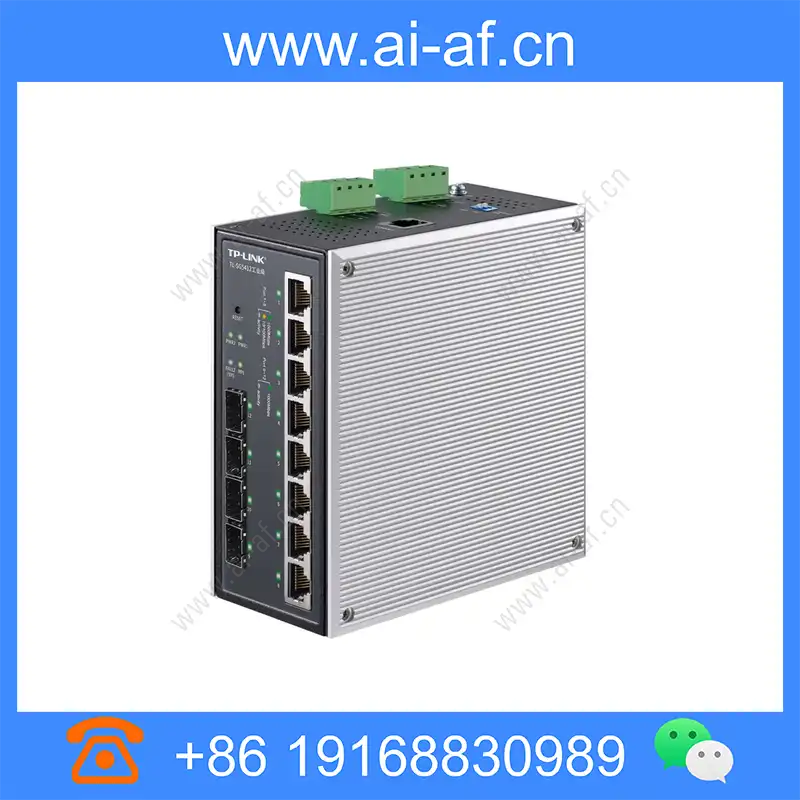

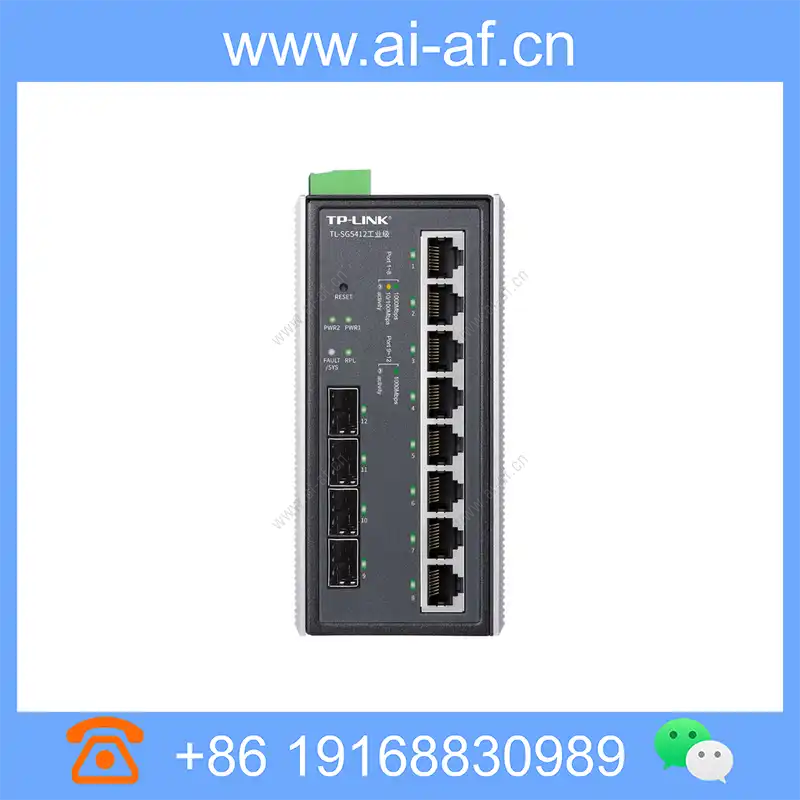

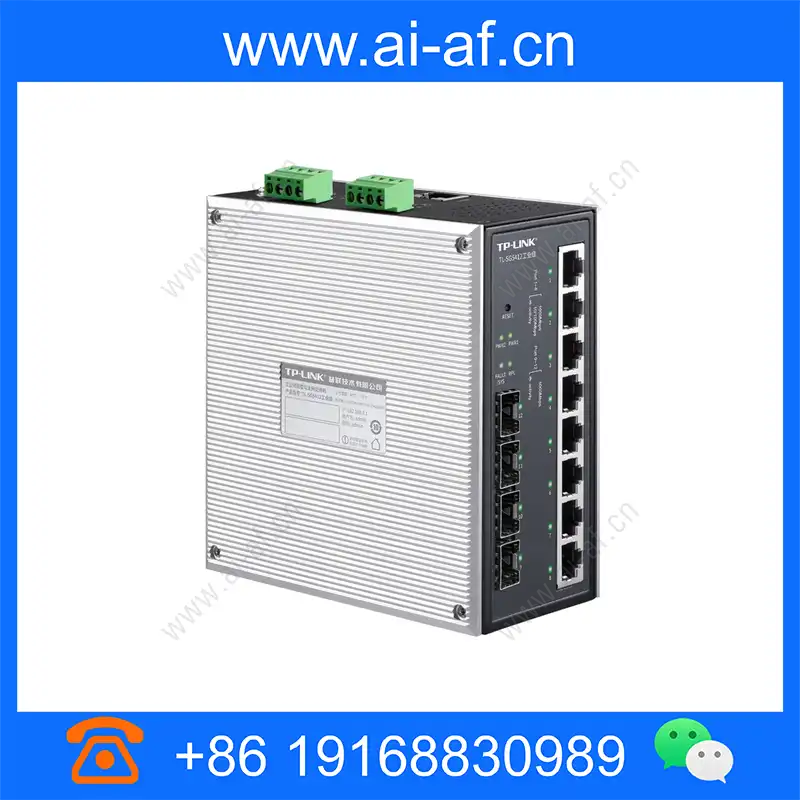

| Port shape | - 8 10/100/1000M RJ45 port
- 4 Gigabit SFP port
|
|---|
| Indicator light | - 12 status indicators LINK / ACT
- two power input indicators PWR1, PWR2
- RPL indicator
- fault / sys Indicator
|
|---|

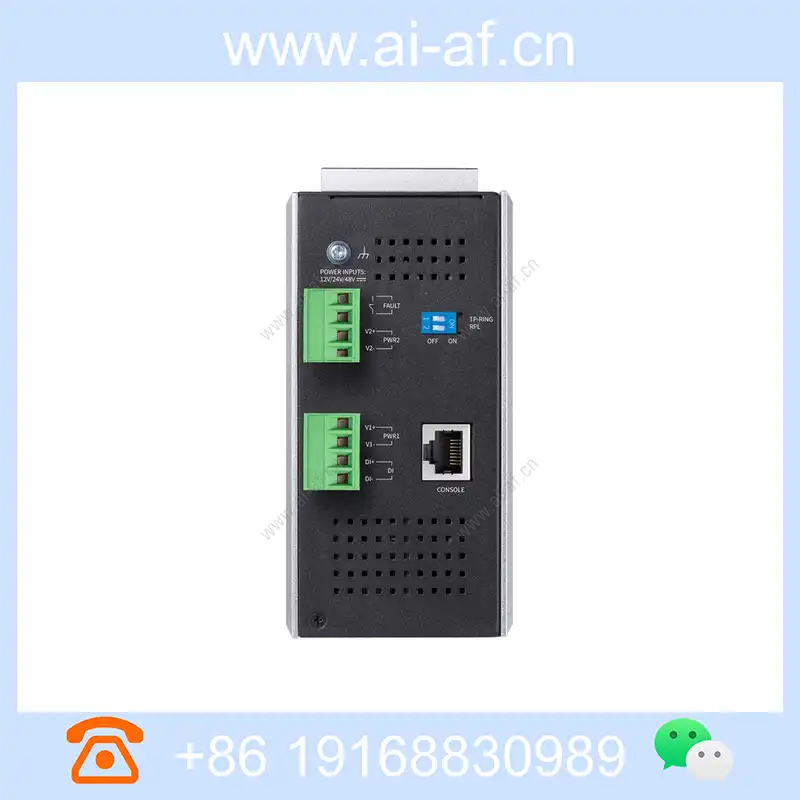

| power input | - DC input voltage 12/24/48 VDC (9.6~ 60 VDC)
- input current 0.75A(@24VDC)
- support reverse polarity protection
li>- The maximum power consumption of the whole machine: 14W
|
|---|
| DIP | |
|---|
| structure | - IP30 protection rating
- product size 137mm * 128mm * 65.4mm

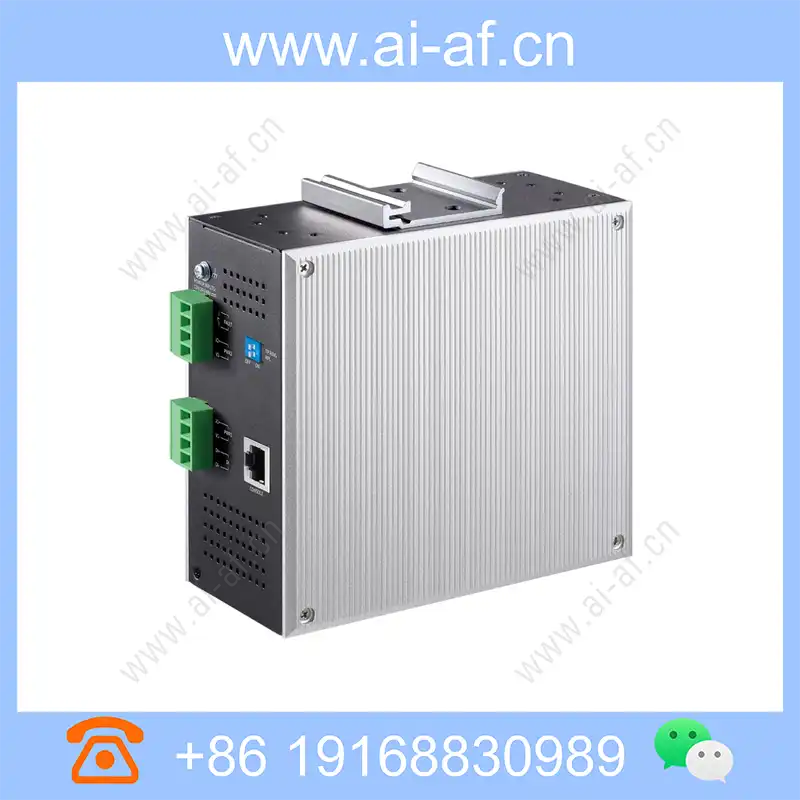

- rail / wall installation
|
|---|
| temperature | - operating temperature -40°C - 75°C
- storage temperature -40°C - 85°C
|
|---|
| humidity | - Working humidity 10% RH - 90% RH, no condensation
- storage humidity 5% RH - 90% RH, no condensation
|
|---|
| Certification standards | - IEC/EN 61000-4-2,Level 4
- IEC/EN 61000-4-3,Level 4
- IEC/EN 61000-4-4,Level 4
- IEC/EN 61000-4-5,Level 3
- IEC/EN 61000-4-6,Level 3
- IEC/EN 61000-4-8,Level 5
- IEC/EN 61000-4-9,Level 5
- IEC/EN 61000-4-10,Level 5
|
|---|
| MTBF | |
|---|
| Maximum power of the whole machine | |
|---|
| routing | - support RIP
- support static routing
- support ARP proxy
|
|---|
| Safety features | - supports the flow rate-based speed limit based on the L2 ~ L4 package based on the time period, the destination port reDirection, QoS heavy mark
- support based on port, VLAN Download Policy
|
|---|
| Access control | - supports the flow rate-based speed limit based on the L2 ~ L4 package based on the time period, the destination port reDirection, QoS heavy mark
- support based on port, VLAN Download Policy
|
|---|
| VLAN | - 802.1Q VLAN、MAC VLAN、Private VLAN、Protocol Based VLAN、Voice VLAN
- VLAN VPN
- GARP/GVRP
|
|---|
| Address table | - MAC address display / query, MAC address filter
- static MAC address setting, dynamic MAC address management
- support IVL
|
|---|
| Port management | - port convergence, port monitoring, port speed
- storm suppression
|
|---|
| Spanning tree | - STP (802.1d), RSTP (802.1W), MSTP (802.1s)
- spanning tree security
|
|---|
| Multicast management | - IGMP V1/V2/V3
- multicast address management, multicast VLAN, multicast routing port, static multicast address
- unknown multicast discard, group Broadcasting filter, Fast Leave
|
|---|
| QoS | - 8 port queue
- supports port, 802.1p, and DSCP / TOS priority
- support EQU, SP, WRR, SP + WRR four priorities Level scheduling mode
|
|---|
| DHCP | - DHCP Server, DHCP relay
- DHCP Snooping, DHCP attack protection, Option82
|
|---|
| system maintenance | - Support Configuration Import Export and System Time Setting
- Ring Backup Detection, Cable Detection, Ping, Tracert Detection
- Display / Filter System Log, Log Server
|
|---|
| System Management | - supports WEB management based on HTTP, SSL (V2 / V3 / TLSV1), CLI management based on Telnet, Console, SSH (V1 / V2)
- SNMP V1/V2/V3 ( TP-LINK MIBS)
- software free upgrade
|
|---|
| Safety management | - supports port, Mac, IP address security management
|
|---|
| Ring | - Support ERPS ring network protocol
- support RPL configuration
|
|---|
| Accurate network time synchronization | - Support IEEE1588 Precision Clock Synchronization Protocol
|
|---|
| Packaging accessories | - Warranty Card
- User Manual
- Wallpaper
- Serial line
- Grounding line
< / ul> |
|---|
