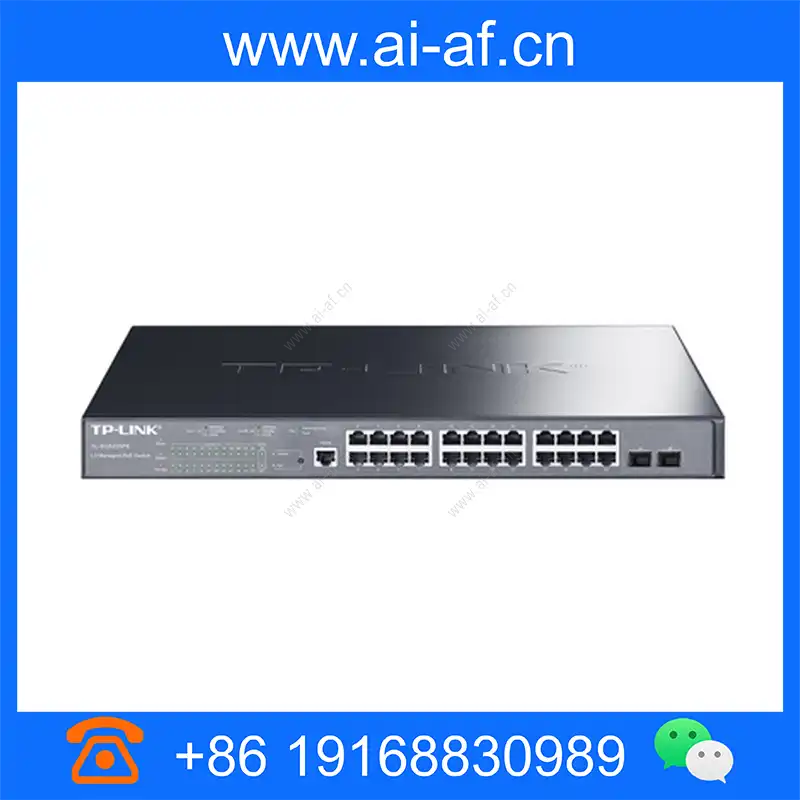

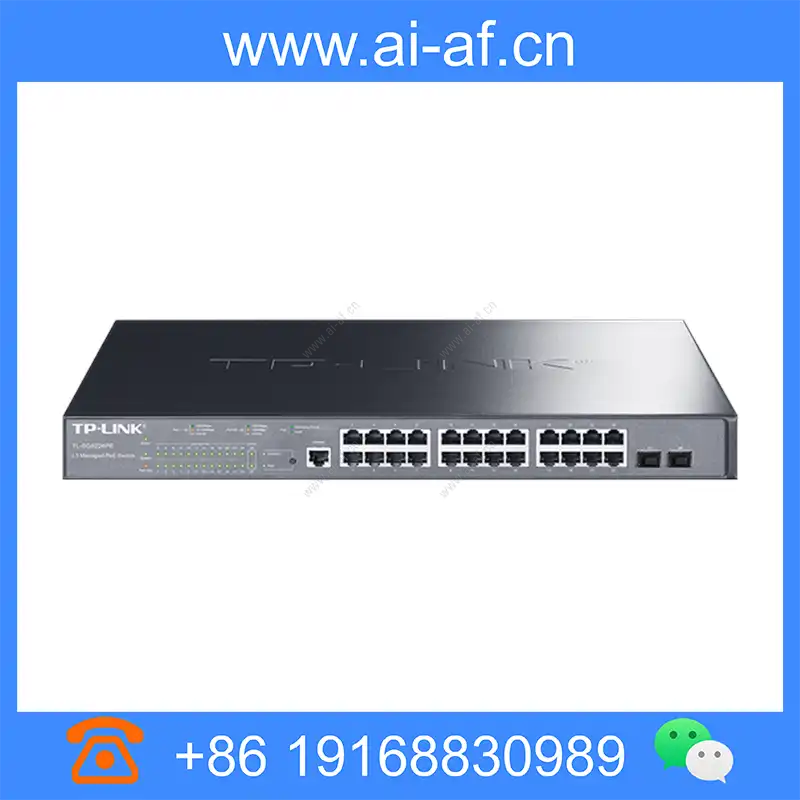

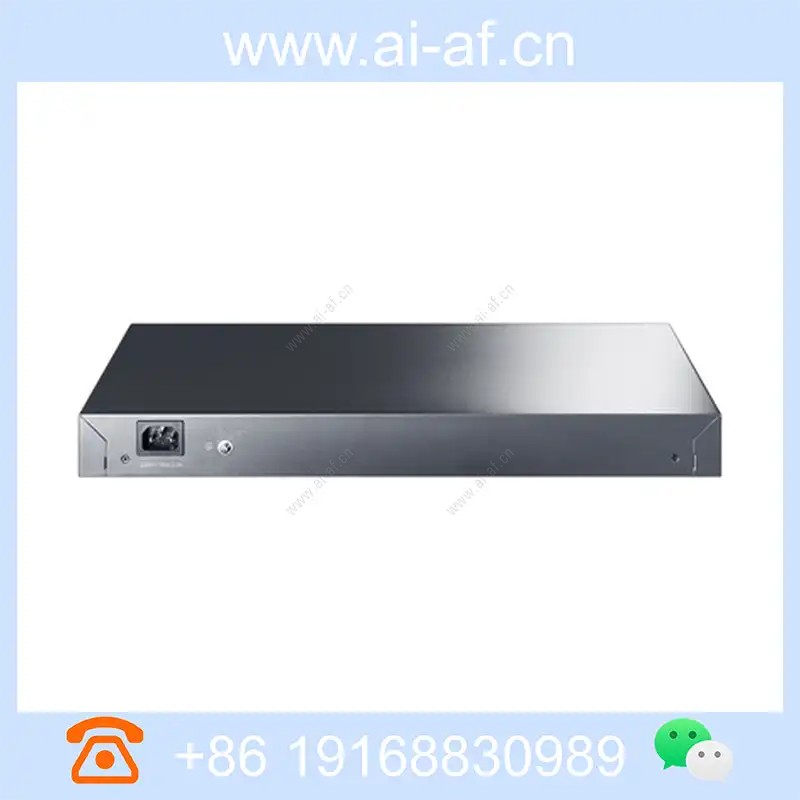

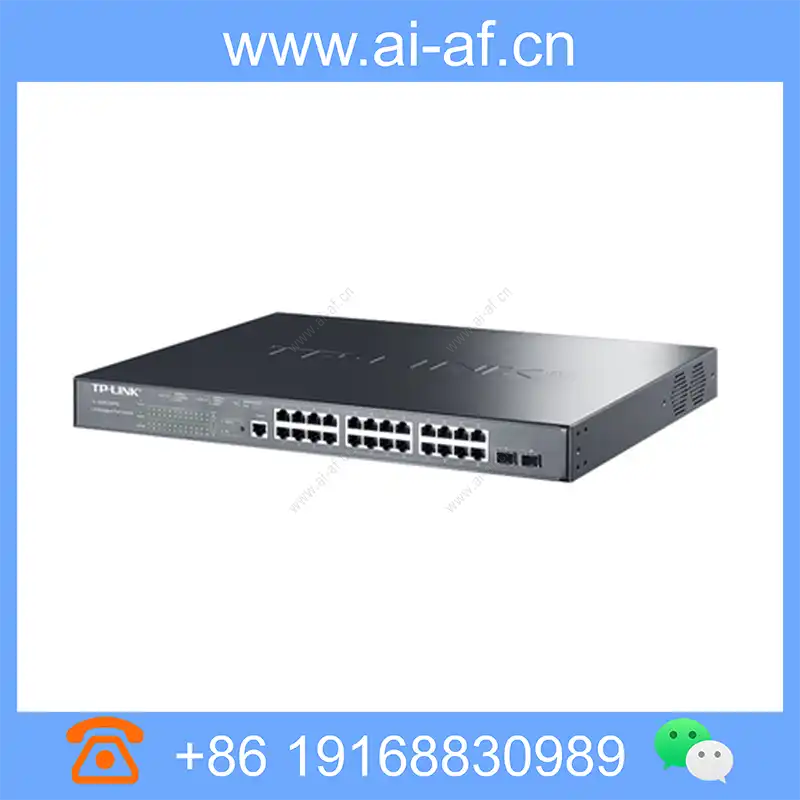

TP-LINK TL-SG5226PE 26-port gigabit layer 3 managed PoE switch 2SFP 24PoE 370W
Brand: TP-LINK
Model: TL-SG5226PE
Dimensions: 440mm x 330mm x 44mm
24 10/100/1000Base-T RJ45 ports, support PoE+ power supply 2 independent Gigabit SFP ports Support TP-LINK commercial cloud platform remote management, support mobile APP management Support intelligent deployment, automatic configuration of networking, and graphical topology display The maximum PoE power supply of the whole machine is 370W, and the maximum PoE power supply of a single port is 30W Support RIP dynamic routing, static routing, ARP proxy Support DHCP server, DHCP relay, DHCP Snooping Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Product model TL-SG5452P TL-SG5428PE TL-SG5226PE TL-SG5226P TL-SG5218PE TL-SG5210PE Gigabit RJ45 port 48 24 24 24 16 8 Gigabit SFP port 4 4 2 2 2 2 RJ45 Console port 1
Product Features
Recommended for supporting optical module/electrical port module |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Gigabit RJ45 port | 24 |
| Gigabit SFP port | 2 |
| RJ45 Console port | 1 |
| PoE port | 24GE |
| PoE output power | 370W |
| Machine power consumption | 433W |
| PoE standard | IEEE 802.3at(PoE+)、IEEE 802.3af |
| MAC address capacity | 8K |
| routing | Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60 |
| VLAN | Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function |
| PoE | Support to set the priority of PoE port Support to set the PoE power supply time period Support to set the port Power Limit |
| MAC address table | Comply with IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic and filtered address table |
| Safety features | Based on user hierarchical management and password protection Support based on port number, IP address, MAC address to restrict user access Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN four yuan binding Support ARP protection, IP Source protection, DoS protection support DHCP Snooping, DHCP attack protection support 802.1X authentication, AAA support port security, port isolation support CPU protection function |
| Access Control (ACL) | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, port reDirection, flow rate limiting, QoS re-marking |
| Quality of Service (QoS) | Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm |
| Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering |
| Multicast | Support IGMP v1/v2/v3 Snooping Support fast leave mechanism Support multicast VLAN Support multicast filtering, packet statistics, unknown multicast drop |
| IPv6 | Support MLD Snooping Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet Support IPv6 SNMP, IPv6 SSH, IPv6 SSL |
| Management and maintenance | Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support ARP Protection, IP source protection, DoS protection support CPU monitoring, memory monitoring support system logs, graded warning support Ping, Tracert detection, cable detection |
| Shell size (mm) | 440x330x44 |
| Input power | 220VAC , 50Hz |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
