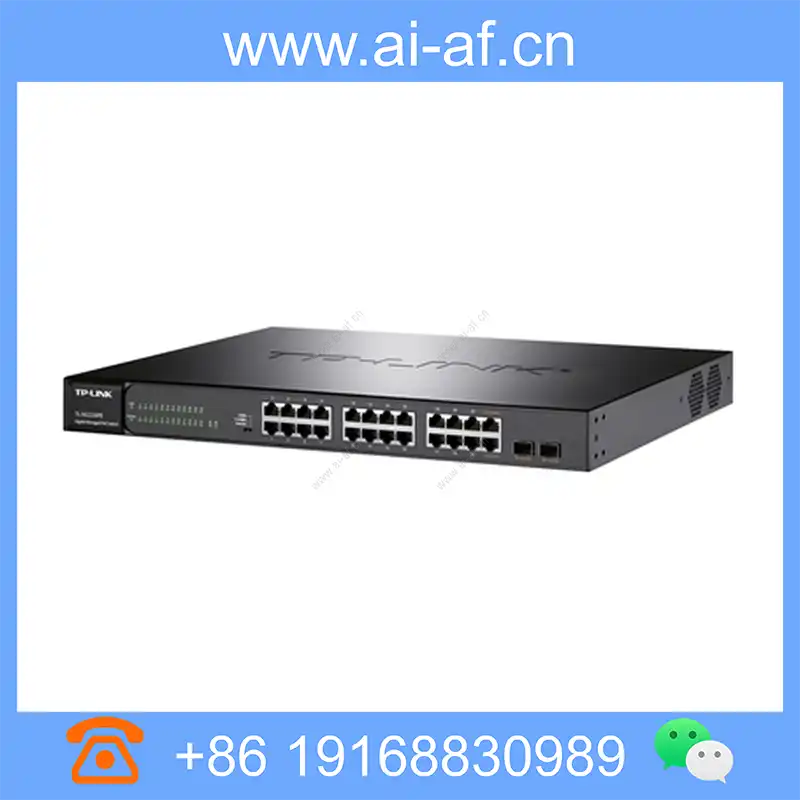

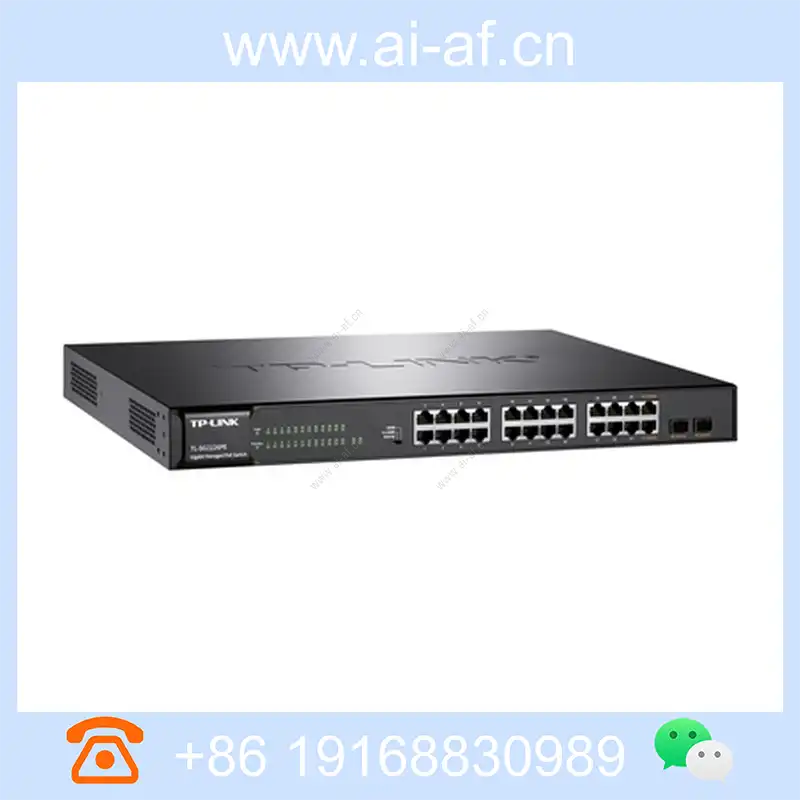

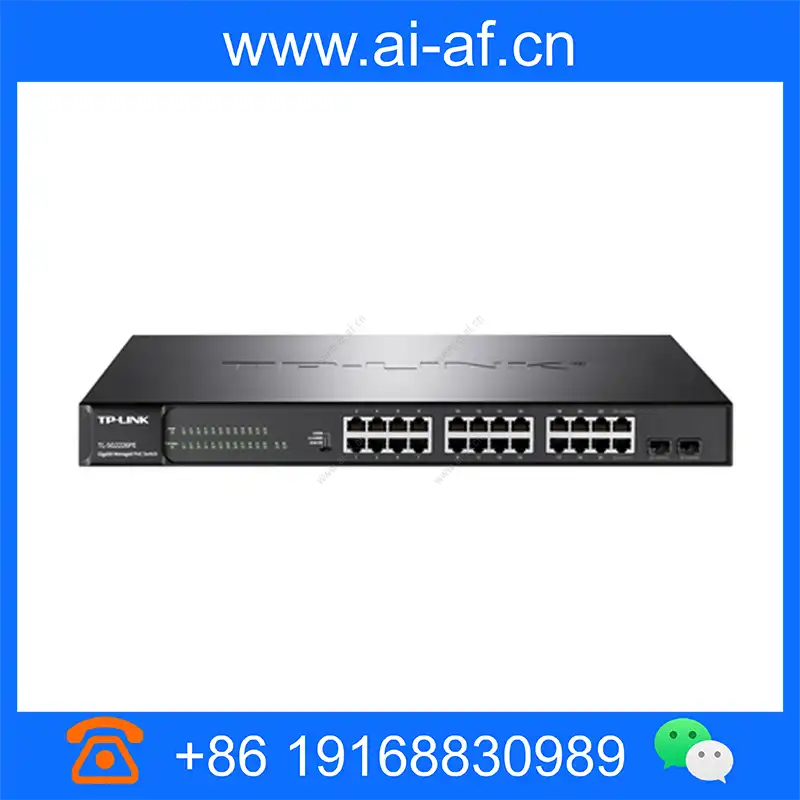

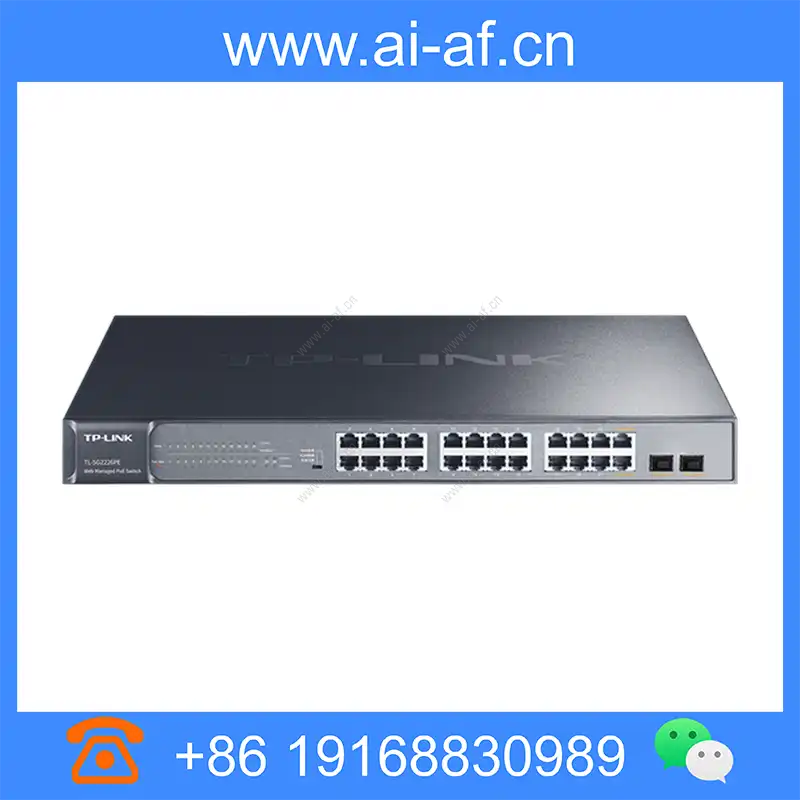

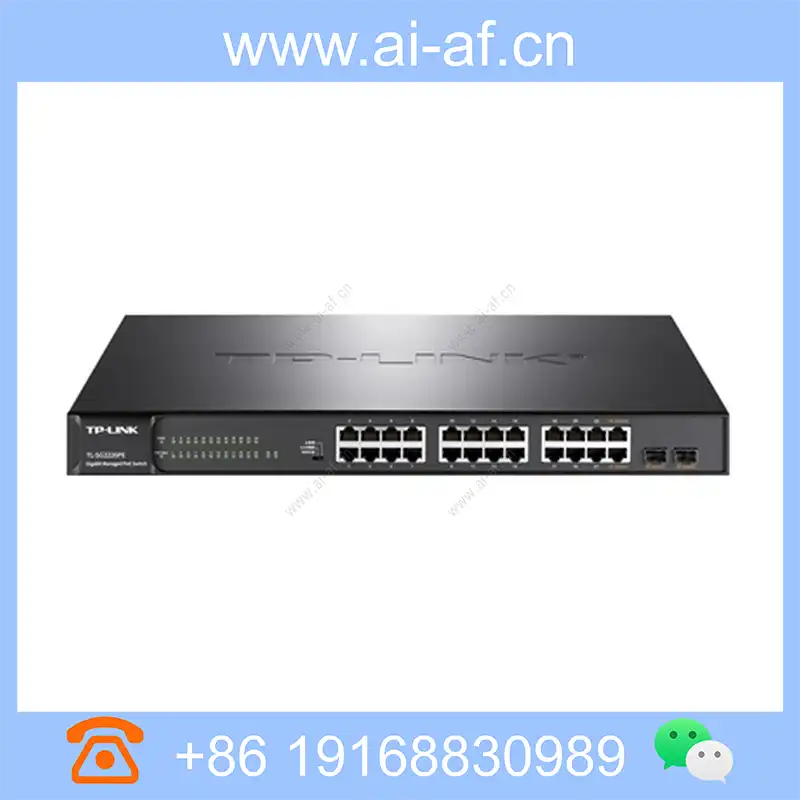

TP-LINK TL-SG2226PE 26-port full gigabit managed PoE switch 2SFP 24PoE 375W
24 10/100/1000BASE-T RJ45 port, 2 Gigabit SFP light ports 1 to 24 thousand megabytes RJ45 port support IEEE 802.3af/at standard PoE power supply The maximum PoE power supply of the whole machine is 375W, and the maximum PoE power supply of a single port is 30W Support Business Cloud APP and web-side remote management Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring, cable detection, loopback protection Support cloud management, VLAN isolation, standard exchange three working modes * This model is only 3.0 and above supports cloud management functions Product model TL-SG2226PE TL-SG2226P TL-SG2024MP TL-SG2218PE TL-SG2218P Gigabit RJ45 port 24 24 24 16
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Gigabit RJ45 port | 24 |
| PoE port | 24 |
| Maximum PoE output power of the whole machine | 375W |
| Maximum power consumption of the whole machine | 424W |
| Maximum PoE output power of the port | 30W |
| PoE power supply standard | IEEE 802.3af/at |
| MAC address capacity | 8K |
| Mode switch | Support three working modes: Web management, VLAN isolation, standard switching |
| Network management functions | Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection |
| Shell size (mm) | 440*330*44 |
| Input power | 220VAC,50Hz |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
