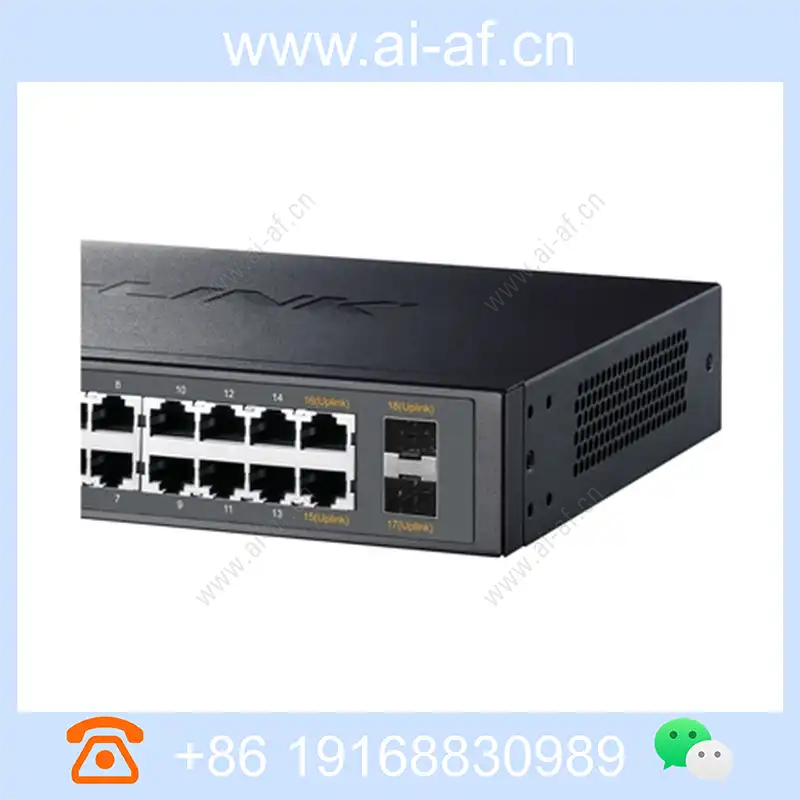

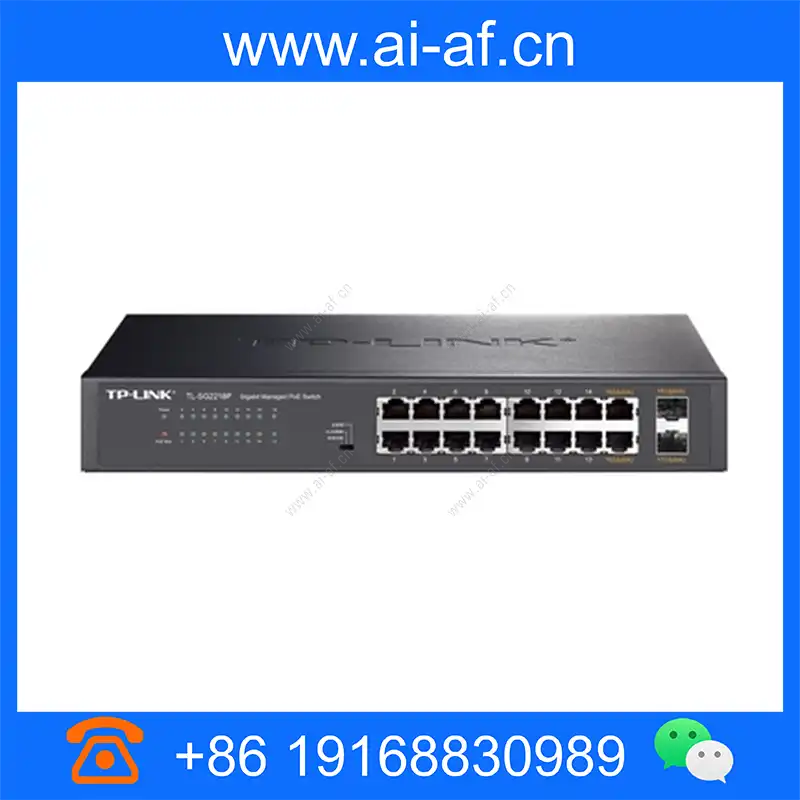

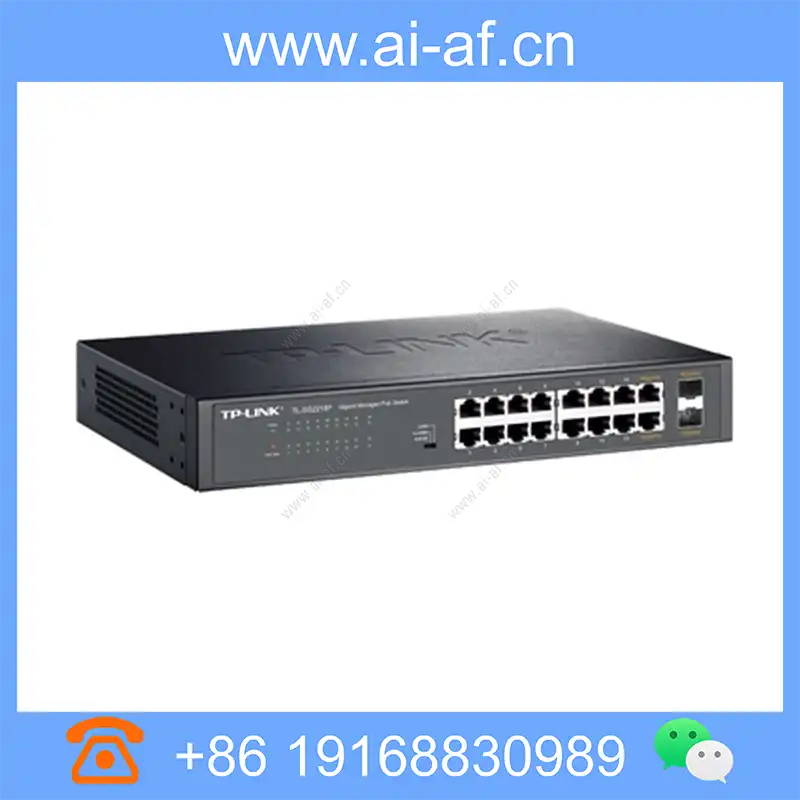

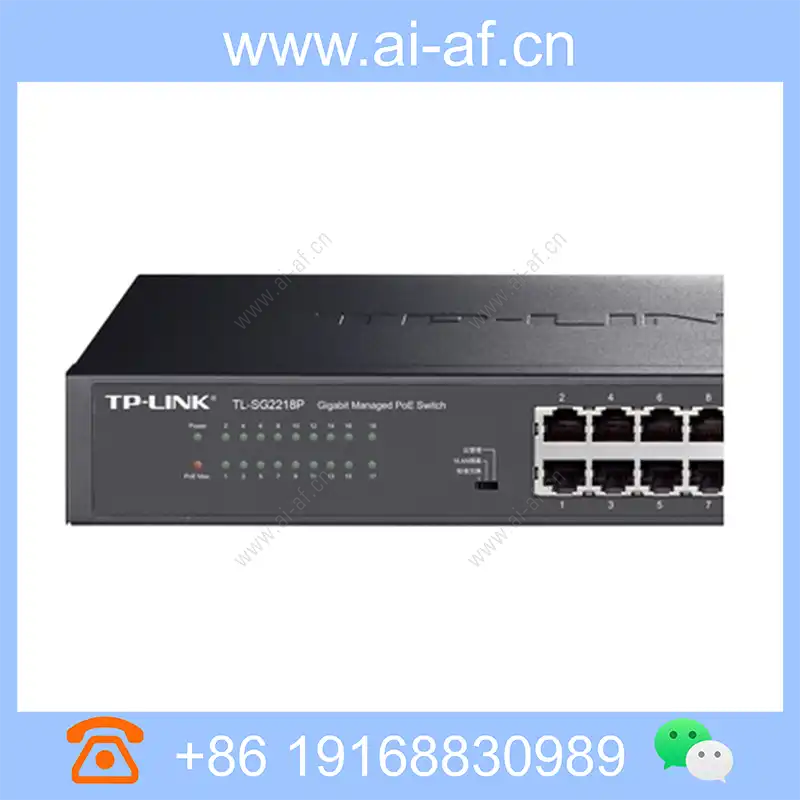

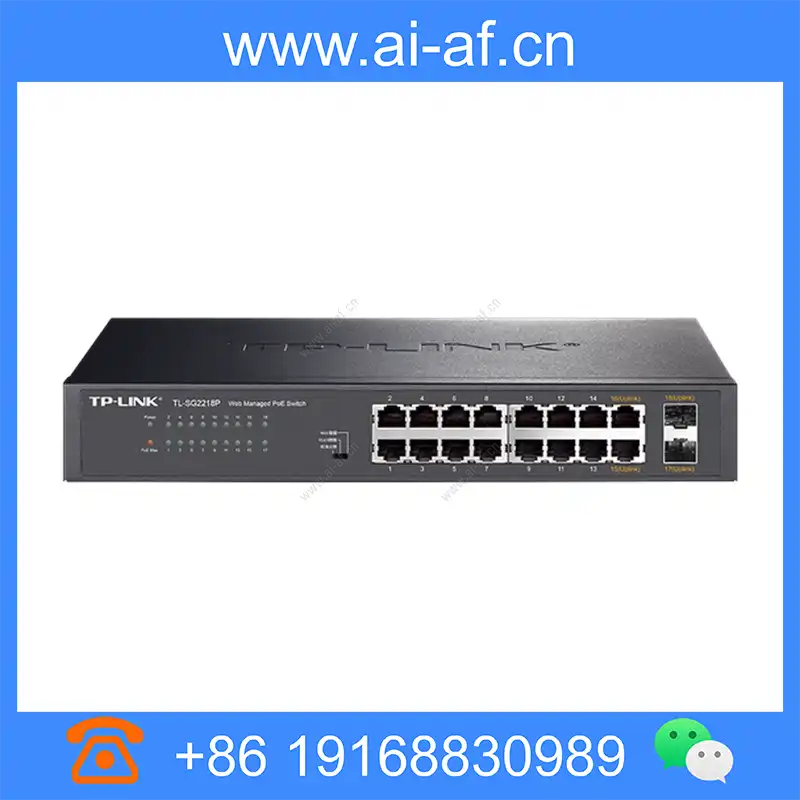

TP-LINK TL-SG2218P 18-port full gigabit managed PoE switch 2SFP 16PoE 180W
16 10/100/1000Base-T RJ45 ports (support standard PoE+ power supply) 2 1000Mbps SFP ports The maximum PoE power supply of the whole machine is 180W, and the maximum PoE power supply of a single port is 30W Comply with IEEE 802.3af/at PoE power supply standard, the port supports power supply priority Support Business Cloud APP and web-side remote management Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection Support cloud management, VLAN isolation, standard exchange three working modes * This model is only 3.0 and above supports cloud management functions Product model TL-SG2226P TL-SG2218P TL-SG2210P
Product Features
Recommended for supporting optical module/electrical port module |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Gigabit RJ45 port | 16 |
| PoE port | 16 |
| Maximum PoE output power of the whole machine | 180W |
| Maximum power consumption of the whole machine | 213W |
| Maximum PoE output power of the port | 30W |
| PoE power supply standard | IEEE 802.3af/at |
| MAC address capacity | 8K |
| Mode switch | Support three working modes: Web management, VLAN isolation, standard switching |
| Network management functions | Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection |
| Shell size (mm) | 294*180*44 |
| Input power | 220VAC,50Hz |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
