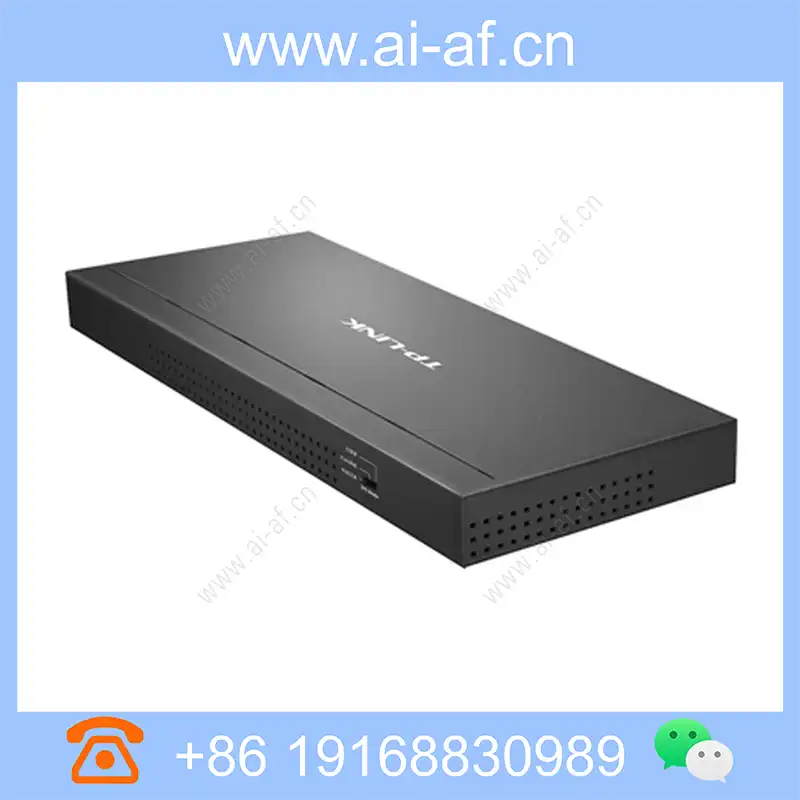

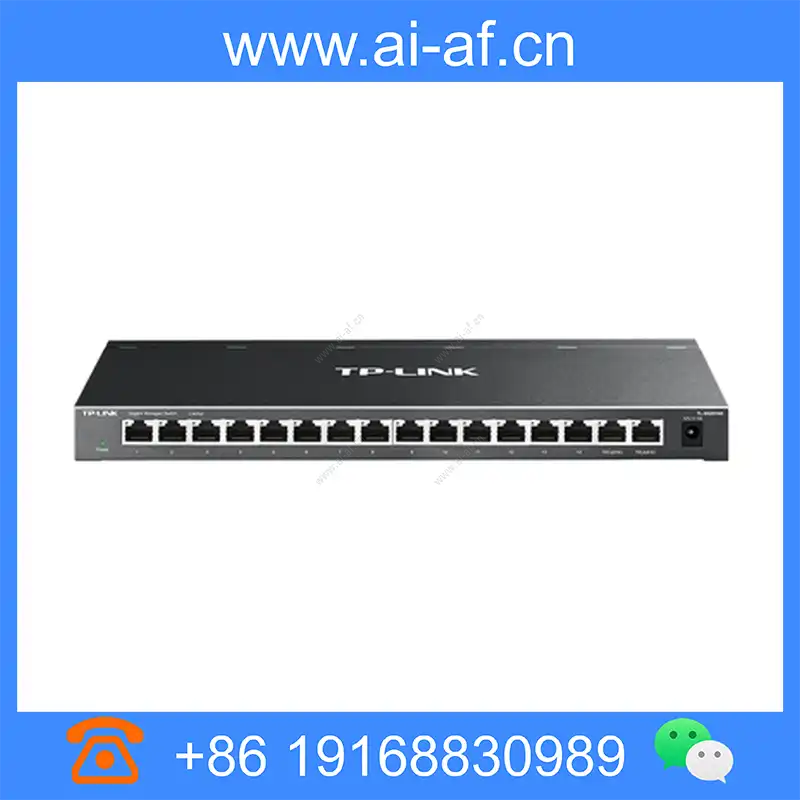

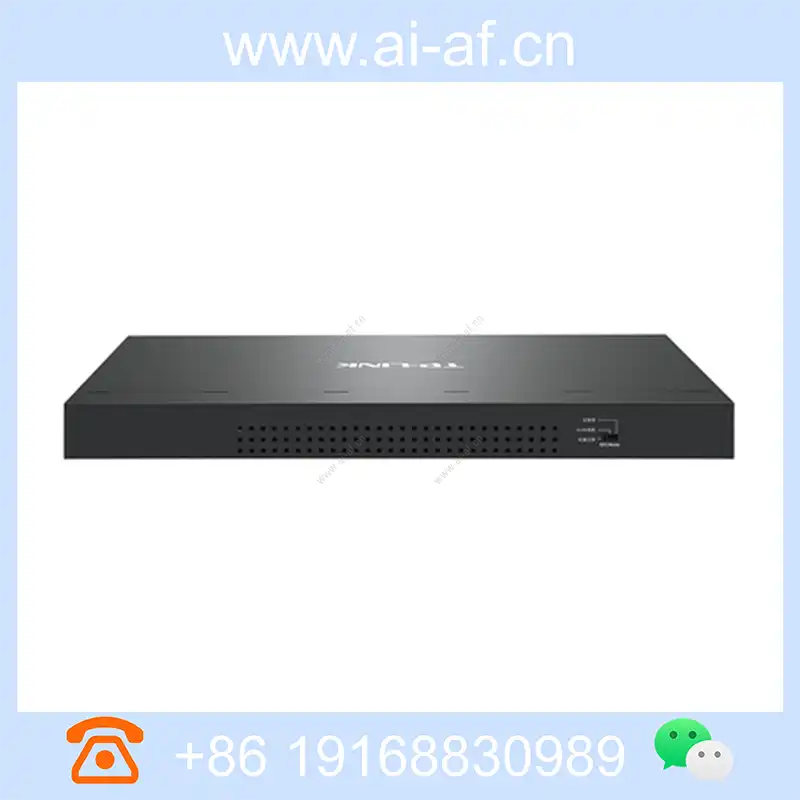

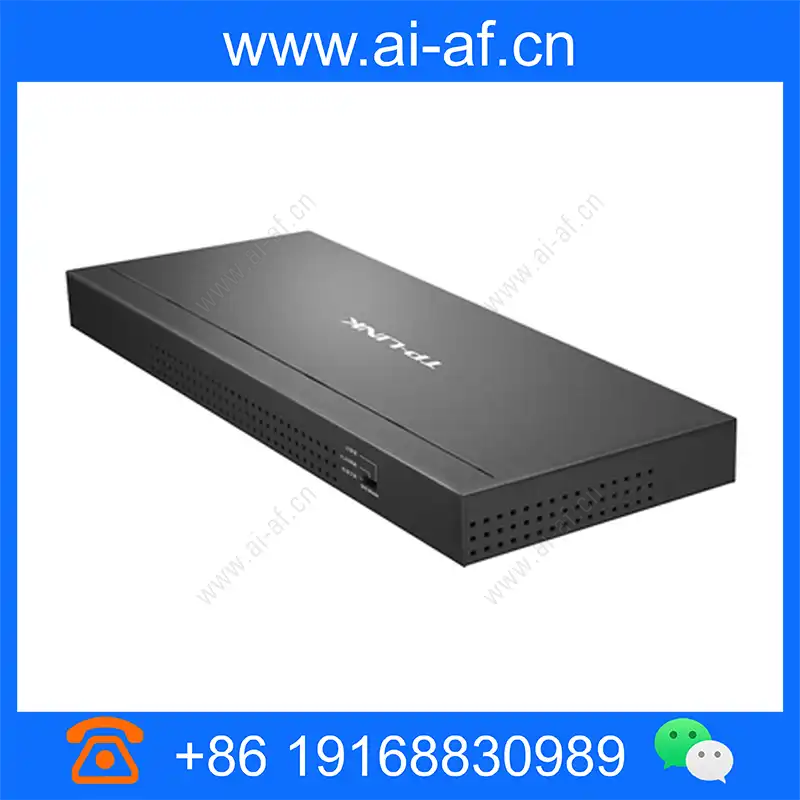

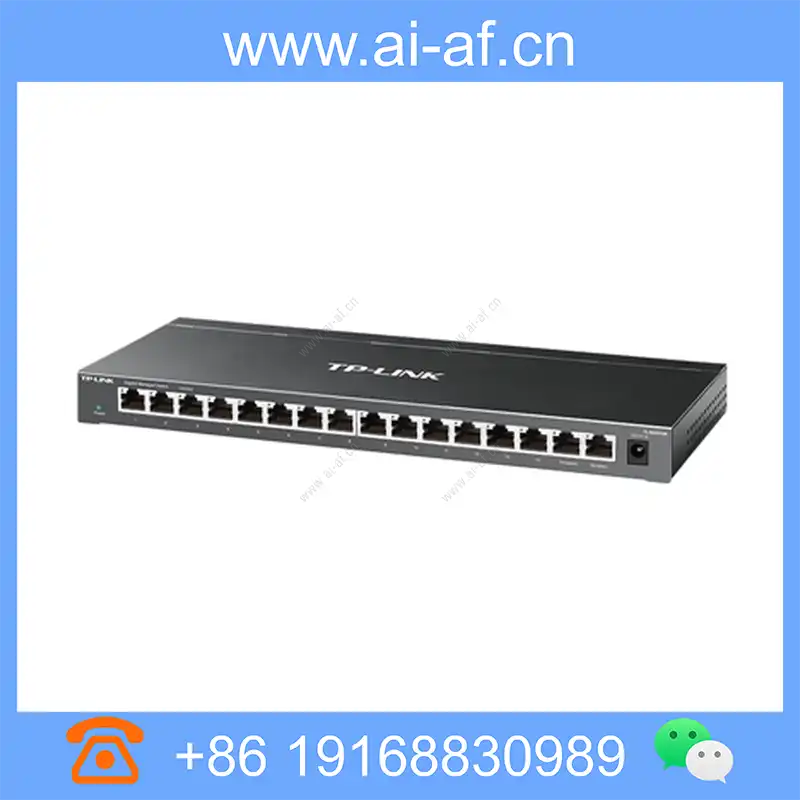

TP-LINK TL-SG2016K 16-port full gigabit web managed switch layer 2

Brand: TP-LINK

Model: TL-SG2016K

Dimensions: 286mm x 112mm x 25mm

16 10/100/1000Base-T RJ45 ports Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port traffic statistics, port monitoring, port isolation Support cable detection, loopback protection Supports three modes: Web management, VLAN isolation, and standard switching Product model TL-SG2218 TL-SG2016 TL-SG2016D TL-SG2016K Gigabit RJ45 port 16 16 16 16 Gigabit SFP port 2 0 0 0 MAC address capacity 8K 8K 8K 8K Mode switch Support three working modes: Web management, VLAN isolation, standard switching Network management functions Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control

Product Features

16 10/100/1000Base-T RJ45 ports
Support 802.1Q VLAN, MTU VLAN, port VLAN
Support QoS, bandwidth control, storm suppression
Support port aggregation, port traffic statistics, port monitoring, port isolation
Support cable detection, loopback protection
Supports three modes: Web management, VLAN isolation, and standard switching

Product model	TL-SG2218	TL-SG2016	TL-SG2016D	TL-SG2016K
Gigabit RJ45 port	16	16	16	16
Gigabit SFP port	2	0	0	0
MAC address capacity	8K	8K	8K	8K
Mode switch	Support three working modes: Web management, VLAN isolation, standard switching
Network management functions	Support remote management through Shangyun APP and Shangyun network cloud platform (Web terminal) Support local web management Support 802.1Q VLAN, MTU VLAN, port VLAN Support to configure port flow control, duplex, on/off Support port aggregation, port monitoring, port isolation, port traffic statistics Support DHCP Snooping (except 5/8 port models) Support QoS, port egress/ingress speed limit, storm suppression Support cable detection, loopback detection
Business cloud function	Support quick start Support device information reporting Support alarm push Support equipment remote operation and maintenance
Shell size (mm)	44018044	44018044	29418044	28611225
Input power	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	100~240VAC, 50/60Hz	12VDC/1A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
Gigabit RJ45 port	16
Gigabit SFP port	0
MAC address capacity	8K
Mode switch	Support three working modes: Web management, VLAN isolation, standard switching
Network management functions	Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection
Shell size (mm)	28611225
Input power	12VDC/1A
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
