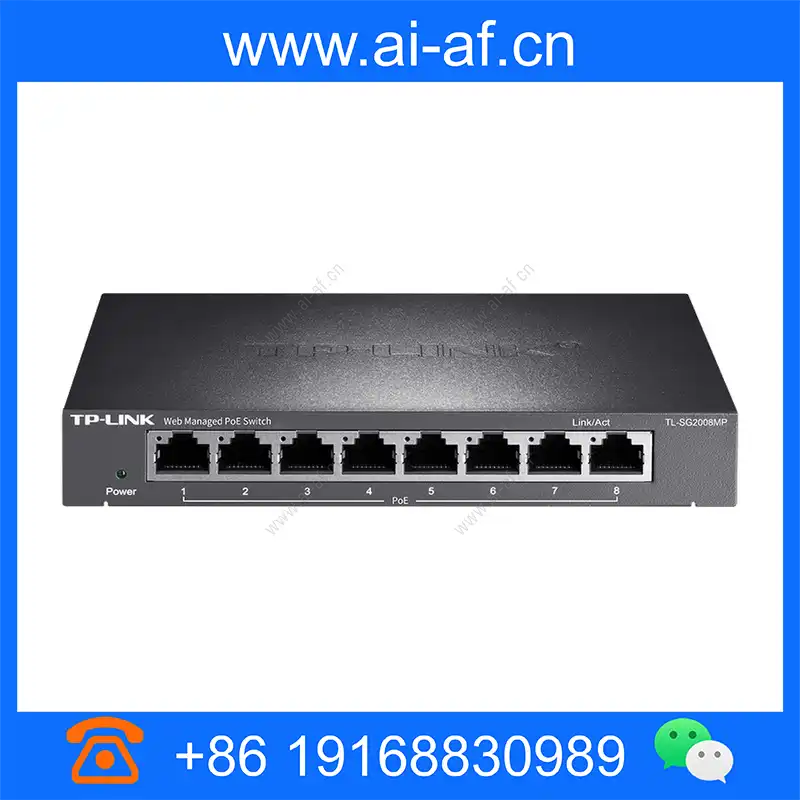

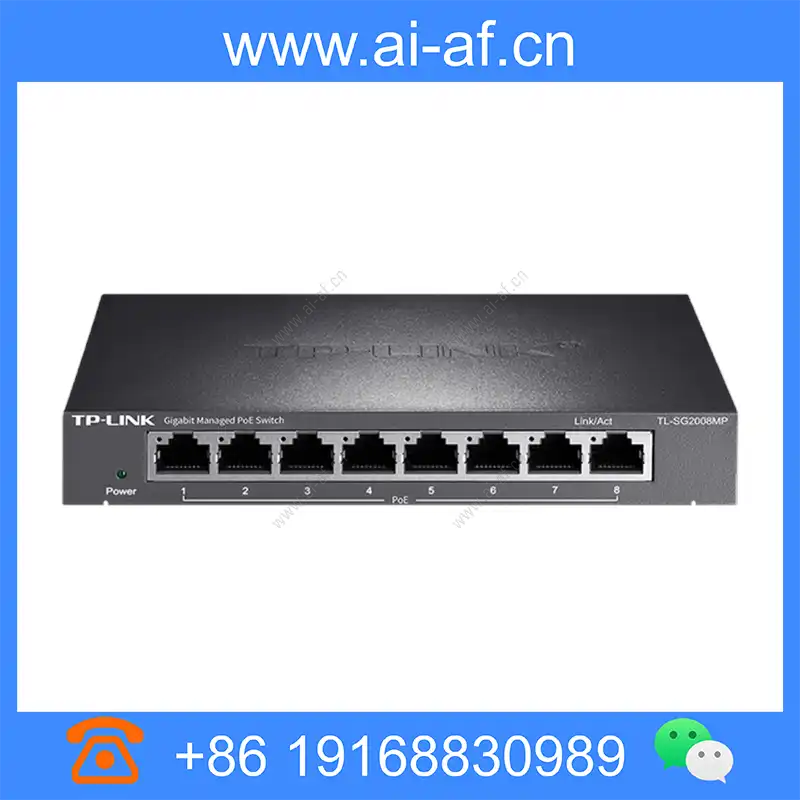

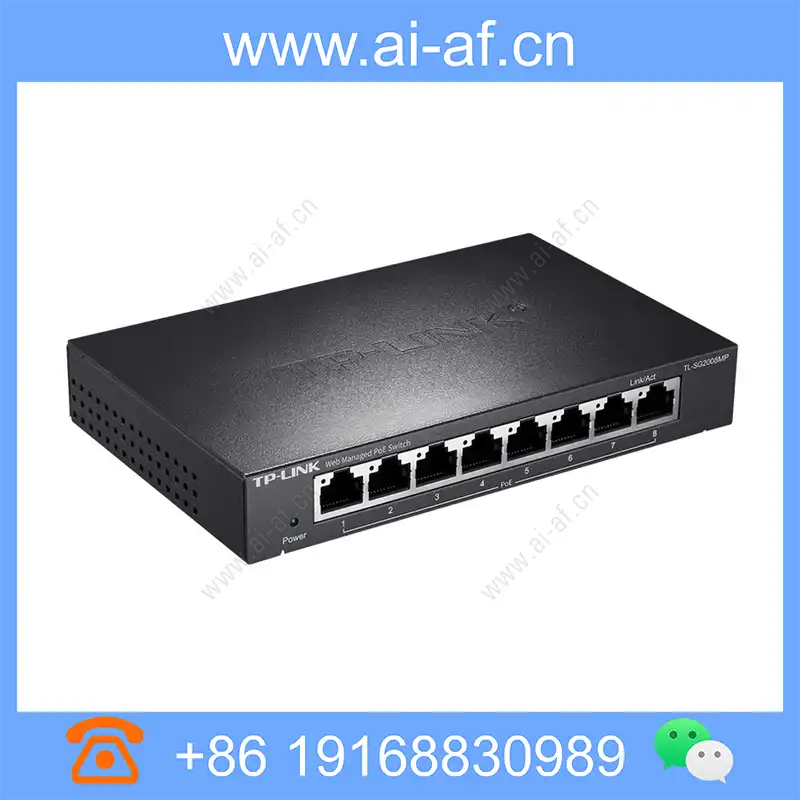

TP-LINK TL-SG2008MP 8-port full gigabit web managed PoE switch 8PoE 54W iron shell
8 10/100/1000Base-T RJ45 ports 1 to 8th MP RJ45 port support IEEE 802.3af/at standard PoE power supply The maximum POE power supply power of the whole machine is 57W, the maximum PoE power supply power of single port is 30W Support Business Cloud APP and web-side remote management Support intelligent start, abnormal alarm, fast discharge Support 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression Support port aggregation, port traffic statistics, port monitoring, cable detection, loop protection Support cloud management, VLAN isolation, standard exchange three working modes * This model is only 3.0 and above supports cloud management functions Gigabit RJ45 port 8 PoE port 8 Maximum PoE output power of the whole machine 54W Maximum power consumption of the whole machine 64W
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Gigabit RJ45 port | 8 |
| PoE port | 8 |
| Maximum PoE output power of the whole machine | 54W |
| Maximum power consumption of the whole machine | 64W |
| Maximum PoE output power of the port | 30W |
| PoE power supply standard | IEEE 802.3af/at |
| MAC address capacity | 4K |
| Mode switch | Support three working modes: Web management, VLAN isolation, standard switching |
| Network management functions | Support management via Web page Support 802.1Q VLAN, MTU VLAN, port VLAN Support QoS, bandwidth control, storm suppression Support port aggregation, port mirroring, port monitoring Support bandwidth control, storm suppression Support cable detection, loopback detection |
| Shell size (mm) | 158*100*25 |
| Input power | 53.5VDC/1.13A |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
