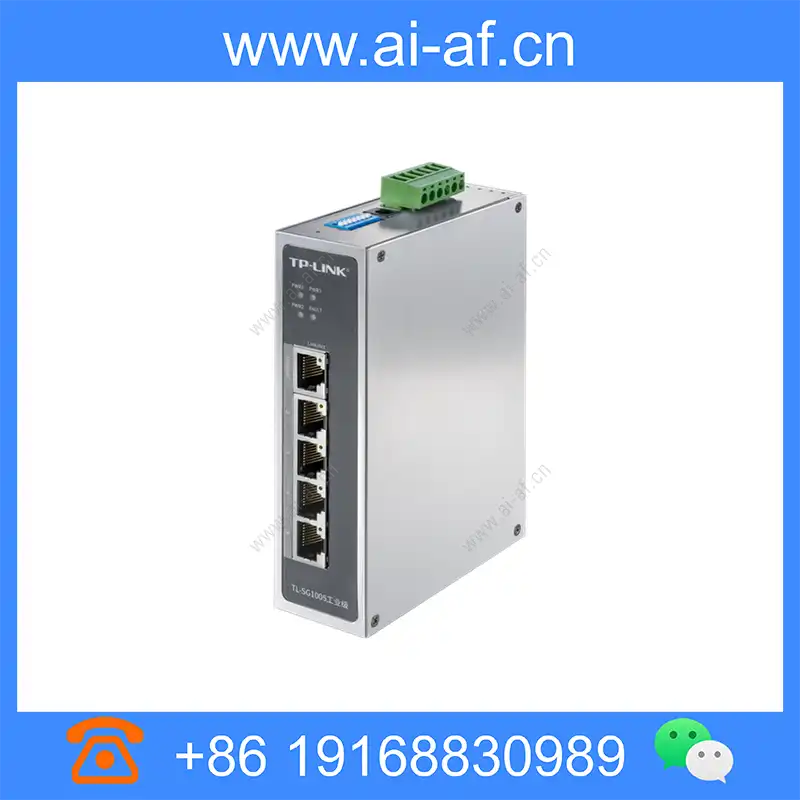

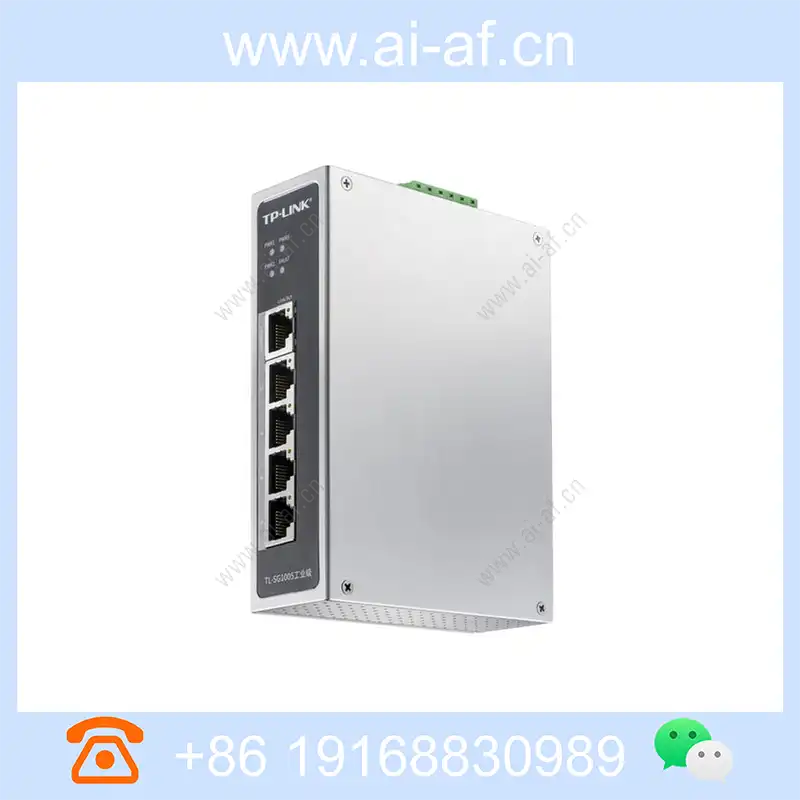

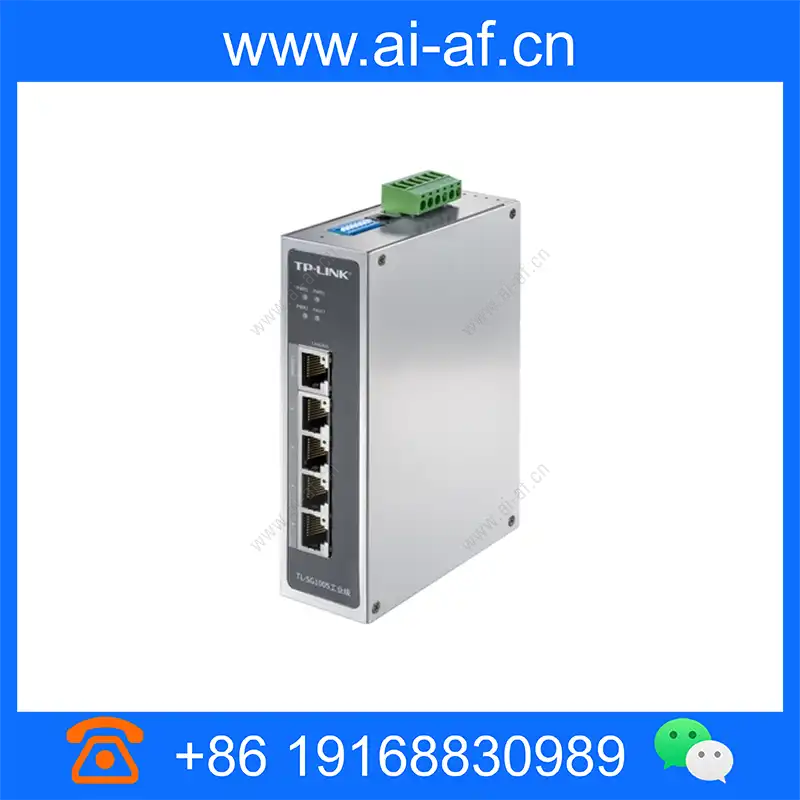

TP-LINK TL-SG1005 industrial grade switch 5-port gigabit aluminum alloy layer 2 supports port isolation
Provide 5 10/100/1000M adaptive RJ45 ports Industrial grade working temperature: -40℃~75℃ Wide voltage input: 9.6V~60VDC Small size (137 mm *100 mm *38 mm), better adapt to industrial environment Multiple installation methods: rail installation + wall installation IP30 protection: reduce the impact of dust Provide WEB management, broadcast storm protection and port interruption alarm switch, adapt to various complex network environments Aluminum alloy shell, durable Three-way power input, redundant backup, greatly improve the product power supply reliability EMC high protection level, without fear of various harsh environments *Industrial switches are not equipped with power supply at the factory, please purchase separately if you need to use power supply Protocol standard IEEE 802.3
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE 802.3,802.3i,802.3u,802.3x,802.3ab |
| Port shape | 5 Gigabit RJ45 ports |
| Indicator light | 5 status indicators Link/ACT PWR1, PWR2, PWR3 |

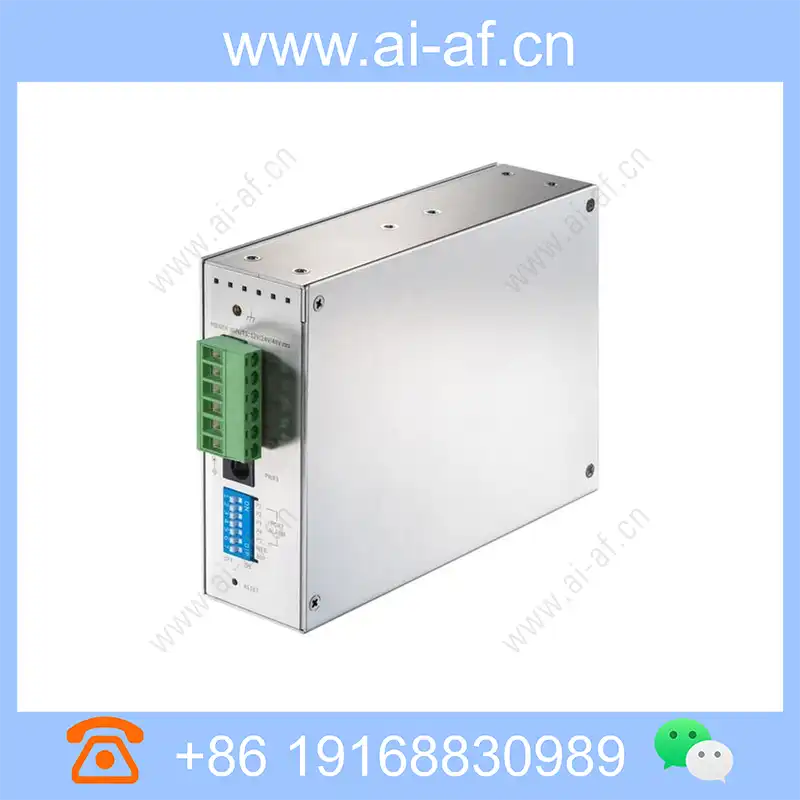

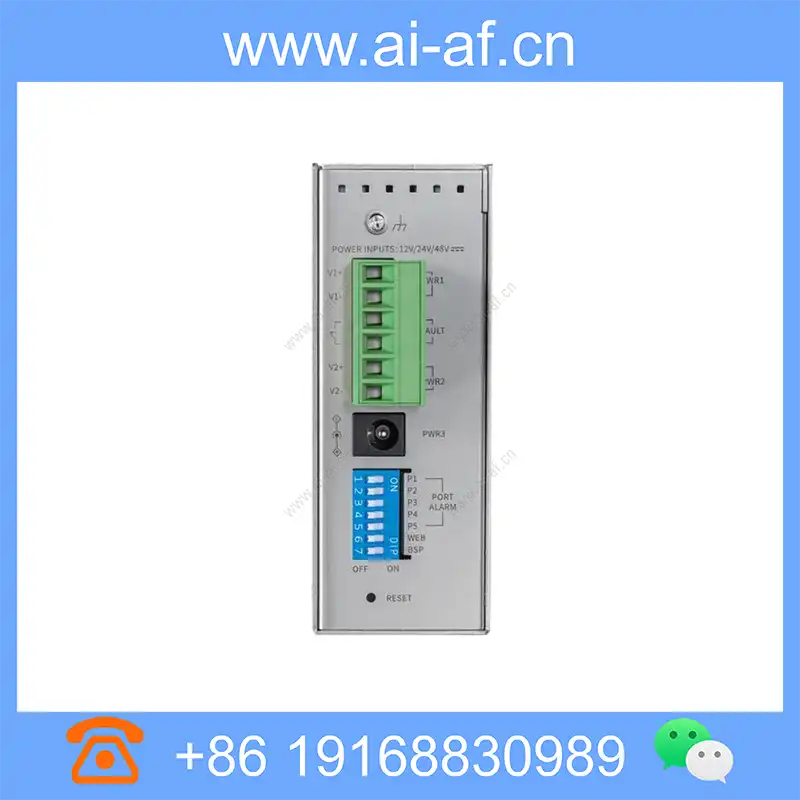

| power input | DC input voltage 12/24/48 VDC (9.6~ 60 VDC) input current 0.24A (MAX) support reverse connection protection |
| Switch performance | Support store and forward MAC address table depth 2K |
| DIP | Support broadcast storm protection, support WEB management, support port interruption alarm |
| structure | IP30 protection grade Product size 137mm*100mm*38mm rail/wall mounting |
| temperature | Working temperature -40°C — 75°C Storage temperature ‒40°C — 85°C |
| humidity | Operating humidity 10%RH — 90%RH, non-condensing Storage humidity 5%RH — 90%RH, non-condensing |
| Certification Standards_EMS | IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 3 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5 |
| Port configuration | Support port open/close Support port flow control open/close Support port rate/duplex |
| Layer 2 switching | Support port address dynamic learning Support port aggregation |
| Port mirroring | Support traffic statistics Support local entry/exit monitoring Support cable detection and loopback detection |
| Multicast | Support IGMP V1/V2/V3 Support multicast address display Support multicast suppression |
| VLAN | Support 802.11Q VLAN, MTU VLAN, port VLAN |
| Quality of Service (QoS) | Support 4 port queues Support port priority, 802.1P priority, DSCP priority Support port speed limit, storm suppression |
| System Management | Support management via Web page Support PC software management |
| System Tools | Support software upgrade Support configuration backup and configuration recovery Support system restart and software reset |
| Packaging accessories | Wall-mounted parts Warranty card User manual |
